110 Years of Defining Audio Excellence

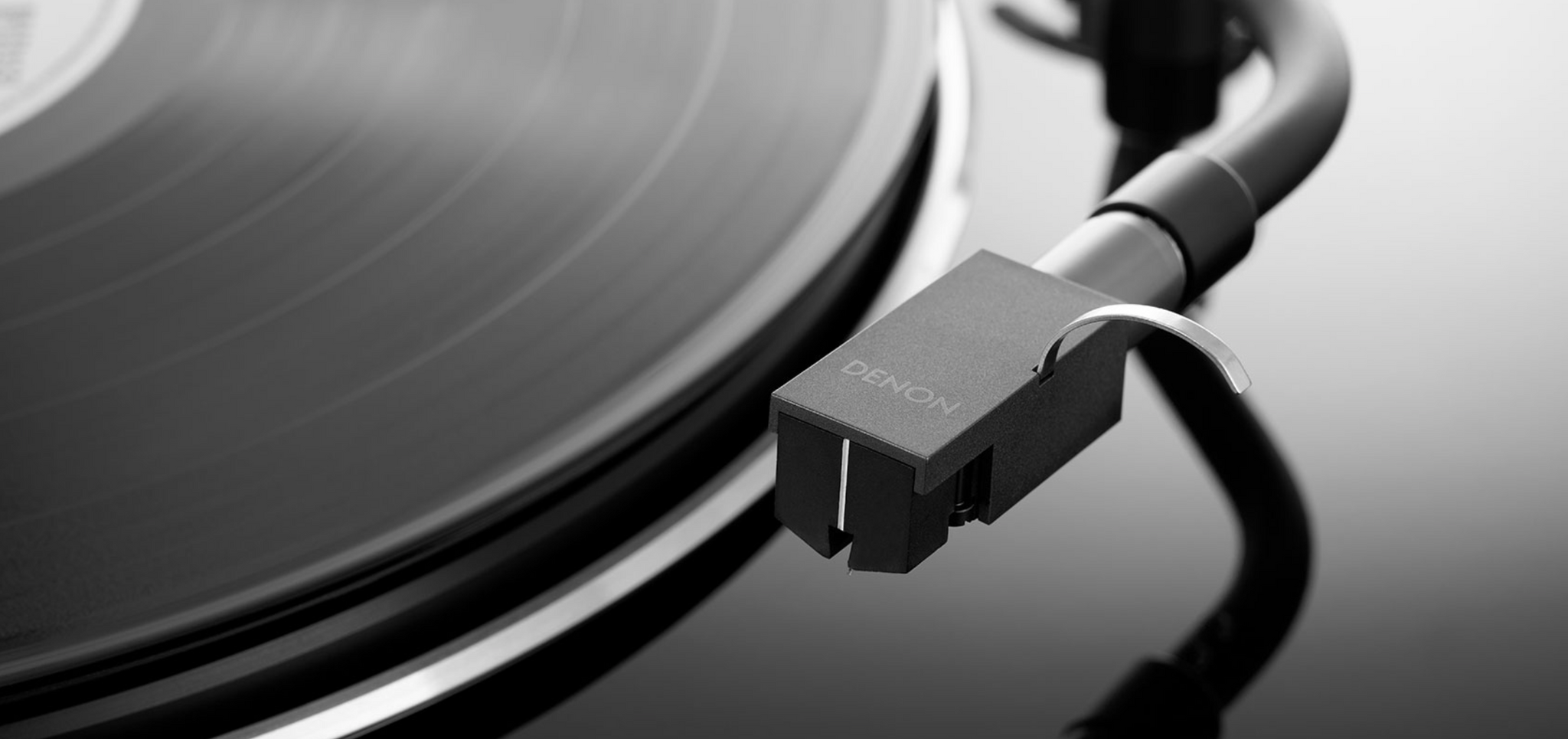

The limited edition DL-A110 MC phono cartridge features a perfect reproduction of the original Denon headshell, designed to meet the extremely high standards of the Japan Broadcasting Corporation (NHK), in their Anniversary Series silver-graphite colour.
Denon has been upgrading your expectations in the audio and video industry since 1910 and we are proud to celebrate this great achievement with the DL-A110 and its partner products, the PMA-A110 and DCD-A110.

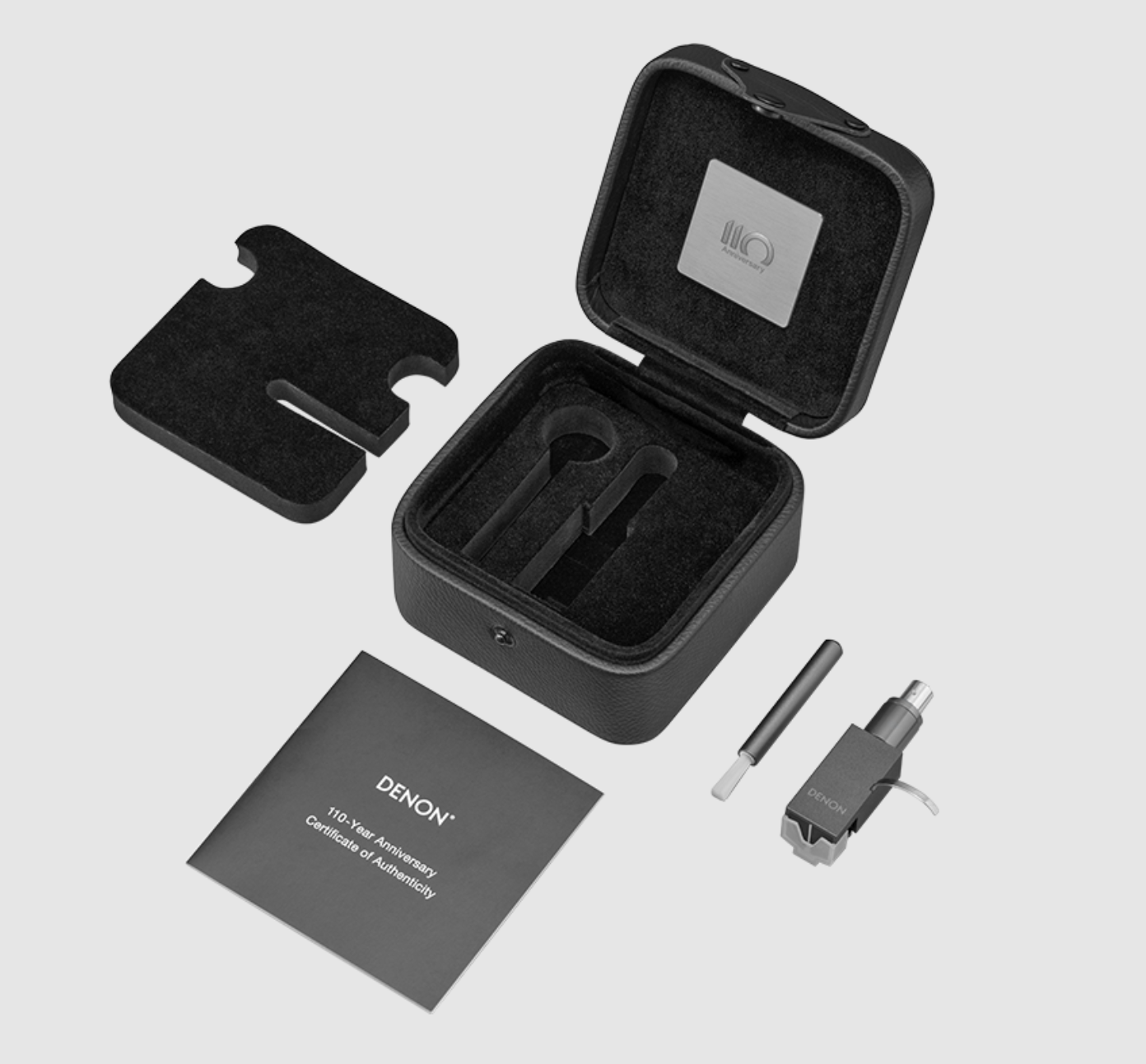

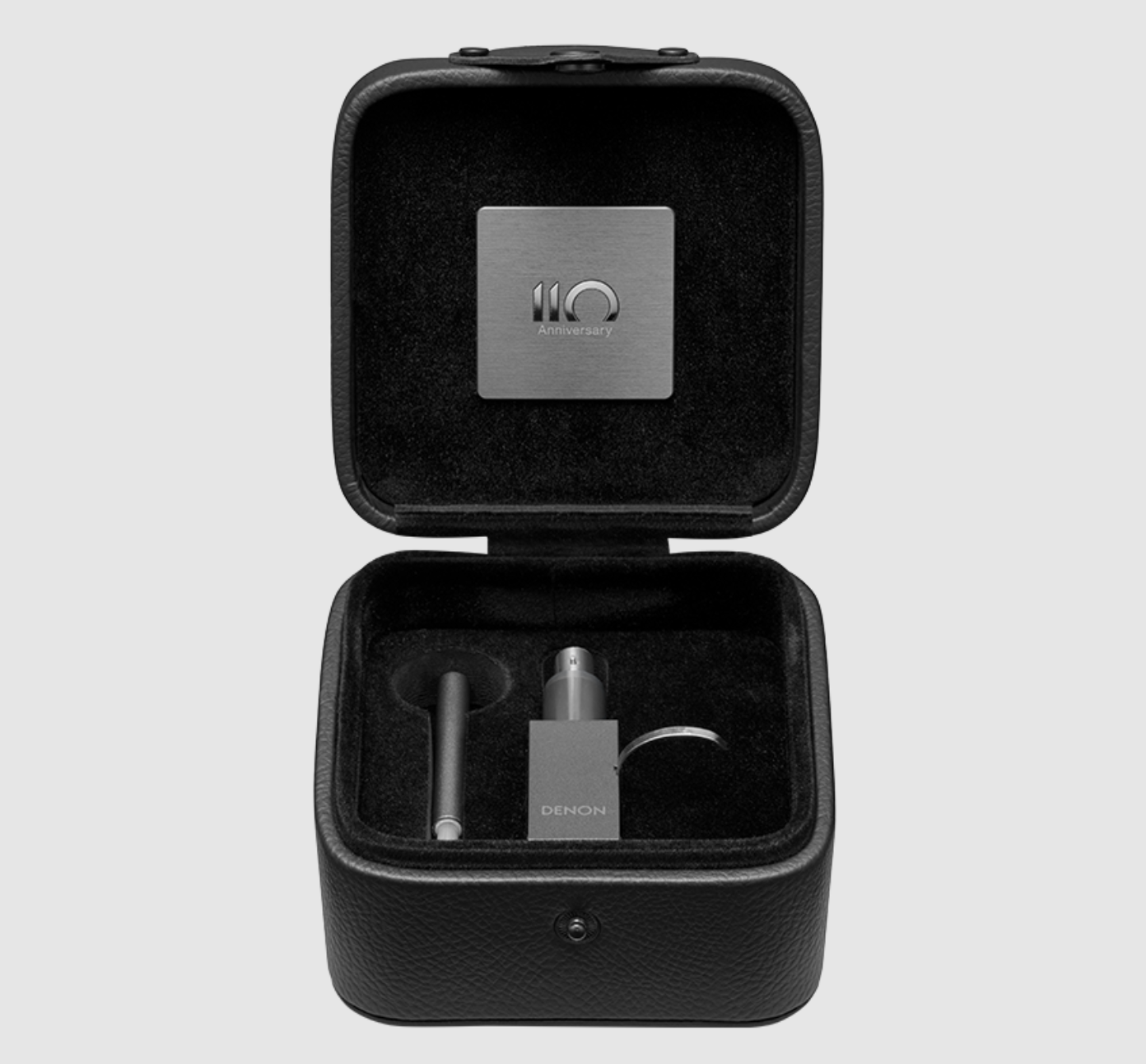

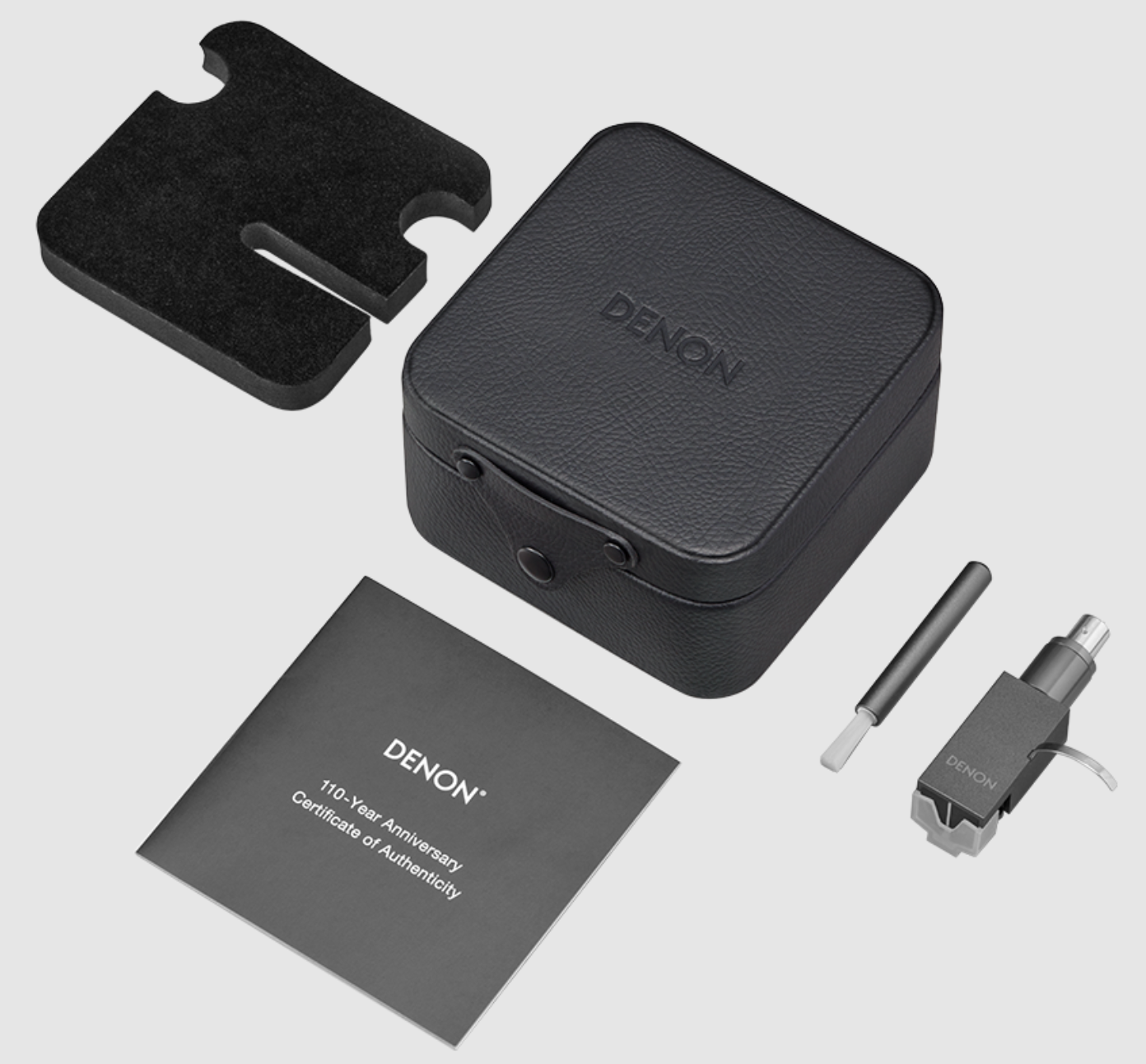

To celebrate this significant milestone, the DL-A110 comes with a commemorative carrying case adorned with a special Denon 110 Anniversary metal inlay logo.

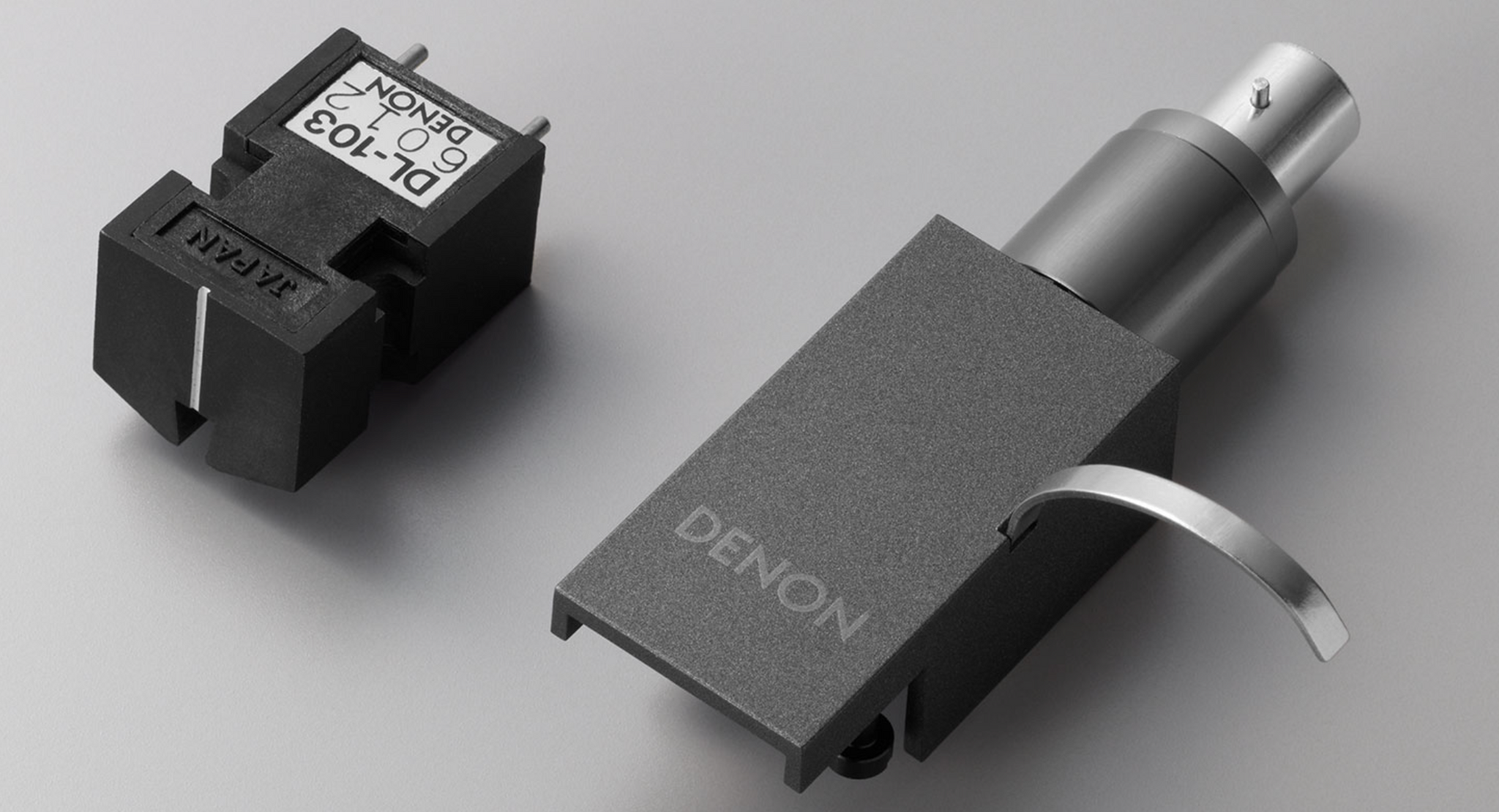

Original Denon Headshell Reproduced in Stylish Anniversary Design
True to the original headshell developed in the 1960s for radio broadcast, the DL-A110 silver-graphite headshell is an exact reproduction of the original design.
The lightweight DL-A110 headshell ensures the cartridge is held securely and perfectly aligned preventing any unwanted vibrations and leading to a detailed and clean audio reproduction with extended low frequency performance.
Defining audio excellence since 1910
The stylish, premium silver-graphite colour perfectly complements companion pieces in the Denon 110-year anniversary line.
Trusted guarantee
The DL-A110 MC phono cartridge includes a Certificate of Authenticity stamped with the approval of Denon’s Head Engineer and a premium, 5-year out-of-the-box warranty (excluding stylus).
Specially made tonearm interface

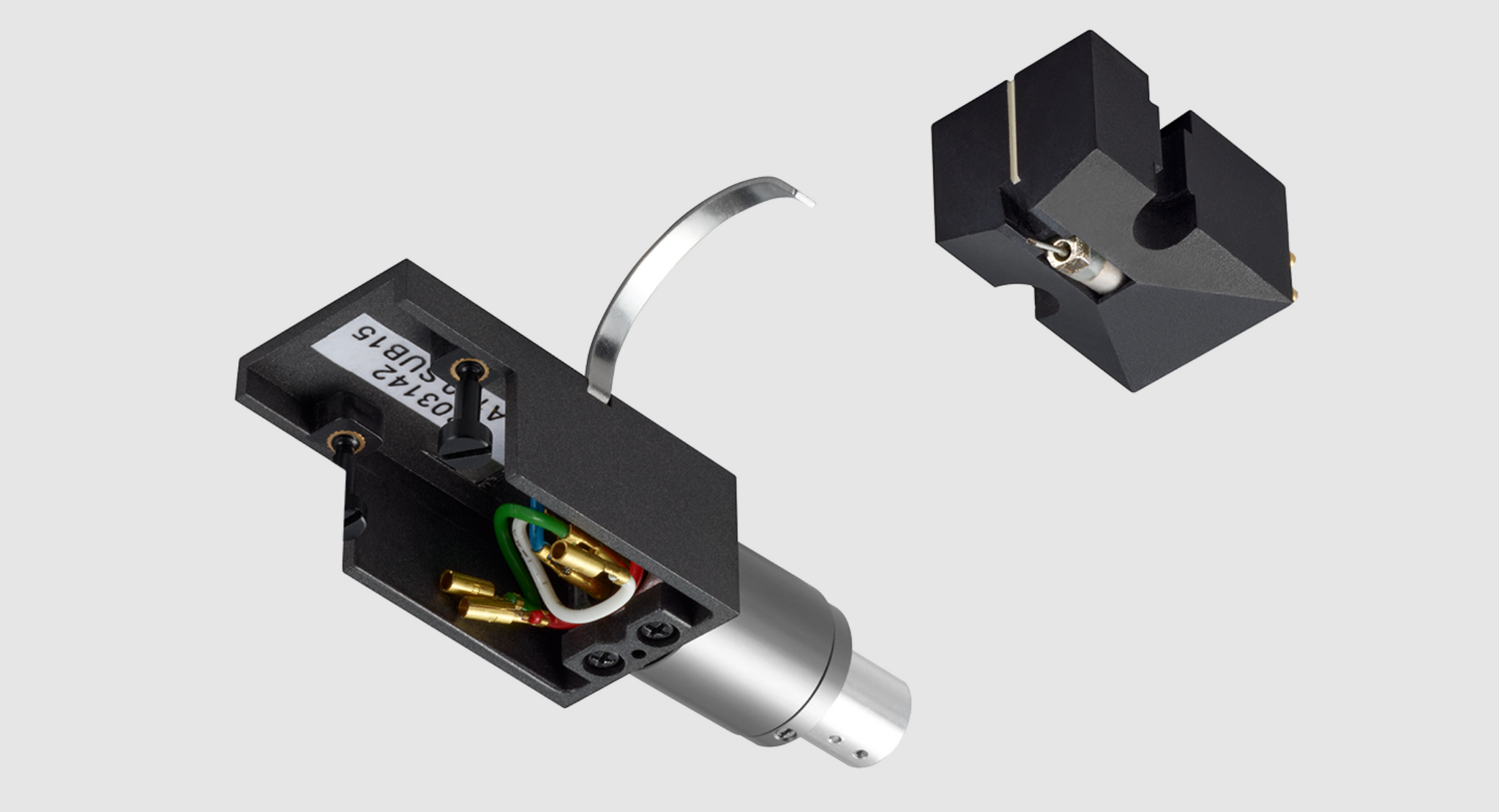

The DL-A110 is equipped with a bayonet connector also known as the SME tonearm interface with gold-plated connectors for easy installation and high reliability.
The most refined vinyl experience
Wide playback band (especially in the high range), flat output voltage, and frequency characteristics.
Tested to Denon’s standards
All single cartridges will come with a measurement protocol to confirm frequency response is according to the standards set.
Excellent channel separation
20dB or more at 100-5000Hz and 15dB or more at 10kHz.
Enjoy your vinyl, whether stereo or mono
The DL-A110 lets you masterfully reproduce both LP stereo records and LP mono records.
Technical Specifications
Type
MC
Frequency Range
20 Hz - 45 kHz
Output Voltage
0.25mV
Output Impedance
14 ohms
Sensitivity
-66dB ±2dB (0dB=0,775V, 5cm/s lateral 1kHz
Sensitivity difference
Within 2dB at 50-5kHz
Frequency response
10 Hz – 45kHz
Electrical impedance
40Ω ± 20%
Stylus pressure
2.5 ± 0.3 gr
Vertical tracking angle
15-18 degree
Weight
8.5 g
Warranty
5-year out-of-box warranty and Certificate of Authenticity
*please note that this does not include the stylus, which is sold separately
