Denon DL-103R Moving Coil Cartridge

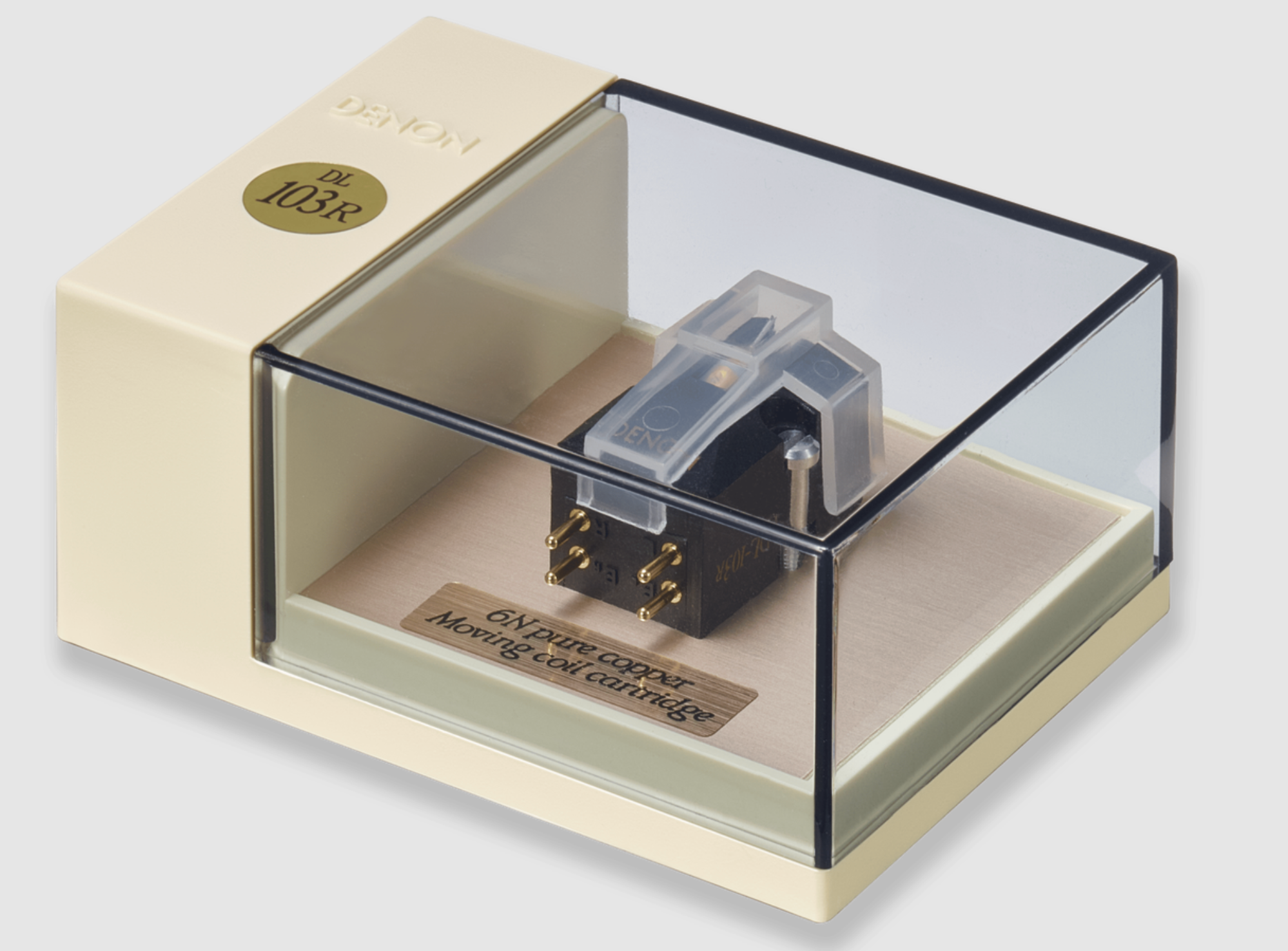

Denon DL-103R Moving Coil Cartridge, in packaging
Denon
Denon

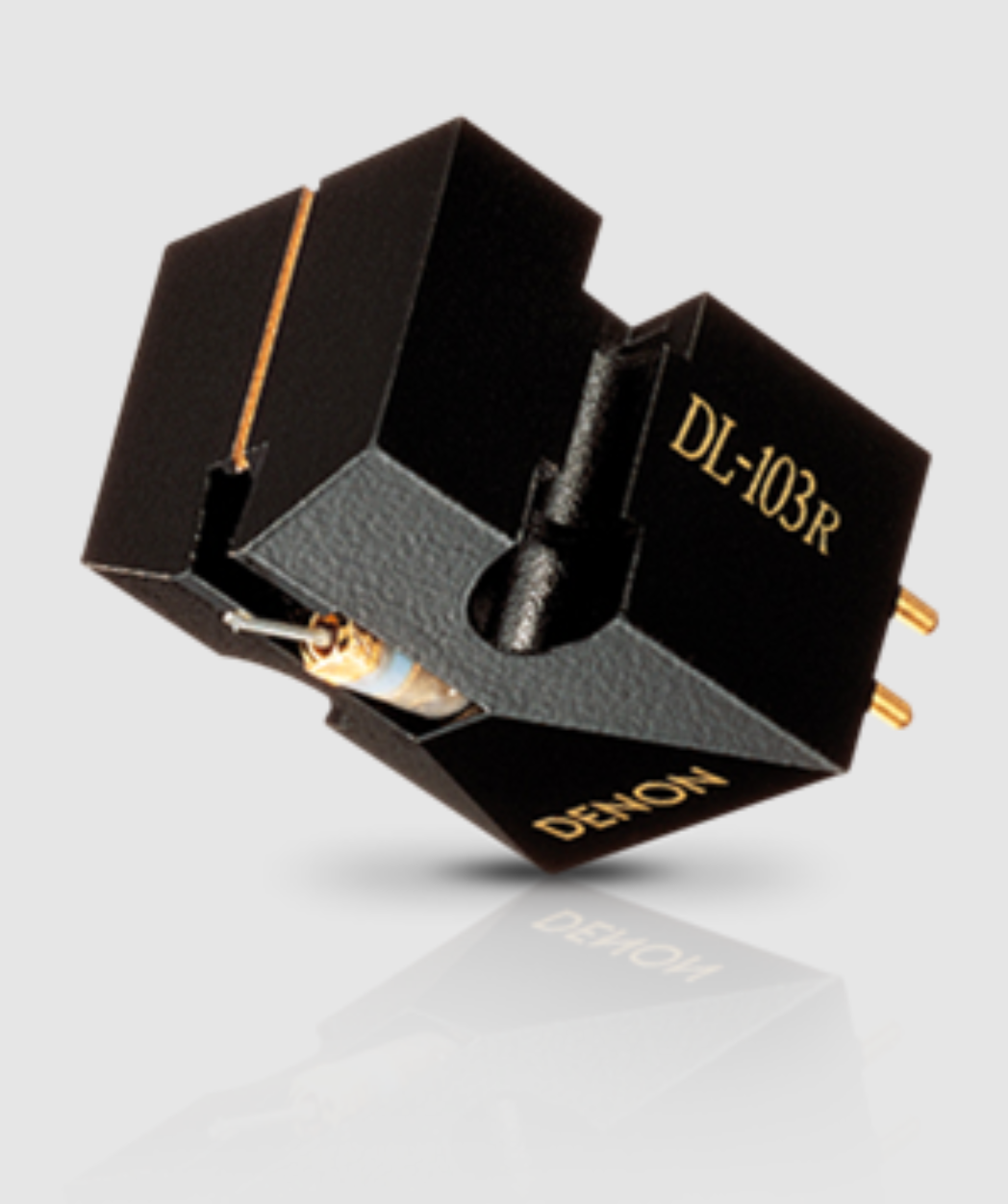

Denon DL-103R Moving Coil Cartridge

$629.00 AUD

"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."

Introducing the DL-103R Cartridge

Japanese Precision with hand wound Coils

The DL-103R iMoving Coil Cartridge is an updated version of the classic DL-103. It provides improved sound by using 6N copper coils wound with precision to the cantilever shaft.

The sound of the DL 103R is simply outstanding. Characteristically it allows the music to come across as a composition, not as a group of disjointed parts.

Many other cartridges will give great separation of instruments and holographic imaging and detail, but they never seem to merge as a musical whole. The DL 103R excels in this area of making the parts merge into a full musical presentation, whilst retaining the detail and delineation of the instruments and voices.

Audio lovers will delight with detail that is brought out by this outstanding phono cartridge.

Product Features

  • Super Stability
  • Double layer cantilever construction
  • One point suspension
  • Coils Hand-wound at Shirakawa Audio Works, Japan

Technical Specifications

Type
MC

Frequency Response
20 Hz – 45kHz

Output Voltage
0.25mV (1 kHz, 50mm/s horizontal direction

Channel Balance
1dB max (1kHz)

Channel Separation
 25 dB Min (1kHz)

Electrical Impedance
14 Ohms +/-20%

Compliance
5 x 10-3 m/N (Using a 100Hz record)

Tracking Force
2.3 - 2.7 grams

Stylus Tip
16.5 Micron Round Tip

Load Impedance
100 Ohms Min
40 Ohms when using step up transformer

Weight
8.5 g



Information obtained from Manufacturers website
