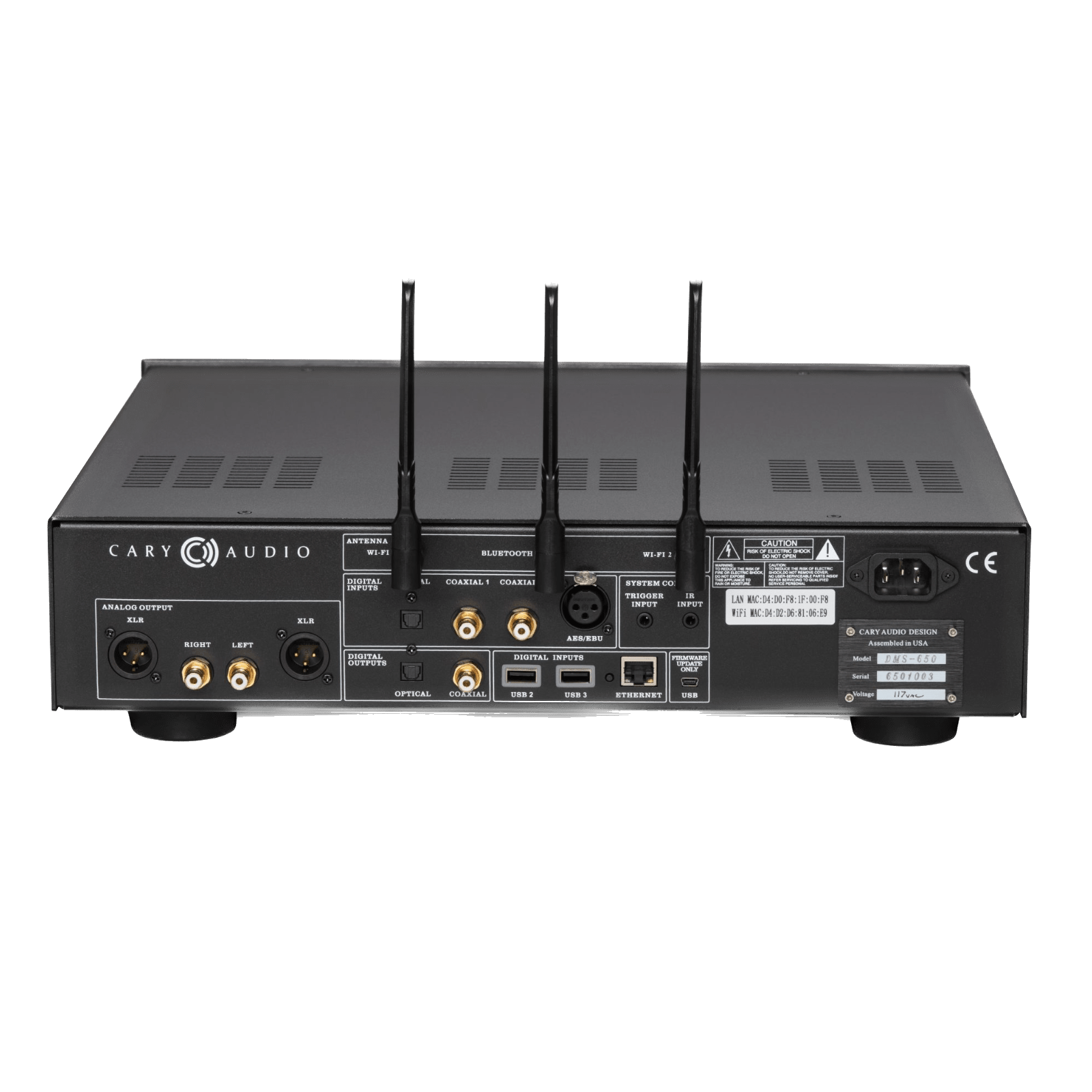

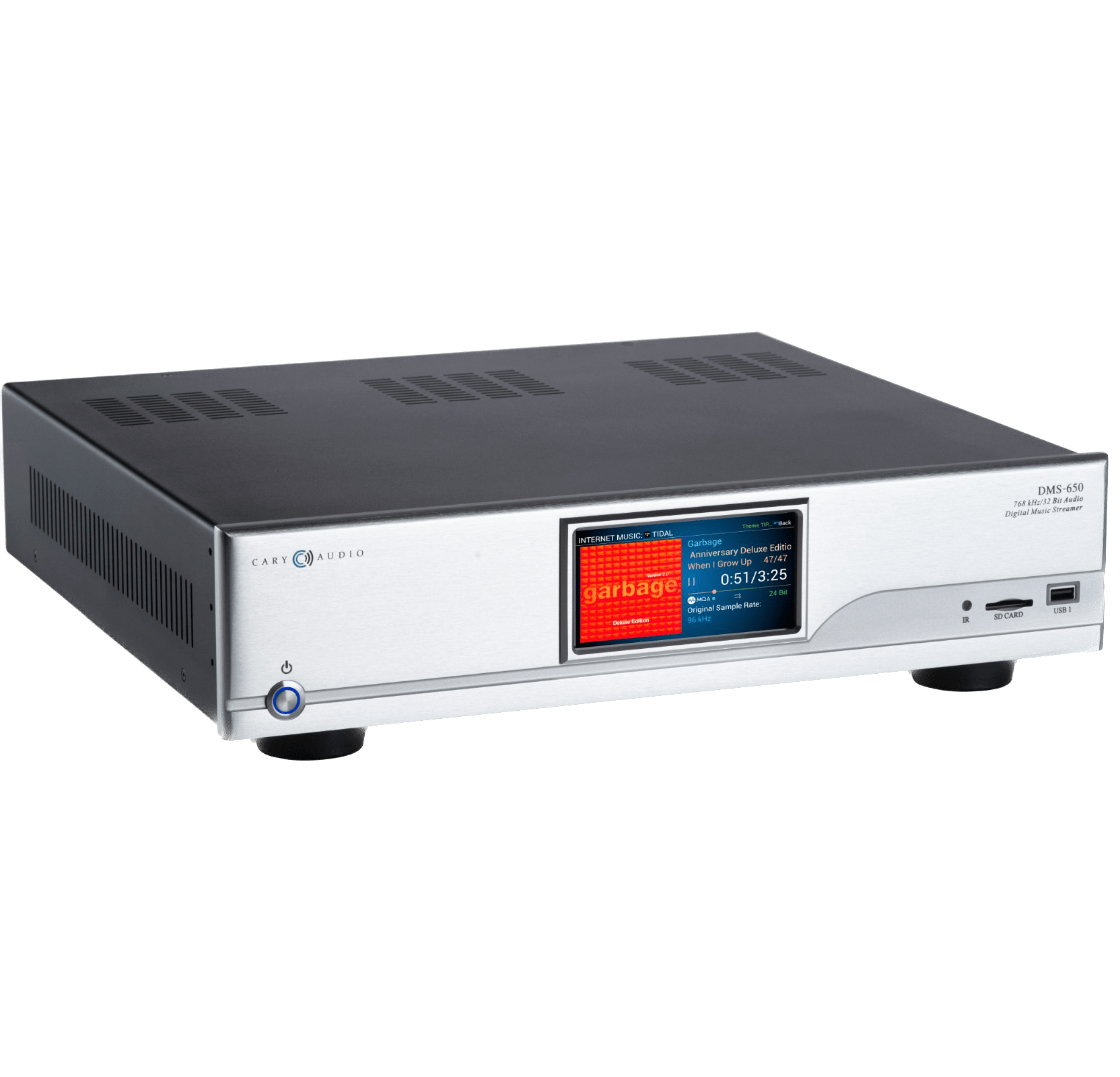

Cary Audio DMS-650 Network Streamer
Breathtaking Sound, Seamless Connectivity
Experience the unparalleled versatility and sonic excellence of the entire DMS range – a meticulously crafted family of products designed to elevate your audio experience to new heights. Engineered as a unified platform, each DMS model boasts an extensive array of features, playback capabilities, and user-friendly interfaces, ensuring a seamless experience across the board.
As the entry point of this lineup, the DMS-650 sets a new standard for excellence with its extraordinary sound signature characterized by full-bodied richness, natural midrange, and silky-smooth highs. Unlike other components, the DMS-650 delivers a captivating listening experience across all genres and volumes, ensuring endless hours of musical enjoyment. Featuring premium features like dual AKM AK4497EQ DACs, Spotify Connect, TIDAL Connect, Qobuz, Roon Ready, Airplay, and more, the DMS-650 offers unparalleled connectivity and performance. Elevate your audio journey with Cary Audio’s DMS range – the ultimate choice for discerning audiophiles seeking innovation and excellence.
Since its founding in 1989, Cary Audio has stayed at the forefront of home entertainment equipment by stubbornly adhering to the principles of quality and musicality upon which it was founded. It’s not enough just to be able to build great-sounding gear, but it needs to be well-made, reliable and maintain its performance and value for many years.
Cary Audio has evolved into a powerhouse offering solid-state home theatre and digital source gear. Their commitment to quality and performance remains unwavering as they continue to push boundaries with cutting-edge innovations.
Master Clock Jitter
Below measurable levels
Digital Sampling Rates (Fs)
44.1 kHz to 768 kHz, DSD64 to DSD512
Digital Filter
32-Bit 8x Oversampling Digital Filter
Digital/Analog Converters
2 – 2 channel AK4497EQ for true balanced output
Bluetooth
CSR Bluetooth v4.0 with aptX® HD for 24-Bit / 48 kHz high-definition audio decoding
Analog Filter
3rd Order Bessel
Analog Outputs
Balanced XLR, Single-Ended RCA
Digital Outputs
Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 386 kHz, 16-bit to 24-bit, DSD64, DSD128
Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16-bit to 24-bit, DSD64
Digital Inputs
USB x3, SD Card x1
Bluetooth x1
AES/EBU x1, Coaxial x2, Toslink x1
Digital Input Sample Rate
USB/HDD operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16-bit to 32-bit, DSD64, 128, 256, 512
Bluetooth Sample Frequency (Fs) 48 kHz, 24-bit
AES/EBU, Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16-bit to 24-bit, DSD64 to DSD128
Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16-bit to 24-bit, DSD64
Control
Trigger input 12VDC x1
IR control x1
Communication
Ethernet RJ45 full remote configuration interface
Wi-Fi 802.11 b/g/n/ac support MU-MIMO
Power Input
Configured at factory for either 110–120V or 220–240V AC, 50–60 Hz
AC Power Requirements
45 Watts
Finishes
Black
Silver
Weight
13 kg
Dimensions
95 x 438 x 413 mm (H x W x D)
AUDIO (LPCM)
Frequency Range
2 Hz – 22 kHz (44.1 kHz)
Amplitude Linearity
0.1 dB (20 Hz – 20 kHz)
Phase Linearity
3 degrees (20 Hz – 20 kHz)
Dynamic Range
121 dB (1 kHz) XLR OUT
Signal-to-Noise Ratio
115 dB (1 kHz)
Channel Separation
107 dB (1 kHz)
Total Harmonic Distortion
0.0004% (1 kHz)
Audio Output Level
2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output
+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
NETWORK, USB & SD CARD PLAYBACK
Playback Format Support
.dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf
Frequency Range
2 Hz – 100 kHz +/- 3.0 dB
Signal System
16, 20, 24 & 32-bit PCM and 1-bit DSD
Sampling Frequency
44.1 kHz to 384 kHz PCM and 2.822 MHz – 22.5792 MHz DSD
Dynamic Range
121 dB @1kHz XLR OUT
DSD System Clock Frequency
22.5792 MHz
Signal-to-Noise Ratio
115 dB
Audio Output Level
2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output
+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
SPDIF PLAYBACK – COAXIAL, TOSLINK & AES/EBU (LPCM)
Frequency Range
2 Hz – 100 kHz +/- 3.0 dB
Signal System
16, 20 and 24-bit
Sampling Frequency
44.1 kHz to 768 kHz PCM, DSD64, DSD128
Dynamic Range
121 dB @1kHz XLR OUT
System Clock Frequency
22.5792 MHz
Signal-to-Noise Ratio
115 dB
Audio Output Level
2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
3.0V RMS (220 Ω output impedance) for Volume at +8.0dB
Balanced XLR Output
+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.
E&OE
