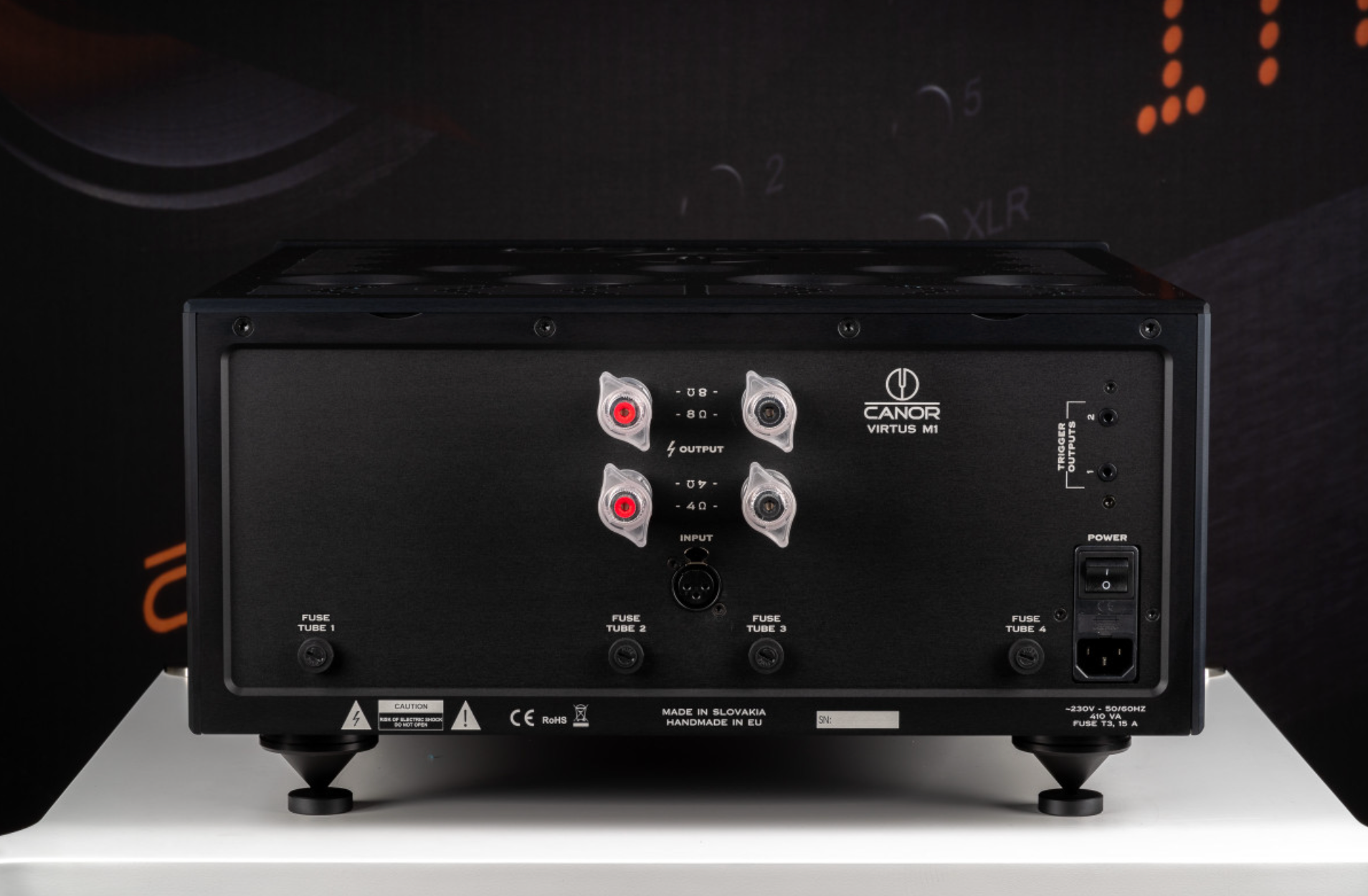

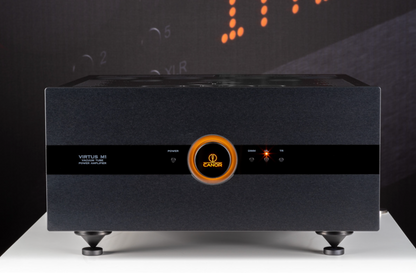

Canor Virtus M1 Vacuum Tube Power Amplifier in Black. Front of unit

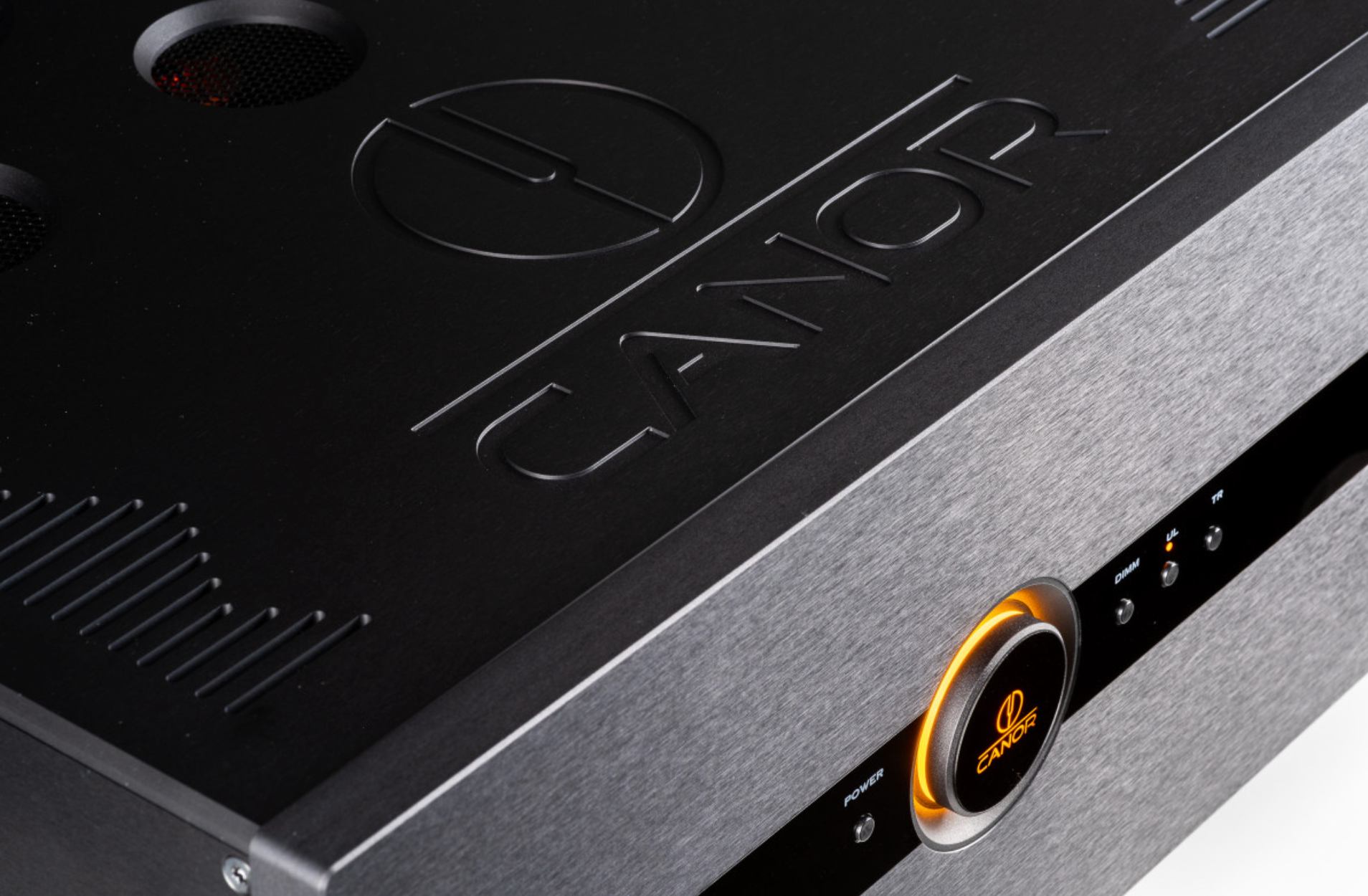

Canor Virtus M1 Vacuum Tube Power Amplifier in Black. Angled image

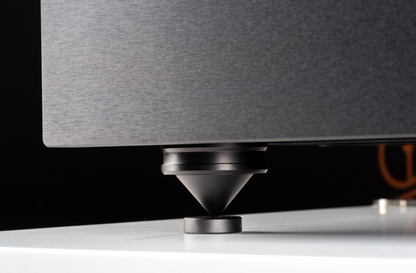

Canor Virtus M1 Vacuum Tube Power Amplifier in Black. Image of feet

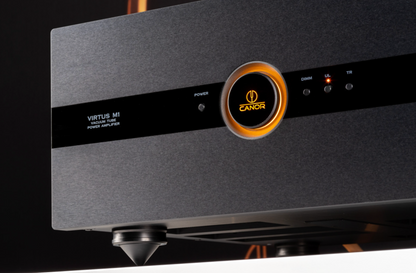

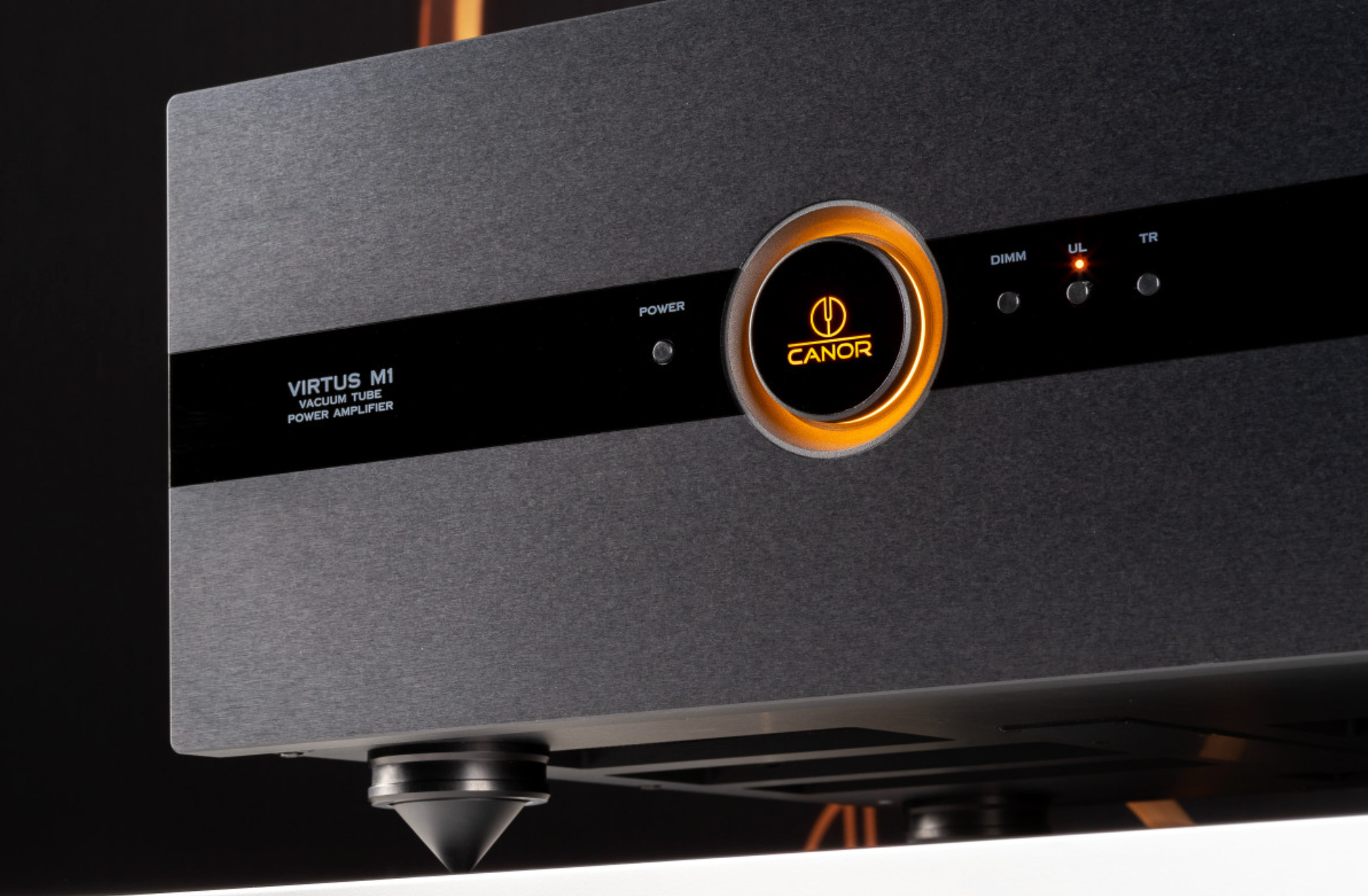

Canor Virtus M1 Vacuum Tube Power Amplifier in Black. Closeup

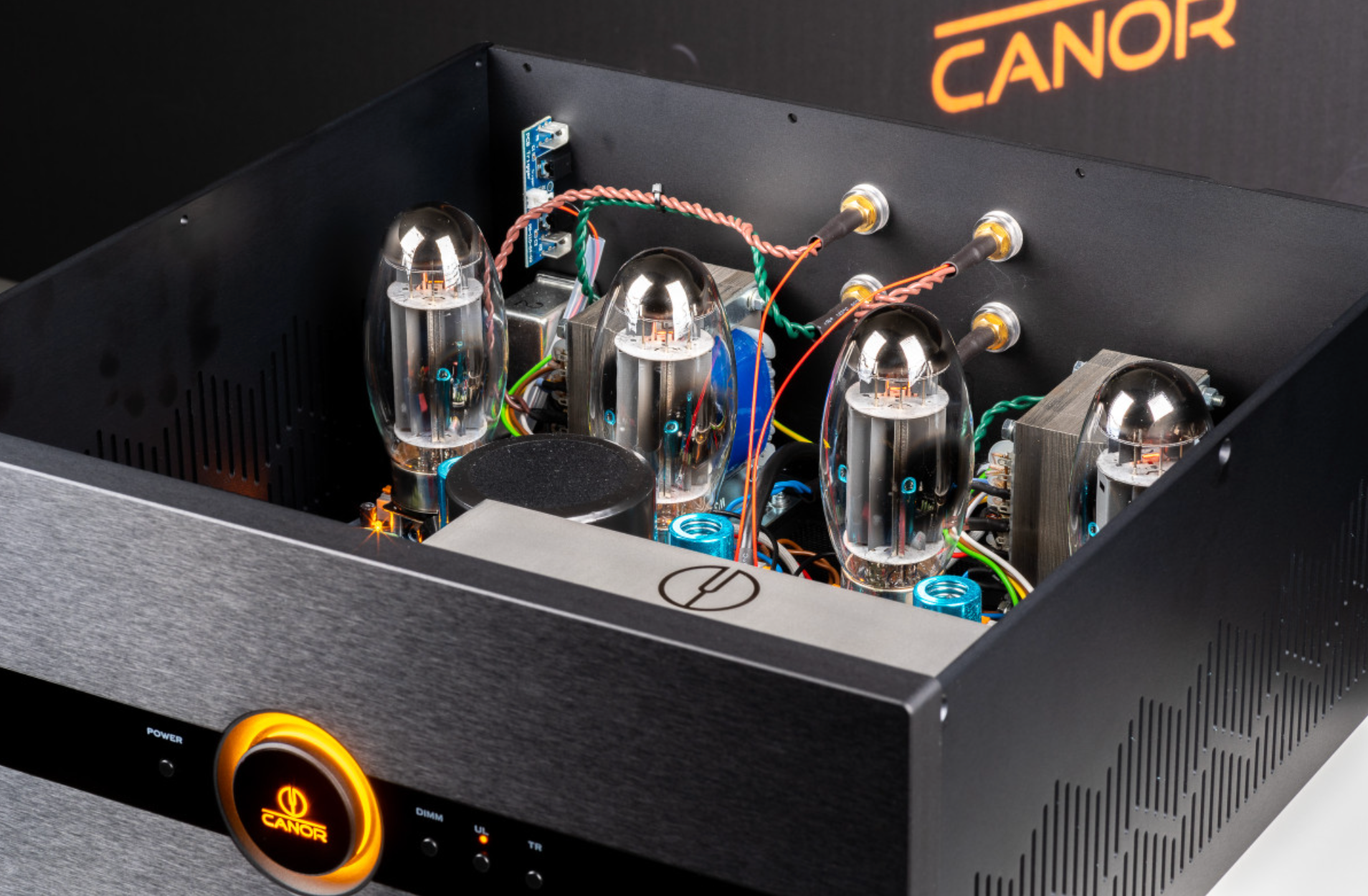

Canor Virtus M1 Vacuum Tube Power Amplifier in Black. Internal Image

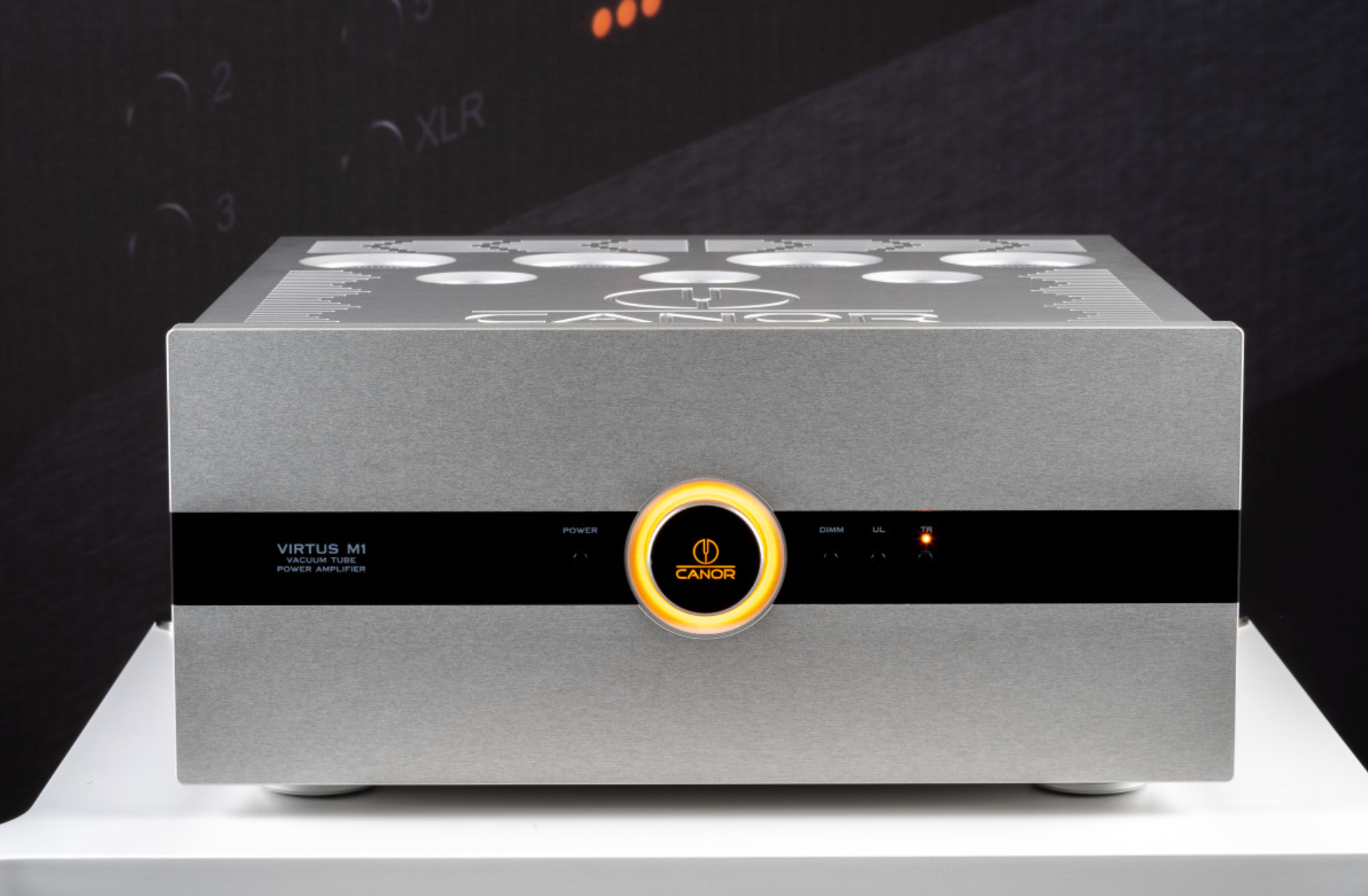

Canor Virtus M1 Vacuum Tube Power Amplifier in Silver. Front Image

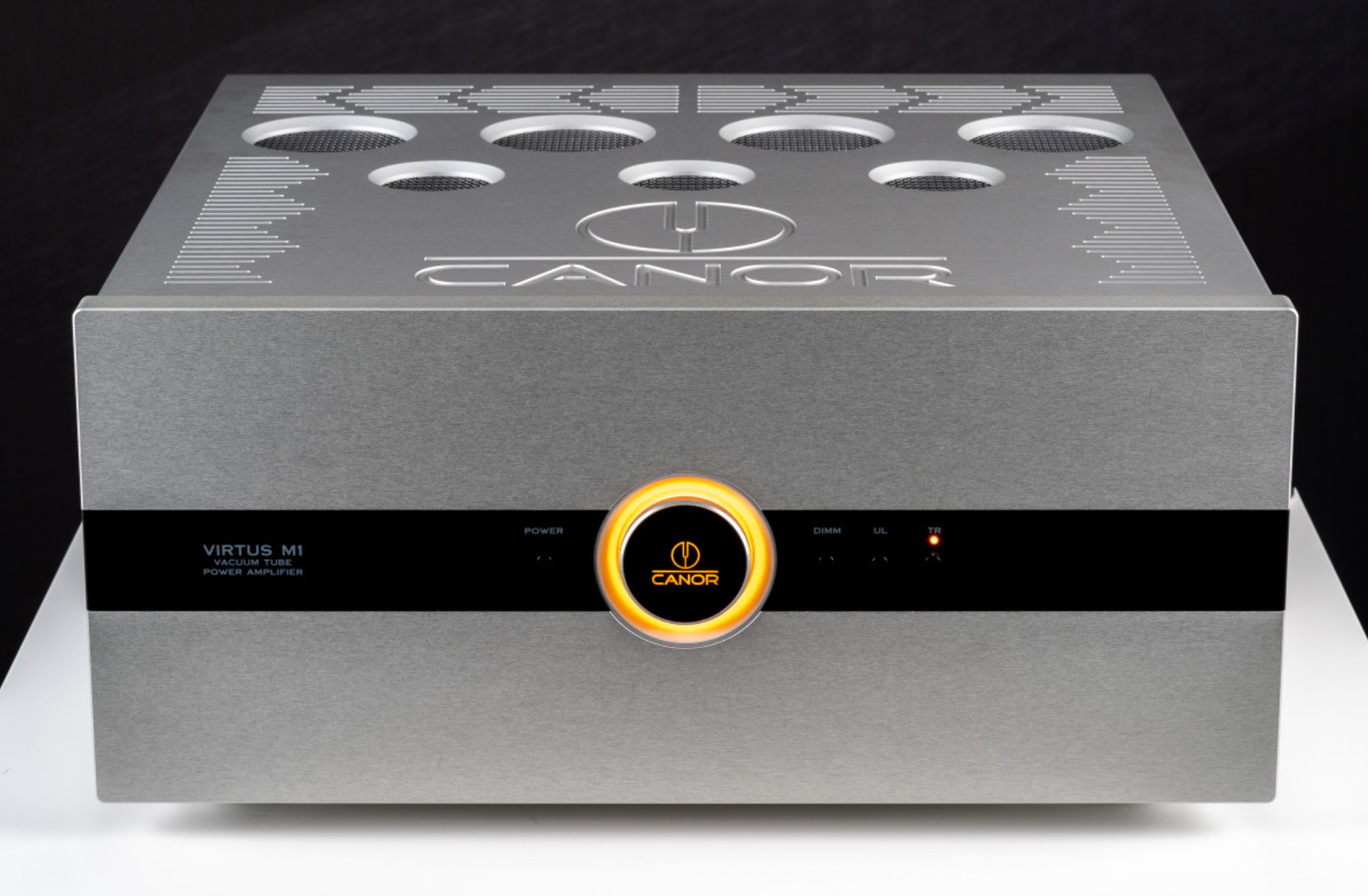

Canor Virtus M1 Vacuum Tube Power Amplifier in Silver. Front and top Image

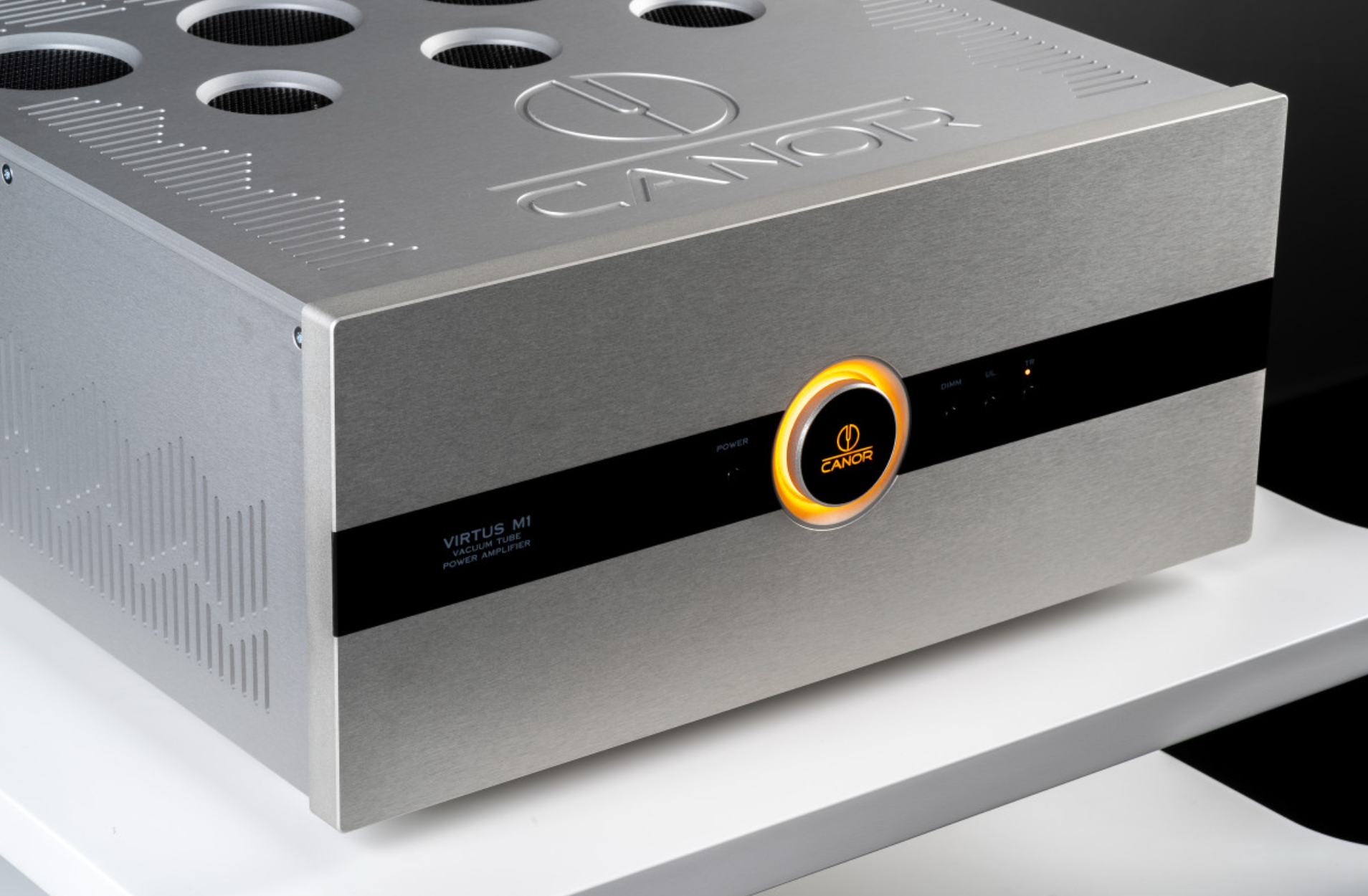

Canor Virtus M1 Vacuum Tube Power AmplifierPower AmplifiersCanorVinyl Revival

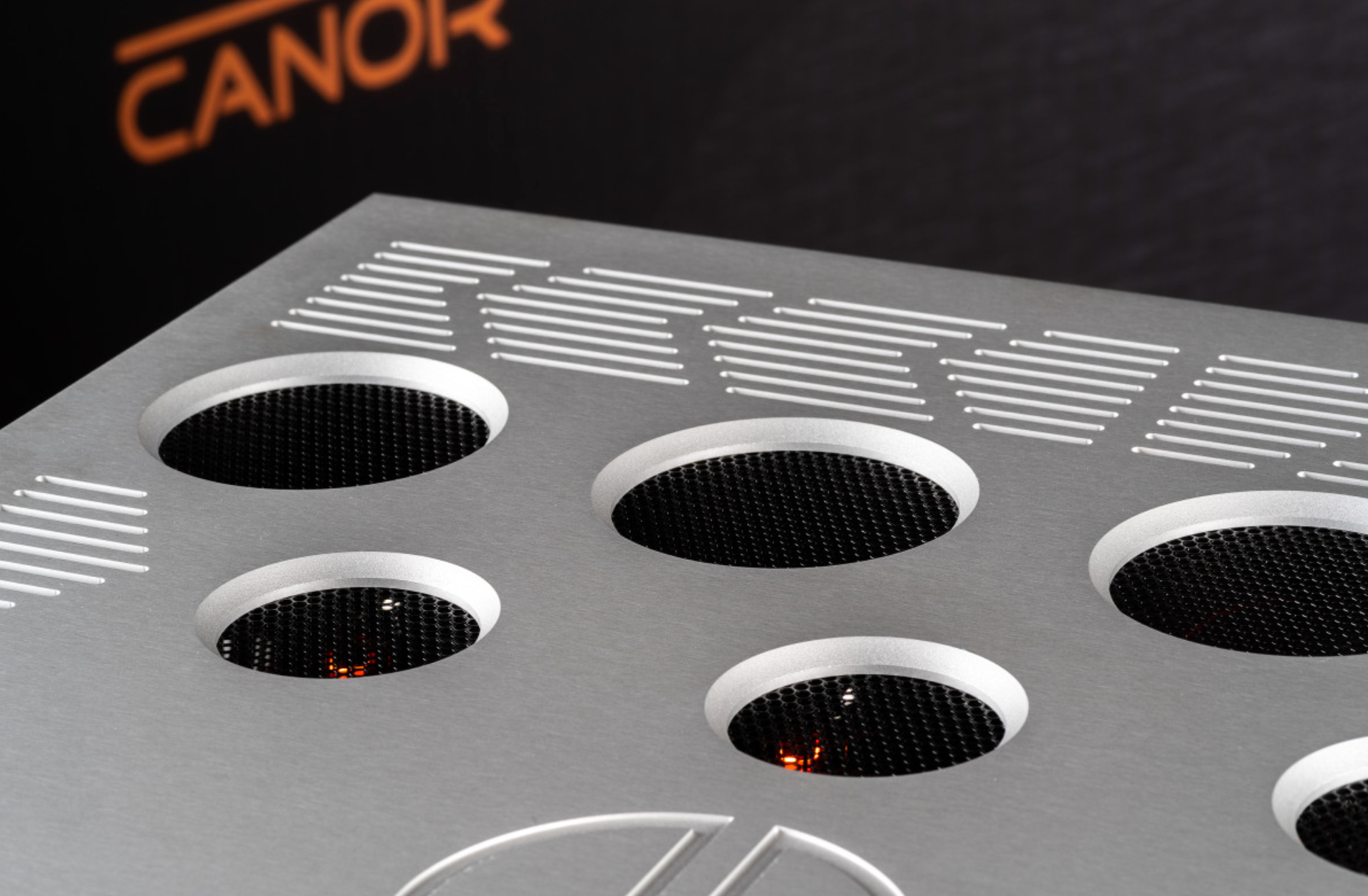

Canor Virtus M1 Vacuum Tube Power Amplifier in Silver. Closeup of top

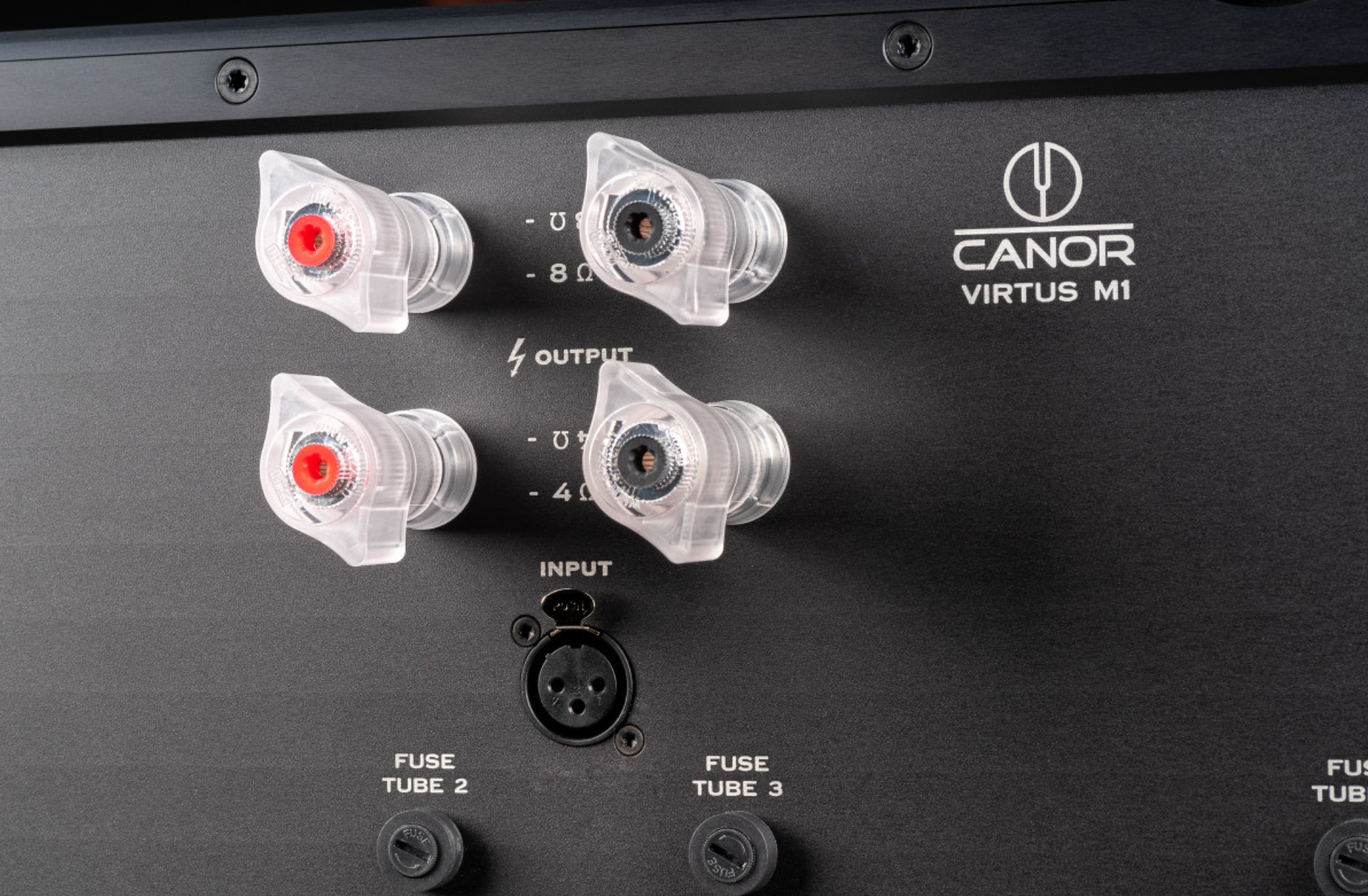

Canor Virtus M1 Vacuum Tube Power Amplifier. Closeup of output and input

Canor Virtus M1 Vacuum Tube Power Amplifier. Closeup of Power Transformer

Canor Virtus M1 Vacuum Tube Power Amplifier. Closeup of feedback switch

chevron_left

chevron_right

Canor Virtus M1 Vacuum Tube Power Amplifier

Name: Canor Virtus M1 Vacuum Tube Power Amplifier
Brand: Canor
SKU: Canor-Virtus-M1-BLK
Price: 24995.0 AUD
Availability: InStock

Canor

$24,995.00 AUD

*Speak with our team to confirm in-store availability.

Colour

Black Silver

Product variants

Free Pick Up at Vinyl Revival Carlton North — (753-755 Nicholson Street, Carlton North)

Usually ready in 2-4 days —

Free delivery (Conditions may apply) — on orders over $500!

Secure checkout with

Canor Virtus M1 Vacuum Tube Power Amplifier

$24,995.00 AUD

Colour

Product variants

Meet the Virtus M1 Monoblock

The Reference Power Amplifier from Canor

The "Virtus" was a specific virtue in Ancient Rome. It carries connotations of valour, manliness, excellence, courage, character and worth, perceived as masculine strengths.

Considered a reference power amplifier of the CANOR brand, the Virtus M1 monoblock is the new vacuum tube power amplifier of pure A-class designed and produced by CANOR.

Highlights

Solid aluminium chassis - overall robustness and elimination of vibrations
Supersymmetric design - eliminates interfering signals
Extremely low harmonic distortion - one of the best ever in its class

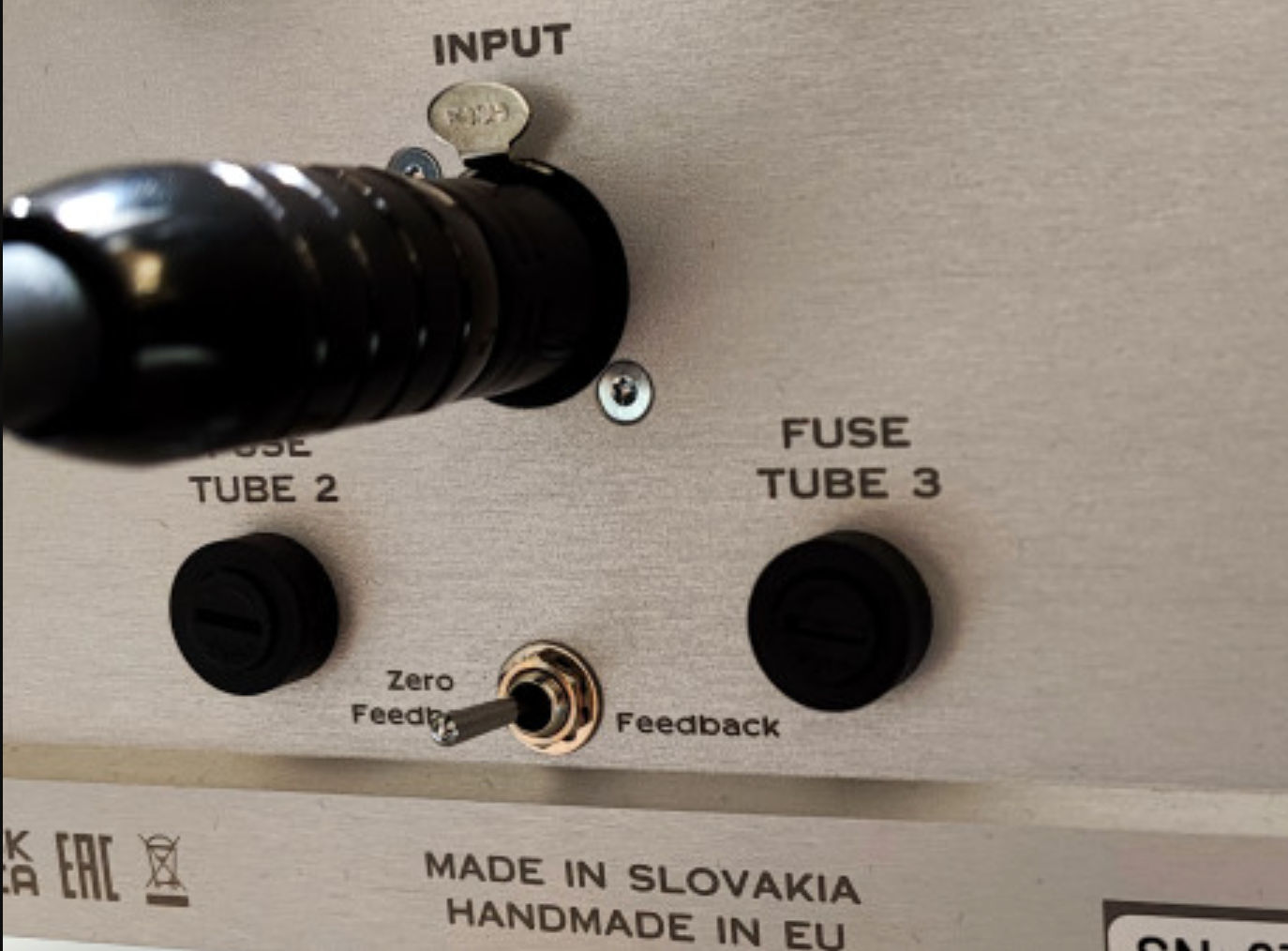

Feedback versus no feedback

Canor Virtus M1 enables instant switching between the connection with the feedback or with zero global feedback. This has an influence of the overall performance of the power amplifier, resulting in a different listening experience.

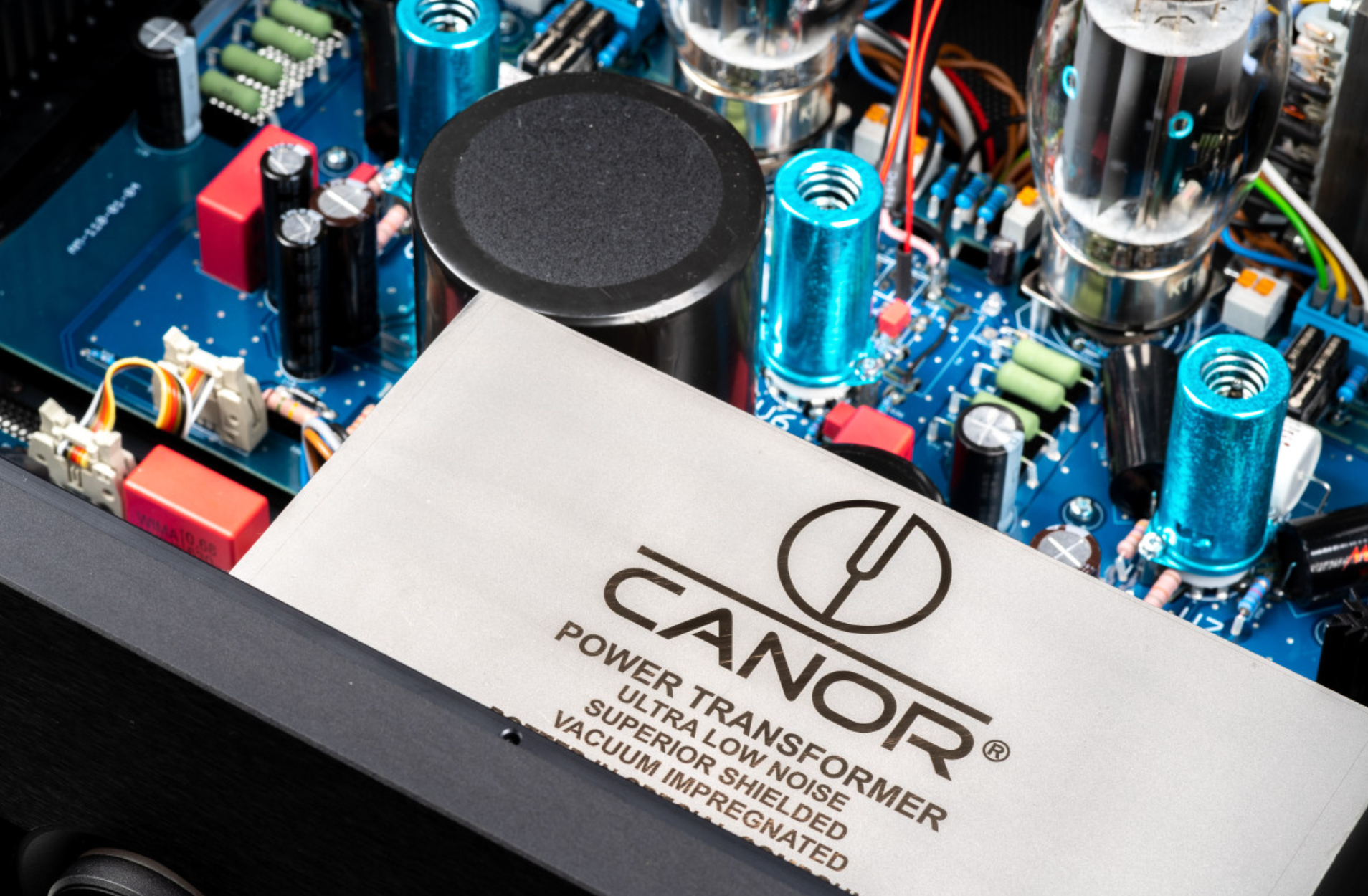

Power Transformer

The transformer core is vacuum impregnated and the entire transformer is encapsulated in a special anti-vibration compound. In addition, the massive, welded cover in which the transformer is located, creates effective electromagnetic shielding and contributes significantly to the excellent signal-to-hum distance.

High filtration capacity

The filtration capacity is 3.900uF/550V. A choke, that is placed under welded cover, has been used to eliminate anode voltage ripple, which increases the filtering efficiency of the 100hz component of the anode voltage. The additional capacitor at the input improves the dynamic of the anode voltage filtration.

Permalloy output transformers

The output permalloy transformers are specially designed for this power amplifier.

High class capacitors

Only high-quality polypropylene capacitors are used in the signal path.

Signal path conductors

The conductors at the signal path consist of slow-drawn oxygen-free copper, which is coated with pure silver.

Product features

harmonic distortion - 0,0028 % at 1 W; 0,011 % at 5 W and 0,13 % at 50 W is achieved by harmonising all circuits and components.
the transformer core is vacuum impregnated, and the entire transformer is encapsulated in a special anti-vibration compound. In addition, the massive, welded cover in which the transformer is located, creates effective electromagnetic shielding and contributes significantly to the excellent signal-to-hum distance. The additional capacitor at the input improves the dynamic of the anode voltage filtration.
the filtration capacity is 3.900 mF / 550 V. A choke, that is placed under welded cover, has been used to eliminate anode voltage ripple, which increases the filtering efficiency of the 100 Hz component of the anode voltage.
the output permalloy transformers are specially designed for the power amplifier.
only high-quality polypropylene capacitors are used in the signal path.
the conductors on the signal paths consist of slow drawn oxygen-free copper, which is coated with pure silver.
instant switching between feedback and zero feedback.

Technical Specifications

Output Power
1 x 110 W / 8 Ω – ultra linear (THD < 3%)
1 x 55 W / 4, 8 Ω – triode (THD < 3%)

Gain
24 dB / 4 Ω

Frequency Range
10 – 50.000 Hz ± 0,5 dB / 5 W

Input Impedance
200 kΩ

Inputs
1 x XLR

Total Harmonic Distortion
< 0,05% (1 kHz, 5 W / 8 Ω - ultra linear)
< 0,005% (1 kHz, 1 W / 8 Ω - ultra linear)

Signal-to-noise ratio
> 103 dB (20 Hz - 80 kHz)

Tube Complement
4 x KT150
2 x ECC82
1 x 12AX7

Power
230 V / 50-60 Hz / 410 VA

Dimensions (w x h x d)
450 x 190 x 465 mm

Weight (net)
40 Kg

*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
