Canor PH 2.10 Tube Phono Preamplifier

CANOR PH 2.10 is an all-tube phono preamplifier for MM and MC cartridges, containing the minimum number of amplification steps required to apply purely passive corrections.

Highlights

1. Without any global feedback, which results in excellent sound performance

2. It contains the minimum number of amplification steps required to apply purely passive corrections
3. Designed for both MM and MC cartridges with high variability of resistances and capacitances settings

No Global Feedback

The whole connection is without any global feedback, which results in excellent sound performance, but it places extremely high demands on the selection of used electronics. The RIAA correction is passive and consists only of quality polystyrene and polypropylene capacitors. The output capacitor is also of high quality (polypropylene foil)

Power Transformer

To remove mechanical hum, the transformer core is vacuum impregnated, and the entire transformer is encapsulated in a special anti-vibration compound. In addition, the massive, welded cover in which the transformer is located creates effective electromagnetic shielding and contributes significantly to the excellent signal-to-hum distance.

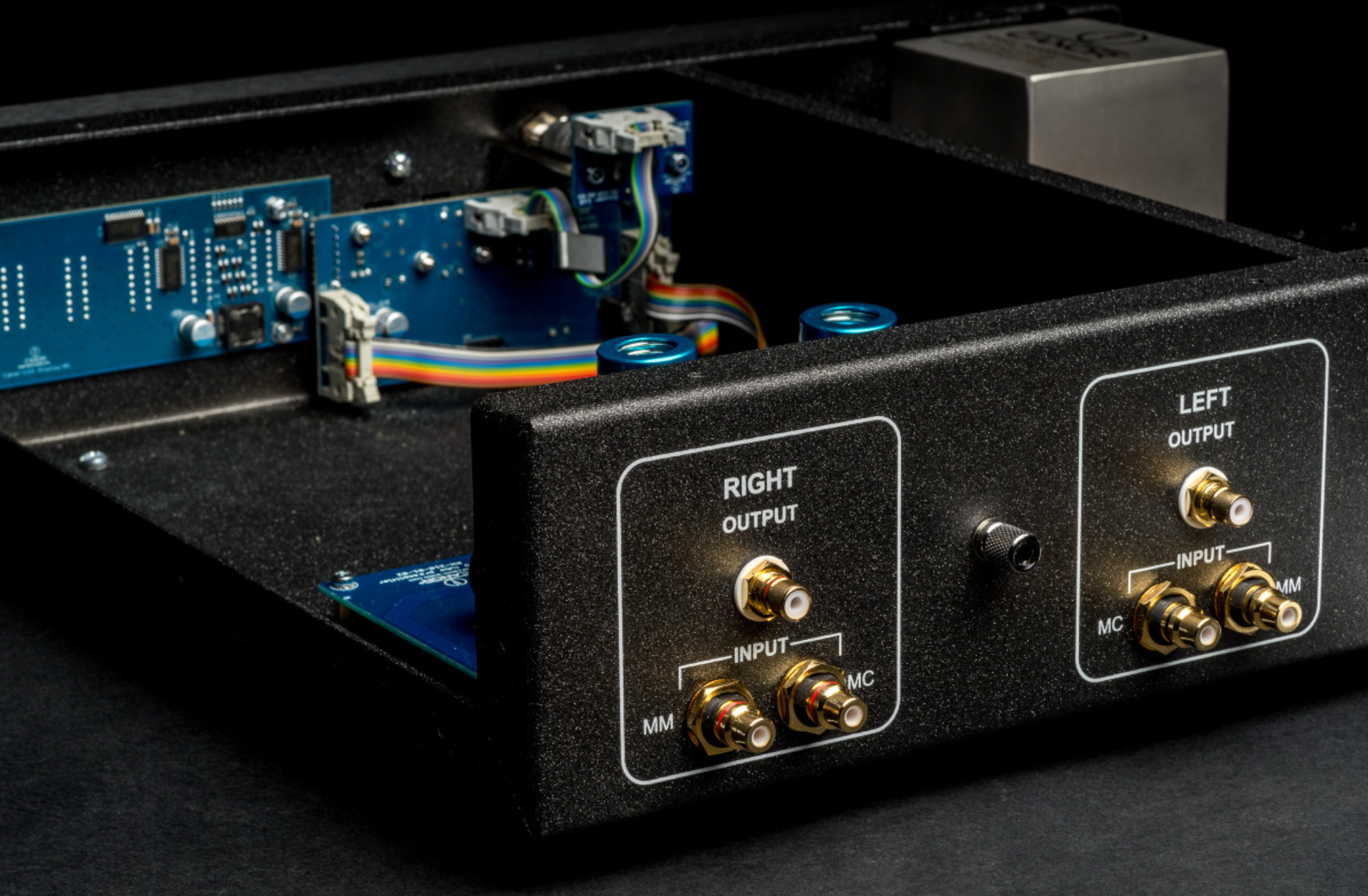

For both MM and MC

If the turntable contains two arms and an MM cartridge is installed on one and an MC on the other, they can be connected at the same time without any interference

CMT ™ technology

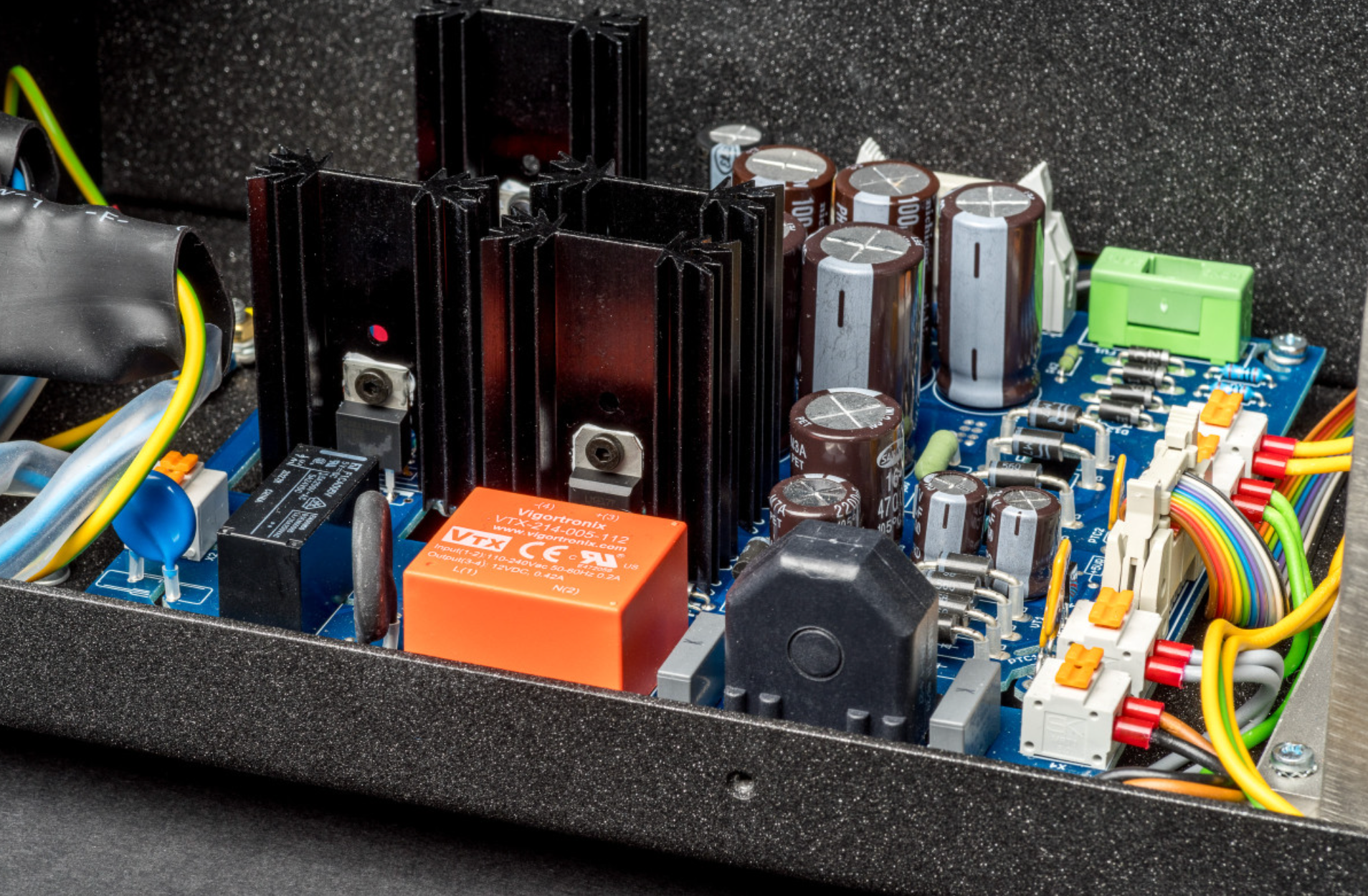

The use of CMT ™ technology (CANOR ® PCB Milling Technology) was a matter of course in the design of Canor PH 2.10 printed circuit boards.
Because very small signal amplitudes are processed in the turntable preamplifier, this technology has been even more beneficial than in our other products.
