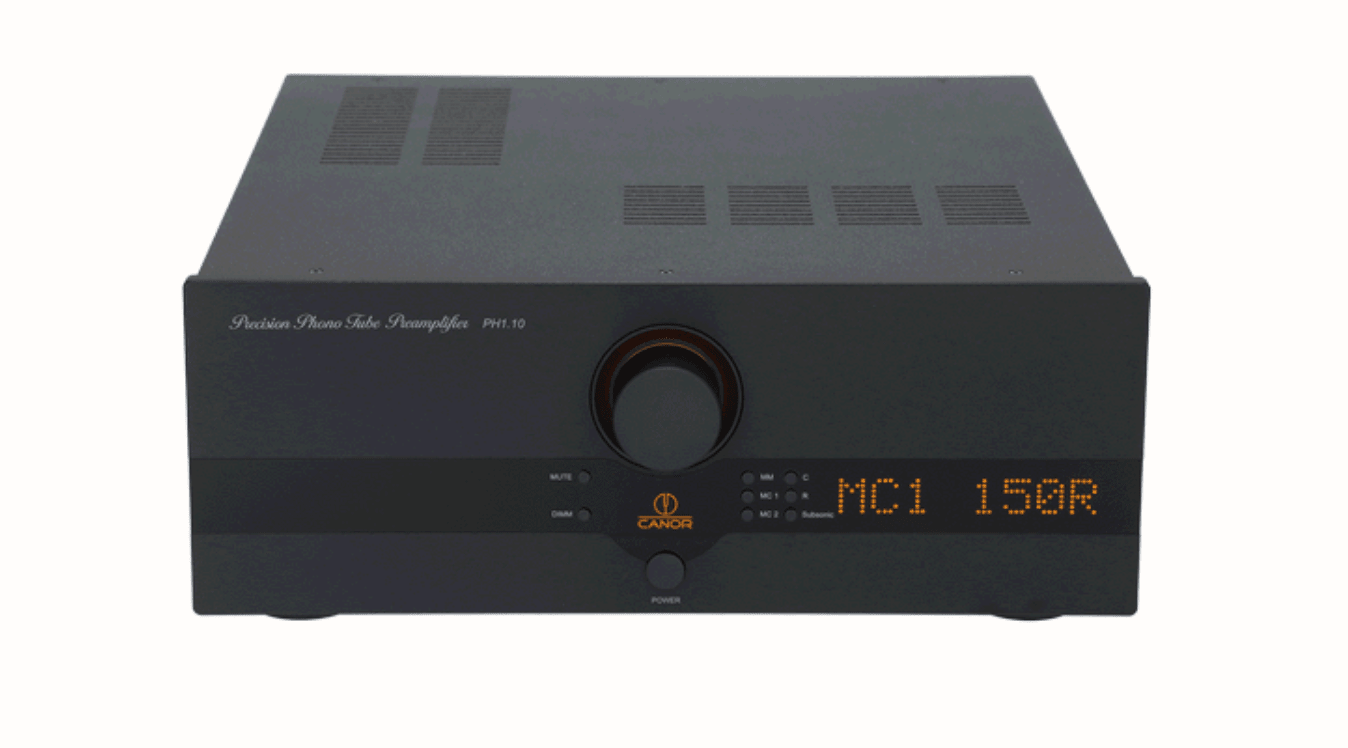

Canor PH 1.10 Tube Phono Preamplifier in black, front image

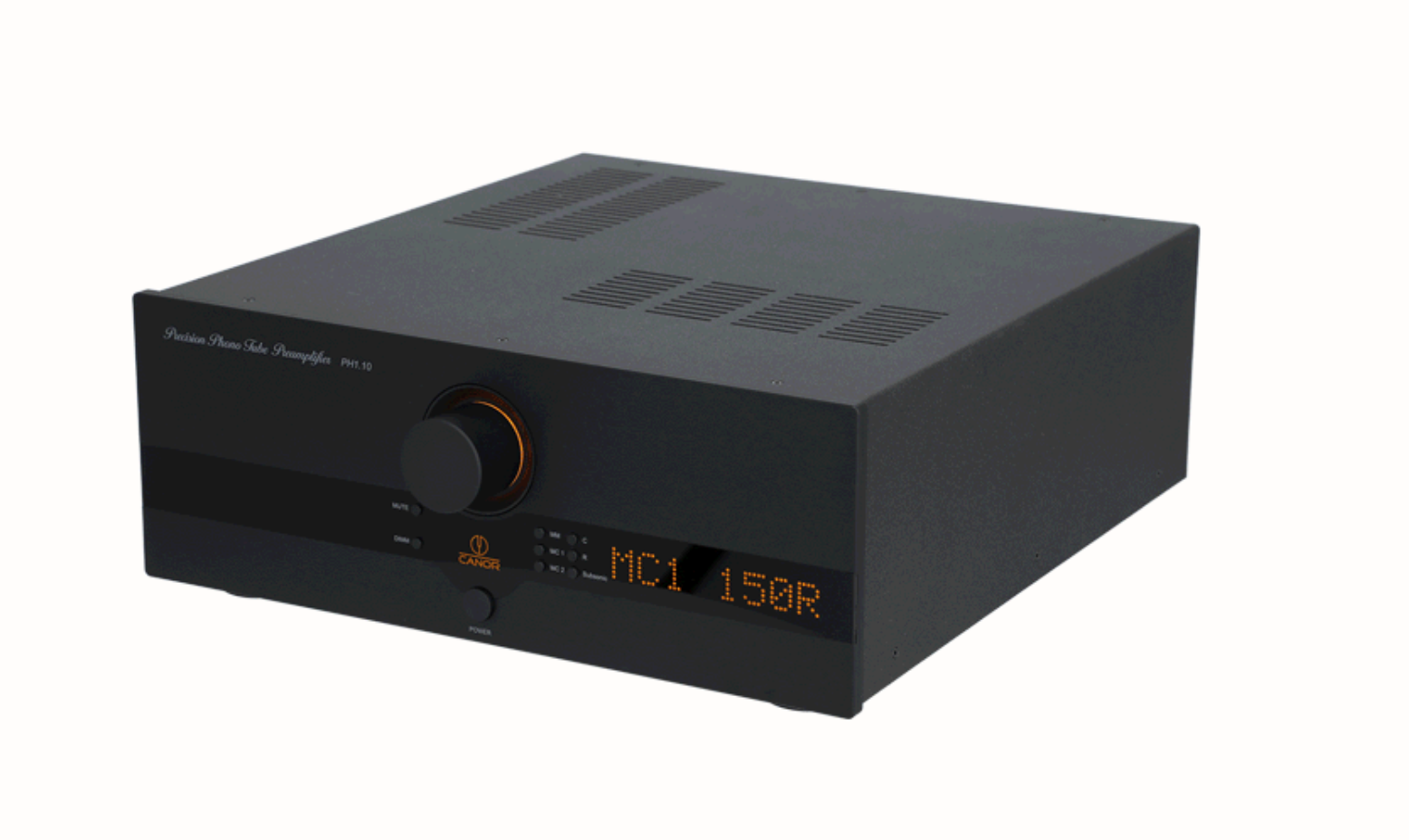

Canor PH 1.10 Tube Phono Preamplifier in black, angled image

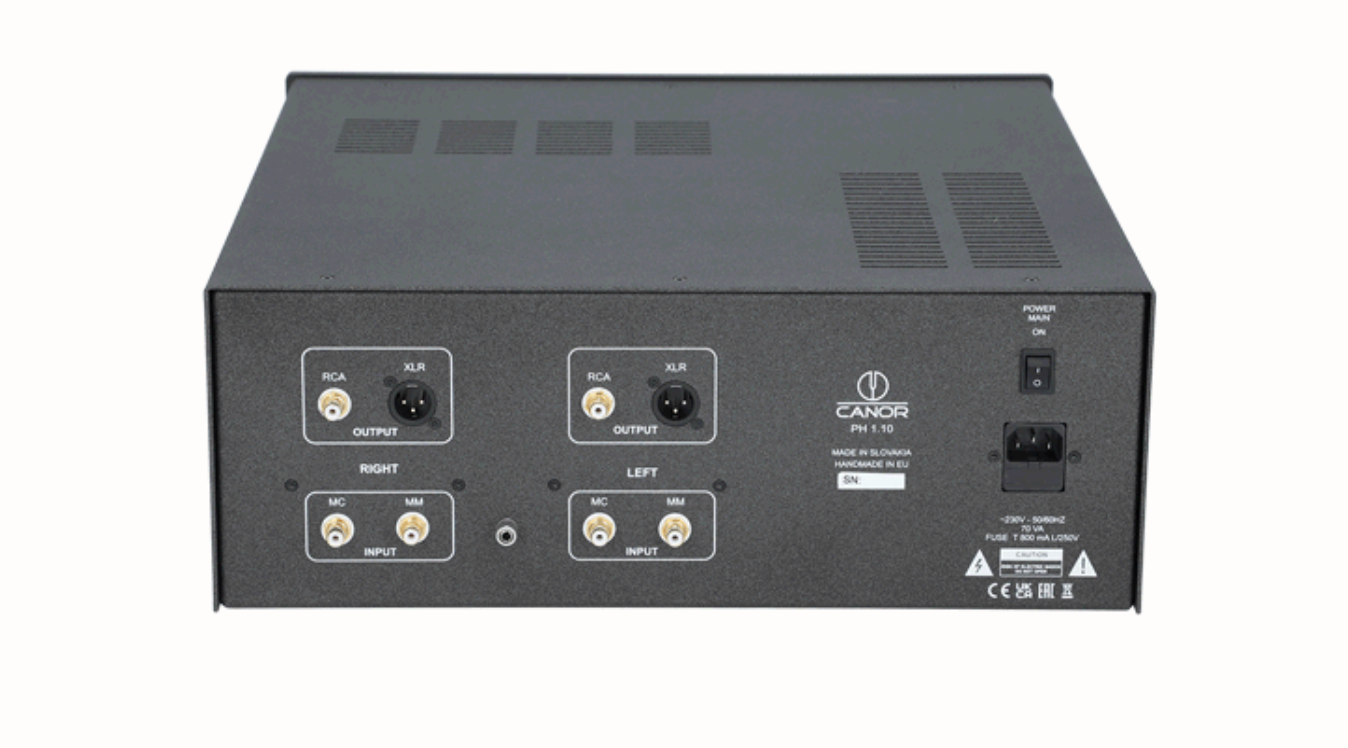

Canor PH 1.10 Tube Phono Preamplifier in black, back of unit

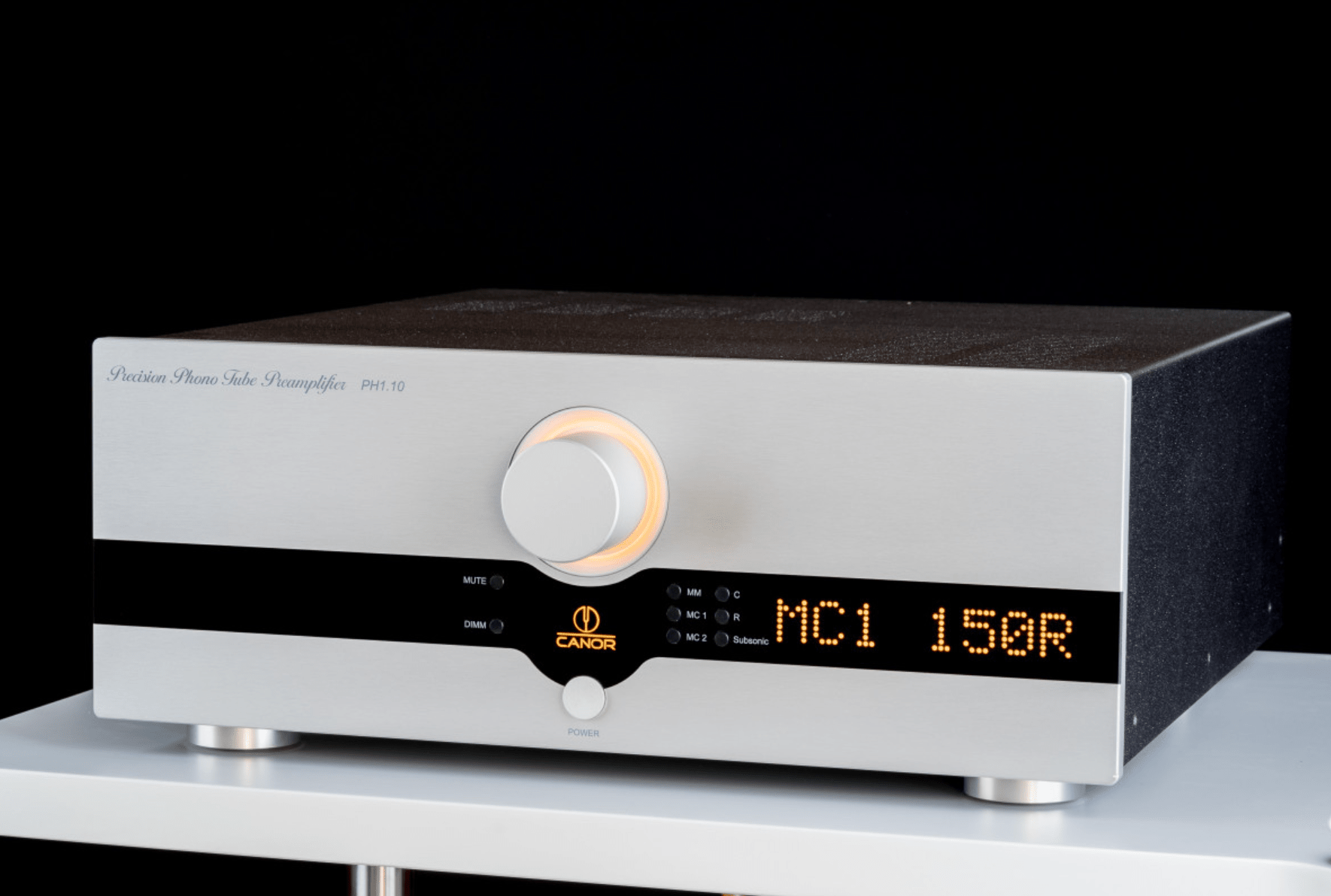

Canor PH 1.10 Tube Phono Preamplifier in Silver, angled image

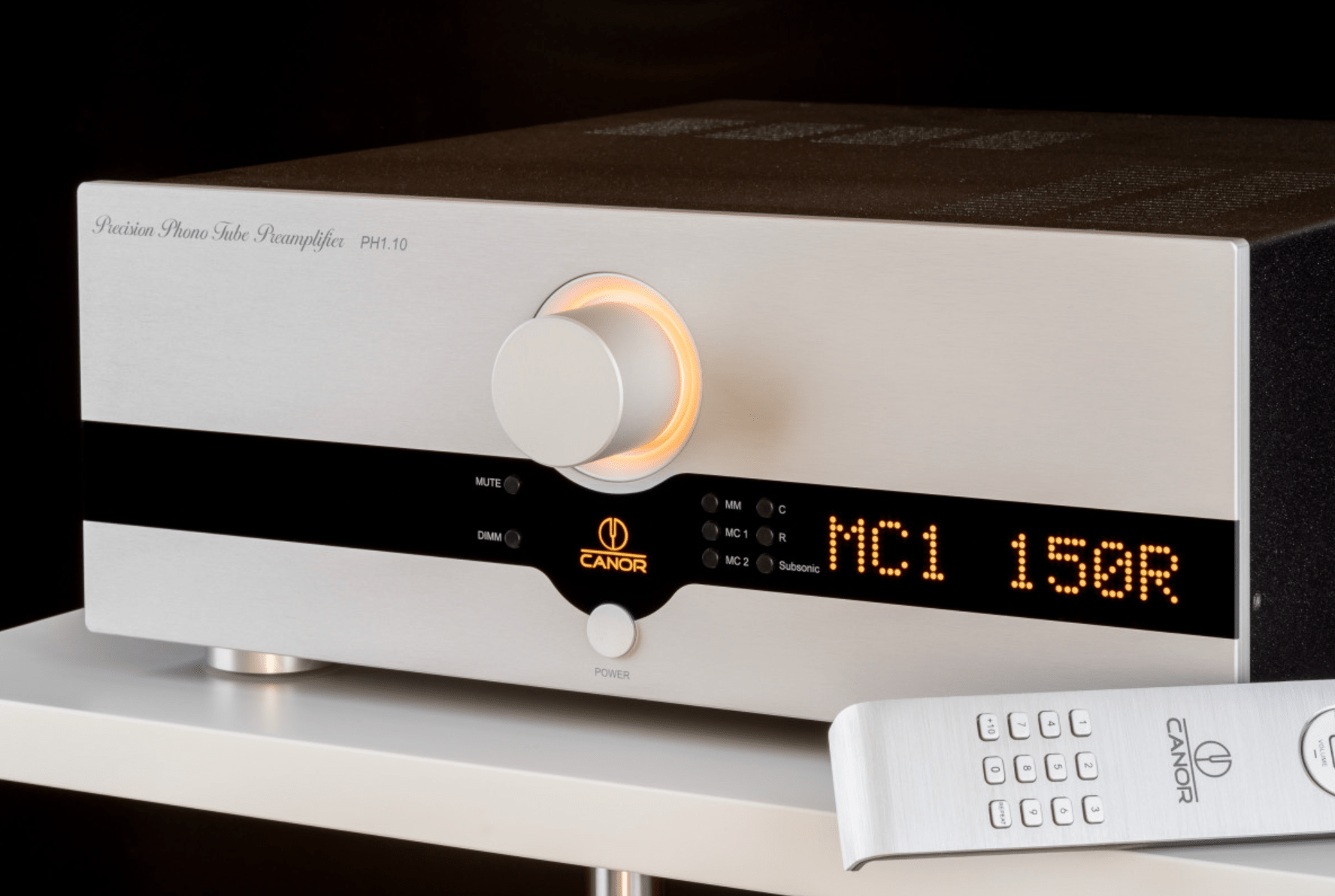

Canor PH 1.10 Tube Phono Preamplifier in silver with remote

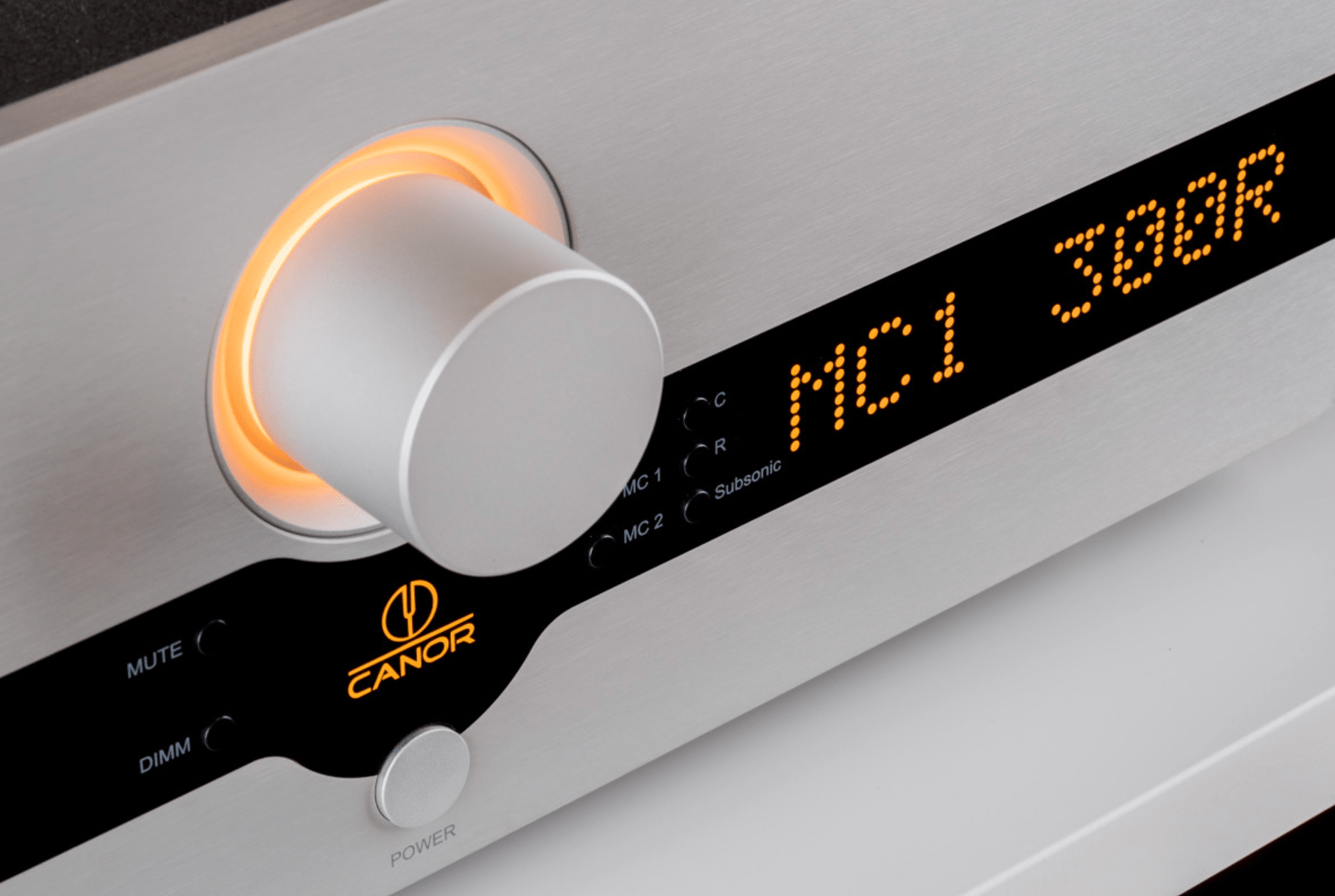

Canor PH 1.10 Tube Phono Preamplifier insilver, closeup

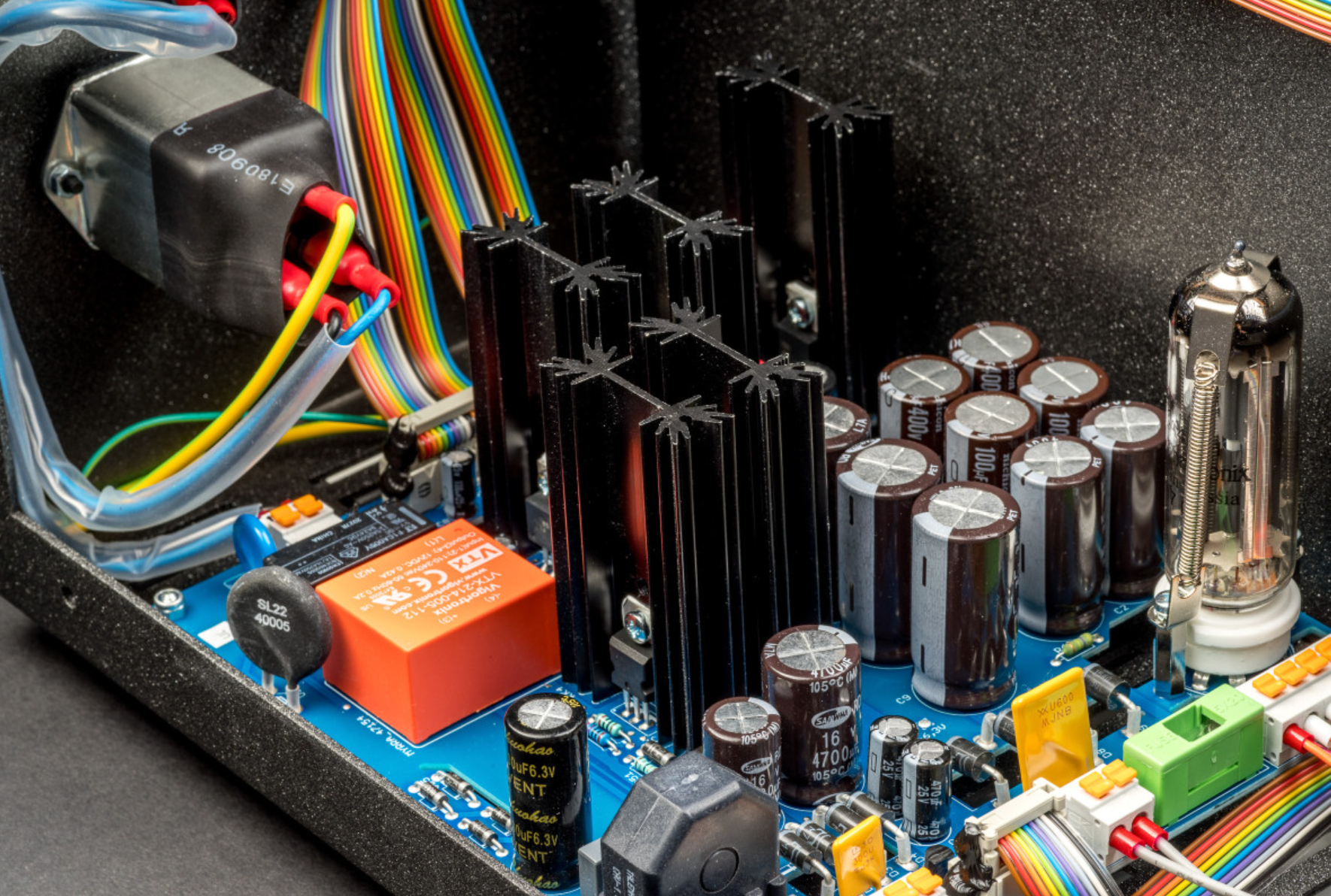

Canor PH 1.10 Tube Phono Preamplifier inside

chevron_left

chevron_right

Canor PH 1.10 Vacuum Tube Phono Preamplifier

Name: Canor PH 1.10 Vacuum Tube Phono Preamplifier
Brand: Canor
SKU: Canor-PH-1.10-BLK
Price: 10995.0 AUD
Availability: InStock

Canor

$10,995.00

Speak with our team to confirm in-store availability.

Colour

Black Silver

Product variants

Free Pick Up at Vinyl Revival Carlton North — (753-755 Nicholson Street, Carlton North)

Usually ready in 2-4 days —

Free delivery (Conditions may apply) — on orders over $500!

Secure checkout with

Canor PH 1.10 Vacuum Tube Phono Preamplifier

$10,995.00

Colour

Product variants

Introducing the stunning PH 1.10 from Canor

The all-tube turntable preamp for both MM & MC phono cartridges

Highlights

True balanced XLR output. The circuitry of PH 1.10 is a true differential
An all-tube turntable preamplifier for both MM and MC phono cartridge
Absolute selection and tubes matching with above-average parameters

For both MM and MC

Canor PH 1.10 phono preamplifier was designed for both MM and MC cartridges (they can be connected at the same time without any interference). The front panel’s buttons provide easy selection and set-up of the MM and MC.

CMT ™ technology

The use of CMT ™ technology (CANOR ® PCB Milling Technology) was a matter of course in the design of Canor PH 1.10 printed circuit boards.
Because very small signal amplitudes are processed in the turntable preamplifier, this technology has been even more beneficial than in our other products.

Product features

an all-tube turntable preamplifier for both MM and MC phono cartridges
nine tubes, one vacuum tube out of them used to rectify anode voltage
wiring circuitry without any global feedback
PCB’s utilise our premium CMT ™ technology
absolute selection and tubes matching with above-average parameters
vacuum-impregnated transformer core
transformer potted in a special anti-vibration compound
Canor only use high-quality polypropylene capacitors in the signal path
if a turntable is fitted with two tonearms, one having MM phono cartridge installed and the other MC, both can be connected simultaneously without mutually affecting each other
high variability of gain settings, resistances and capacitances settings for all types of phono cartridges
a high-quality step-up Lundahl transformer for MC phono cartridges

Technical Specifications

Load capacity MM / Gain
50, 150, 270, 370, 520, 620, 740, 840 pF / Gain: 46 dB

Input impedance MC1 / Gain
10, 20, 40, 80, 150, 300, 600, 1.200 Ω / Gain: 70 dB

Input impedance MC2 / Gain
2, 5, 10, 20, 40, 80, 150, 300 Ω / Gain: 76 dB

Output impedance
< 250 Ω

Inputs
RCA -> MM / RCA -> MC

Outputs
RCA / XLR

Total Harmonic Distortion
MM / MC <0,1% / 1 VRMS

Subsonic filter
18 dB / Octave

RIAA accuracy
0.3 dB / 20 Hz – 20 kHz

Signal-to-noise ratio MM
< 72 dBV (87 dBV - IEC - A)

Signal-to-noise ratio MC
< 72 dBV (87 dBV - IEC - A)

Tube Complement
8 x 6922EH
1 x 6CA4EH

Power
230 V / 50 Hz / 70 VA

Dimensions (w x h x d)
435 x 170 x 485 mm

Weight (net)
17 kg

*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
