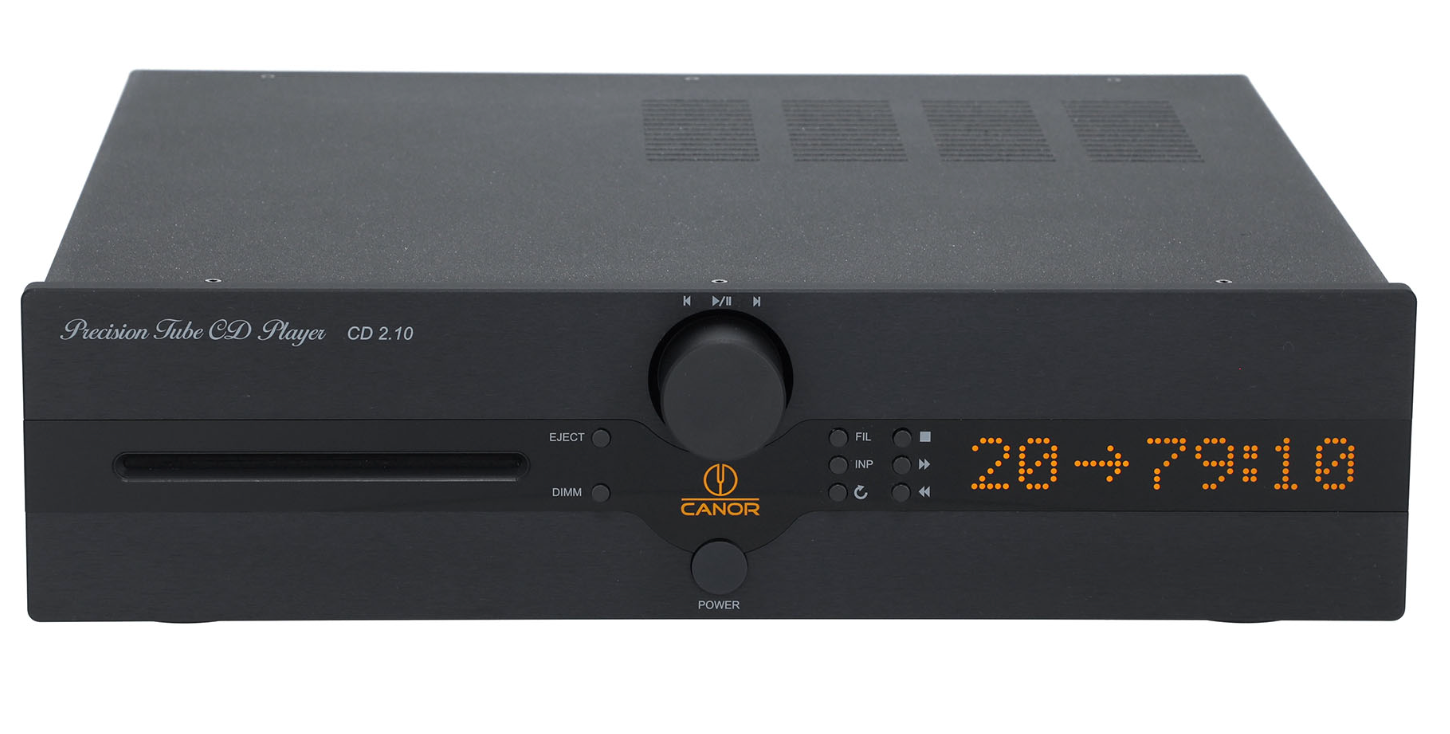

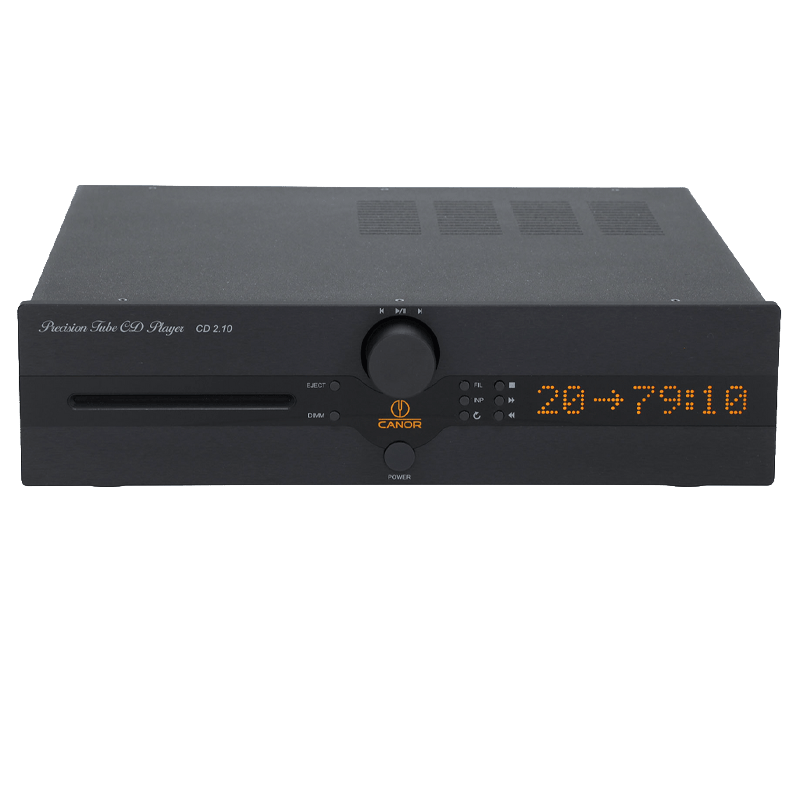

• Canor CD 2.10 Tube CD Player and DAC in black, front

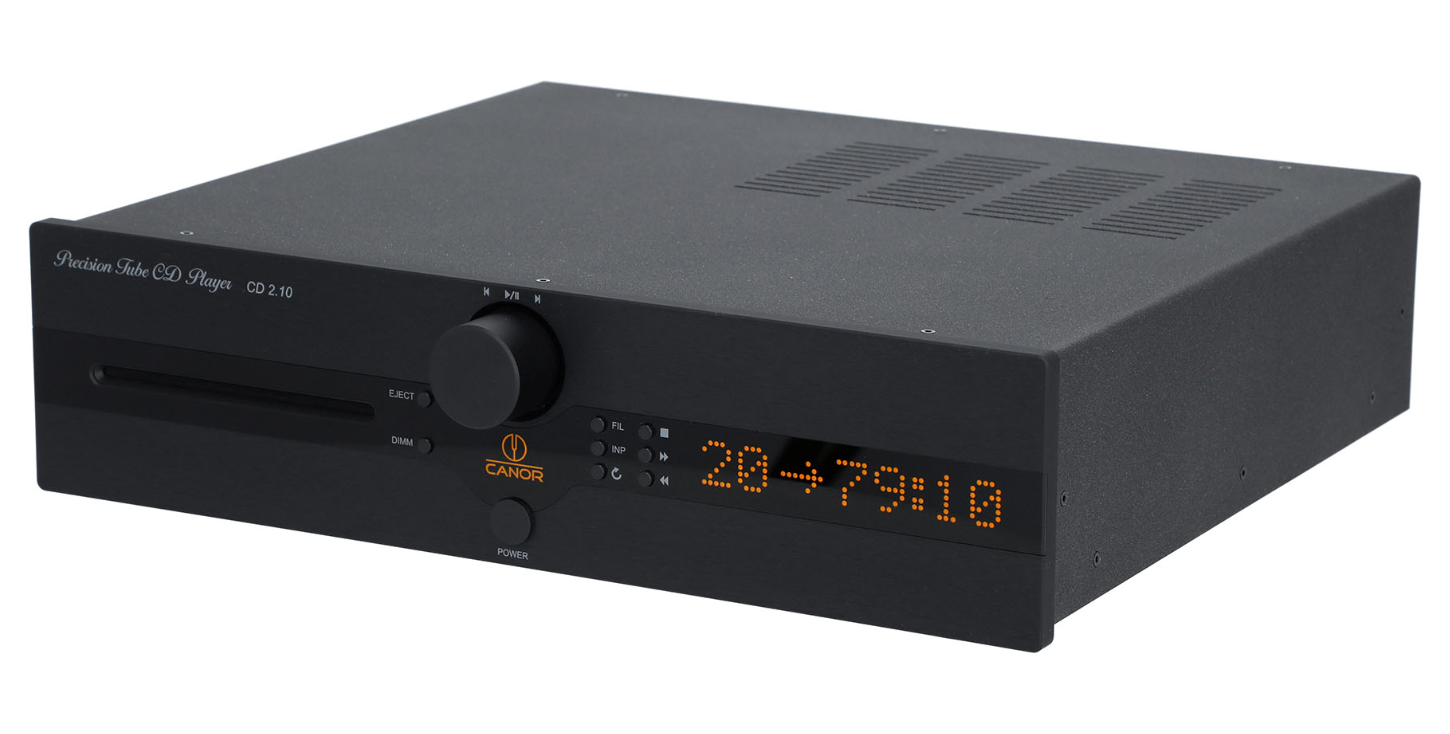

  • Canor CD 2.10 Tube CD Player and DAC in black, angled

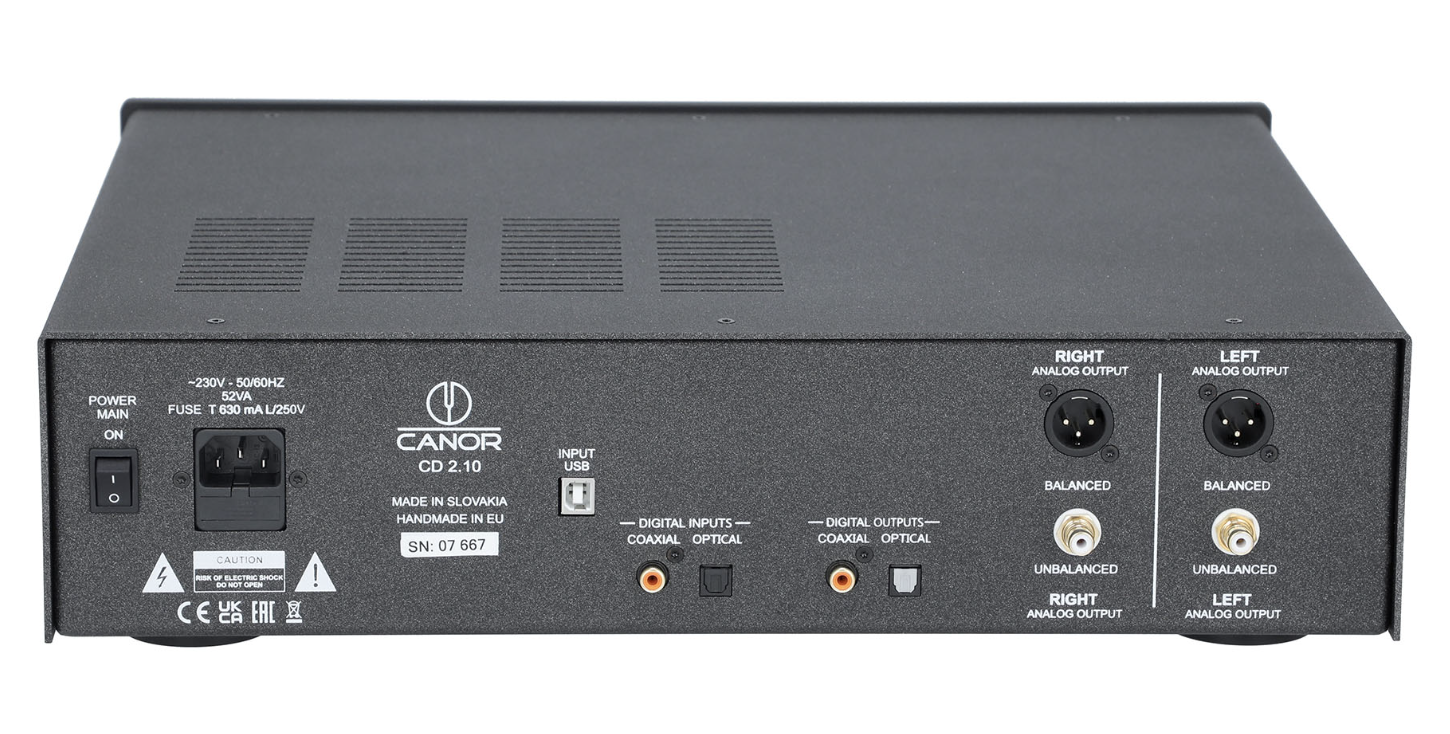

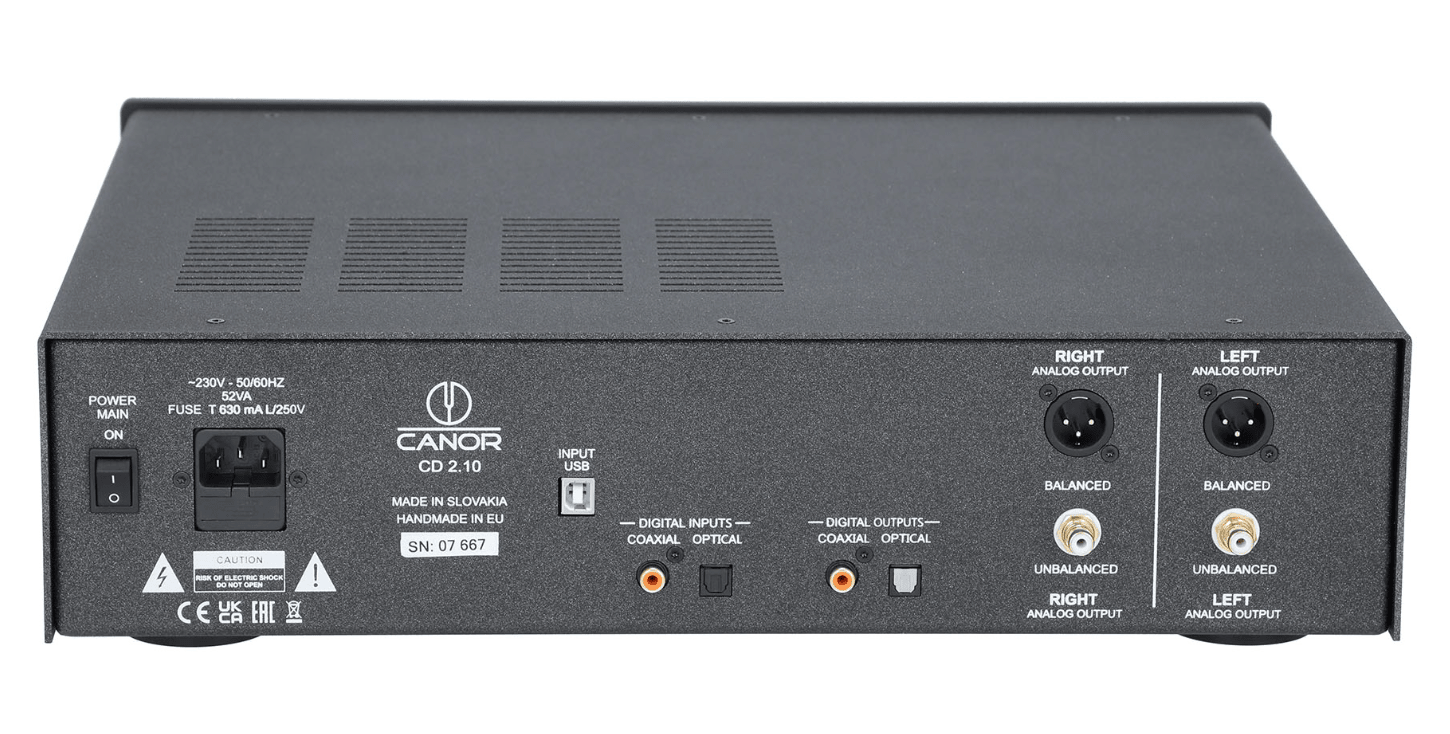

  • Canor CD 2.10 Tube CD Player and DAC in black, back

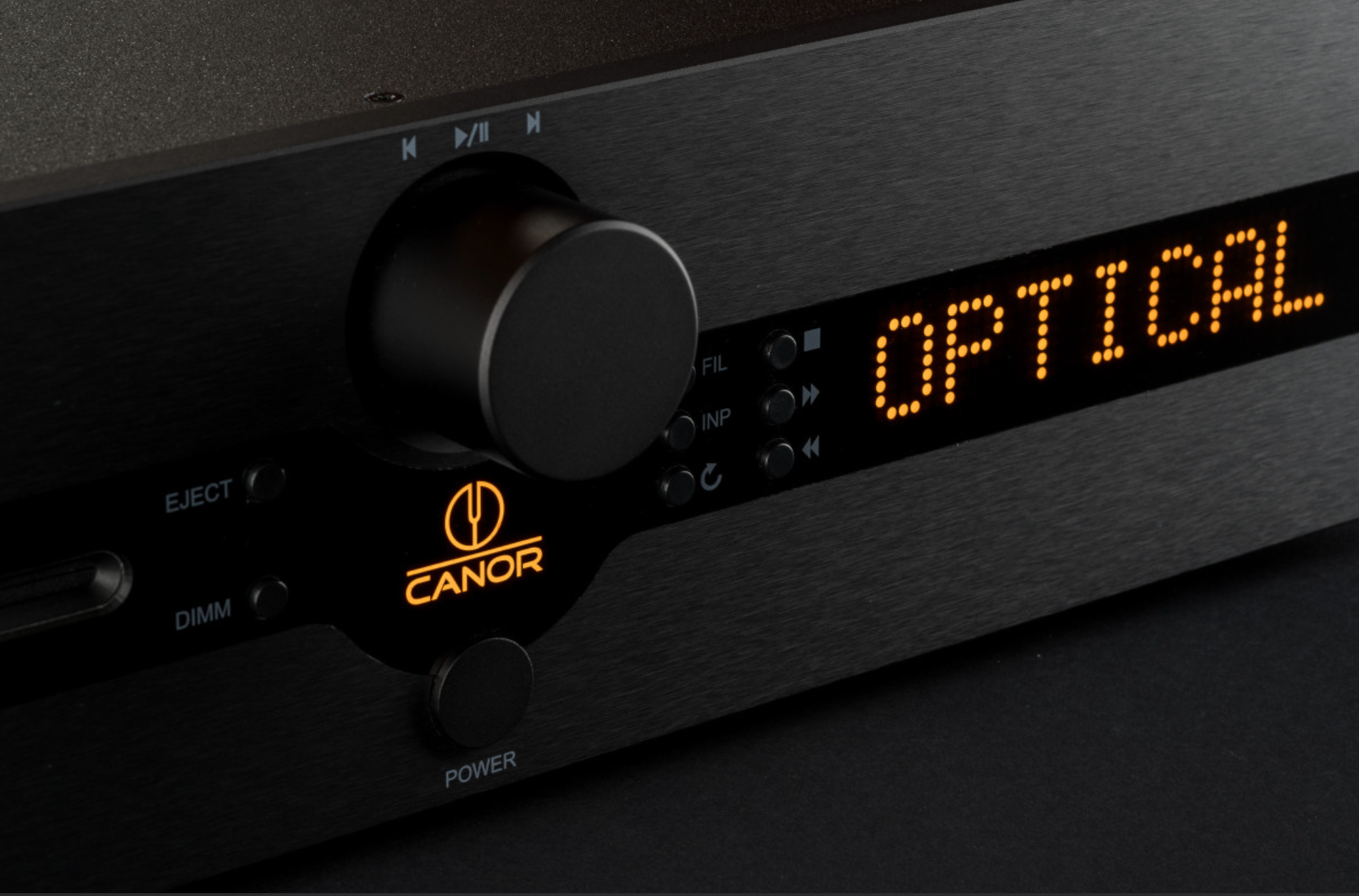

  • Canor CD 2.10 Tube CD Player and DAC in black, controls

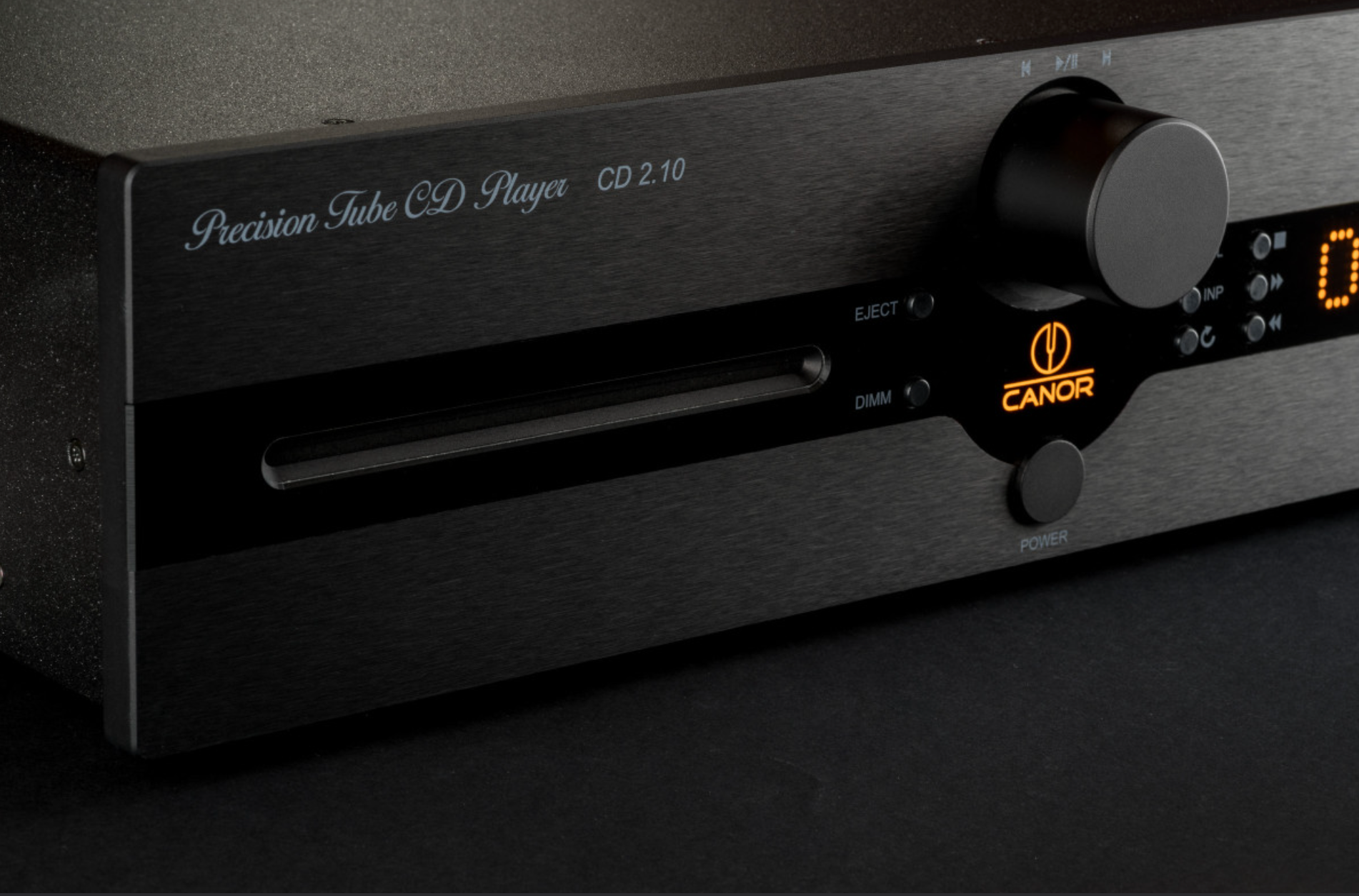

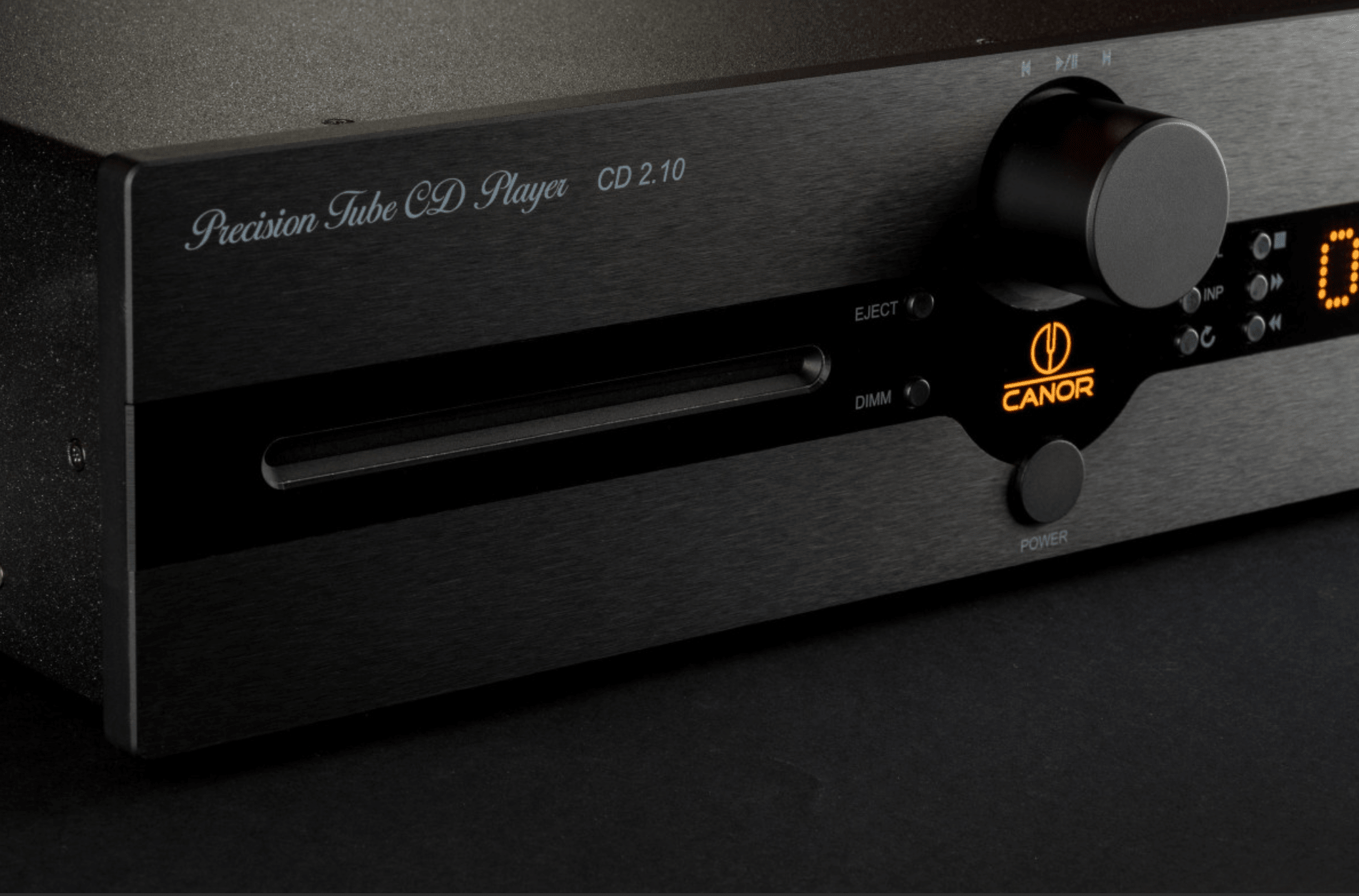

  • Canor CD 2.10 Tube CD Player and DAC in black, images shows CD Slot

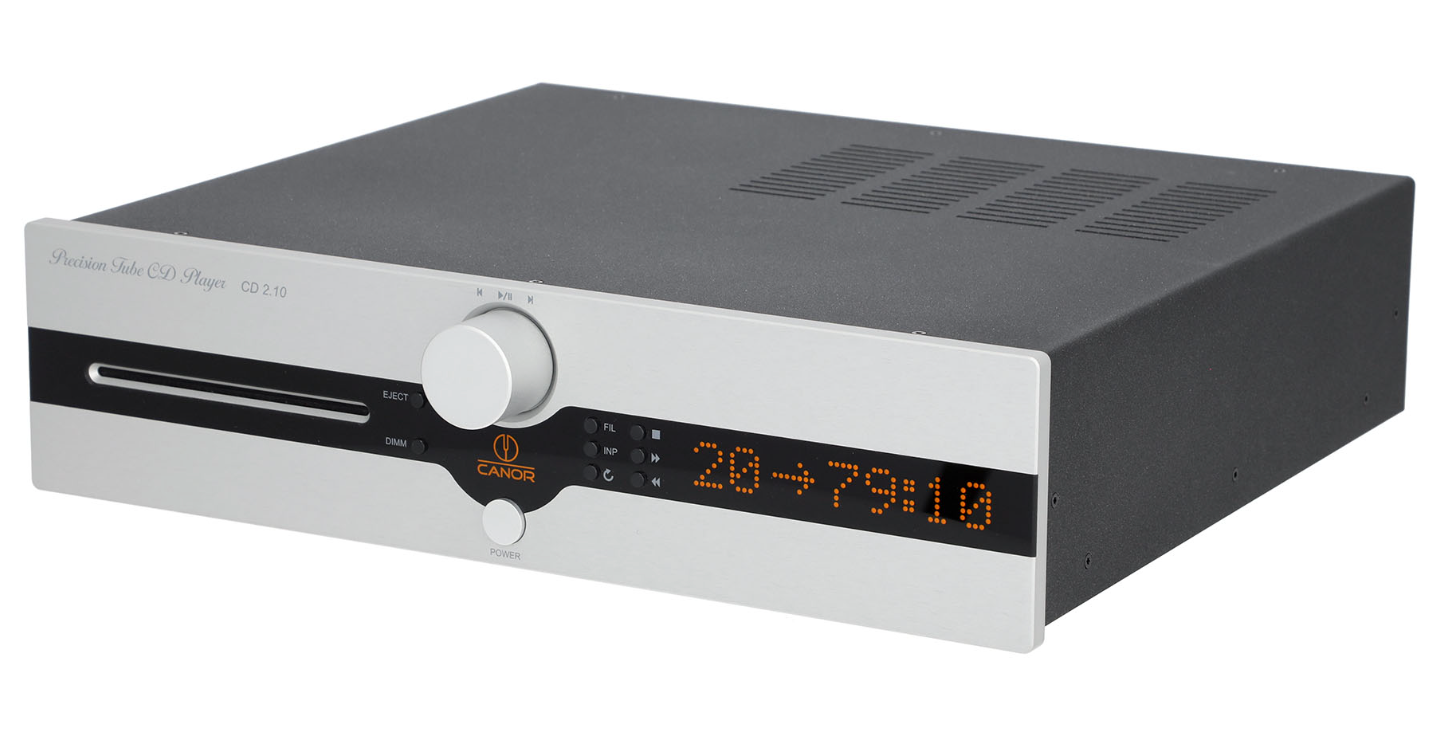

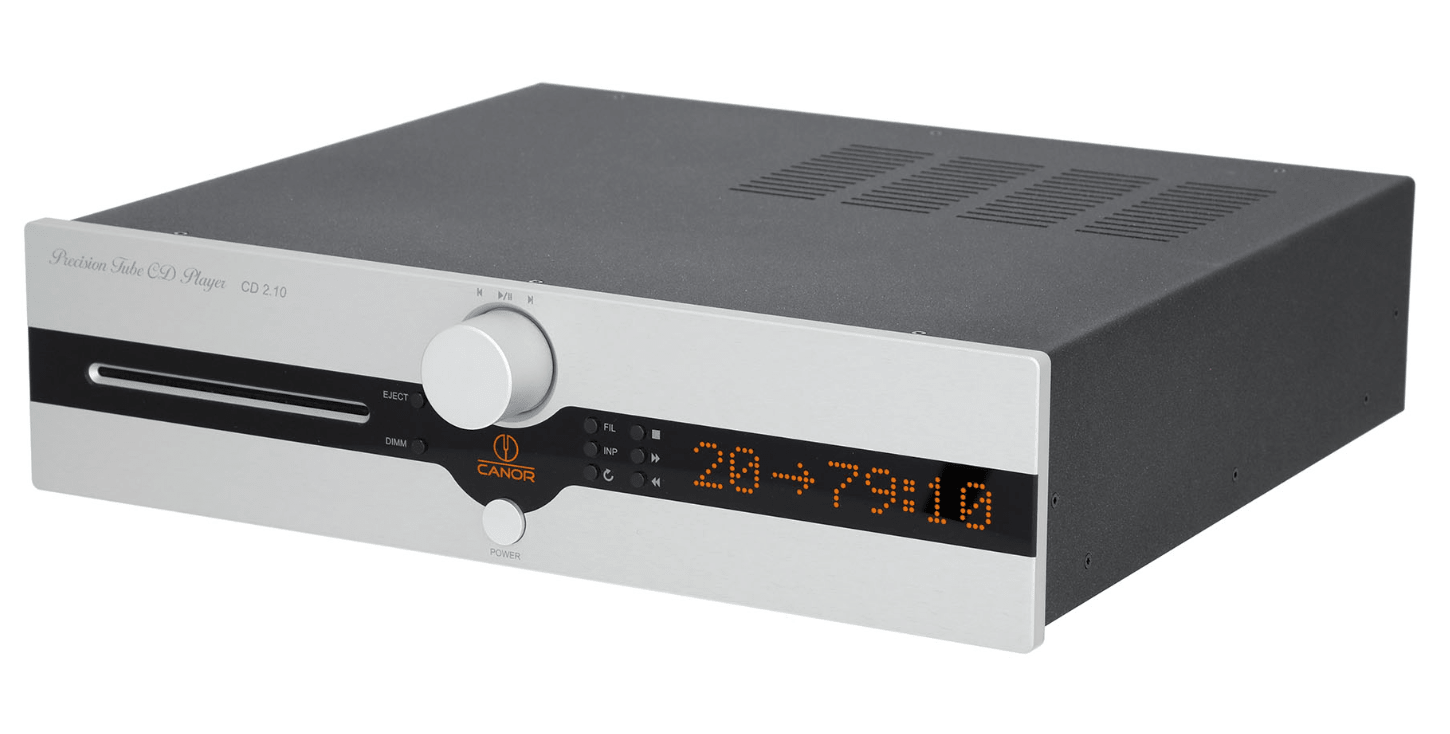

  • Canor CD 2.10 Tube CD Player and DAC in silver, angled

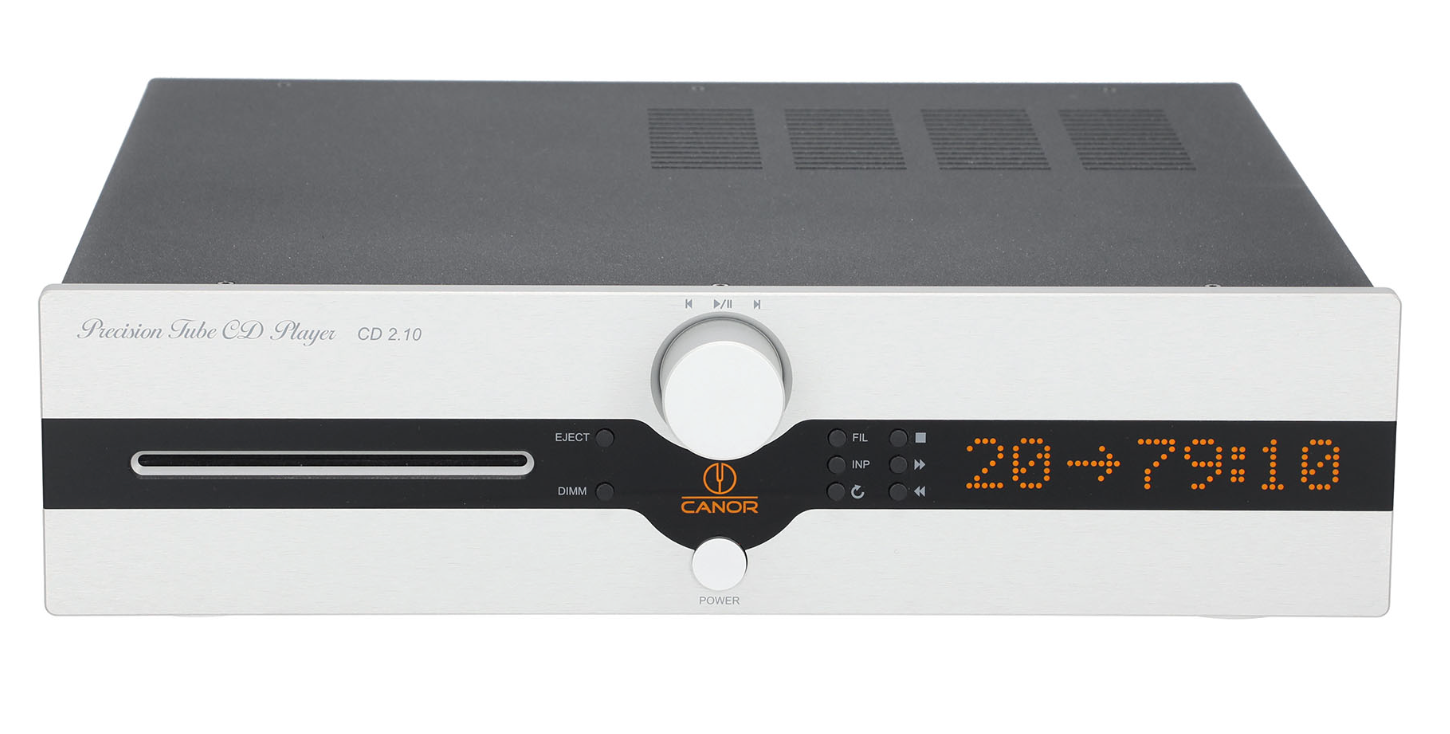

  • Canor CD 2.10 Tube CD Player and DAC in silver, front

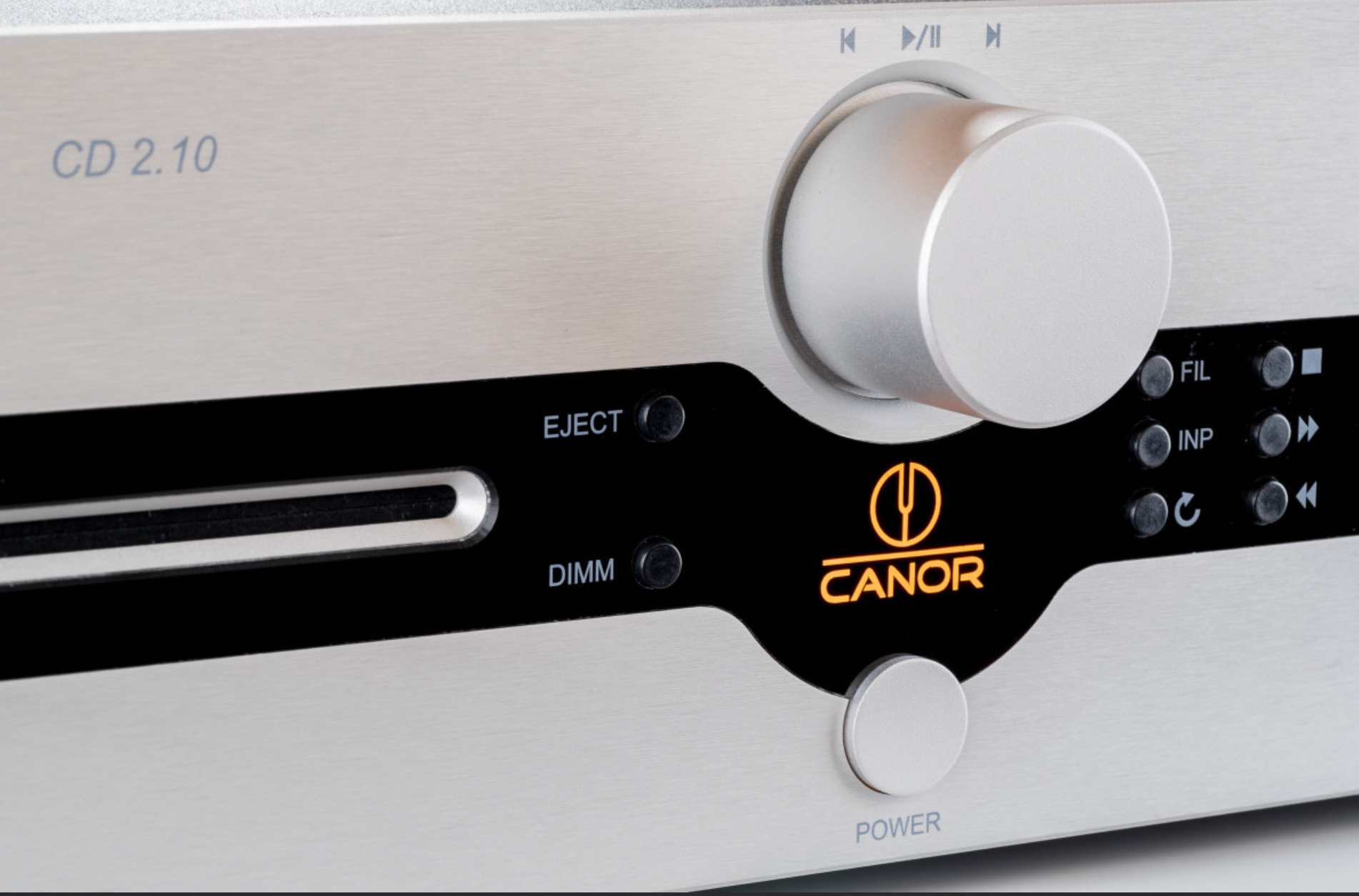

  • Canor CD 2.10 Tube CD Player and DAC in silver, controls

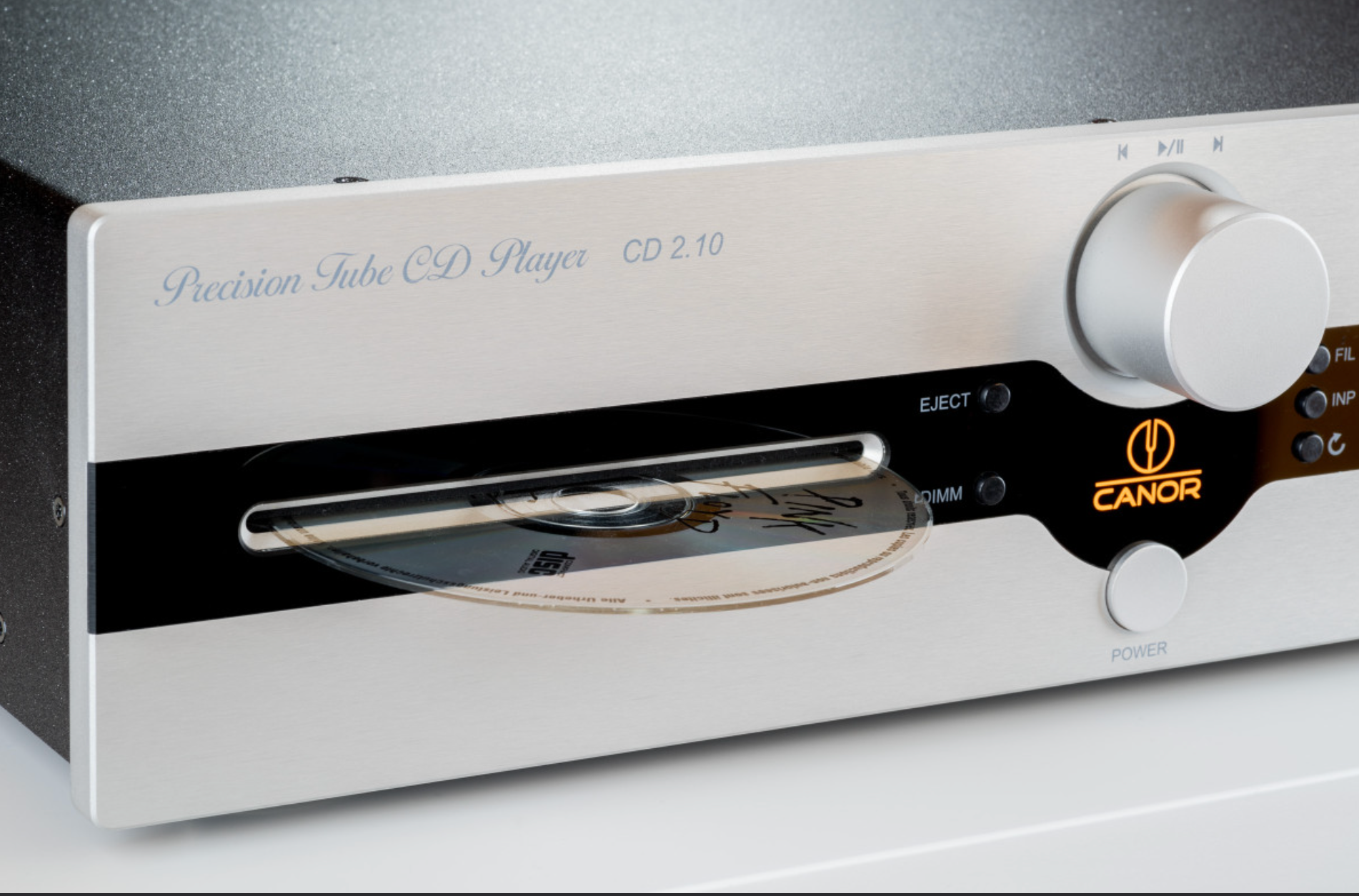

  • Canor CD 2.10 Tube CD Player and DAC in silver, with disc
1 9

Canor CD 2.10 Tube CD Player and DAC

Canor CD 2.10 Tube CD Player and DAC

$6,995.00 AUD
$6,995.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 755 NICHOLSON ST CARLTON NORTH
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500
Colour

Introducing the CD 2.10

The Performance Line Tube CD player and DAC from Canor


CANOR CD 2.10 is a tube DA converter / CD player utilising AK4490 32-bit DA converter.

Highlights

  1. Operates as a High Quality DAC
  2. Analogue and digital parts are strictly separated and independently powered
  3. Super symmetrical passive filters optimised for the highest steepness

Sample Rate Converter

The Canor CD 2.10 is equipped with a sample rate converter that up-samples all the sample rates (from all the inputs – USB, SPDIF as well as CD) on the level 192 kHz.

The sample rate converter provides the same low jitter for all inputs and sample rates. The jitter is up to 50 ps.

Input Toroid Transformer

Input toroid transformer is relatively small in size and is characterised by a low radiated magnetic field and low mechanical hum.

Analogue and Digital Parts

The device is optimised for USB playback (USB - PCM 32 bit/768 kHz, DSD64, 128 and 256).

The coax SPDIF inputs and outputs are galvanically separated (coaxial input is separated by a high-frequency transformer) and analogue and digital parts are strictly separated and independently powered.

Product Features

  • A tube DA converter/CD player utilising AK4490 32-bit DA converter
  • Silent slot-in CD drive mechanism
  • PCB’s utilise Canor's premium CMT ™ technology
  • Analog signal is being processed by strictly symmetrical tube circuits
  • Coaxial input separated by a high-frequency transformer
  • Super symmetrical passive filters optimised for the highest steepness

    Technical Specifications

    Frequency Range
    (20 – 20 000) Hz ±0.8 dB

    Output Impedance
    <150 kΩ

    Total Harmonic Distortion
    <0.005% / 1 kHz

    Signal-to-Noise Ratio
    > 102 dB (20 Hz - 20 kHz)

    Outputs
    RCA / XLR

    Analogue output voltage RCA / XLR
    2 V RMS
    4 V RMS

    Digital Inputs
    USB
    Optical
    Coax

    Digital Outputs
    Optical
    Coaxial

    Tube Complement
    4 x 6922

    Power
    230 V / 50 Hz / 52 VA

    Dimensions (w x h x d)
    435 x 120 x 405 mm

    Weight (net)
    12 Kg



    *This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.

    E&OE
