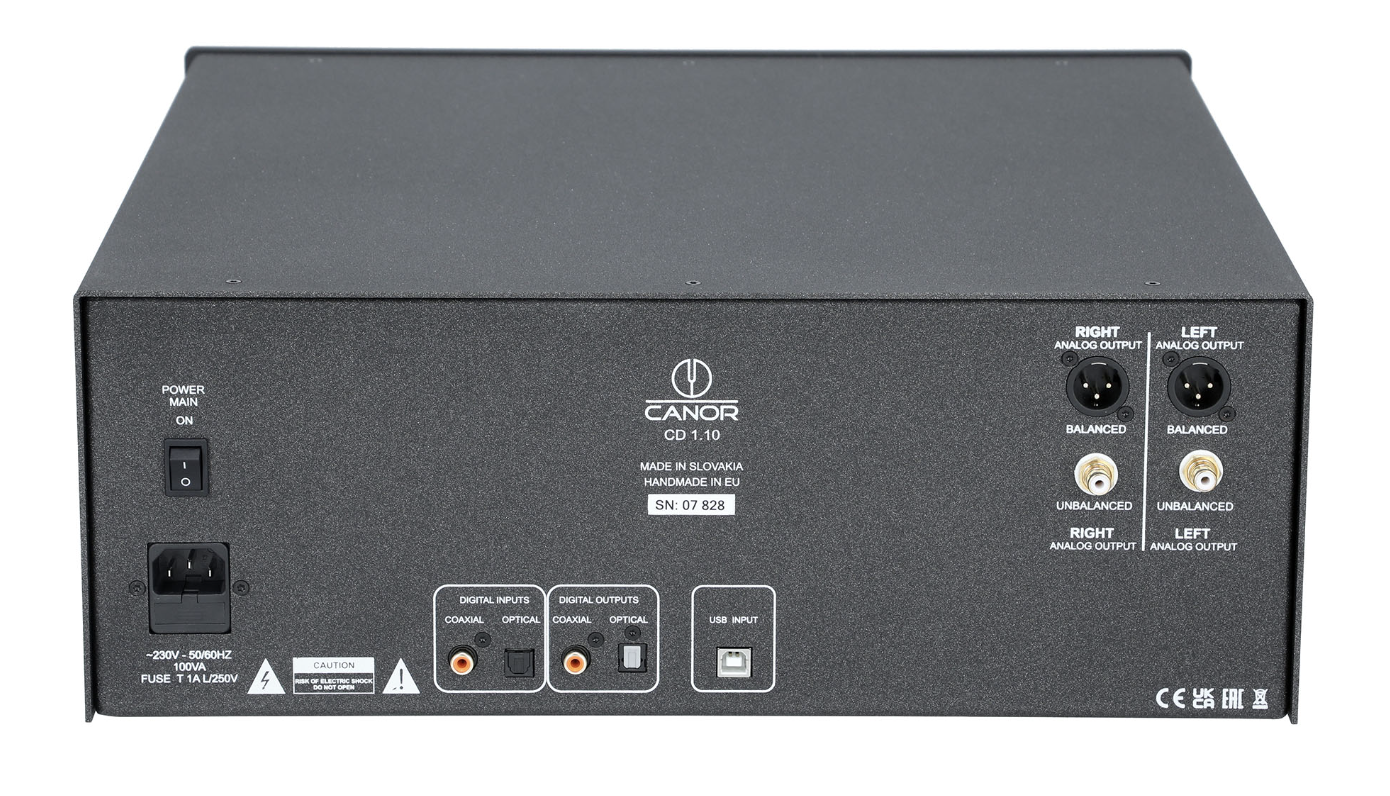

  • Canor CD 1.10 Tube CD Player / DAC rear of unit

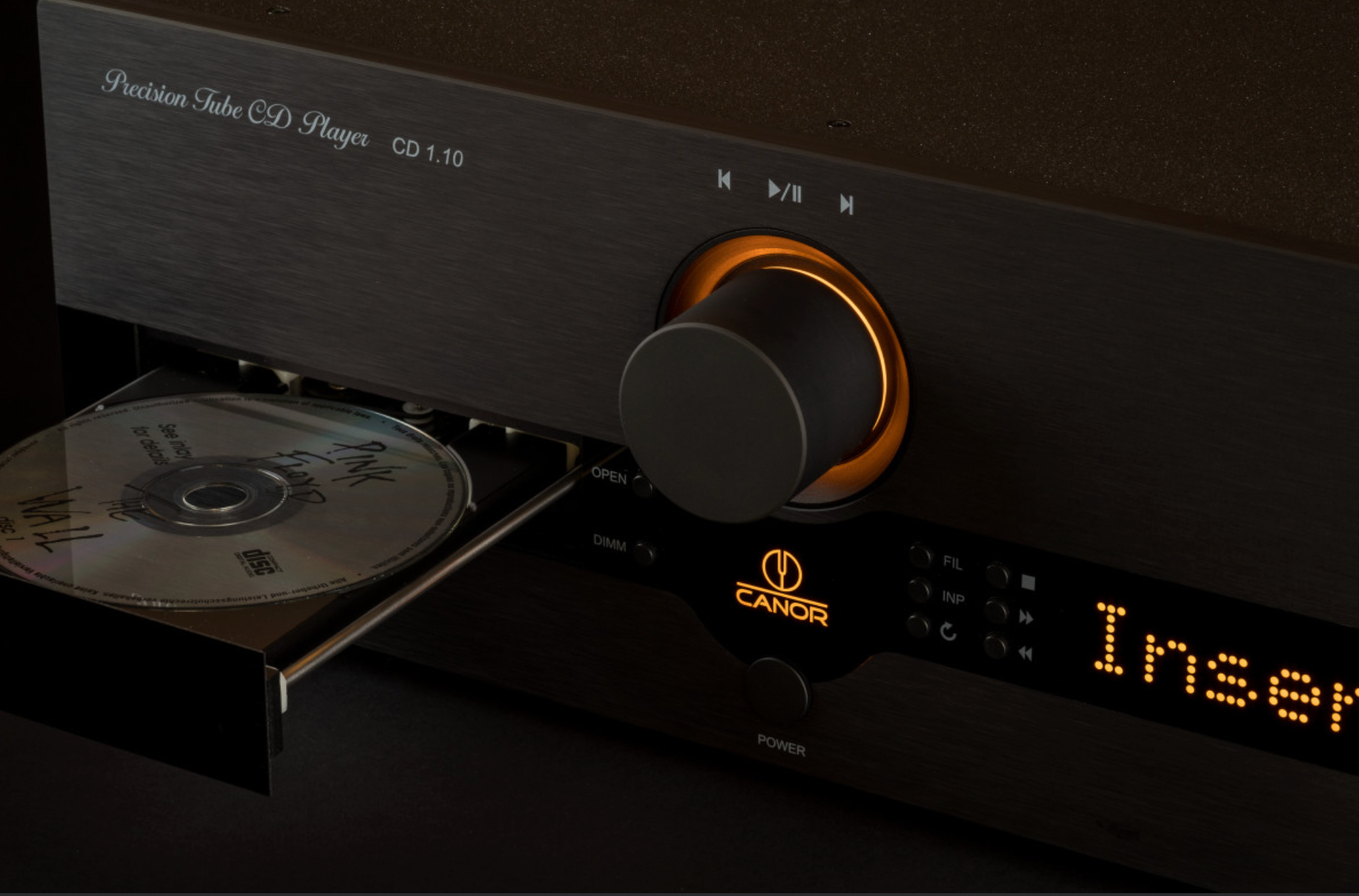

  • Canor CD 1.10 Tube CD Player / DAC iwth CD

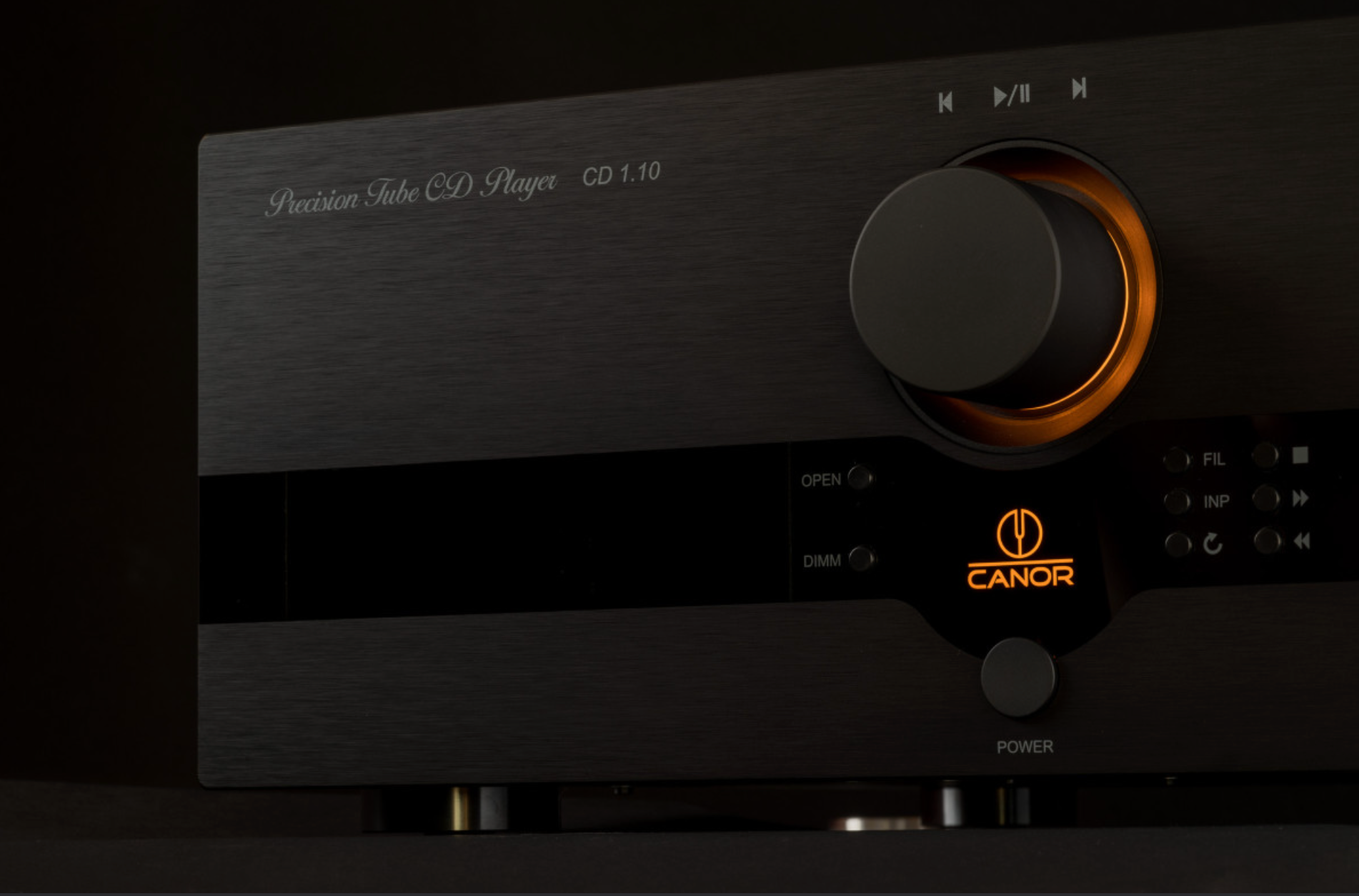

  • Canor CD 1.10 Tube CD Player / DAC closeup

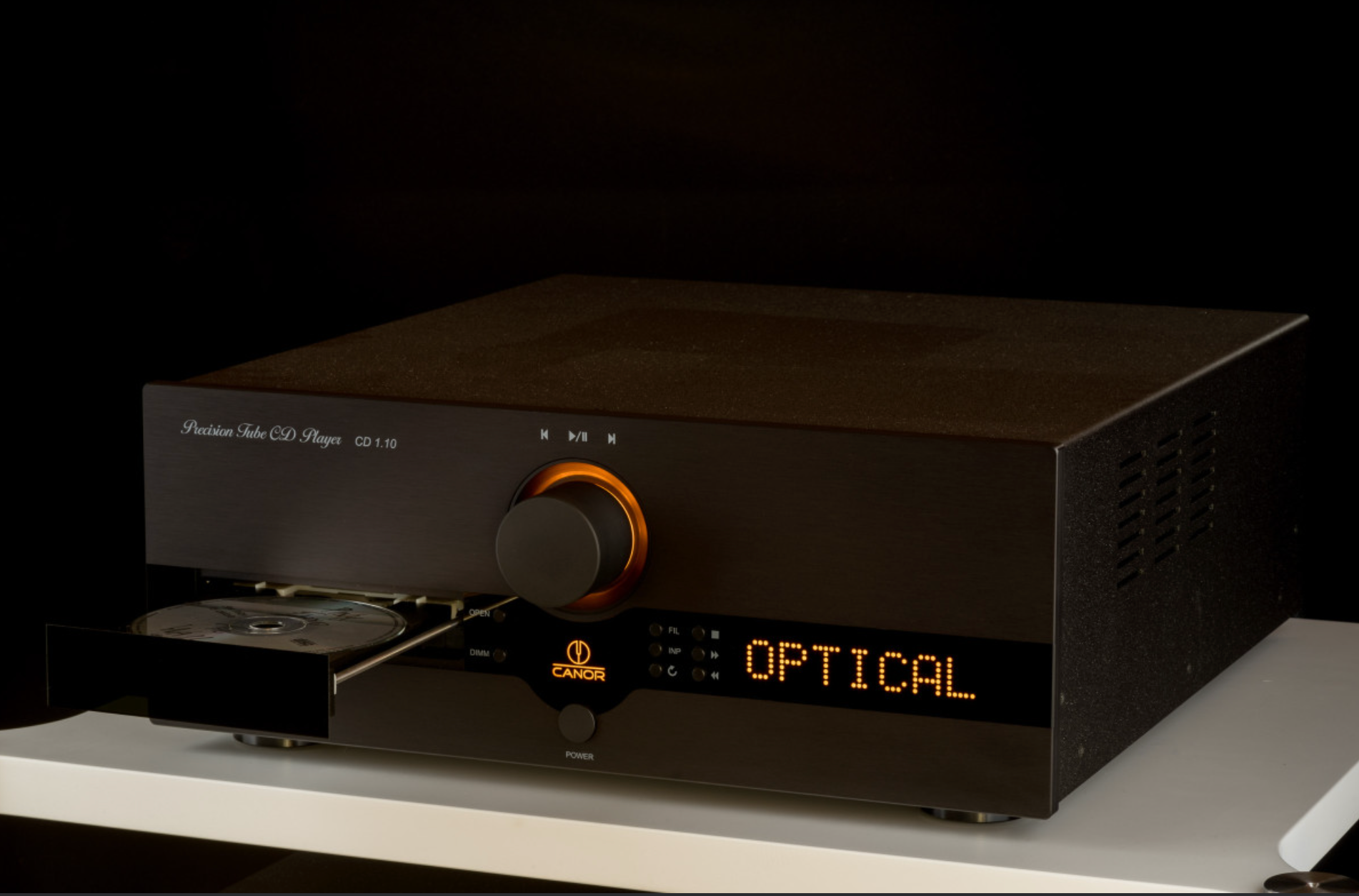

  • Canor CD 1.10 Tube CD Player / DAC, black hero image
1 6

Canor CD 1.10 Tube CD Player and DAC

Canor CD 1.10 Tube CD Player and DAC

$9,995.00 AUD
$9,995.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 755 NICHOLSON ST CARLTON NORTH
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500
Colour

Meet the CD 1.10

The Premium Line Tube CD player and DAC from Canor

CANOR CD 1.10 compact disc player is up to the task and offers so much more!

The aim of the development was to merge the best sound characteristics of previous models together. The amplifier operates in a pure class A with an auto-bias function, and with cathode feedback.

Highlights

  1. Operates as a High Quality DAC
  2. Contains two converters (one for each channel) galvanically separated from the digital part
  3. The input transformer is oversized (low noise)

Converter

Canor CD 1.10 contains two converters (one for each channel), which are galvanically separated from the digital part.

Power (Input) Transformer

The power transformer of a Canor CD 1.10 is oversized, which leads to low radiation and low noise.

Voltage Stabilisation Unit

Canor CD 1.10 contains a voltage stabilisation circuit (VSC), which watches the value of input voltage in real-time and automatically switches the adequate input on the input transformer (with several primary windings). This leads to better performance and prolongs the tubes’ lifetime.

Product Features

  • Tube DA converter / CD player
  • Standalone 24-bit / 192kHz DA converter for each channel
  • High-quality CD drive with compact discs ejection bearing driving mechanism
  • PCB’s utilise Canor's premium CMT ™ technology
  • Super symmetrical passive filters optimised for the highest steepness
  • PCM 44.1 kHz - 192 kHz playback and DSD64, 128, 256

Technical Specifications

Frequency Range
(20 – 20 000) Hz ±0.8 dB

Output Impedance
<100 kΩ

Total Harmonic Distortion
<0.005% / 1 kHz

Signal-to-Noise Ratio
> 102 dB (20 Hz - 20 kHz)

Outputs
RCA / XLR

Analogue output voltage RCA / XLR
2.5 V RMS
5 V RMS

Digital Inputs
USB
Optical
Coax

Digital Outputs
Optical
Coaxial

Tube Complement
2 x 12AX7
2 x 6922
1 x 6CA4

Power
230 V / 50 Hz / 100 VA

Dimensions (w x h x d)
435 x 170 x 485 mm

Weight (net)
17 Kg



*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.

E&OE
