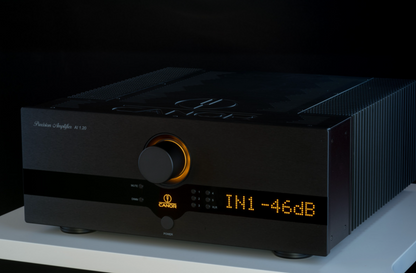

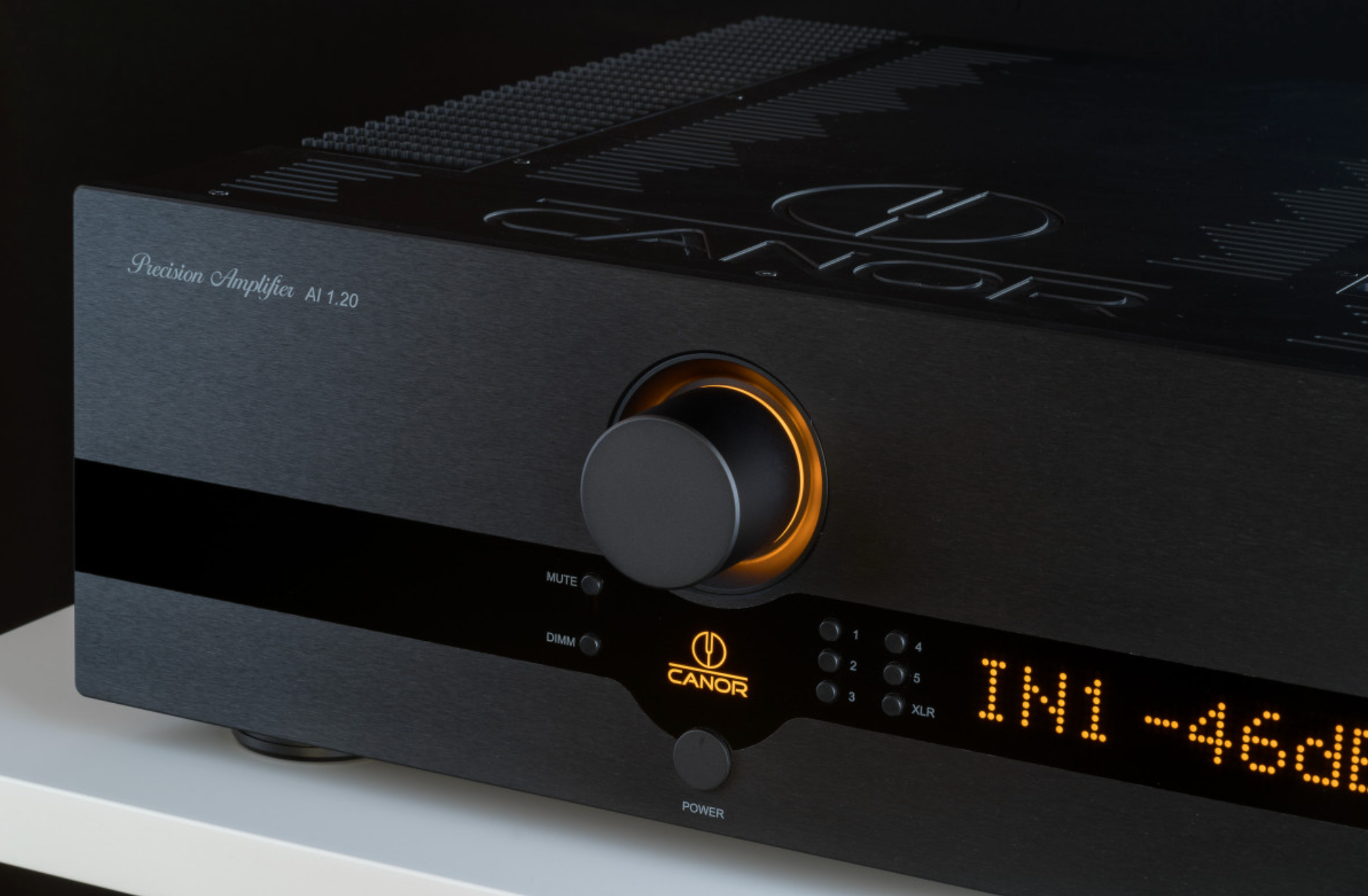

Canor AI 1.20 Integrated Solid-State Amplifier
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH FULL LOCAL WARRANTY"
Introducing the A1 1.20
The Premium Line Integrated Solid-State Amplifier from Canor
CANOR AI 1.20 is an integrated solid-state amplifier in pure class-A up to 50 W per channel with a relay attenuator with two standalone blocks for each channel.
Highlights
- Operates in a pure class A
- 264 000 uF of total filtering capacitance
- Possibility to create a monoblock connection of two units.
Heat Disposal

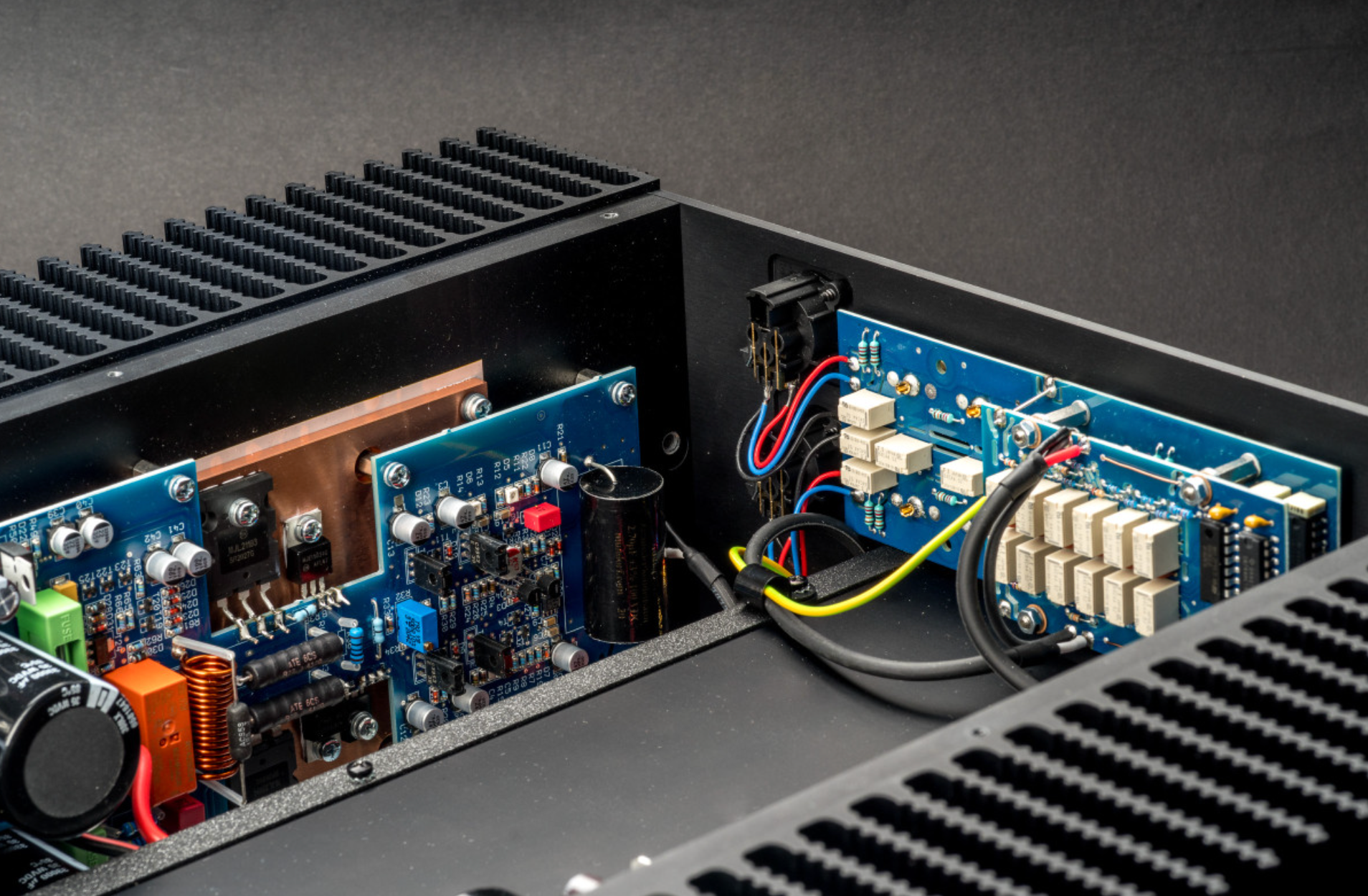

Canor used a special copper plate for heat dissipation, which is installed on the heatsink and the power transistors are installed directly on the given copper plate
Dual-Mono Connection
Dual-mono connection – each channel has its own power transformer. Power transformers are located in separate parts of the device.
Amplifier design
A shielded tunnel passes through the centre of the AI 1.20 amplifier, in which filters with nano crystalline coils are located. In addition, the input circuits are equipped with low-noise j-p transistors.
Monoblock Connection

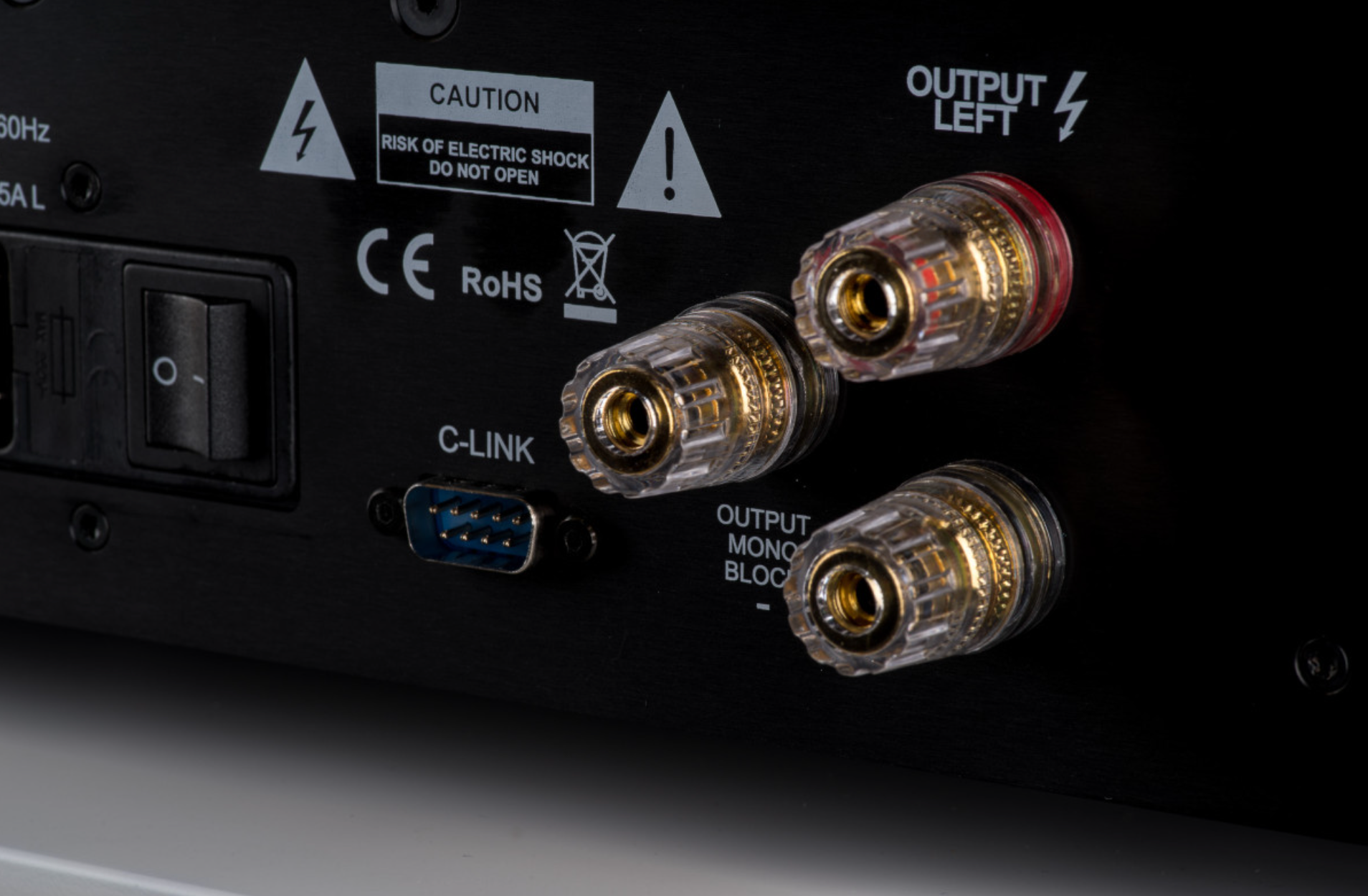

For even better performance and sound, it is possible to connect AI 1.20 as monoblocks using a data cable. One unit becomes the “master” unit and the other the “slave”.
This is the so-called bridge connection of two amplifiers (a fully symmetrical connection).
Product Features
- An integrated solid-state amplifier in pure class-A up to 50 W per channel

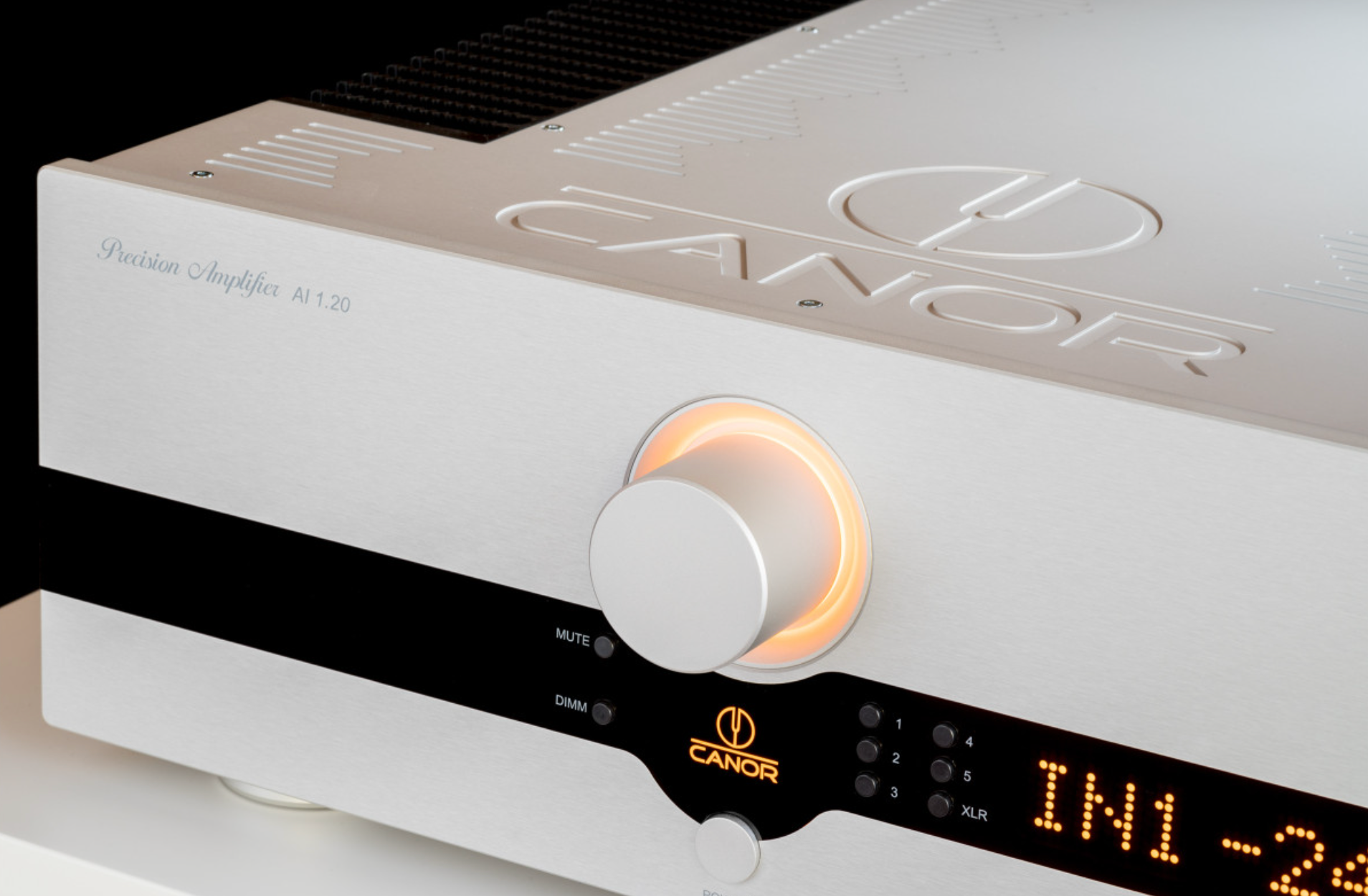

- Relay attenuator with two standalone blocks for each channel
- PCB’s utilise Canor's premium CMT™ technology (CANOR® PCB Milling Technology), it is the way we mill printed circuit boards
- CMT™ technology originated in a long-standing endeavour to improve the sonic performance of our products
- Power supply units with filtered out interfering signals from the mains supply
- Interference-rejection and as small as possible leakage field ensure custom-wound toroidal transformers
- 264 000 uF of filtering capacitance simulates a nearly stabilised supply voltage
- Option of synchronous control enables the use of two amplifiers in a monoblock mode without the need of using an extra preamplifier and that is a Master/Slave mode with an output power of 100W per channel
Technical Specifications
Stereo Output Power
2 x 50 W / 4 Ω
2 x 30 W / 8 Ω
Monoblock Output Power
1 x 130 W / 4 Ω
1 x 100 W / 8 Ω
Gain
30 dB
Frequency Range
20 – 25 000 Hz ± 0.5 dB / 5 W
Input Impedance
30 kΩ

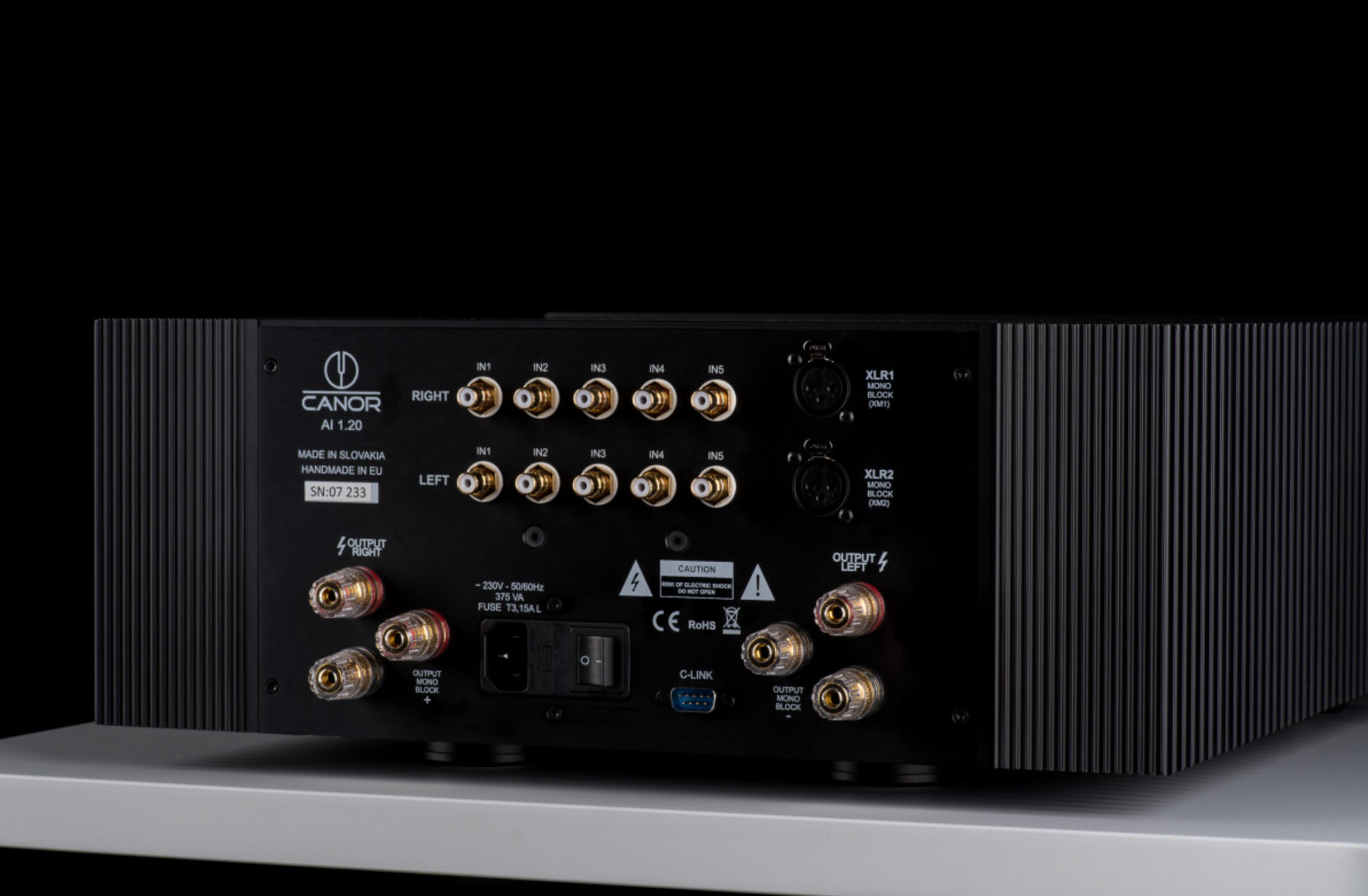

Inputs
5 x RCA
2 x XLR (XLR active in monoblock connection only)
Total Harmonic Distortion
<0.0 9% / 1 kHz, 5 W
Signal-to-Noise Ratio
> 90 dB
Signal-to-Noise Ratio Monoblock
> 100 dB
Filtration Capacity
132 000uF / 35V (per channel)
Damping factor at 4 Ω load at the output
250 (based on measured output impedance)
Damping factor at 8 Ω load at the output
500 (based on measured output impedance)
Power
230 V / 50 Hz / 375 VA
Dimensions (w x h x d)
435 x 170 x 485 mm
Weight (net)
28 Kg
*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.
E&OE
