Cambridge Audio MXW70 Compact Power Amplifier
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."
Meet the MXW70 Compact Power Amplifier
Musical muscle, compact footprint
Cambridge Audio's MXW70 adds power and refinement to any setup, driving even difficult speakers without the bulk of other power amplifiers. It’s the perfect partner for our MXN10 Music Streamer, combining to form a half-width, high-performance streaming system.
Power aplenty
Don’t let its size fool you, MXW70 offers 70 Watts per channel of refined stereo power, bridgeable into mono mode for an impressive 250 Watts.
Super-compact system

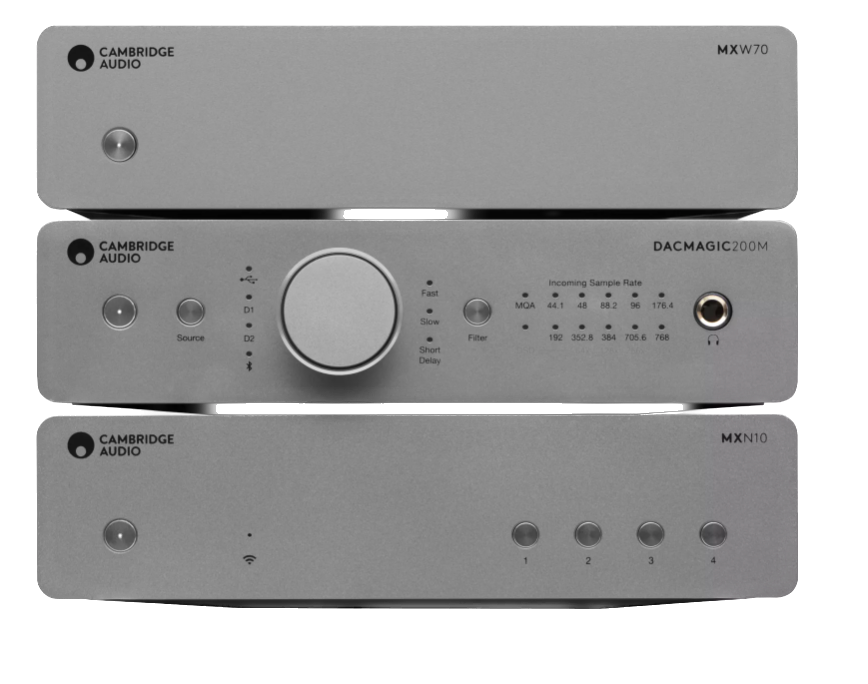

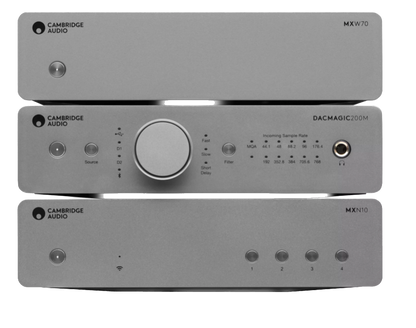

Combine the MXW70 with the award-winning MXN10 Music Streamer to form a complete compact streaming hi-fi stack. Add the DacMagic 200M DAC for further digital clarity and a hi-res headphone output.
Small yet mighty
Designed in London, MXW70 has been meticulously engineered to deliver outstanding high-fidelity amplification from a compact case that can fit into an existing setup or form the basis for a minuscule modern system.
Wired for sound

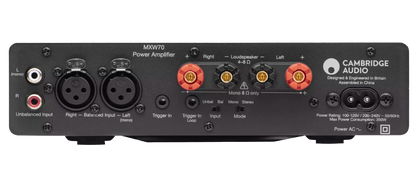

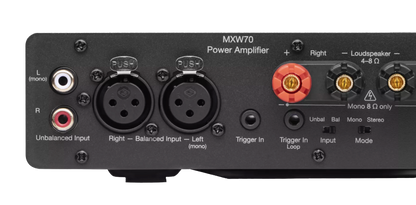

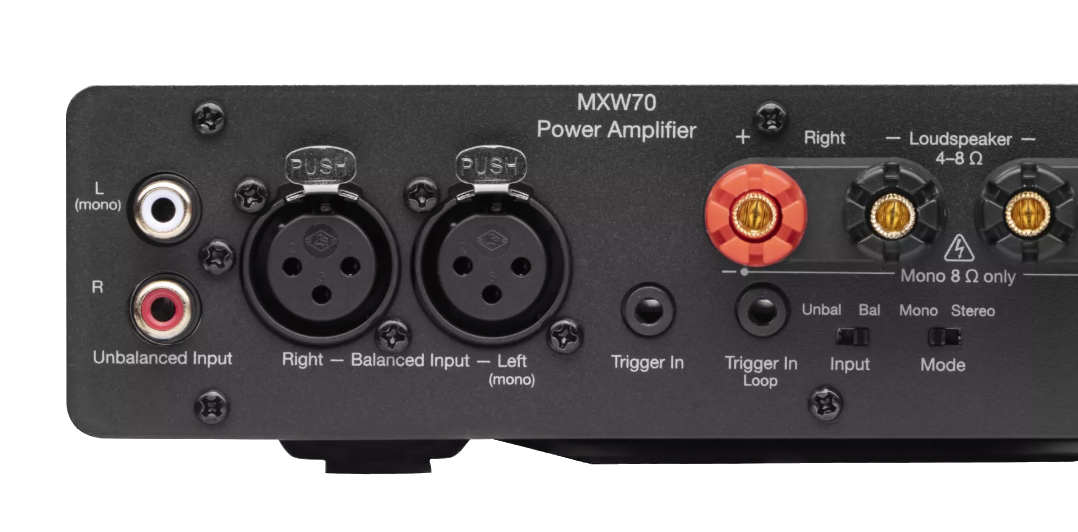

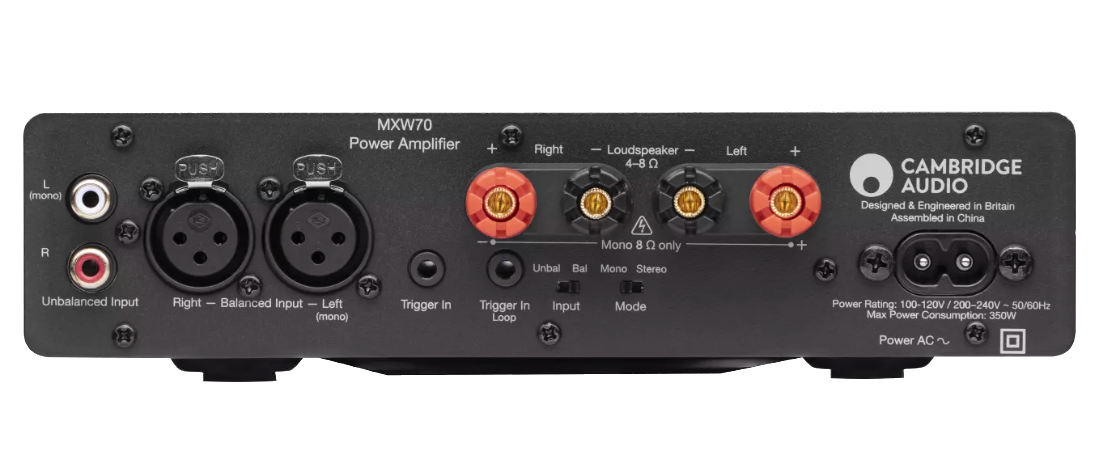

As well as high-quality speaker outputs and stereo RCA inputs, MXW70 offers premium XLR inputs for noise-free, studio-grade signal transmission.

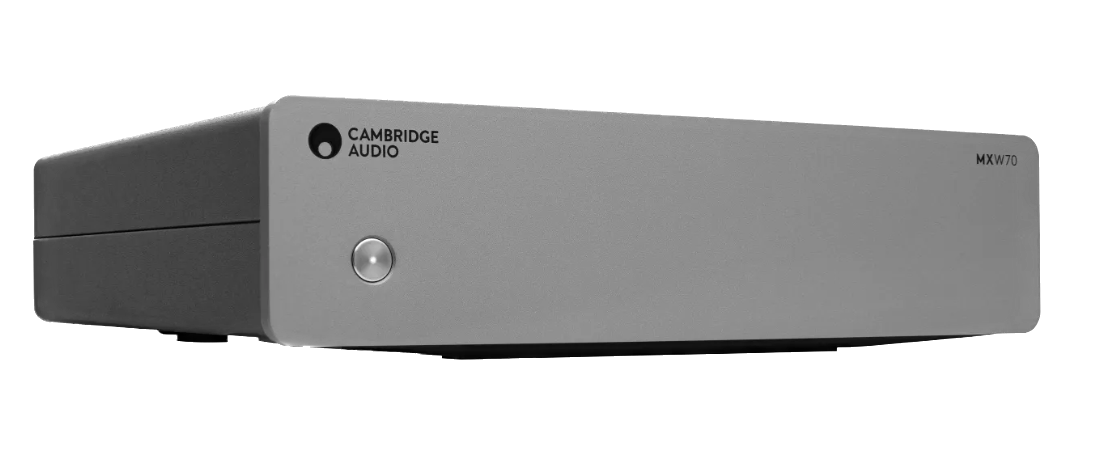

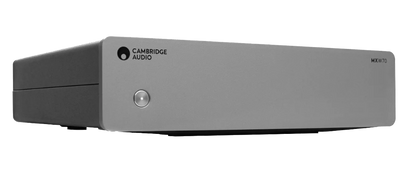

Full metal jacket

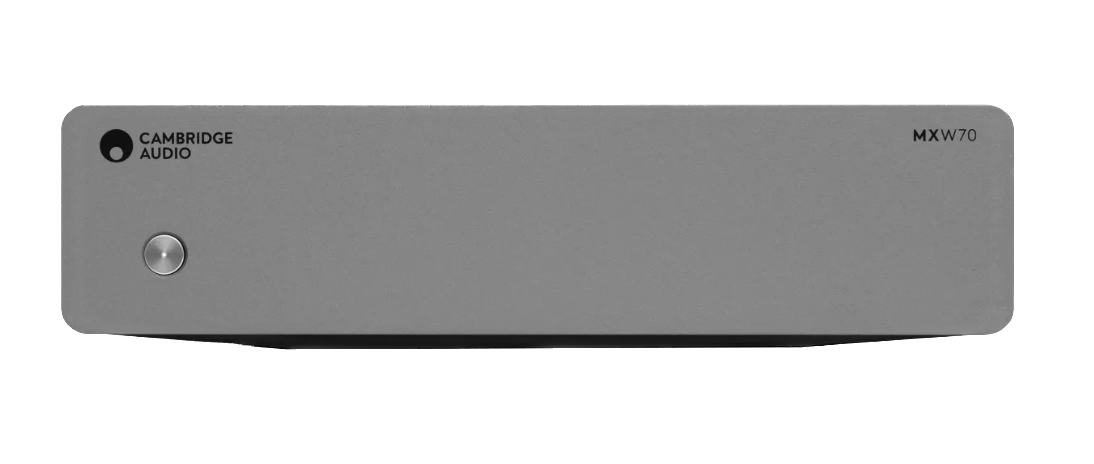

No compromises have been made in the build of Cambridge Audio's half-width champions. MXW70 features premium all-metal casework with a minimalist timeless design, flawlessly finished in Cambridge Audio's trademark Lunar Grey.
Technical Specifications
Power output
2x70W (8ohm stereo)
2x 125W (4ohm stereo)
250W (8ohm mono)
Speaker outputs
1 set
Other outputs
12v Trigger pass-through
Thd+n (unweighted)
<0.015% @ 5W/8ohm
S/n ratio (ref 1w - 20k bw)
>92dB (XLR)
>89dB (RCA)
Crosstalk @1khz
<-82dB
Gain
22.2dB (XLR)
28.8dB (RCA)
Input sensitivity
3.6V (mono XLR)
1.65V (mono RCA)
0.9V (stereo RCA)
1.9V (stereo XLR)
Input impedances
22kohm (RCA)
35kohm (XLR)
Power amp damping factor
>180 @ 1kHz 8ohm
Max power consumption
300w
Standby power consumption
<0.5W
Dimensions (H x W x D)
57 x 215 x 215 mm
Weight
1.65 kg
In the box
- MXW70 Compact Power Amplifier
- Power cords
- Welcome letter
- Registration Card
- Safety guide
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change without notice.
E&OE
