Cambridge Audio EXA100 Integrated Stereo Amplifier
The Power of Three, from Cambridge Audio
The beating heart of Cambridge Audio's EX Series, is the EXA100 integrated stereo amplifier. Taking three years to develop; more than a thousand dedicated days of tuning at their London HQ, the EX Series has created a massive step up in power and performance from the CX Series amps.
Boosted by trickledown technology from their flagship Edge M Mono bloc power amplifier, EXA100 uses its 100W of beautifully refined Class AB amplification to drive even high-end speakers with ease. Effortless power with bags of control.
Back in the Summer of Love, Cambridge Audio's P40 amplifier was the very first to feature a toroidal transformer – and transformed audio forever.

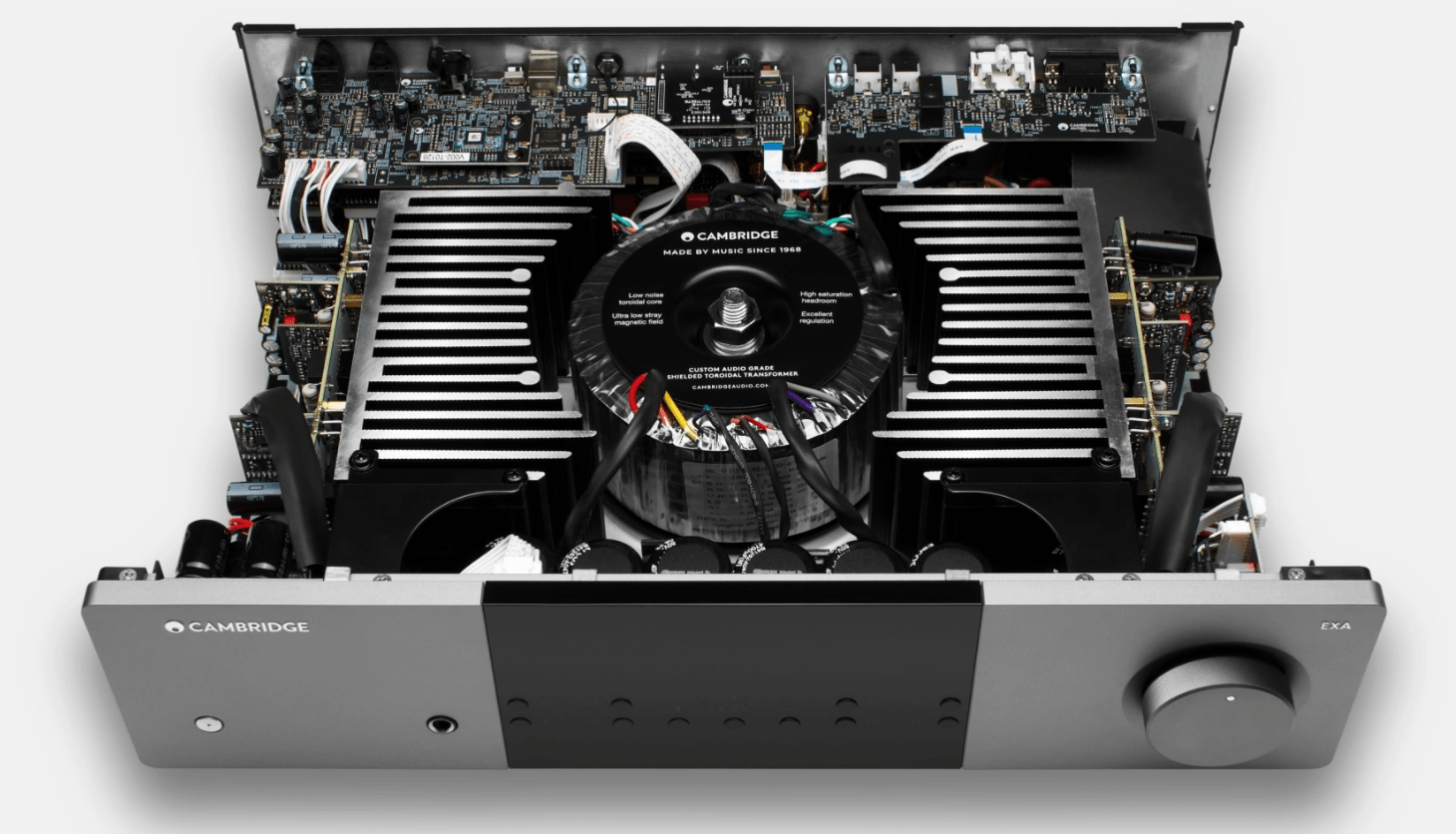

EXA100’s advanced toroidal transformer is amply shielded, super-quiet and flanked by heavy-duty heat sinks for impeccable performance that’s more than worthy of extending the P40 legacy.

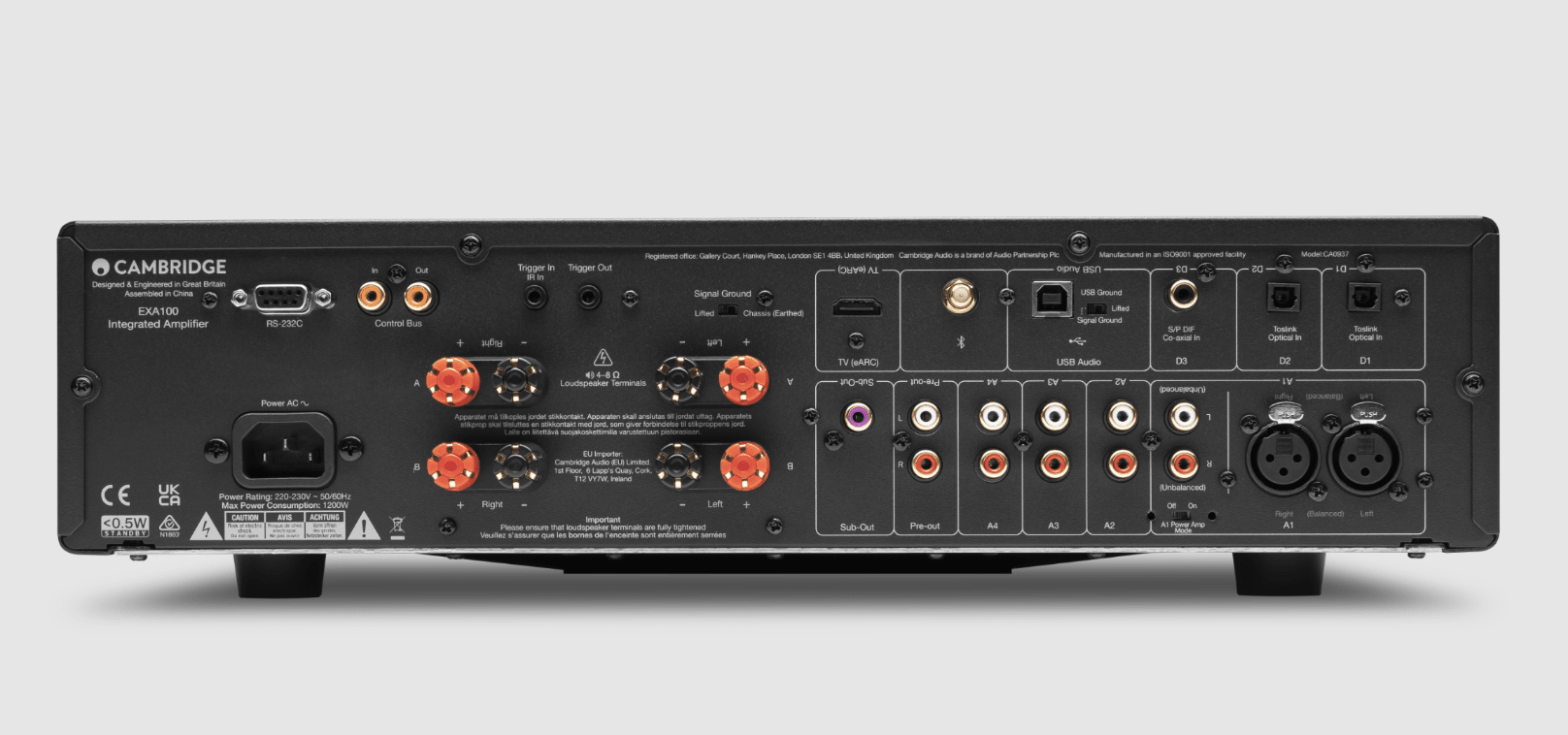

The EXA100 lets you listen how and wherever you want, in sublime quality. Balanced XLR inputs offer a premium analogue connection, while two sets of speaker outputs can power music in two different rooms. Bass-heads can even add a subwoofer to the dedicated pre-out. With EX, you get a world of listening possibilities.
From its exceptional hi-res DAC to the HDMI eARC input and Bluetooth aptX HD, EXA100 is a digital audio powerhouse. Whatever music service or source device you choose, EXA100 will breathe new life into your digital sounds.

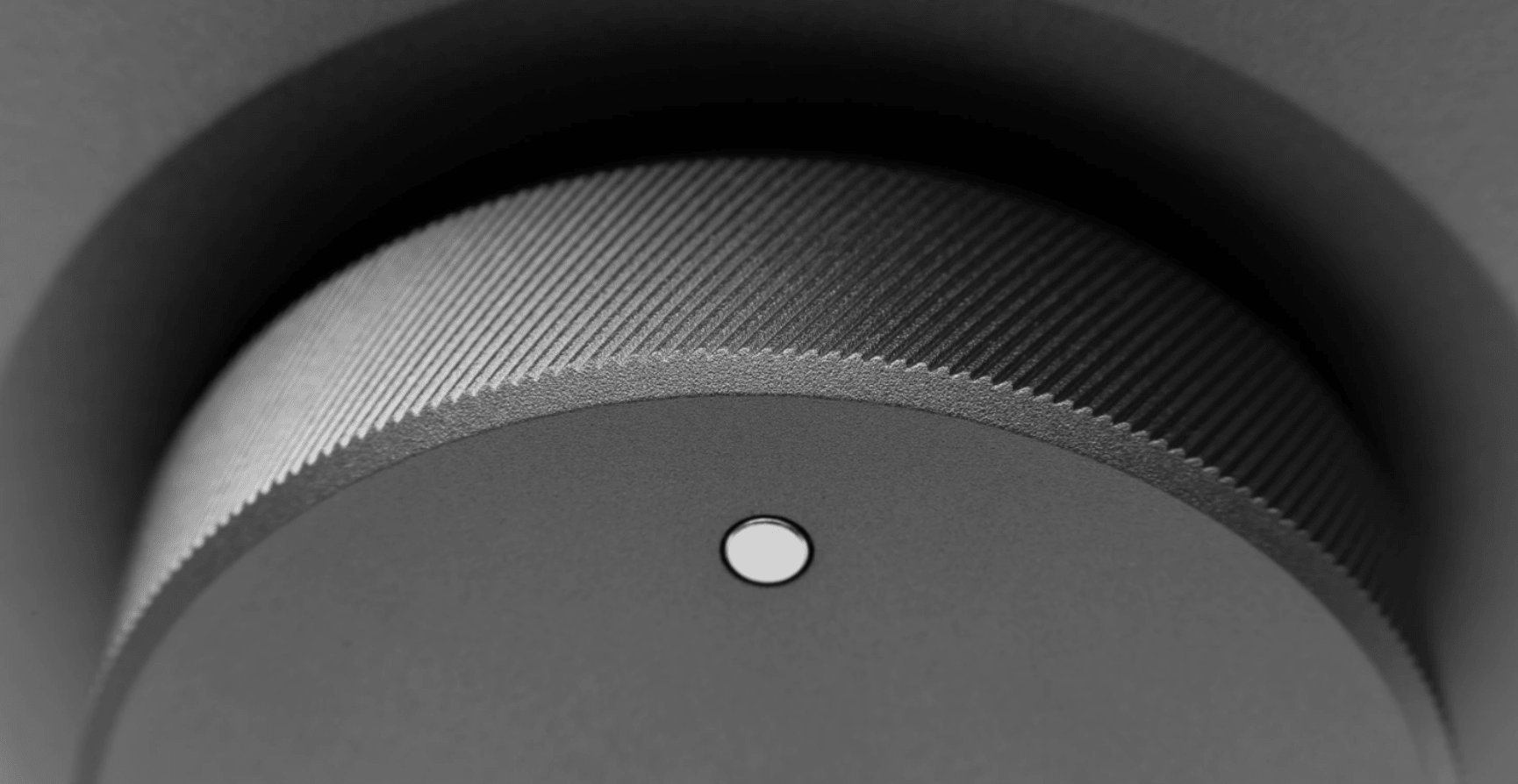

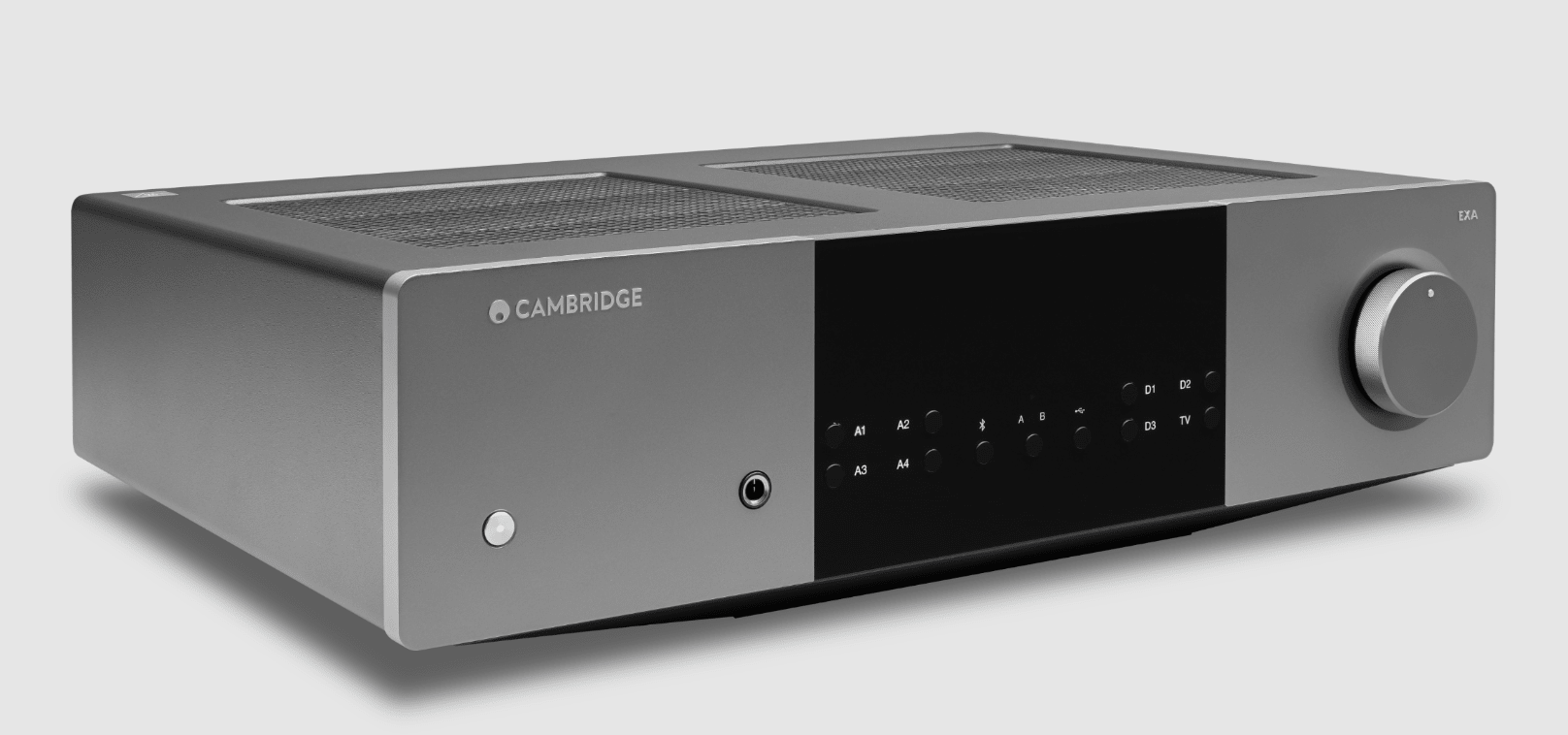

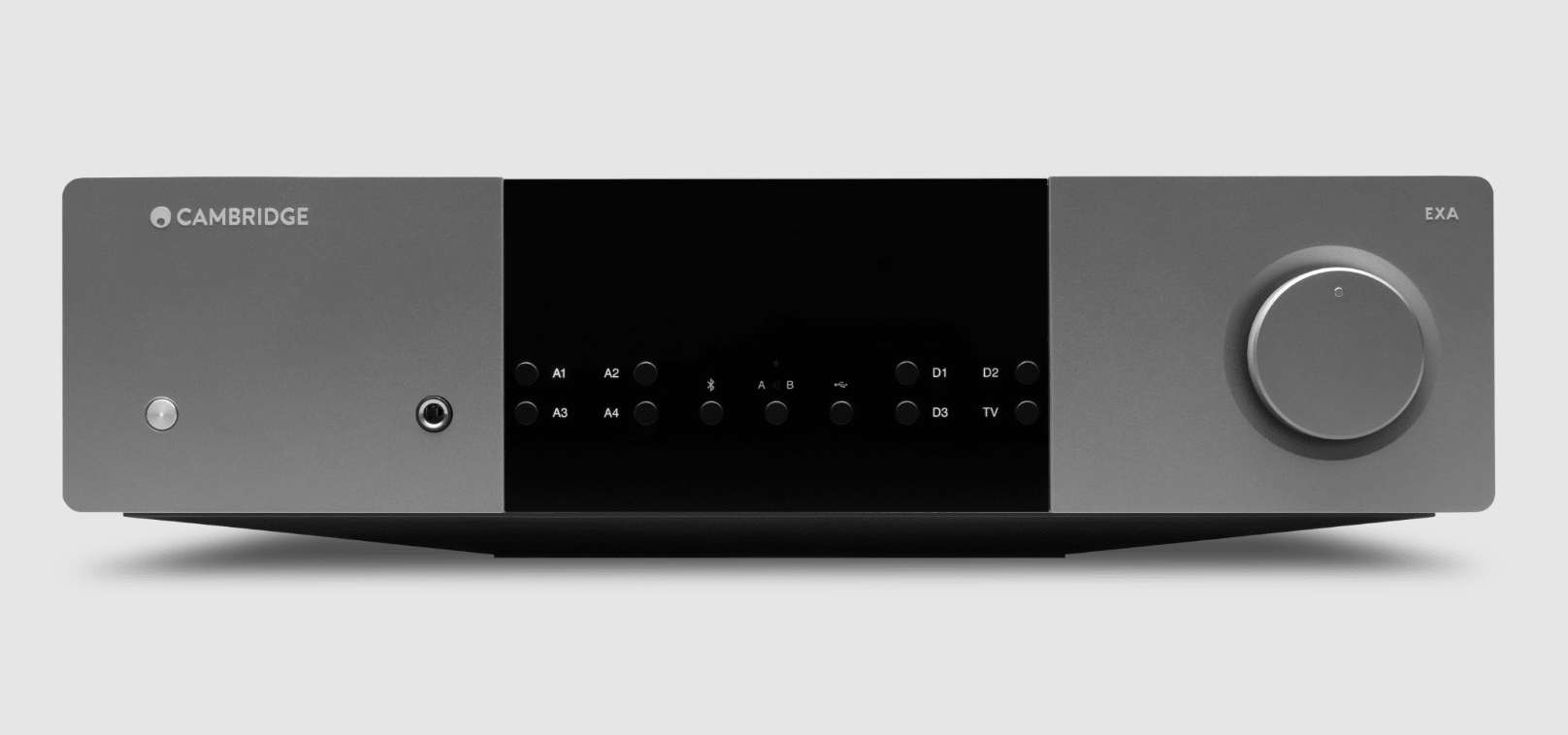

The innovation doesn’t stop on the inside: the EXA100 has a stunning new design, complete with a milled aluminium front panel and a tactile knurled volume knob you can’t keep your hands off. This jaw-dropping amp looks as powerful as it sounds.
Switch it to Power Amp Mode and the EXA100 pairs brilliantly with any pre-amp, giving flexibility you never knew you needed – whether in a stereo or multi-channel system.
To ensure a longer, happier listening life for Cambridge Audio amps and the speakers they power, they have developed an exceptional proprietary protection system, CAP.
CAP uses an array of different methods to detect potential issues, such as power and temperature overloads, and take preventive action. So you can just relax and enjoy the music, worry-free.
From its precision build to the technology inside, the EXA100 is gloriously over-engineered. Whether it’s a four-layer PCB or a reservoir capacitor, every component is specially selected and expertly implemented. Cambridge Audio sweat the small stuff, because it matters.
POWER OUTPUT
100W RMS into 8 Ohms @ <1% THD+N, 155W RMS into 4 Ohms @ 1kHz <1% THD+N
AMPLIFICATION
Class A/B
DAC
ES9018K2M
PREAMP MODE
Yes
FREQUENCY RESPONSE
<3Hz – >40kHz +/-1dB
TOROIDAL TRANSFORMER
Yes
BI-WIRING POSSIBLE
Yes
ANALOGUE RCA INPUTS
4 Pairs
BALANCED XLR INPUT
1 Pair
S/PDIF TOSLINK INPUT
1
S/PDIF COAXIAL INPUT
1
ASYNCHRONOUS USB INPUT
USB Type B (USB Audio Class 1 or 2, user selectable)
BLUETOOTH
5 aptX HD
HDMI ARC INPUT
1 (eARC compatible)
PREAMP OUTPUT
RCA pre-out
HEADPHONE OUTPUT
Yes
SUBWOOFER OUTPUT
1 x RCA
SPEAKER OUTPUTS
Yes
S/PDIF TOSLINK OPTICAL
16/24 bit, 32-96 kHz
S/PDIF COAXIAL
16/24 bit, 32-192 kHz
HDMI eARC
PCM up to 24bit/192 kHz
USB AUDIO
Class 1: Up to 24-bit 96 kHz (asynchronous)
Class 2: Up to 24-bit 384 kHz (asynchronous) and up to DSD-256
BLUETOOTH
5.0 A2DP/AVRCP (SBC, aptX, aptX HD)
RS232 CONTROL
Yes
THD (UNWEIGHTED)
<0.002% 1kHz at 80% of rated power (8 Ohms)
<0.02% 20Hz – 20kHz at 80% of rated power
S/N RATIO (REF FULL POWER)
>103 dB
CROSSTALK @ 1KHZ
< -90 dB
INPUT SENSITIVITY
Input A2-A4 (unbalanced) 395 mV RMS
INPUT IMPEDANCES
Input A1 (balanced) 100 kOhm
Input A2-A4 (unbalanced) 45 kOhm
POWER AMP DAMPENING FACTOR
Input A1 (balanced) 100 kOhm
Input A2-A4 (unbalanced) 45 kOhm
SUBWOOFER OUTPUT
1 x RCA
MAX POWER CONSUMPTION
1200 W
STANDBY POWER CONSUMPTION
<0.5 W
DIMENSIONS (W x H x D)
115 x 430 x 341 mm (4.5 x 16.9 x 13.4")
WEIGHT
12.8 kg (28.2 lbs)
*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change without notice.
E&OE
