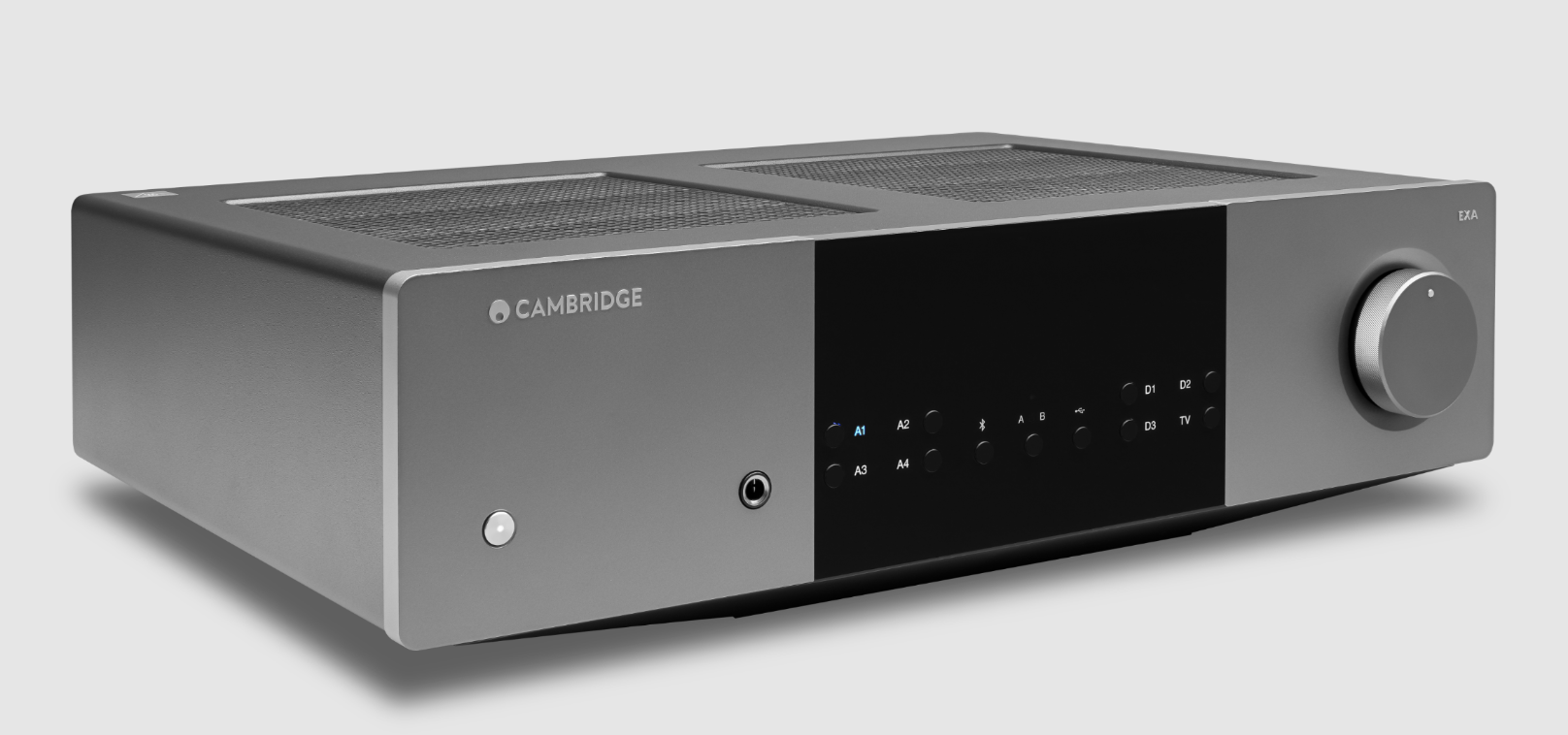

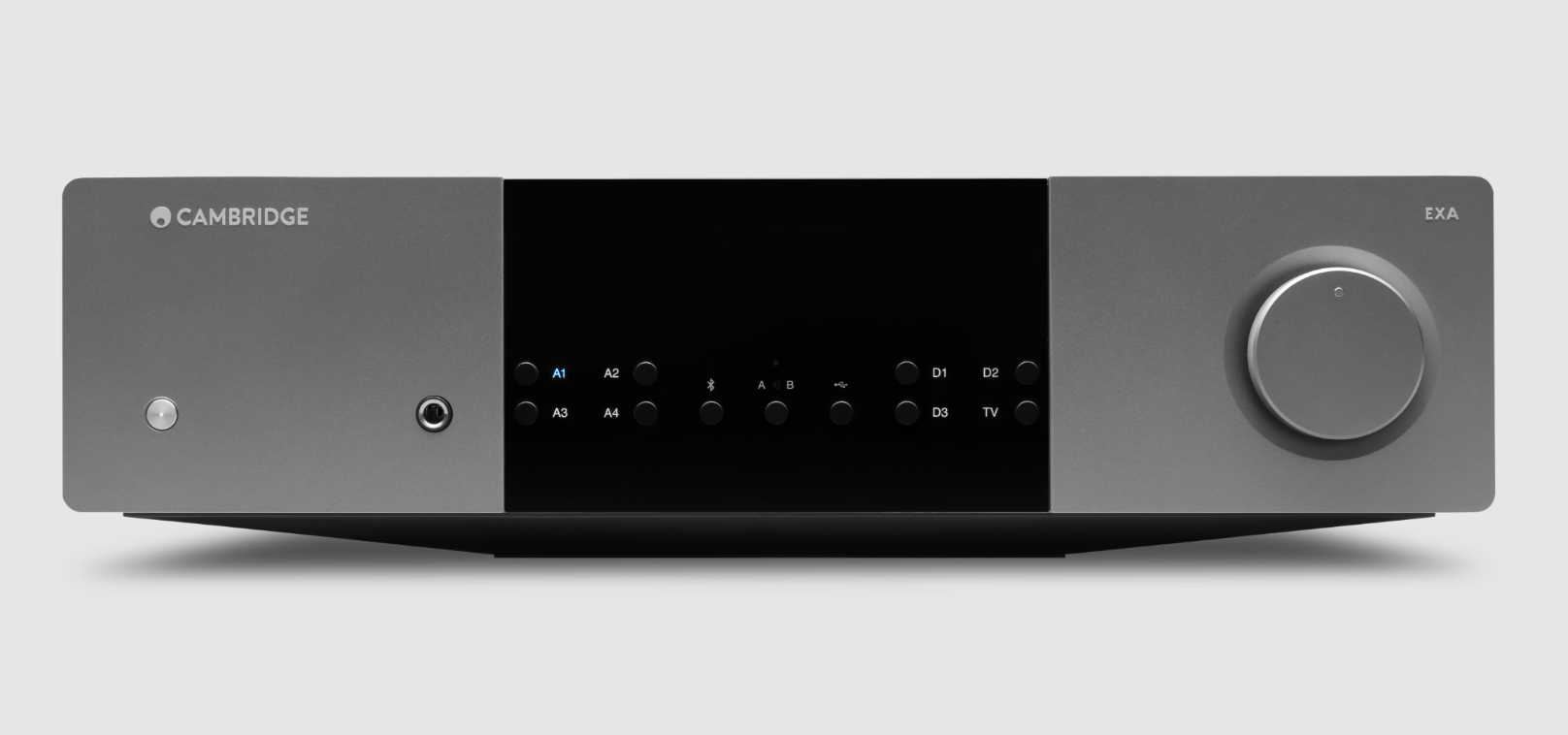

Cambridge Audio EXA100 Integrated Stereo Amplifier
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH FULL LOCAL WARRANTY"
Introducing the new EXA100 Integrated Stereo Amplifier
The Power of Three, from Cambridge Audio
The beating heart of Cambridge Audio's EX Series, is the EXA100 integrated stereo amplifier. Taking three years to develop; more than a thousand dedicated days of tuning at their London HQ, the EX Series has created a massive step up in power and performance from the CX Series amps.
Product Features
- Best-in-Class Sound: Amplifier tech inspired by our flagship Edge M monobloc delivers an incredibly wide, detailed soundstage. Be moved by your music like never before.
- Power With Control: 100 Watts per channel of perfectly tuned Class AB amplification skilfully drives even the most demanding speakers with ease.
- Digital Connectivity: Get your TV, CD, USB drives and more connected via HDMI eARC, TOSLINK, Coaxial & USB Audio digital inputs
- Balanced XLR Inputs: Enjoy the best possible analogue sound quality with these premium analogue connections.
- ESS ES9018K2M SABRE32 DAC: For exceptional digital-to-analogue conversion; tuned in London like no other for peak performance.
- Bluetooth aptX HD: Wirelessly connect devices such as the Alva TT V2 turntable and stream in glorious hi-def quality.
- Power Amp Mode: For use with a dedicated preamp or as part of a multi-channel system.
- Dual Speaker Zones: Why limit the fun to just one room? Two sets of speaker outputs offer a second zone option.
Technical Specifications
POWER OUTPUT
100W RMS into 8 Ohms @ <1% THD+N, 155W RMS into 4 Ohms @ 1kHz <1% THD+N
AMPLIFICATION
Class A/B
DAC
ES9018K2M
PREAMP MODE
Yes
FREQUENCY RESPONSE
<3Hz – >40kHz +/-1dB

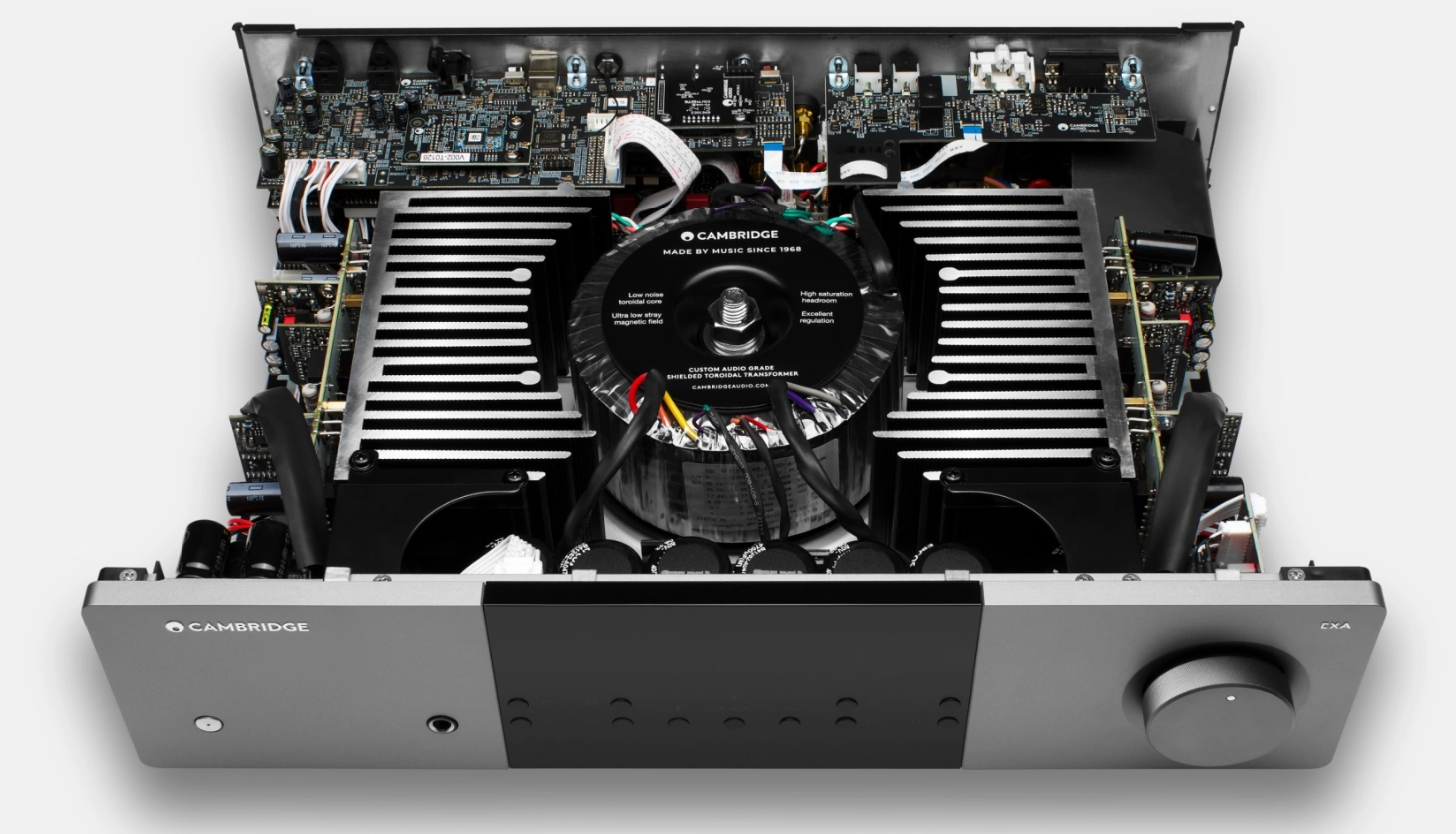

TOROIDAL TRANSFORMER
Yes
BI-WIRING POSSIBLE
Yes
ANALOGUE RCA INPUTS
4 Pairs
BALANCED XLR INPUT
1 Pair
S/PDIF TOSLINK INPUT
1
S/PDIF COAXIAL INPUT
1
ASYNCHRONOUS USB INPUT
USB Type B (USB Audio Class 1 or 2, user selectable)
BLUETOOTH
5 aptX HD
HDMI ARC INPUT
1 (eARC compatible)
PREAMP OUTPUT
RCA pre-out
HEADPHONE OUTPUT
Yes
SUBWOOFER OUTPUT
1 x RCA
SPEAKER OUTPUTS
Yes
S/PDIF TOSLINK OPTICAL
16/24 bit, 32-96 kHz
S/PDIF COAXIAL
16/24 bit, 32-192 kHz
HDMI eARC
PCM up to 24bit/192 kHz
USB AUDIO
Class 1: Up to 24-bit 96 kHz (asynchronous)
Class 2: Up to 24-bit 384 kHz (asynchronous) and up to DSD-256
BLUETOOTH
5.0 A2DP/AVRCP (SBC, aptX, aptX HD)
RS232 CONTROL
Yes
THD (UNWEIGHTED)
<0.002% 1kHz at 80% of rated power (8 Ohms)
<0.02% 20Hz – 20kHz at 80% of rated power
S/N RATIO (REF FULL POWER)
>103 dB
CROSSTALK @ 1KHZ
< -90 dB
INPUT SENSITIVITY
Input A2-A4 (unbalanced) 395 mV RMS
INPUT IMPEDANCES
Input A1 (balanced) 100 kOhm
Input A2-A4 (unbalanced) 45 kOhm
POWER AMP DAMPENING FACTOR
Input A1 (balanced) 100 kOhm
Input A2-A4 (unbalanced) 45 kOhm
SUBWOOFER OUTPUT
1 x RCA
MAX POWER CONSUMPTION
1200 W
STANDBY POWER CONSUMPTION
<0.5 W
DIMENSIONS (W x H x D)
115 x 430 x 341 mm (4.5 x 16.9 x 13.4")
WEIGHT
12.8 kg (28.2 lbs)
IN THE BOX
- EXA100 Integrated Stereo Amplifier
- Power Cords
- Remote Control
- Welcome Letter
- Registration Card
- Safety Guide
*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.
E&OE
