Presenting the CCM682
Brought to you by Bowers & Wilkins

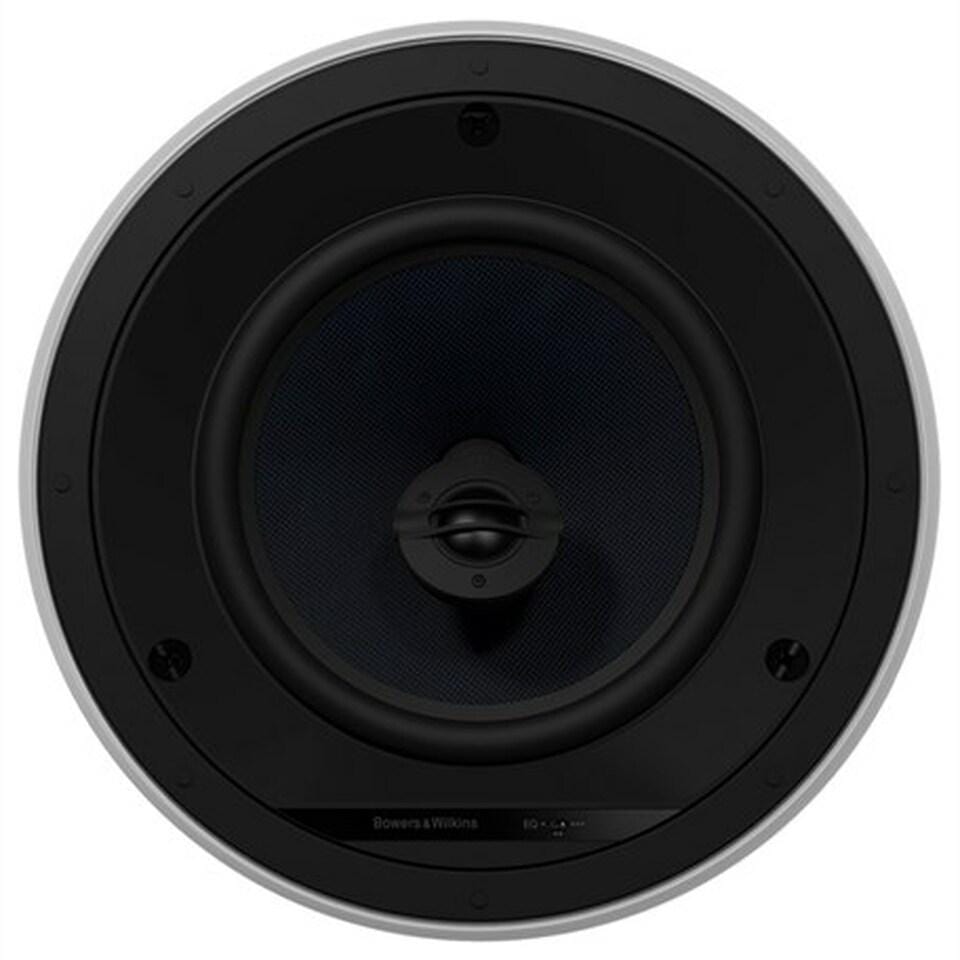

A high performance ceiling-mount speaker featuring a 200mm (8in) Kevlar cone bass/midrange driver with a rigid die-cast chassis, and a Nautilus swirl-loaded aluminium dome tweeter that pivots for adjustable off-axis treble response.
A 30mm coil and 100mm magnet make this an incredibly efficient and reliable speaker, with outstanding sound quality and a maximum amp power of 150W.
Other features include superior crossovers components, gold plated terminals and a three-position EQ switch.
Technical Specifications
Description |
2-way in-ceiling system |
Drive Units |
1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter |
Frequency Range (-6dB) |
35Hz – 50kHz |
Recommended Amp Power |
25 – 150w |
Sensitivity SPL (2.83V, 1m) |
89dB |
Impedance Nominal (min) |
8Ω (4.5Ω) |
Frame diameter |
290mm (11.4in) |
Cut-out diameter |
250mm (9.8in) |
Depth behind surface |
133mm (5.2in) |
Protrusion |
4mm (0.2in) |
Pre-mount Kit |
C8 |
Back Box |
6C |
*Reprint from Manufacturers website
