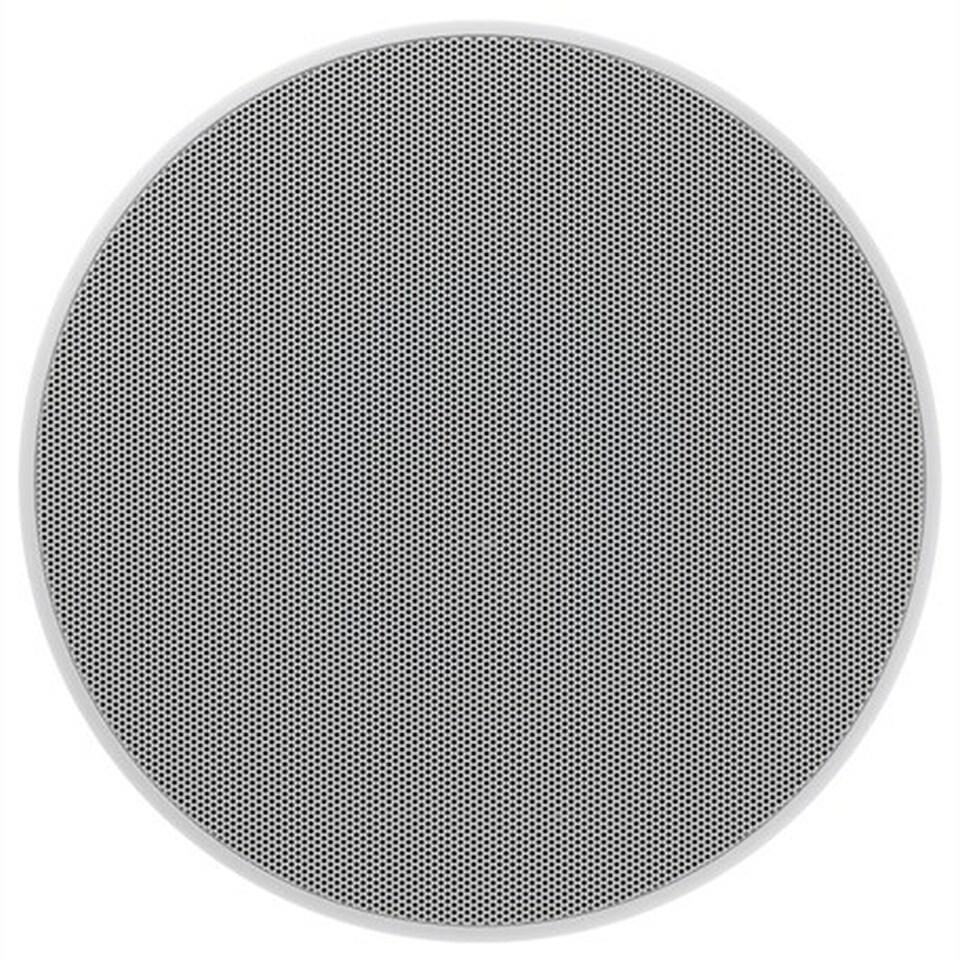

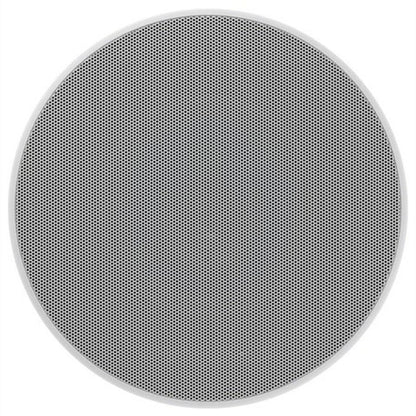

B&W CCM684 In-Ceiling Speakers (Pair)
WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH FULL LOCAL WARRANTY
Meet the CCM684
Brought to you by Bowers & Wilkins

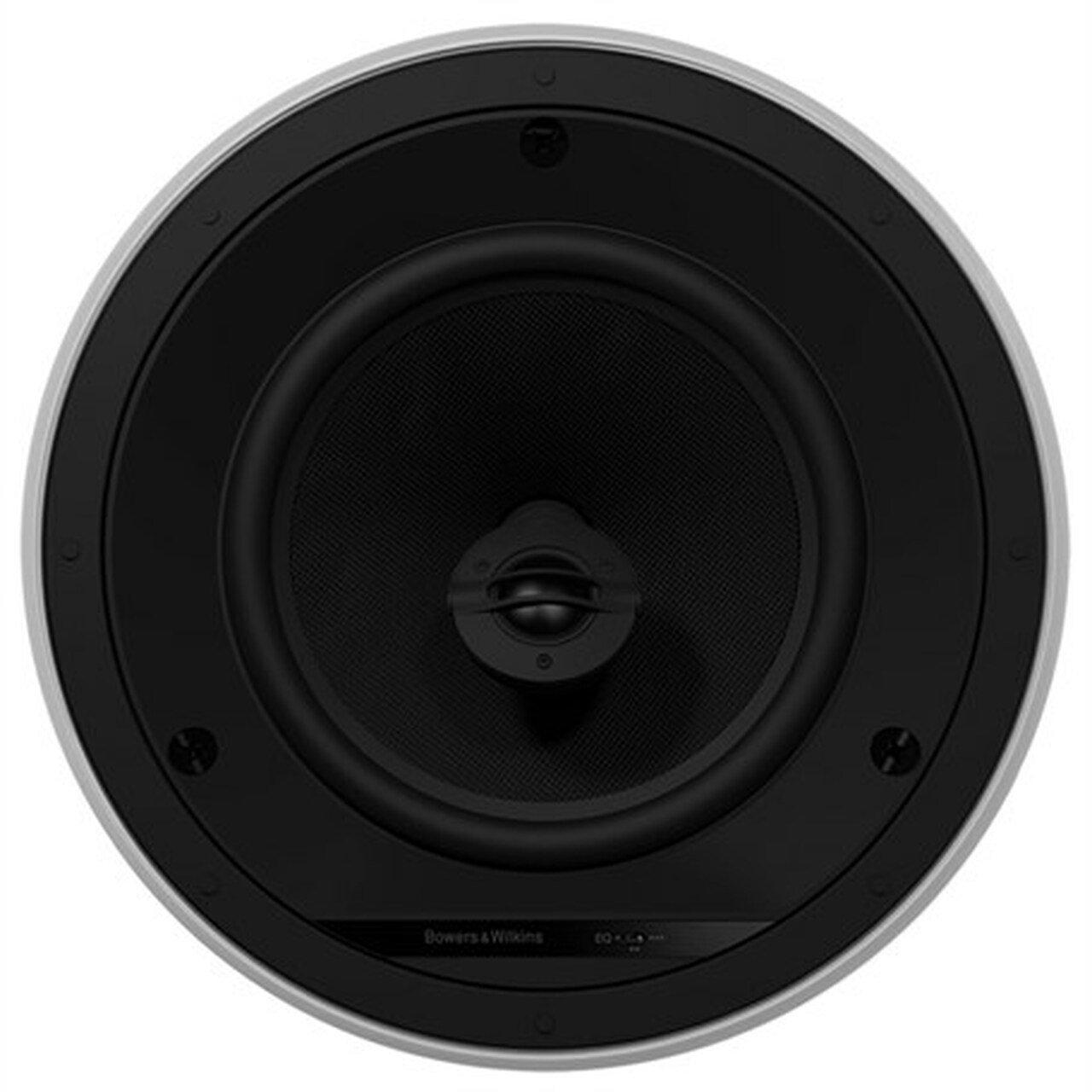

The entry point among the CI 600 range of 8in in-ceiling speakers, the two-way CCM684 features a 200mm (8in) woven glass fibre cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis.
As with the other 8in speakers in the range, the tweeter housing pivots for adjustable off-axis treble response. It also comes with an EQ switch, as well as QuickDogs™ and a plug-and-play functionality for easy installation.
Technical Specifications
Description |
2-way in-ceiling system |
Drive Units |
1x ø25mm (1in) soft dome tweeter |
Frequency Range (-6dB) |
35Hz – 35kHz |
Frequency Response |
51Hz - 22kHz on reference axis (wall mounted) |
Recommended amplifier power |
25 – 130w |
Sensitivity SPL (2.83V, 1m) |
88dB |
Impedance Nominal (min) |
8Ω (4.5Ω) |
Frame Diameter |
290mm (11.4in) |
Cut-out diameter |
250mm (9.8in) |
Depth behind surface |
133mm (5.2in) |
Protrusion |
4mm (0.2in) |
Pre-mount Kit |
C8 |
Pre-mount Kit |
6C |
*Reprint from Manufacturers website
