B&W CCM663RD Reduced Depth In-Ceiling Speakers (Pair)

B&W CCM663RD Reduced Depth In-Ceiling Speakers (Pair)

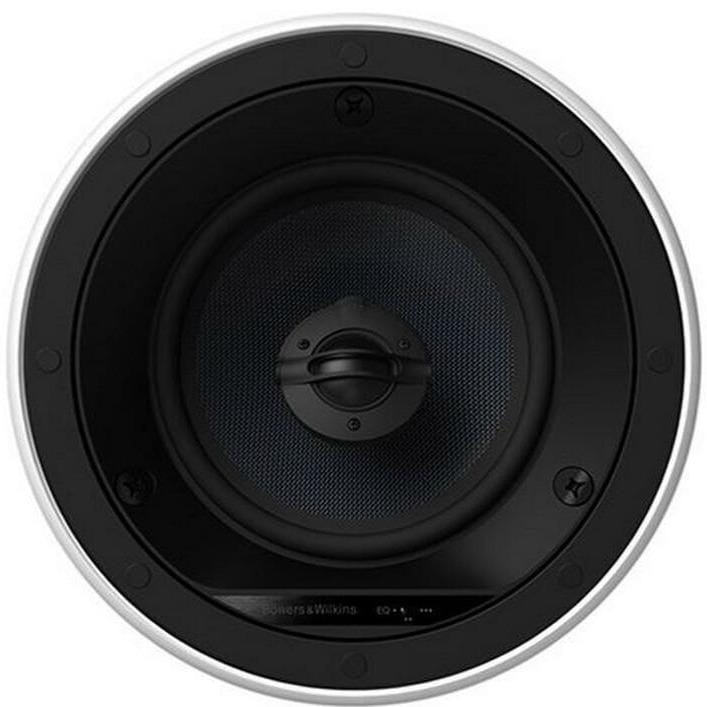

A shallower cone and a redesign of the easy-fit QuickDogs™ frame reduce this speaker’s depth to a very slim 92mm, while retaining everything that makes the CCM663 such a great in-ceiling speaker.

The dark Kevlar® cone of the bass/mid driver delivers a clean, detailed response, and combines with the pivoting aluminium tweeter for adjustable off-axis treble and three-position EQ, to make an incredibly versatile custom speaker.

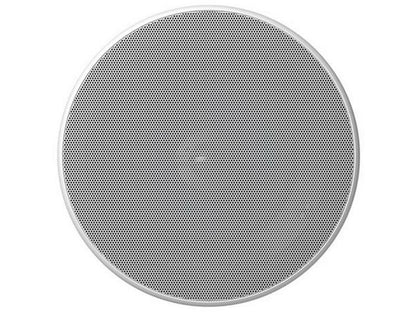

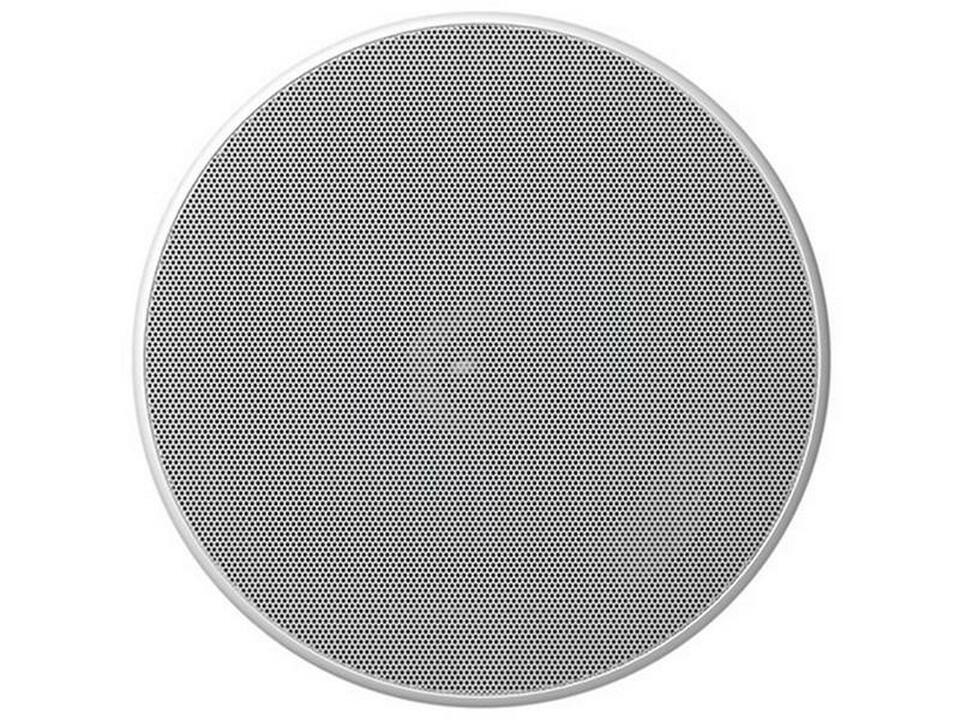

If preferred, the supplied round grille can be replaced with an optional square CCM663 grille.


Description 2-way in-ceiling system
Drive Units 1x Ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter
1x Ø150mm (6 in) blue Kevlar® cone bass/midrange
Frequency range (-6dB) 35Hz – 50kHz
Recommended Amplifier Power 25W – 100W
Sensitivity 86dB (2.83V, 1m)
Nominal Impedance 8Ω (4.8Ω minimum)
Frame Ø240mm (9.4 in)
Cut-out Ø202mm (8 in)
Depth behind surface 92mm (3.6 in)
Protrusion 7mm (0.3 in)
Net weight 2.3kg (5 lb)
Pre-mount Kit PMK C6
Back Box BB6W or BB125C
