    B&W ASW610 10-Inch 200W Subwoofer - Matte White

    Original price $1,089.00 - Original price $1,089.00
    Original price
    $1,089.00
    $1,089.00 - $1,089.00
    Current price $1,089.00

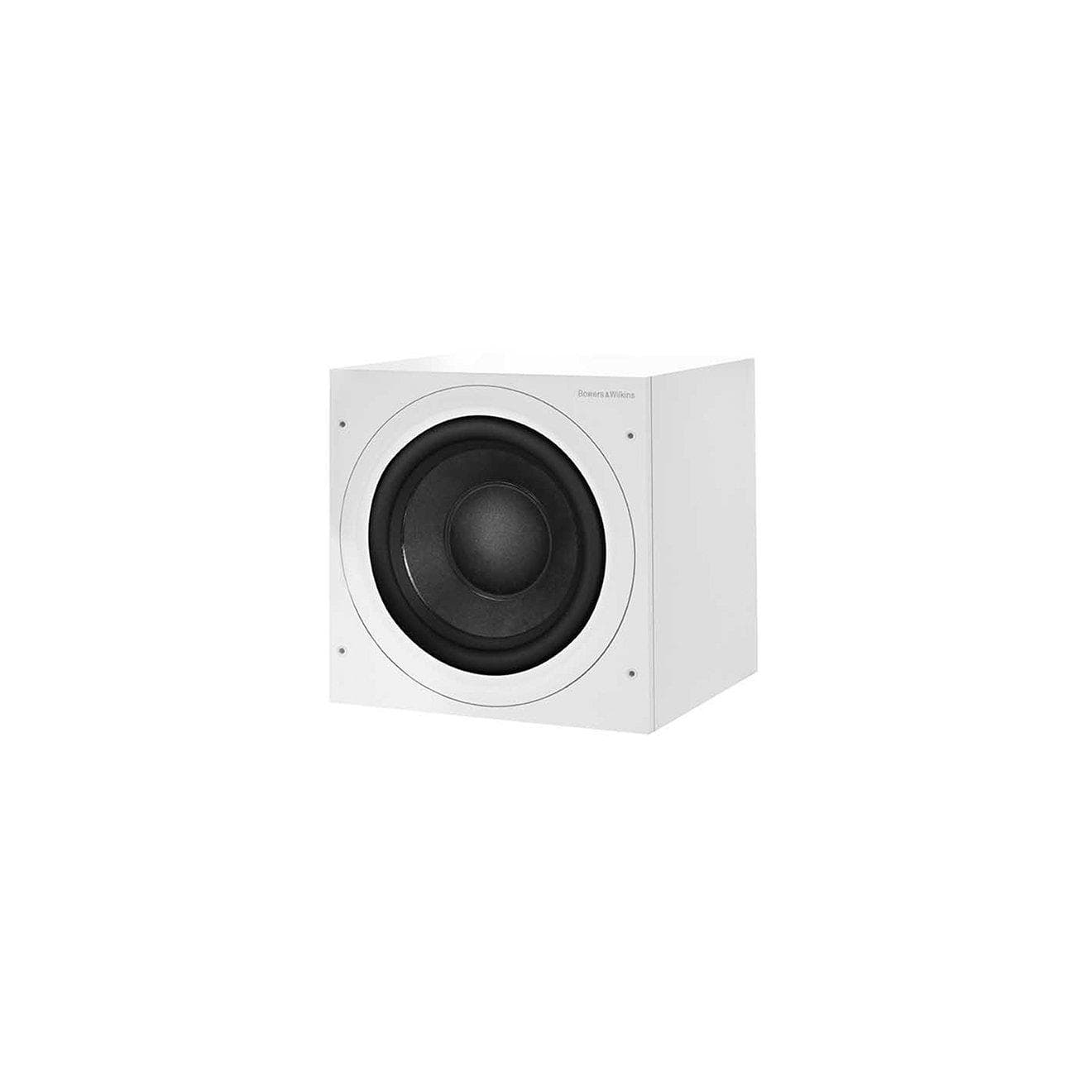

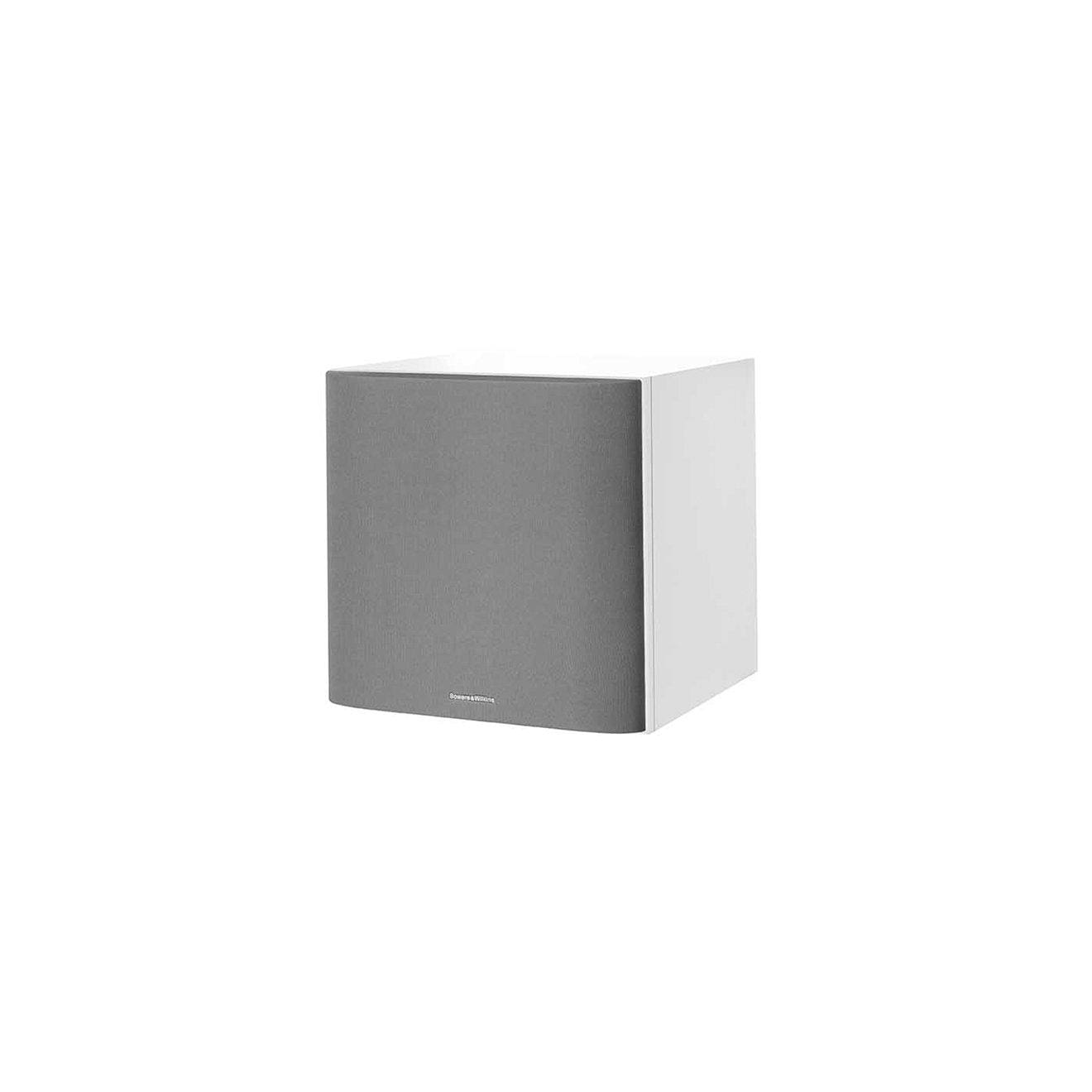

    B&W ASW610 Subwoofer

    The ASW610's long-throw 250mm driver allows it to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool.

    The ASW610 subwoofer presents a very happy medium between the more diminutive ASW608 and the all-out power of the ASW610XP. Its long-throw 250mm driver allows the ASW610 to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool, even when the music or movie action is whipping up a storm.

    In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.

    Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.

    Specifications:

    Crossover Tuning  Yes
    Mushrooms  Yes
    Description Active closed-box subwoofer system
    Drive unit ø250mm (10 in) paper/Kevlar® cone long-throw
    Frequency range -6dB at 20Hz and 25/140Hz adjustable (EQ at A)
    Frequency response ±3dB 27Hz – 40/140Hz adjustable (EQ at A)
    Bass Extension -6dB at 20Hz (position A)
    -6dB at 25Hz (position B)
    -6dB at 30Hz (position C)
    Power output: 200W

    Rated power consumption: 40W / 0.5W standby
    Input impedance: 33kΩ
    Signal / noise: >90dB
    Functions: Input level (line in)
    Input level (speaker in)
    Low-pass filter bypass
    Bass extension
    Bass roll-off alignment
    Auto sense on/standby
    Phase switch
    Inputs: Line In (RCA Phono)
    Speaker in (Binding post)
    12v trigger (3.5mm jack)
    Low-pass filter
    Active 4th-order, variable cut-off frequency
    Dimensions Height: 310mm (12.2 in) not including feet
    Width: 310mm (12.2 in)
    Depth: 375mm (14.8 in) including grille and controls
    Net weight 12.5kg (27.6 lb)
    Finishes Black
    White



    * Reprint from Manufacturers Website
