B&W AM-1 Outdoor Speakers - Black (Pair)

B&W AM-1 Outdoor Speakers - Black (Pair)

Regular price $1,199.00 AUD
Regular price Sale price $1,199.00 AUD
Sale Call For Availability
Tax included. Shipping calculated at checkout.
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500

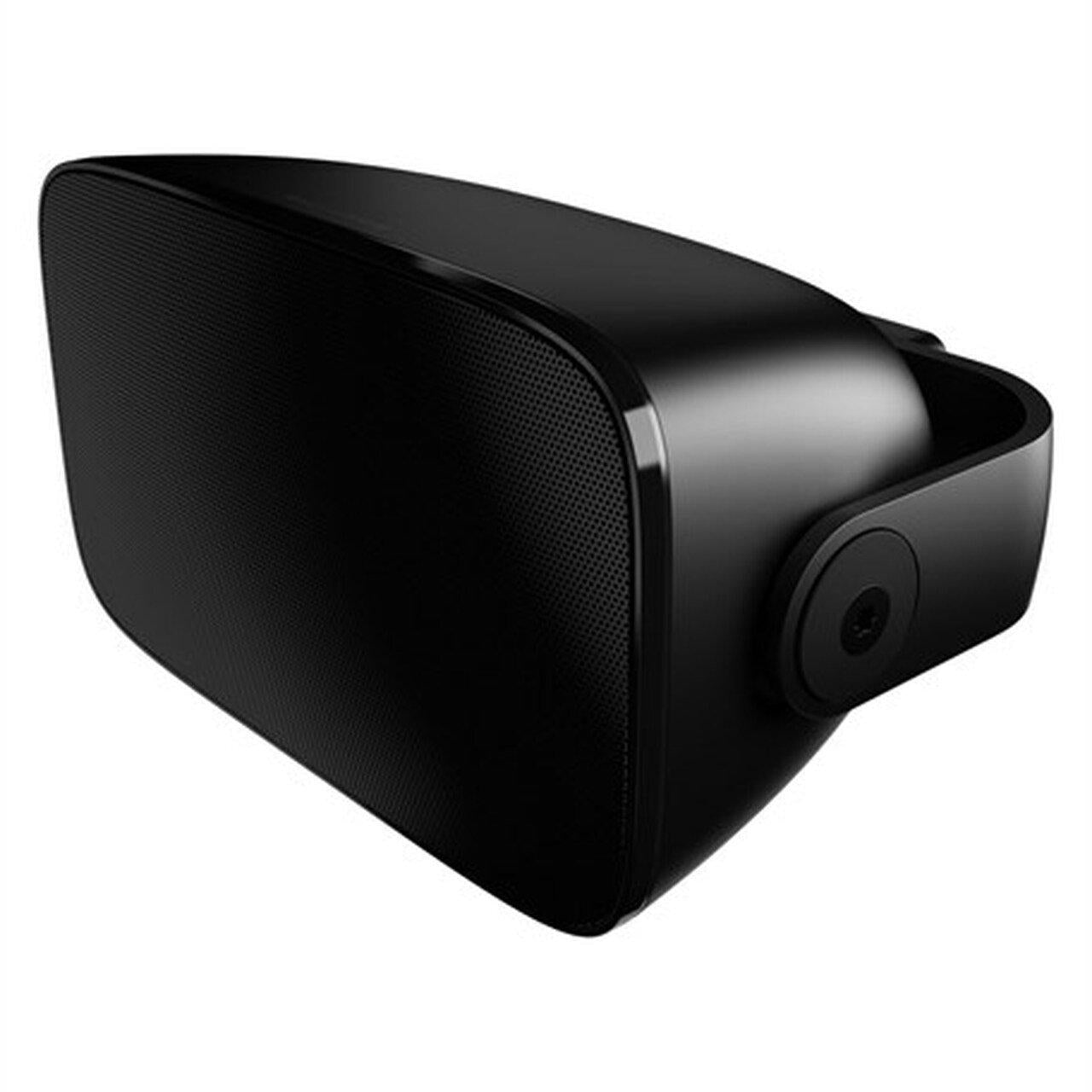

AM-1 Outdoor Speakers - Black (Pair)

The AM-1 Architectural Monitor offers a unique combination of high-quality sound and supreme flexibility. Articulate, exciting and powerful, AM-1 avoids the compromises commonly associated with versatile, all-weather monitors, and delivers all the performance expected of a Bowers & Wilkins loudspeaker.

A two-way design, AM-1 features an inverted drive unit configuration, with a 25mm aluminium-dome tweeter mounted below rather than above a 5inch glass-fibre bass/midrange driver. This ensures optimal dispersion of sound when the speaker is mounted high on the wall. AM-1’s low-frequency output is bolstered by the use of a rear-mounted auxiliary bass radiator (ABR). Used instead of a conventional bass reflex port, the ABR endows AM-1 with exceptional bass response for a cabinet of its size.

Unlike a port, it also provides AM-1’s cabinet with a continual seal against the elements. This combination of advanced drive units, unique configuration and classically simple crossover components combines to create a loudspeaker as musical as it is flexible.

AM-1 has been carefully designed to be easy to install and very flexible. Designed to be positioned in either landscape or portrait mode, AM-1 combines a rust-proof aluminium grille with a rigid cabinet composed of glass-filled plastics, ensuring class-leading resistance to extremes of dust, moisture and UV exposure. And while it has very obvious benefits outside, its discreet styling and impressive performance will also find favour for use internally.

Technical Specifications

Technical features

Nautilus™ tube loaded aluminium dome tweeter
Glass fibre cone bass/midrange
Auxiliary Bass Radiator (ABR)


2-way system with Auxiliary Bass Radiator (ABR)

Drive Units

1x ø25mm (1in) aluminium dome high-frequency
1x ø130mm (5in) glass fibre cone bass/midrange

Frequency Range (-6dB)

46Hz and 50kHz (wall mounted)

Frequency Response

51Hz - 22kHz on reference axis (wall mounted)


86dB (2.83V, 1m)

Total harmonic distortion

<1% 200Hz - 20kHz (86dB, 1m)

Impedance Nominal (min)

8Ω (5.2Ω min)

Recommended amplifier power

20W - 100W into 8Ω on unclipped programme power


(Includes wall bracket)


310mm (12.25in)


180mm (7in)


210mm (8.25in)

Net Weight

4Kg (8.8lb)


*Reprint from Manufacturers website
