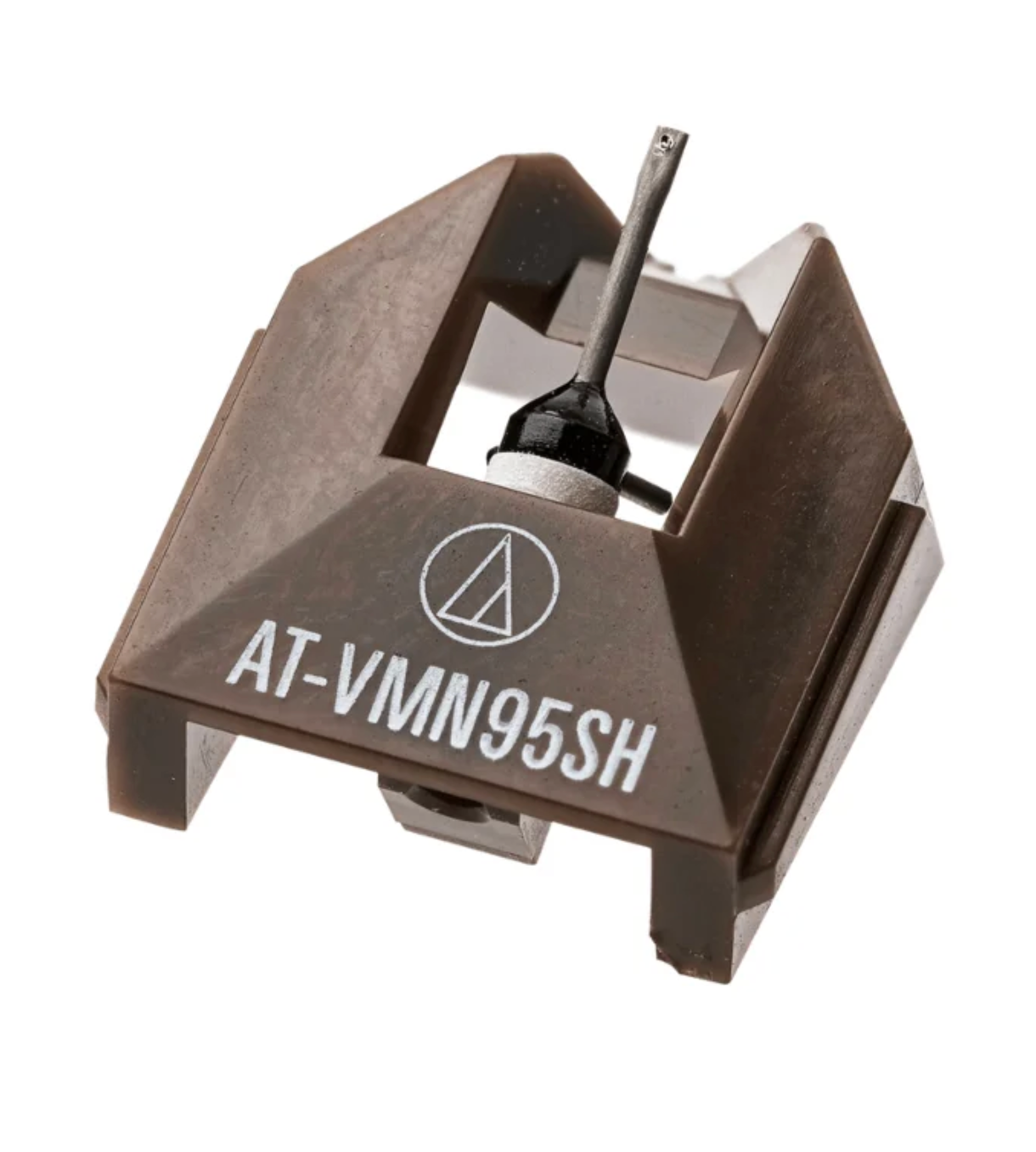

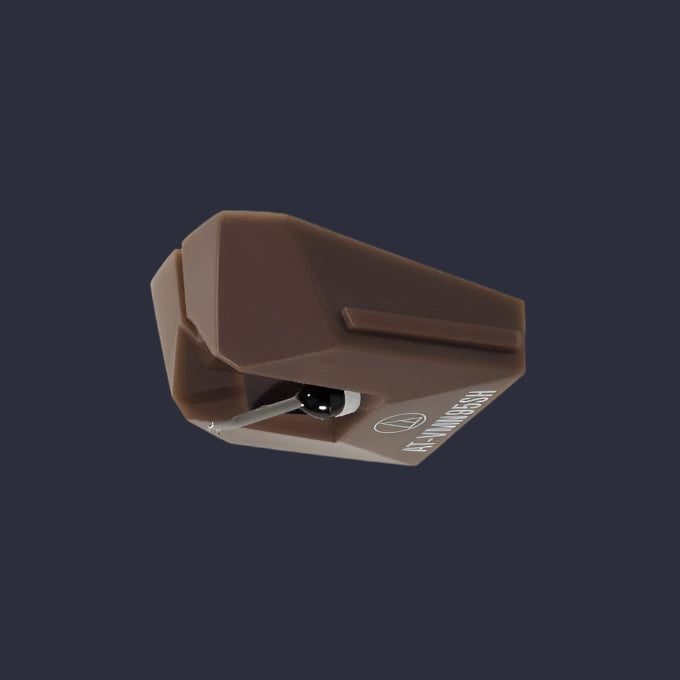

Audio Technica AT-VMN95SH Replacement Stylus

Meet the AT-VMN95SH

Replacement Stylus from Audio Technica

The VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus.

It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

Every cartridge diamond stylus becomes worn after a period of play. Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Micro-linear stylus, and 800 hours for a Shibata stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

Technical Specifications

Playback Frequency Range
20 to 25,000 Hz

Channel Separation
23 dB (1 kHz)

Output Channel Balance
1.5 dB (1 kHz)

Output Voltage
3.5 mV (at 1 kHz, 5 cm/sec)

Vertical Tracking Angle
23 degrees

Vertical Tracking Force
1.8 to 2.3g (2.0g standard)

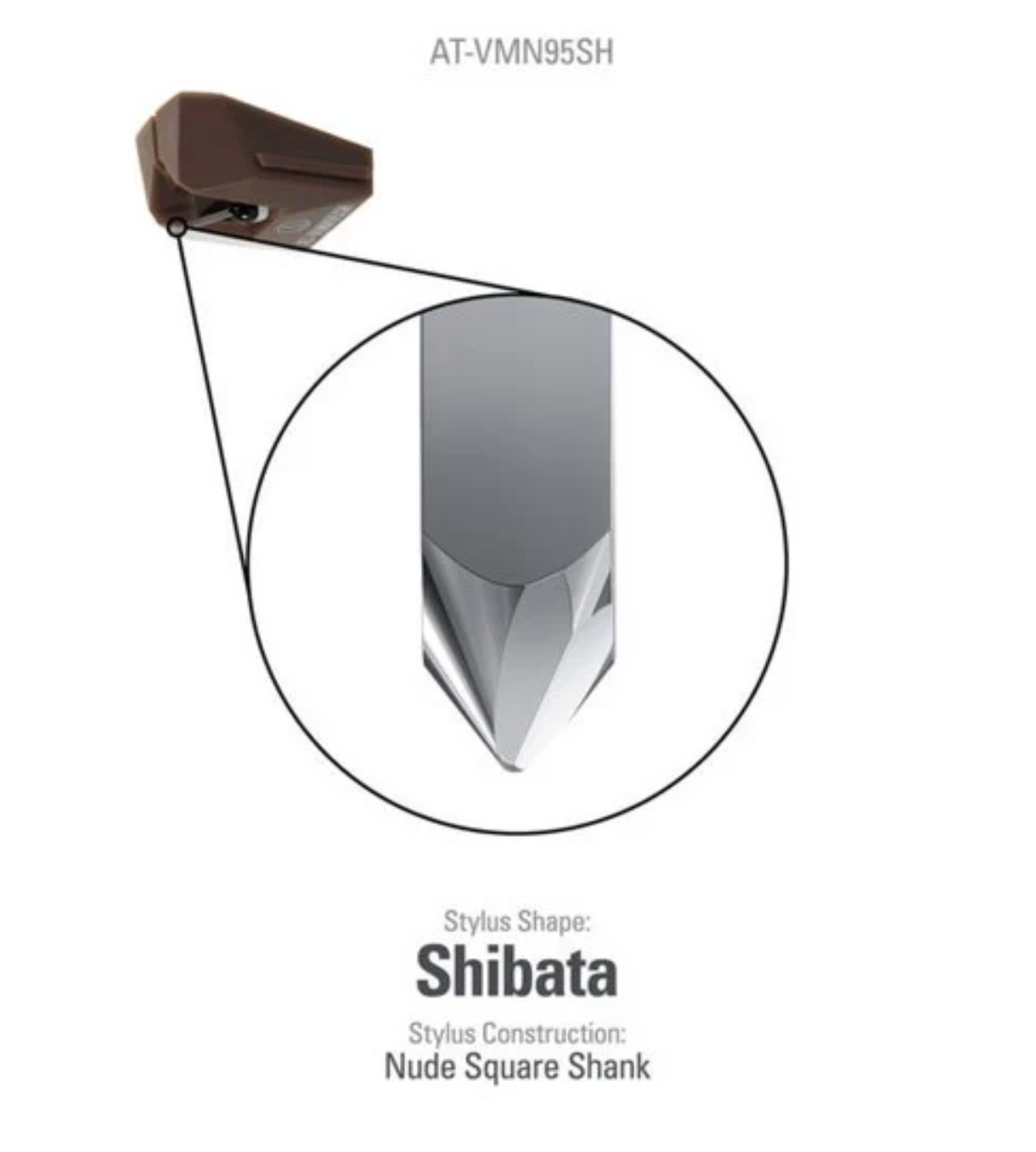

Stylus Type
Shibata

Stylus Construction
Nude Square Shank

Stylus Shape
Nude

Stylus Size
2.7 x 0.26 mil

Cantilever
Aluminium Pipe

Static Compliance
20 x 10^ (–6cm) / dyne

Dynamic Compliance
7 x 10^ (–6 cm) / dyne (100 Hz)

Warranty
1 year limited warranty

*Information obtained from Manufacturers Website
