Audio Technica AT-VMN40ML MicroLine® Replacement Stylus
WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH FULL LOCAL WARRANTY
AT-VMN40ML MicroLine®
Replacement Stylus from Audio Technica
2.2 x 0.12 – MicroLine® Replacement Stylus for the following cartridges:
- VM540ML
- VM740ML
Product Features
- MicroLine™ profile diamond stylus
- VM type dual magnet system
- Para-toroidal coils improve generating efficiency
- Aluminium tapered cantilever
- Centre shield plate between stereo channels
- Durable low resonance polymer housing
Technical Specifications
Type
VM Type
Mounting
½” centres
Frequency Response
20 to 27,000 Hz
Channel Separation
28 dB (1 kHz)
Output Channel Balance
1 dB (1 kHz)
Output Voltage
4 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle
23 degrees
Vertical Tracking Force
1.8 to 2.2g (2.0g standard)
Stylus Construction
Nude Square Shank

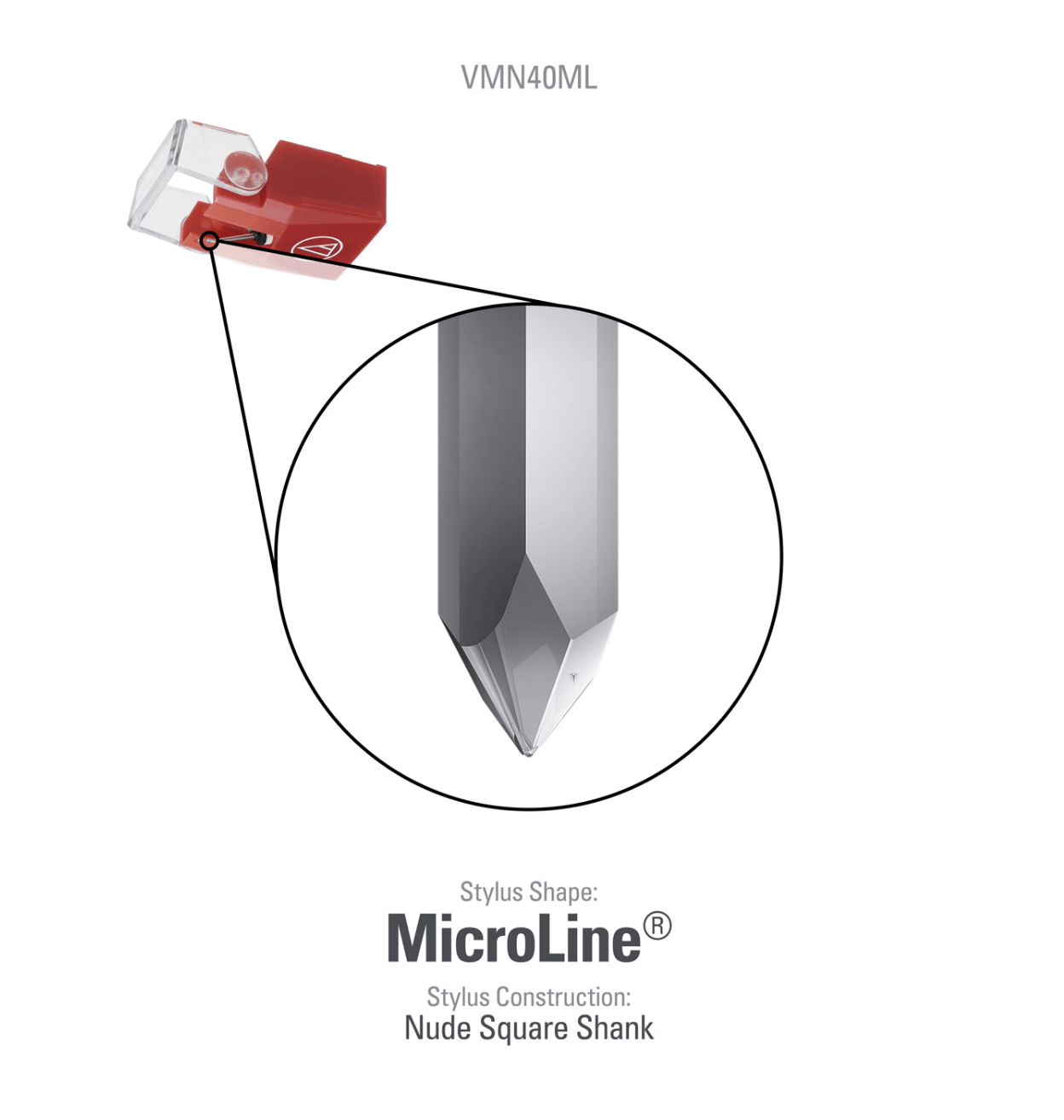

Stylus Shape
MicroLine®
Stylus Size
0.12 x 2.2 mil
Cantilever
Aluminium Tapered Pipe
Static Compliance
40 x 10^ (–6cm) / dyne
Dynamic Compliance
10 x 10^ (–6 cm) / dyne (100 Hz)
Recommended Load Impedance
47,000 Ω
Recommended Load Capacitance
100 - 200pF
Coil Impedance
2,700 Ω (1kHz)
Cartridge Weight
6.4 g
Dimensions
17.3 (H) x 17 (W) x 28.2 (L) mm
Mounting
1/2" Centres
Warranty
1 year limited warranty
Included Accessories
- Cartridge installation screws 5mm ×2 and 10mm ×2
- Washer ×2, Hexagon nut ×2
- Non-magnetic screwdriver ×1
- Brush ×1
-
Lead wire set ×1
*Information obtained from Manufacturers Website
