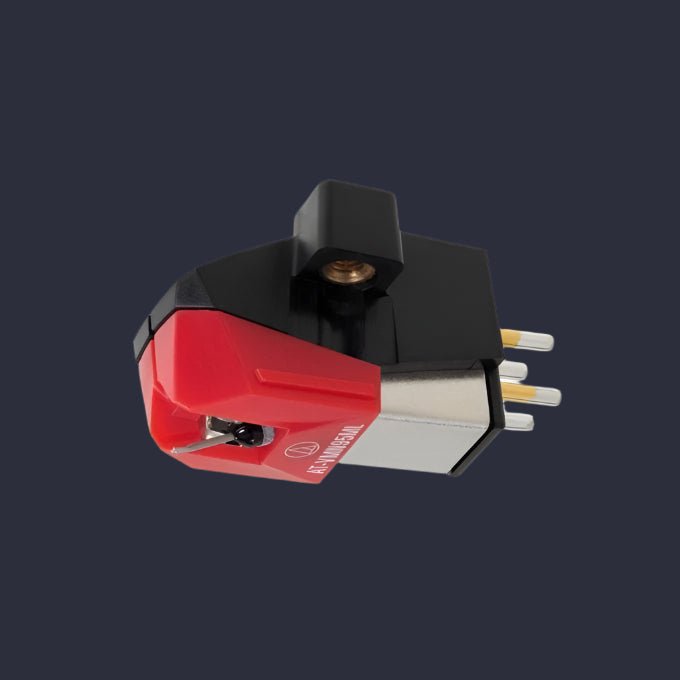

Audio Technica AT-VM95ML Dual Moving Magnet Cartridge

Introducing the AT-VM95ML

Dual Moving Magnet Cartridge from Audio Technica

This VM95 Series cartridge with 2.2 x 0.12 mil micro linear stylus fits half-inch mount turntables and offers excellent channel separation and low distortion for outstanding tonal quality.

Durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws—no nuts required—and since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Technical Specifications

Type
VM Dual Moving Coil

Body Material
Aluminium

Mounting
½” centres

Frequency Response
20 to 25,000 Hz

Channel Separation
23 dB (1 kHz)

Output Channel Balance
1.5 dB (1 kHz)

Output Voltage
3.5 mV (at 1 kHz, 5 cm/sec)

Vertical Tracking Angle
23 degrees

Stylus Shape
Micro-linear

Stylus Size
2.2 x 0.12 mil

Cantilever
Aluminium Pipe

Static Compliance
20 x 10^(-6 cm) / dyne

Dynamic Compliance
10 x 10^(-6 cm) / dyne (100 Hz)

Wire Used for Coil
T.P. Copper

Recommended Load Impedance
47,000 Ω

Coil Impedance
3.3 K Ω (1kHz)

DC Resistance
485 Ω

Coil Inductance
550 mH (1 kHz)

Cartridge Weight
6.1 g

Dimensions
17.2 (H) x 18.9 (W) x 28.3 (L) mm

Mounting
1/2" Centres

Warranty
1 year limited warranty

Included Accessories

• Two 11 mm installation screws
• Two 8 mm installation screws
• Two washers
• Non-magnetic screwdriver

*This information has been obtained from the manufacturer's website. We advise that features, specifications, & prices are subject to change from the manufacturer without notice.

E&OE
