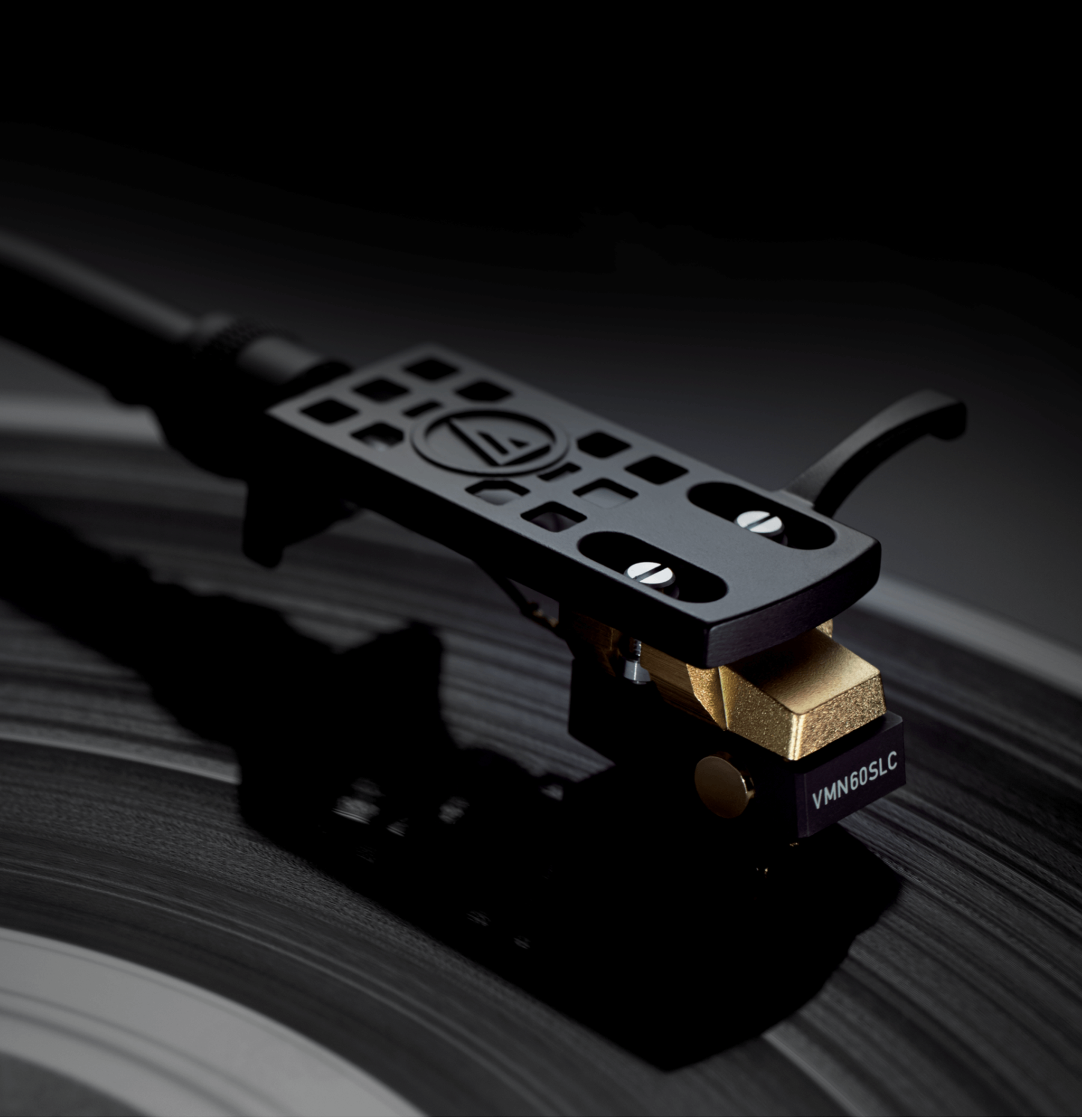

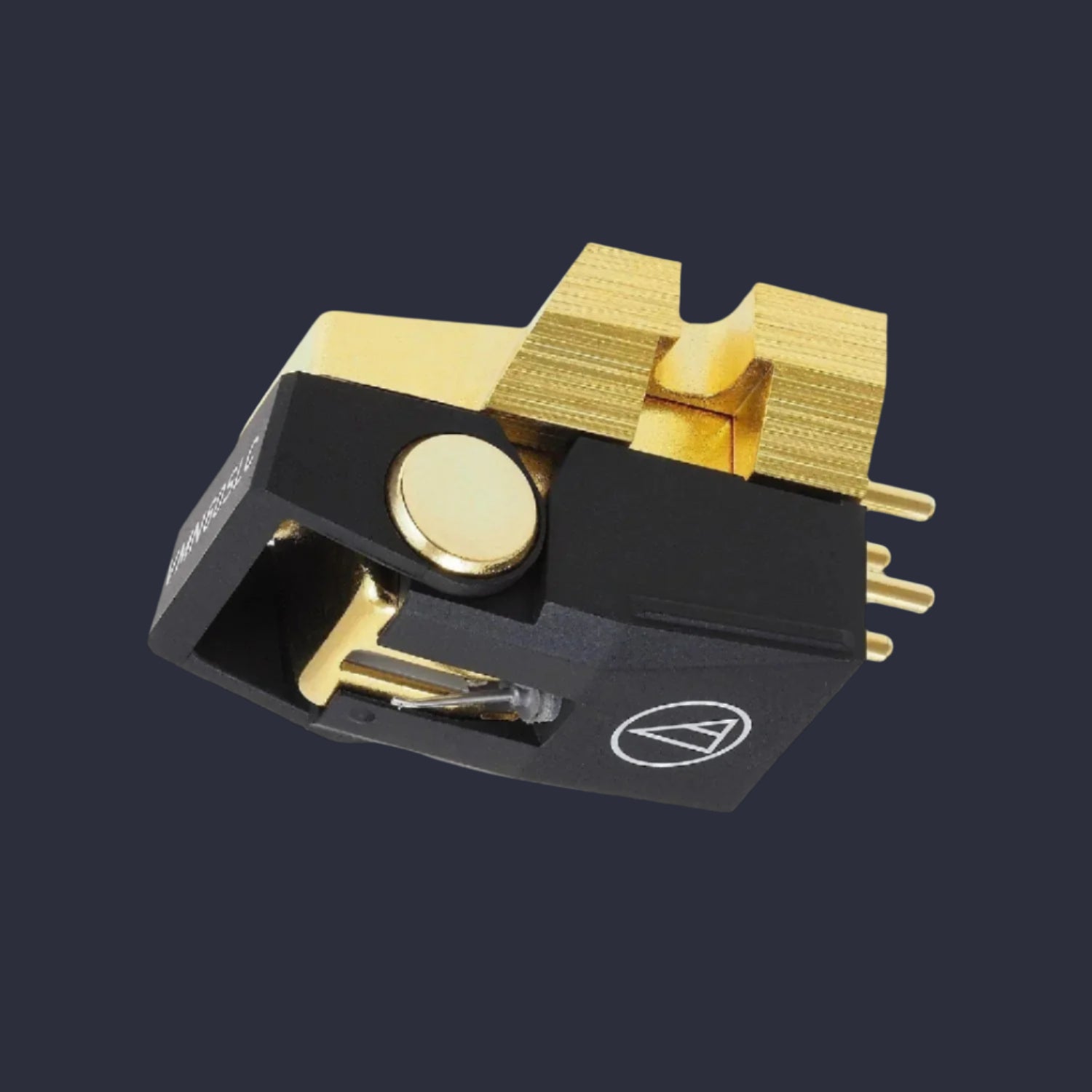

The VM760SLC special line contact stylus cartridge is the flagship model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology.
Like all VM cartridges, the VM760SLC is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response.

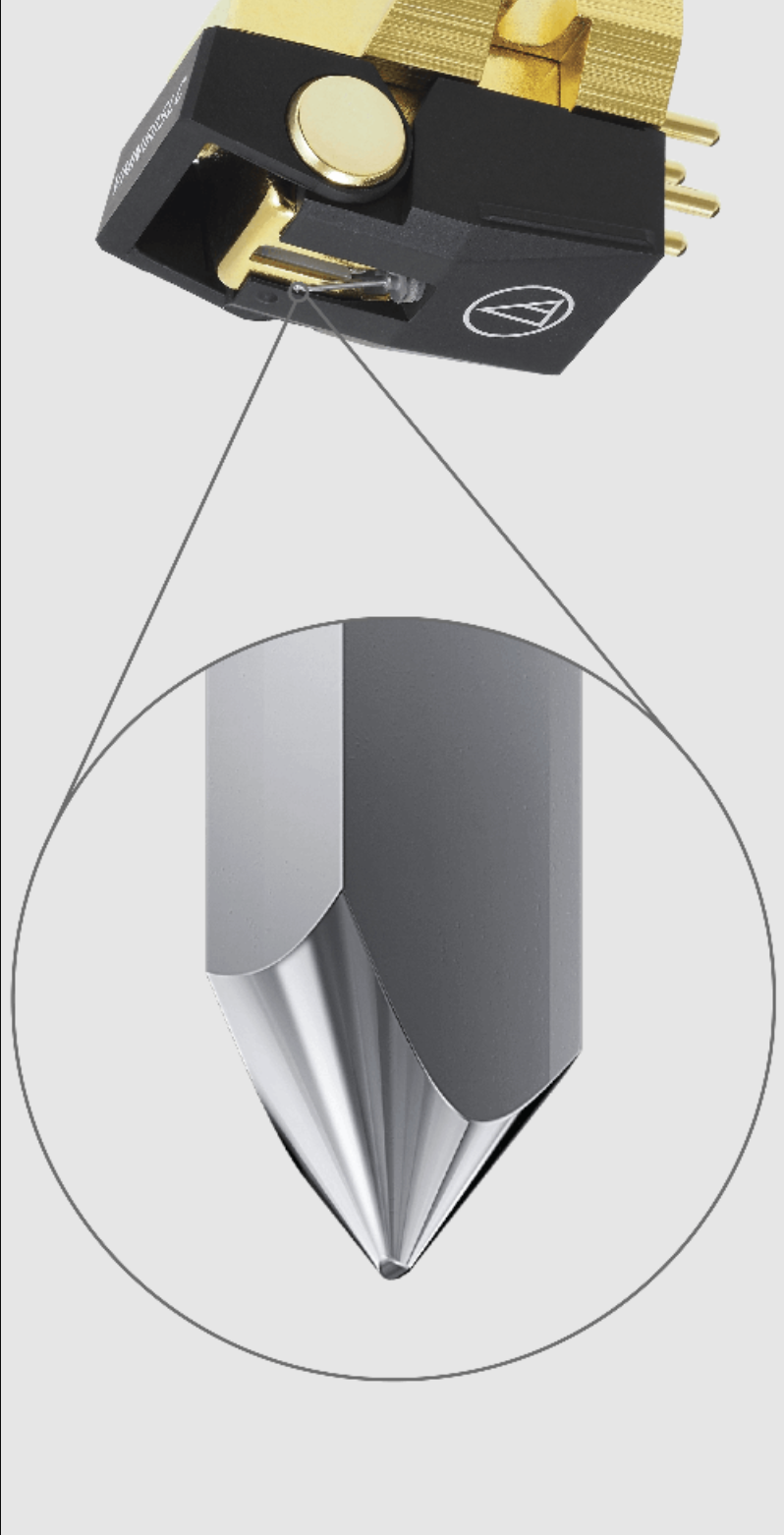

The cartridge’s ultra-lightweight special line contact stylus allows it to trace the record groove with incredible accuracy and minimum abrasion, resulting in nuanced audio reproduction, low distortion and low record wear. Includes mounting hardware.

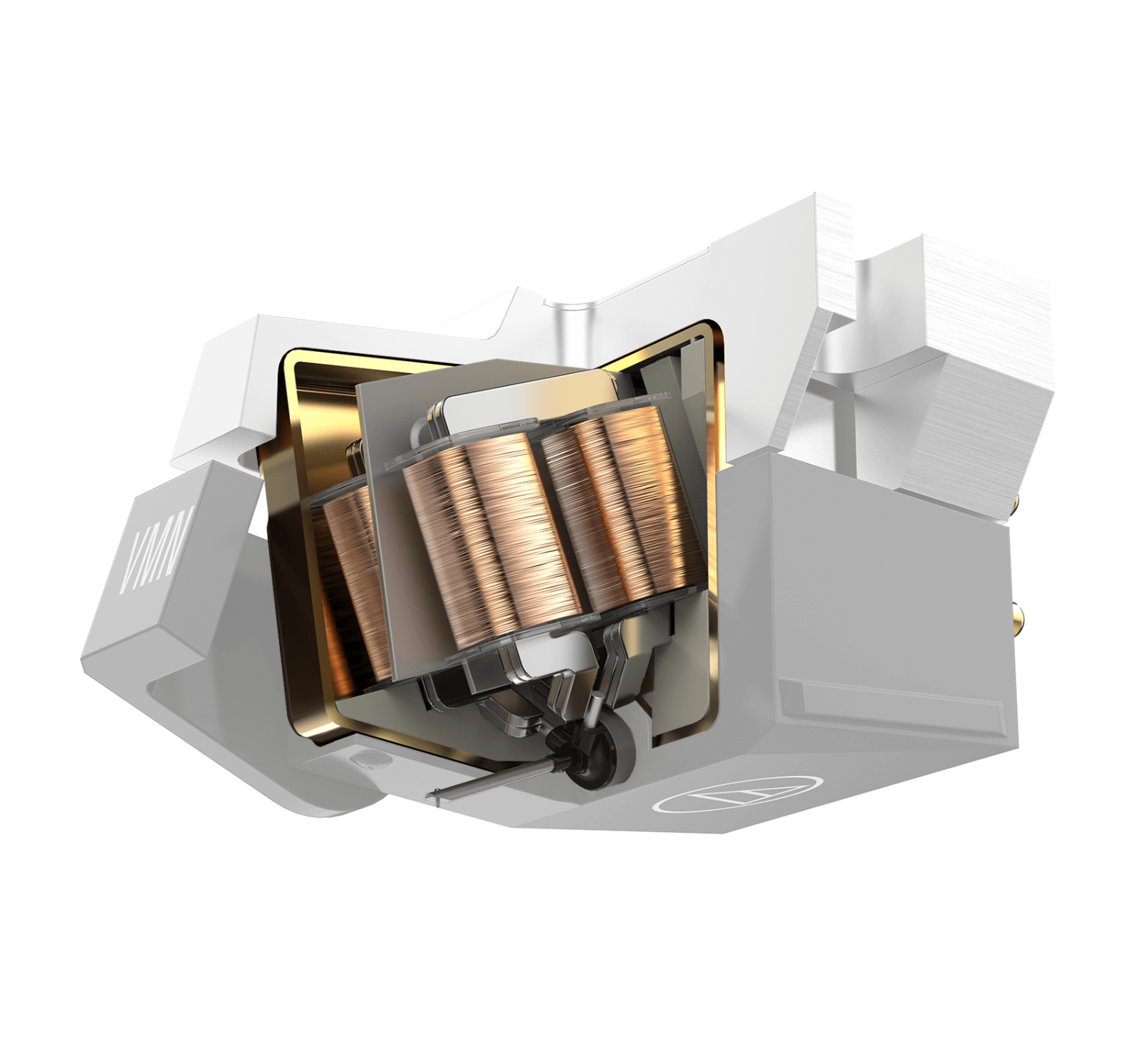

In the record production process a cutter head carves out the record grooves. The modulations in the groove are “analogue” mechanical equivalents of the original audio signals. To “read” these modulations, Audio-Technica developed the patented Dual Magnet design which duplicates the structure of the cutter head.
Instead of using a single, large magnet, the two magnets are arranged in the shape of a V. The two magnets are positioned precisely to match positions of the left and right channels in the stereo groove walls. Consequently, the VM design provides outstanding channel separation, extended frequency response and superb tracking.
All models feature high-purity 6N-OFC (99.9999% pure oxygen free copper) wiring for maximum sonic purity and extraordinary resolution of fine musical detail.
Product Features
VM dual magnet cartridge with special line contact stylus
Aluminum tapered cantilever
Paratoroidal coils improve generating efficiency
Centre shield plate between the left and right channels reduces crosstalk
Die-cast aluminium alloy housing reduces vibration and adds a natural electrical shield
Technical Specifications
Type VM type
Mounting ½” centres
Frequency Response 20 to 30,000 Hz
Channel Separation 30 dB (1 kHz)
Output Channel Balance 1 dB (1 kHz)
Output Voltage 4 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle 23 degrees
Vertical Tracking Force 1.8 to 2.2g (2.0g standard)
