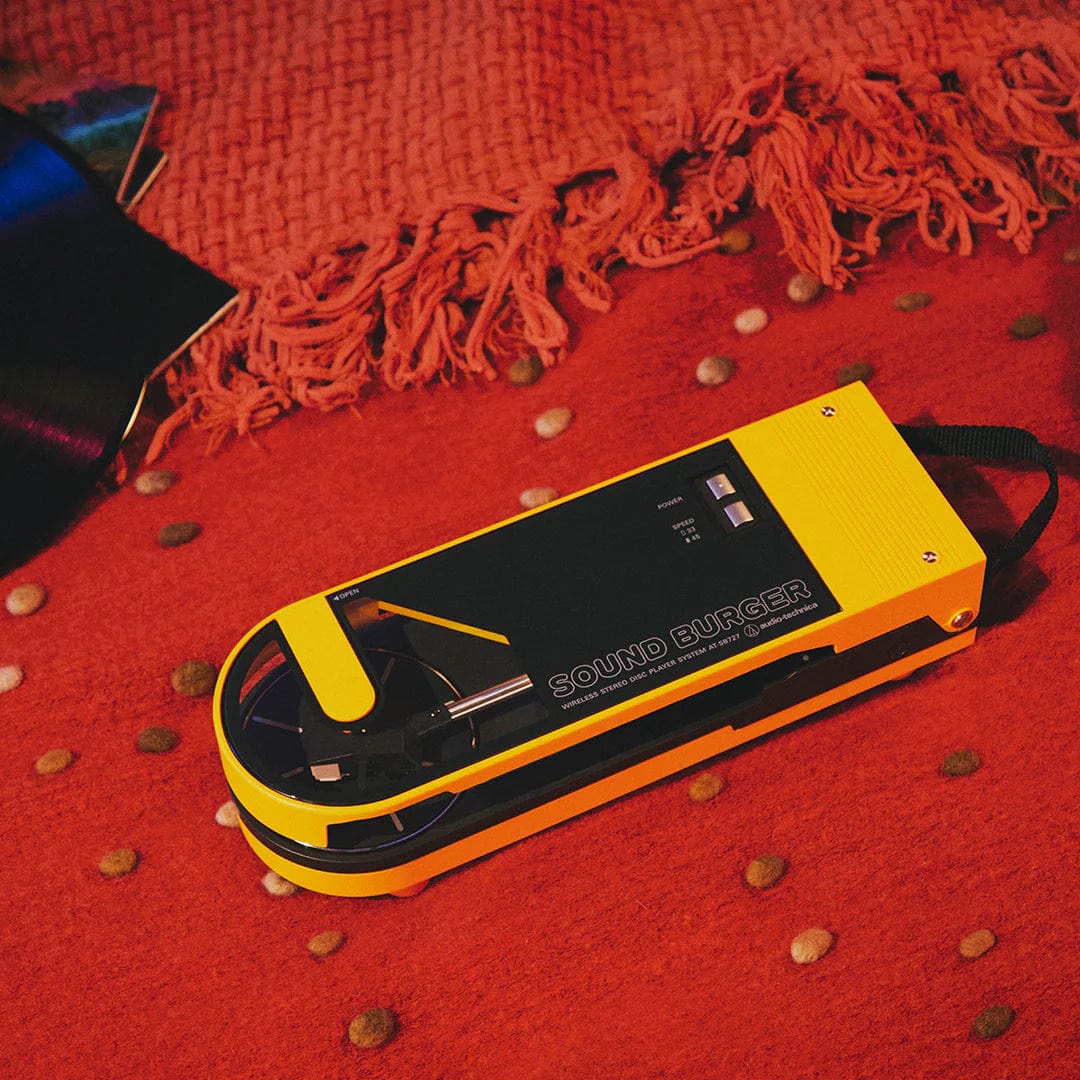

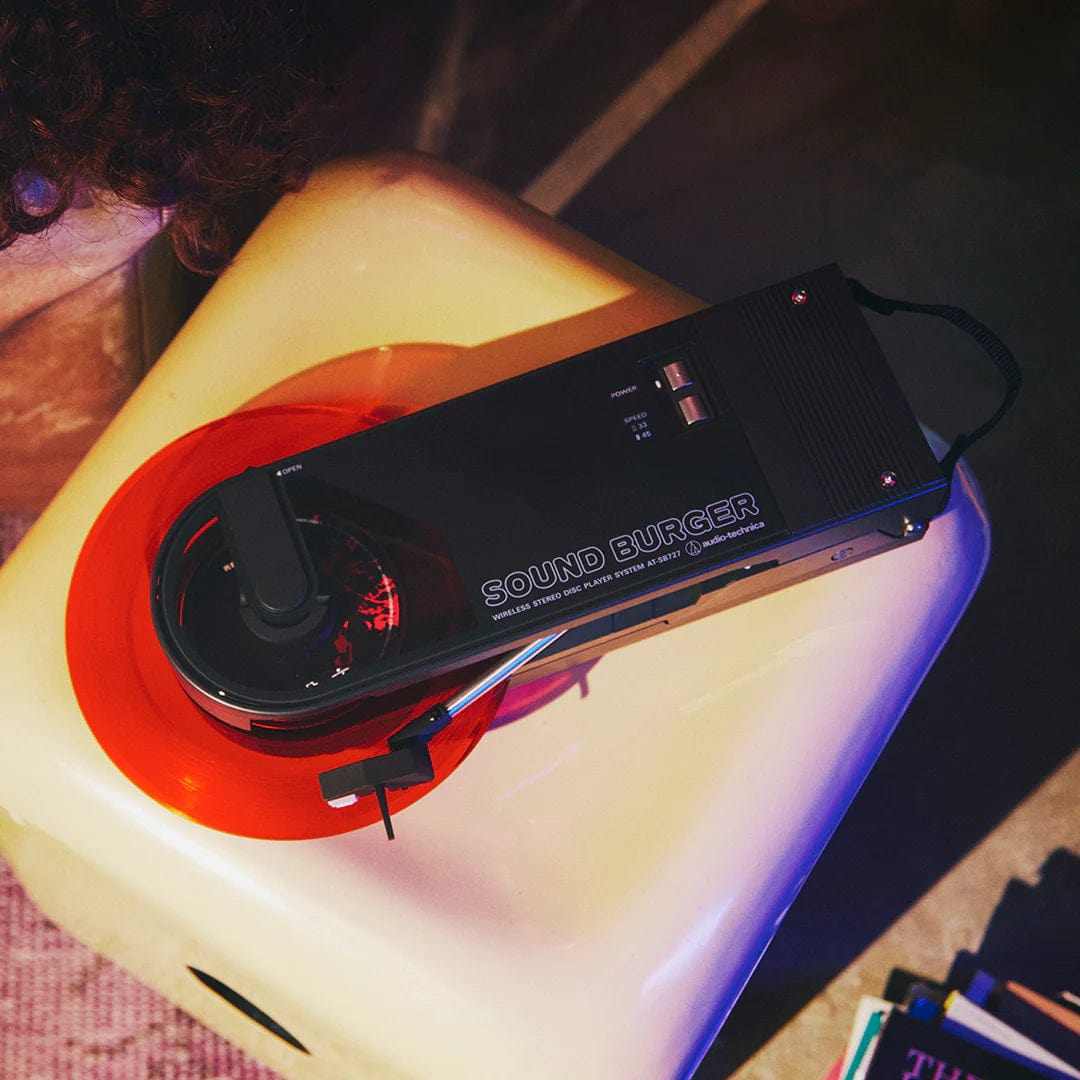

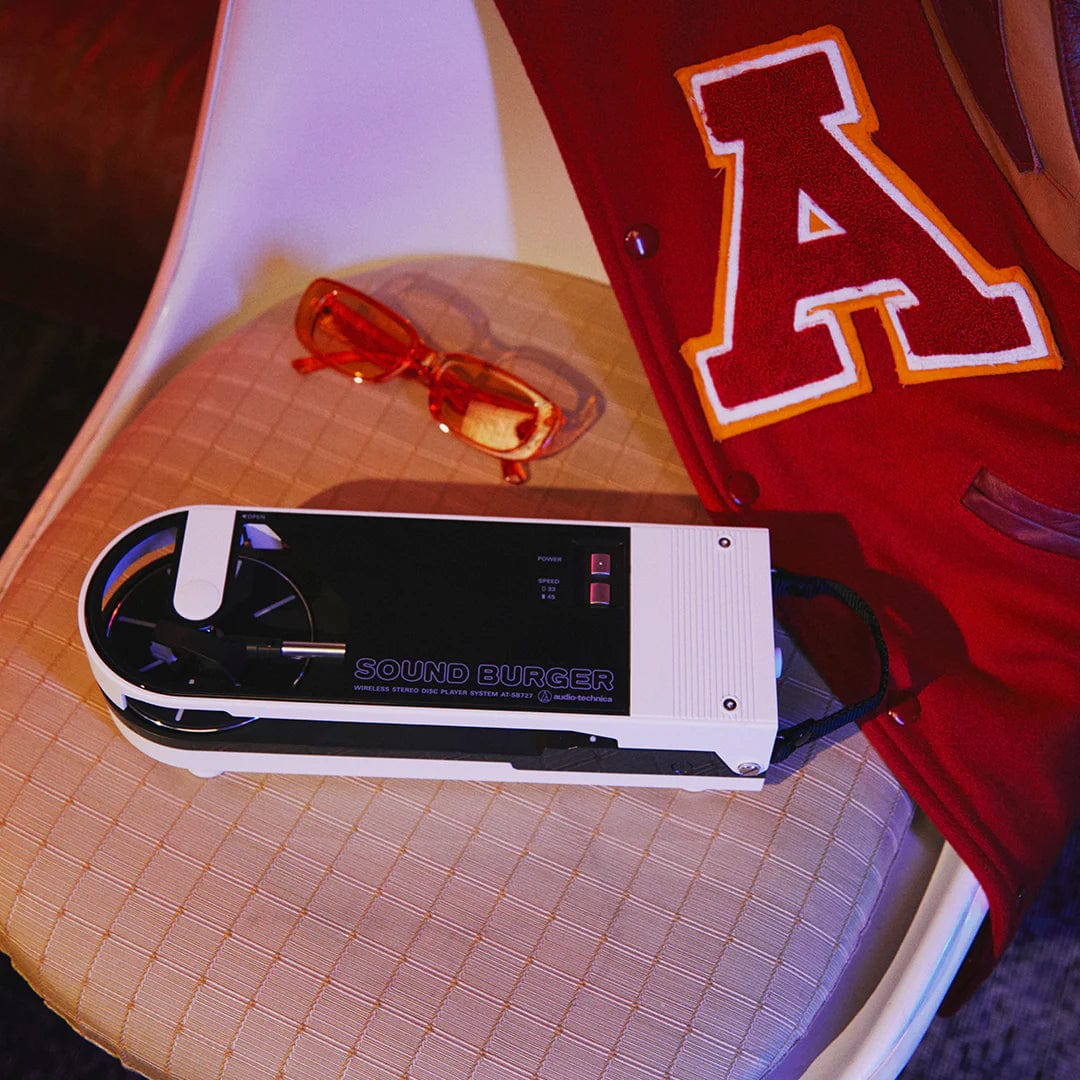

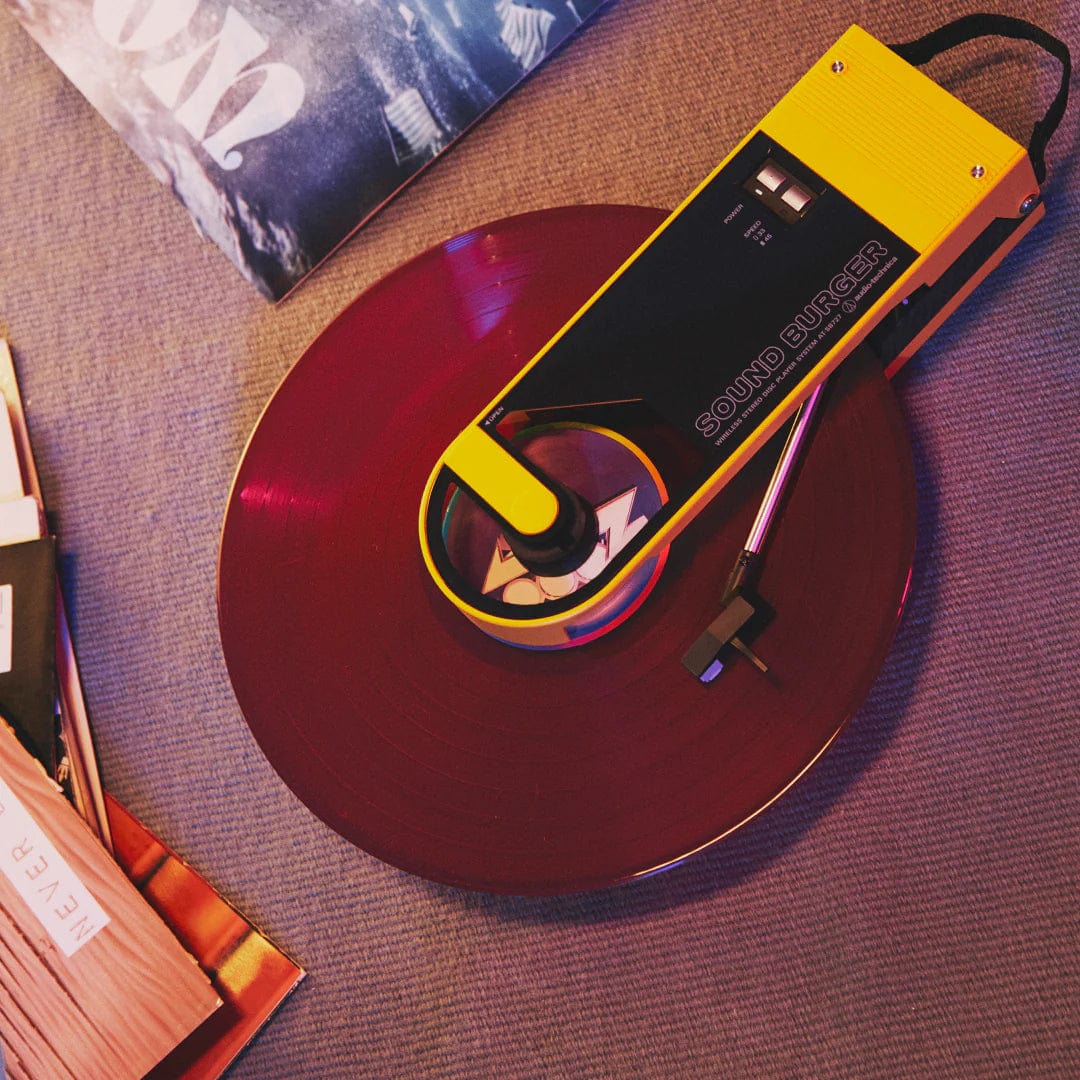

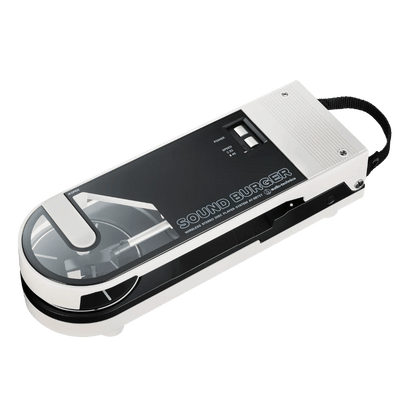

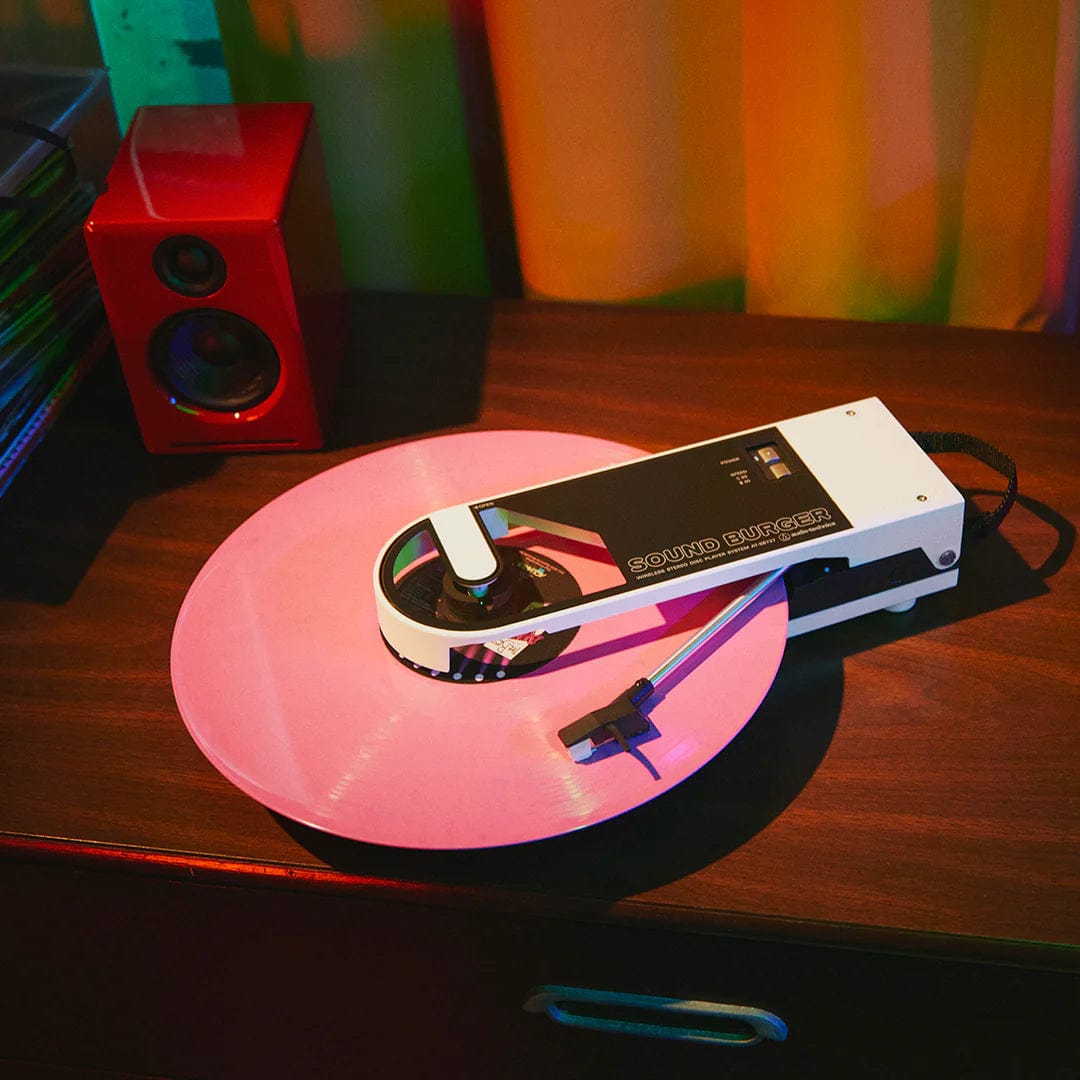

Four decades after its original debut, the fan-favorite Sound Burger portable turntable returns!

The AT-SB727 retains the classic, lightweight design of the 1980s model, while incorporating modern updates like Bluetooth® wireless connectivity, a lithium-ion battery, and a USB-C charging cable, making it perfect for parties, picnics, or compact living spaces.

 

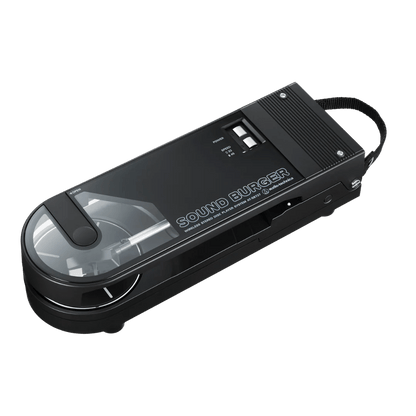

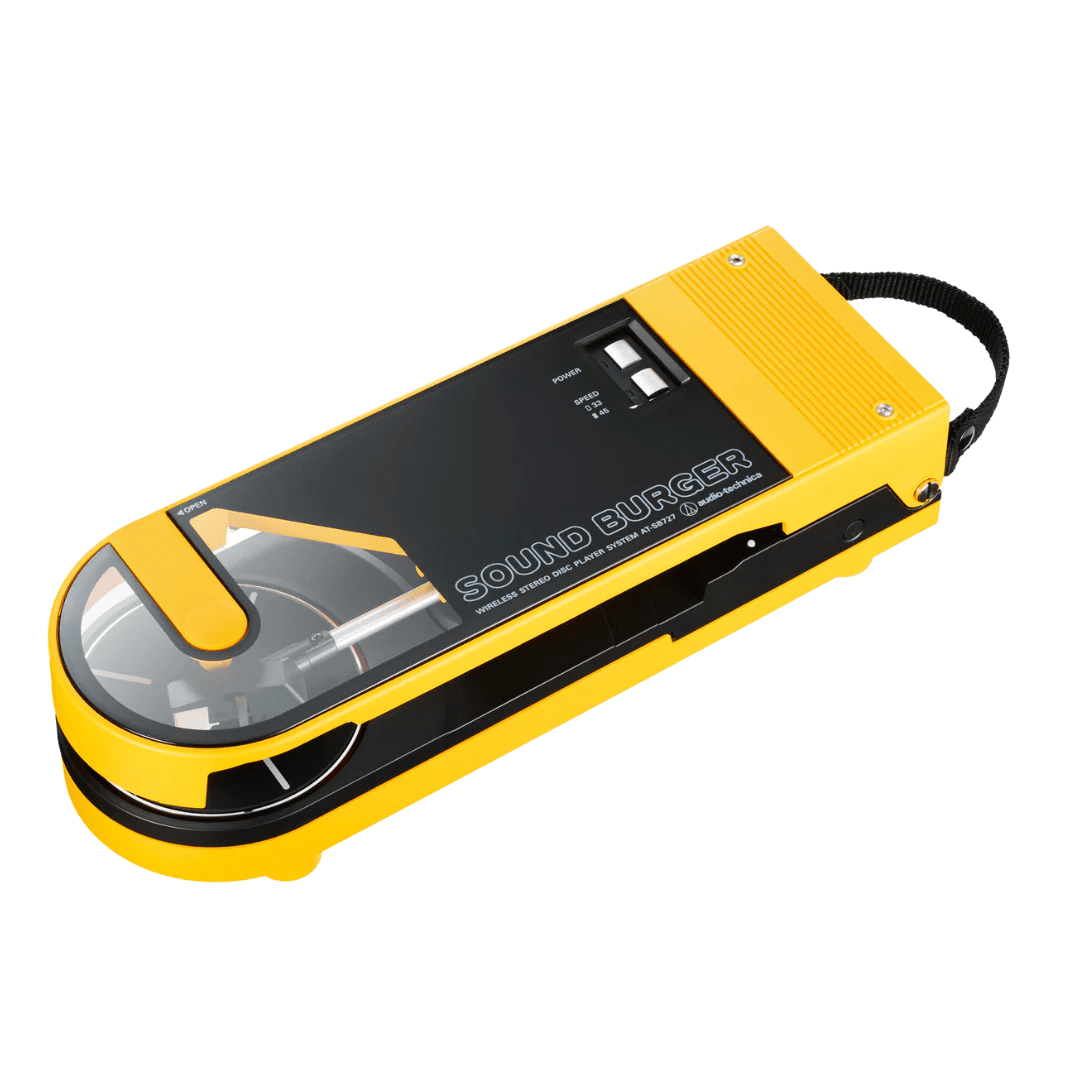

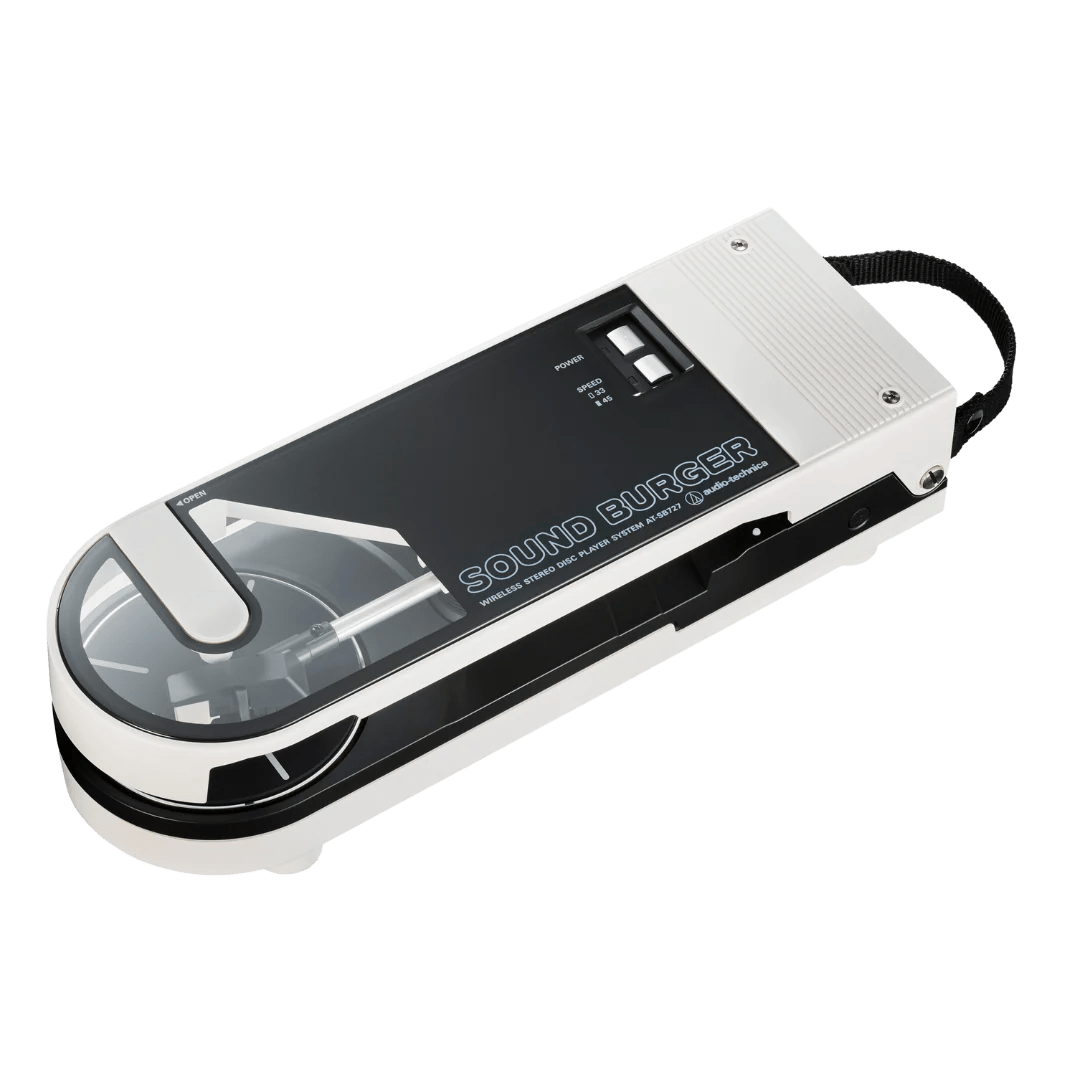

Available in three colour options – black, yellow and white* – the AT-SB727 Sound Burger offers high-quality sound reproduction with a belt-drive system that plays 33-⅓ and 45 RPM records.

The turntable’s Bluetooth capabilities allow you to play your favourite vinyl records wirelessly for up to 12 hours. Or use the included audio cable to enjoy a nostalgic, wired listening experience.

 

Designed for both portability and stability, the tonearm employs a dynamic balance system in which stylus pressure is applied through a spring. The turntable also maintains stable rotation thanks to the high-precision DC motor.

This unique turntable features a die-cast aluminium alloy platter with damping design and a replaceable ATN3600L stylus (sold separately).

Included accessories: 45 RPM adapter, 3.5 mm male to dual RCA male audio cable, USB Type-A/USB Type-C™ charging cable.

Product Features

• Belt-driven portable turntable
• Plays 33-1/3 and 45 RPM records
• Uses a high-precision DC motor that maintains stable rotation
• Die-cast aluminium alloy platter with damping design
• 12-hour battery
• Replaceable ATN3600L stylus
• Available in black, white and yellow
• Accessories:
  • 45 RPM adapter
  • RCA audio cable (3.5 mm male to dual RCA male)
  • USB cable for charging (USB Type-A / USB Type-C™)

Technical Specifications

Communication System	Bluetooth version 5.2
Maximum RF Output	10 mW EIRP
Maximum Communication Range	Line of sight - approx. 10 m (33')
Frequency Band	2.402 GHz to 2.480 GHz
Modulation Method	GFSK, Pi/4DQPSK, 8DPSK
Spread Spectrum Method	FHSS
Compatible Bluetooth Profiles	A2DP, AVRCP
Supported Codecs	SBC
Transmission Band	20 to 20,000 Hz



Turntable Specifications

Power Supply	DC 3.6 V lithium ion battery
Drive Method	Belt-drive
Motor	DC servo motor
Speeds	33-1/3 RPM, 45 RPM
Turntable Platter	Aluminum
Wow and Flutter	< 0.25 % (WTD) at 3 kHz
Signal-to-Noise Ratio	> 50dB (DIN-B)
Cartridge Type	VM
Output Levels	150 mV nominal at 1 kHz, 5 cm/sec (No phono-output)
Phono Pre-Amp Gain	36 dB nominal, RIAA equalized
Charging Specifications	5 V - 0.5 A
Power Consumption	1.5 W (when charging)
Charging Time	Approx. 12 hours*
Operating Time	Approx. 12 hours*
Input Jack	USB Type-C jack
Dimensions	100 mm (3.9") × 290 mm (11") × 70 mm (2.8") (W×D×H)
Weight	Approx. 900 g (32 oz)
Operating Temperature	5°C to 40°C (41°F to 104°F)
Included Accessories	・USB cable (1.5 m (5'), USB Type-A - USB Type-C) ・RCA audio cable ・45 RPM adapter
Replacement Stylus (sold separately)	ATN3600L
