Meet the AT-VM95E/H



Headshell/Cartridge Combo Kit from Audio Technica

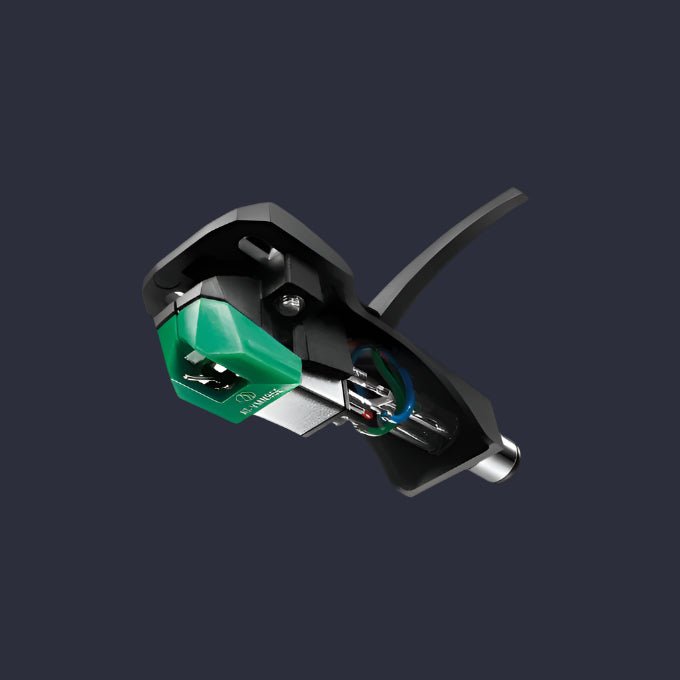

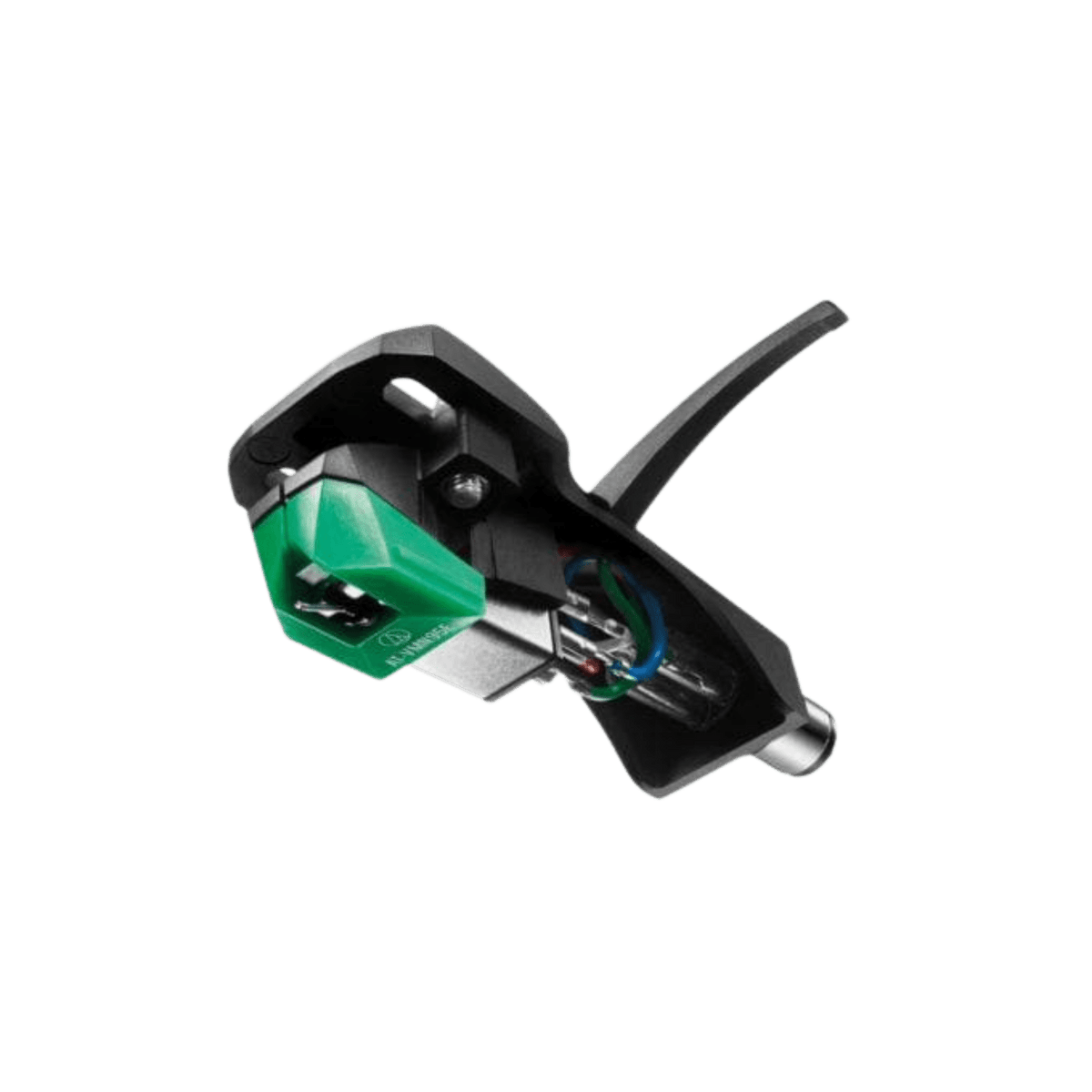

The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge pre-mounted on the AT-HS6BK headshell.

Product Features

  •  VM dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
  •  Aluminium cantilever
  •  Specially wound coils increase output voltage
  •  Durable low-resonance polymer housing
  •  Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required
  •  Compatible with any AT-VMN95 replacement stylus
  •  Universal ½"-mount headshell for 4-pin turntable cartridges

Technical Specifications

FREQUENCY RESPONSE
20–22,000 Hz

CHANNEL SEPARATION
20 dB (at 1 kHz)

VERTICAL TRACKING FORCE
1.8–2.2 g (2.0 g standard)

STYLUS CONSTRUCTION
Bonded round shank

RECOMMENDED LOAD IMPEDANCE
47,000 ohms

OUTPUT
4.0 mV (1 kHz, 5 cm/sec.)

CHANNEL BALANCE
2.0 dB (at 1 kHz)

STYLUS SHAPE
0.3 × 0.7 mil elliptical

CANTILEVER
Aluminium pipe

MOUNT
Half-inch

REPLACEMENT STYLUS
AT-VMN95E

COIL IMPEDANCE
3.3 kΩ (at 1 kHz)

DC RESISTANCE
485 ohms

LOAD CAPACITANCE
100–200 pF

COIL INDUCTANCE
550 mH (at 1 kHz)

VERTICAL TRACKING ANGLE
23°

DIMENSIONS (CARTRIDGE) (H × W × D)
17.2 × 18.9 × 28.3 mm

WEIGHT (CARTRIDGE)
6.1 g

DIMENSIONS (CARTRIDGE AND HEADSHELL) (H × W × D)
21.2 × 21.4 × 62.4 mm

WEIGHT (CARTRIDGE AND HEADSHELL)
15.5 g

ACCESSORIES INCLUDED
2 x 11 mm installation screws
2 x 8 mm installation screws
Two washers
