Audio Technica AT-OC9XSL Moving Coil Phono Cartridge
Moving Coil Phono Cartridge

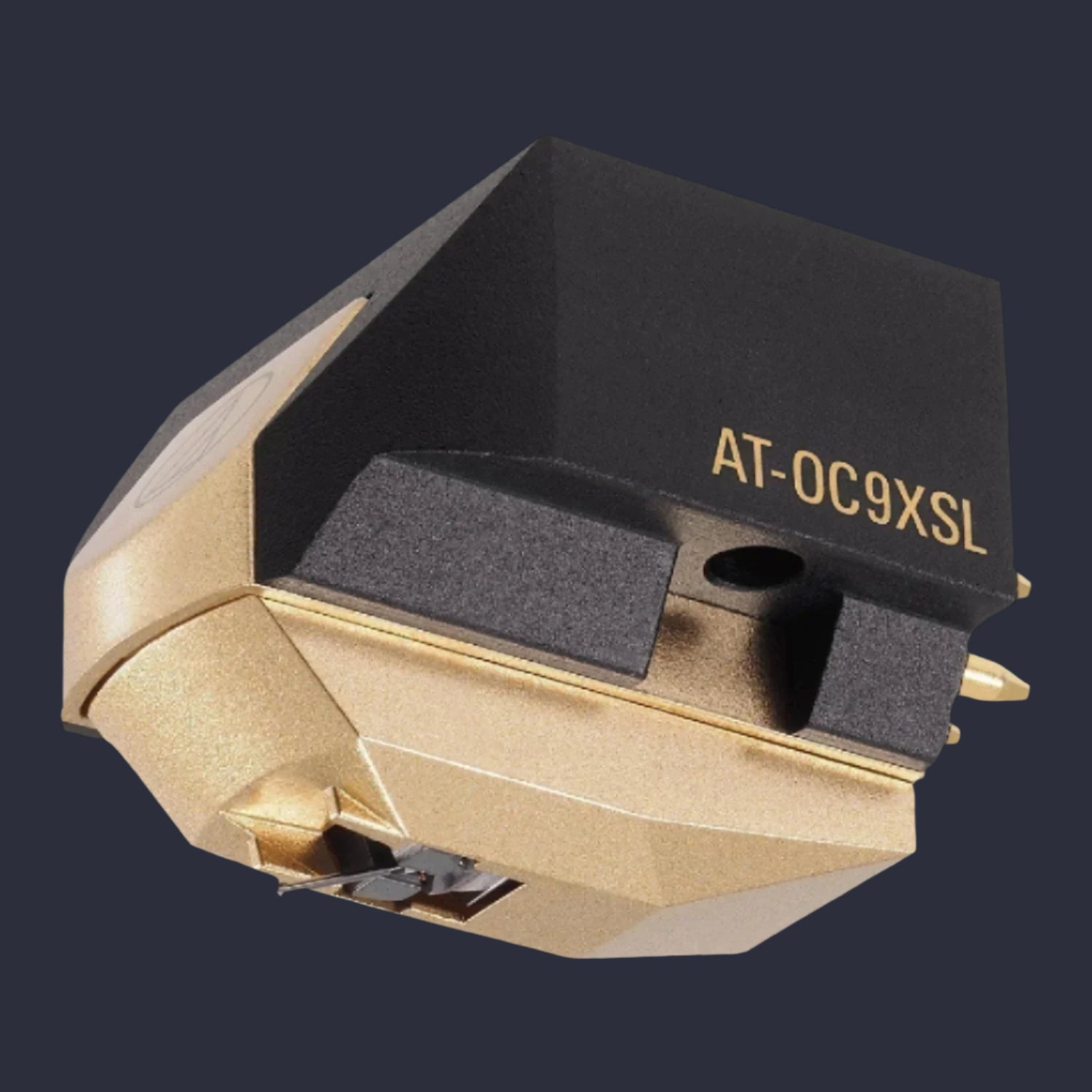

The AT-OC9XSL is a premium moving coil phono cartridge with a 1.5 x 0.28 mil Special Line Contact stylus.
The OC9X range features a new Dual Moving Coil structure, which enables the audio information in the record grooves to be separated to the left and right channels with pinpoint accuracy. This improved channel separation results in a more precise stereo image and wider frequency response. The moving coil wires in all OC9X Series cartridges are made from PCOCC (Pure Copper by Ohno Continuous Casting), for optimum signal purity.
The AT-OC9XSL utilizes a neodymium magnet with a Permendur yoke, a configuration that provides high-saturation magnetic flux density and optimizes the concentrated magnetic field of the coil gap, for improved reproduction of the delicate musical signals generated by the cartridges.

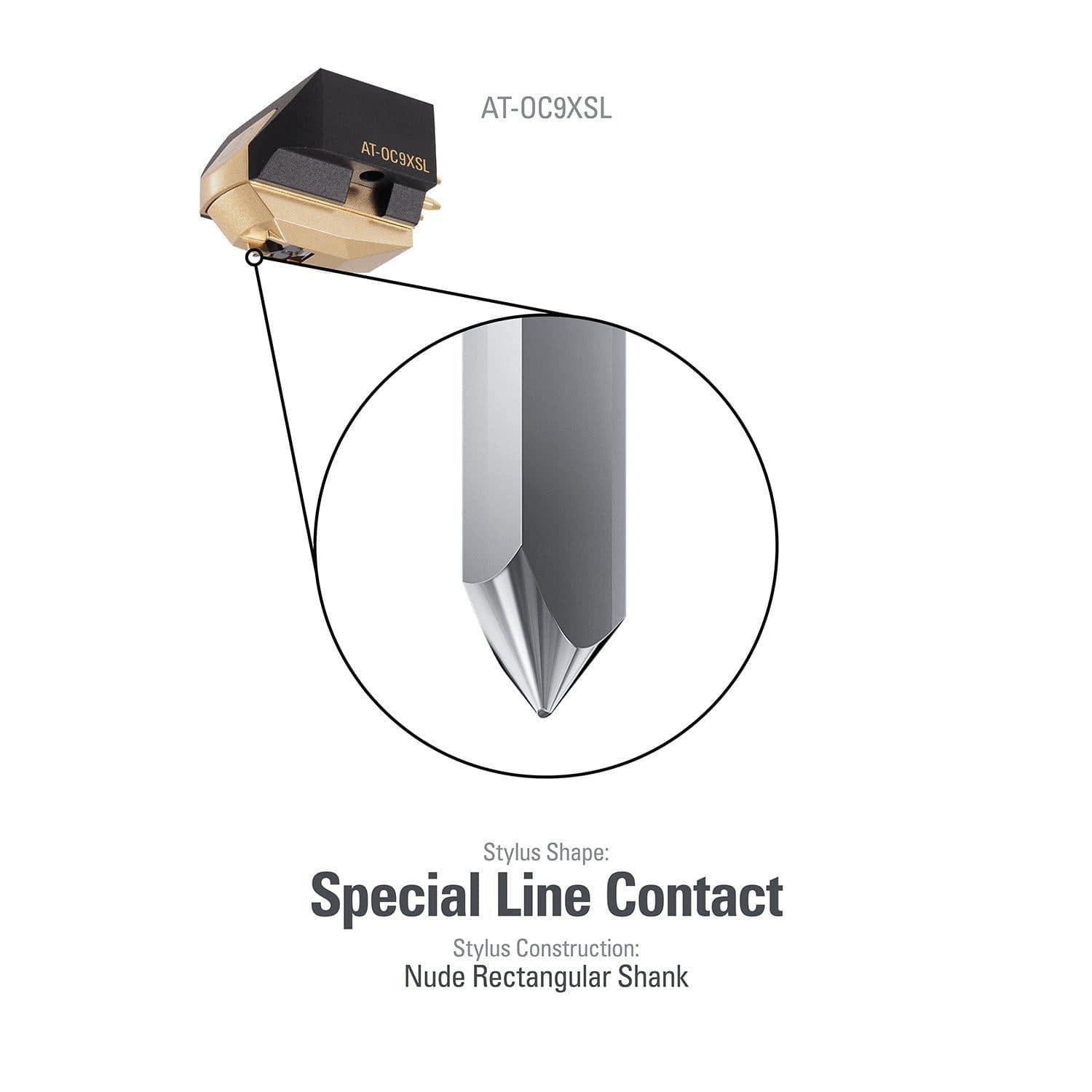

This Special Line Contact stylus model has been upgraded with a boron cantilever carefully selected to keep unwanted vibrations to a minimum and reduce internal resonances for clearer, more detailed audio reproduction.

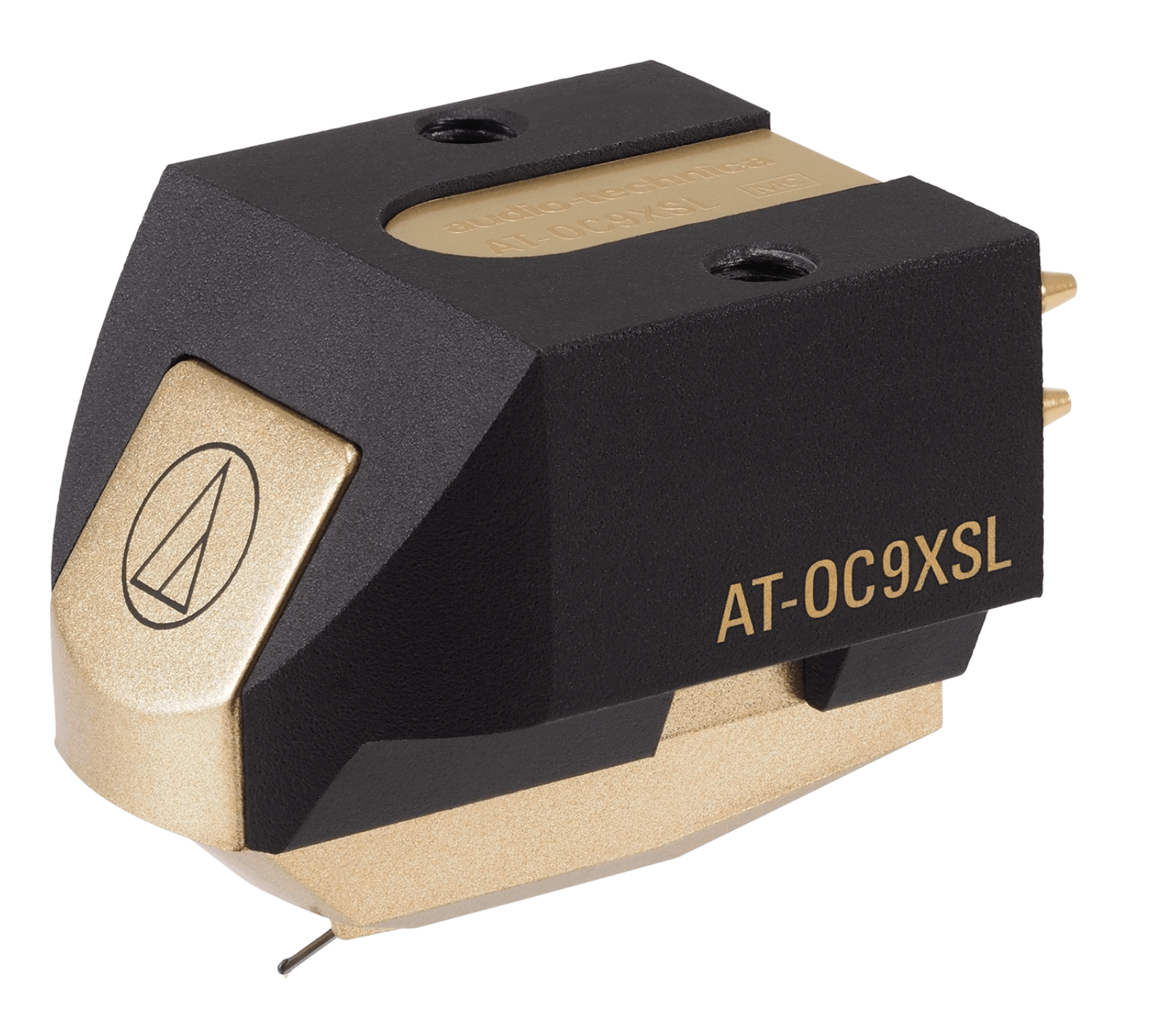

The AT-OC9XSL’s transducer engine is mounted onto a rigid aluminium body to help reduce unwanted internal vibrations and maintain sonic clarity. The cartridge body is pre-threaded, enabling it to be easily mounted to a headshell or tonearm with just two screws (no mounting nuts for the screws are required). Each OC9X Series cartridge is supplied with mounting hardware, a stylus brush and other accessories.
- 1.5 x 0.28 mil Special Line Contact stylus
- Nude boron cantilever
- Utilizes a neodymium magnet with a Permendur yoke for improved reproduction of the delicate musical signals
- Transducer engine is mounted onto a rigid aluminium body to reduce unwanted vibrations and maintain sonic clarity
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
Dual Moving Coil
20 to 50,000 Hz
28 dB (1 kHz)
|Output Channel Balance||
0.5 dB (1 kHz)
0.4 mV (at 1 kHz, 5 cm/sec)
|Vertical Tracking Angle||
|Vertical Tracking Force Range||
1.8 to 2.2 g (standard 2.0 g)
Special Line Contact
|Stylus Curvature Radius||
1.5 x 0.28 mil
Nude rectangular shank
0.28 mm Ø nude boron
22 x 10^(–6 cm) / dyne
18 x 10^(–6 cm) / dyne (100 Hz)
|Wire Used for Coil||
|Recommended Load Impedance||
Min 100 Ohm
25 uH (1 kHz)
17.3 (H) x 16.8 (W) x 25.7 (L) mm

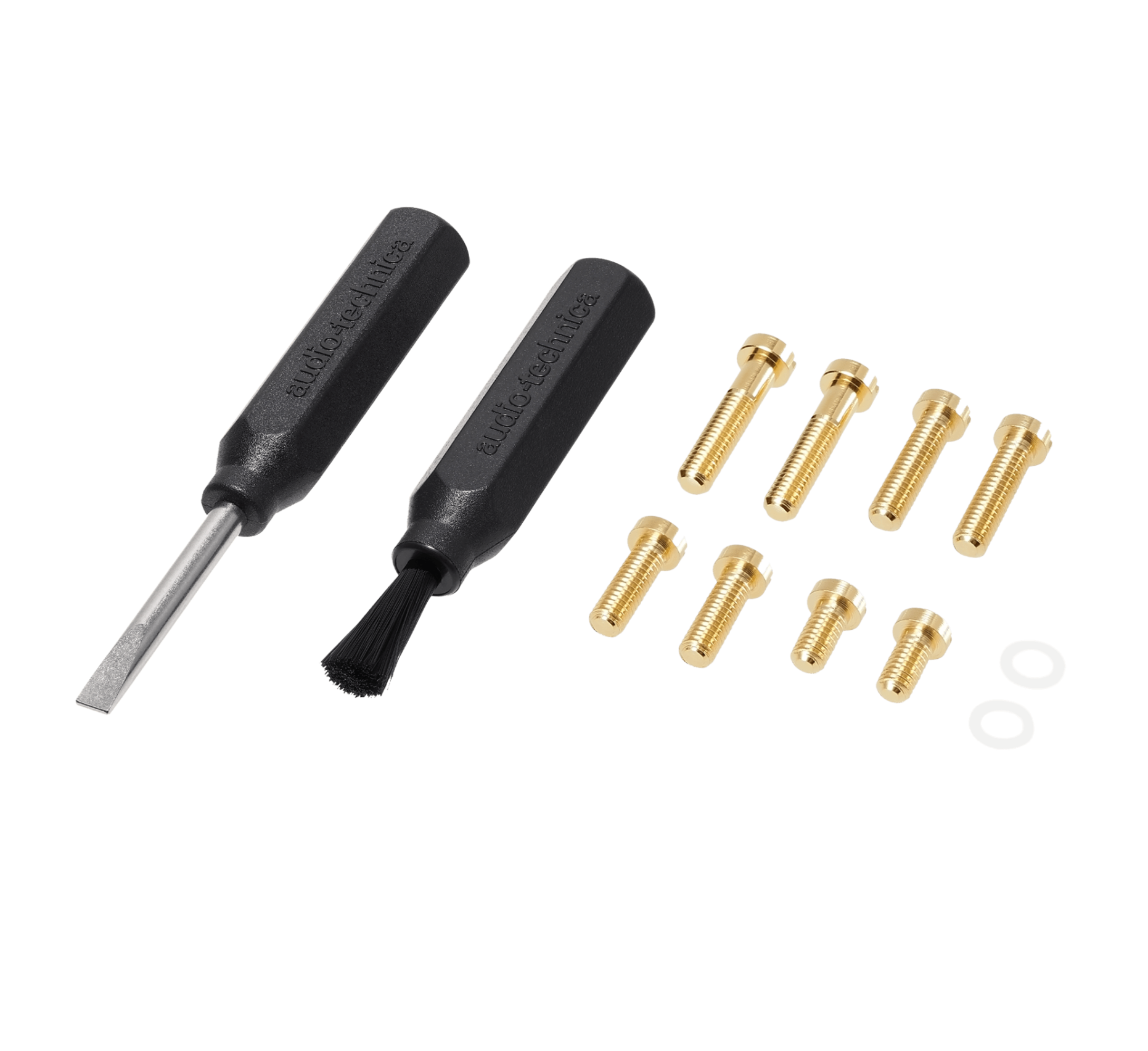

1 non magnetic screw driver; 1 brush; 2 washers; 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm; 1 plastic protector;
