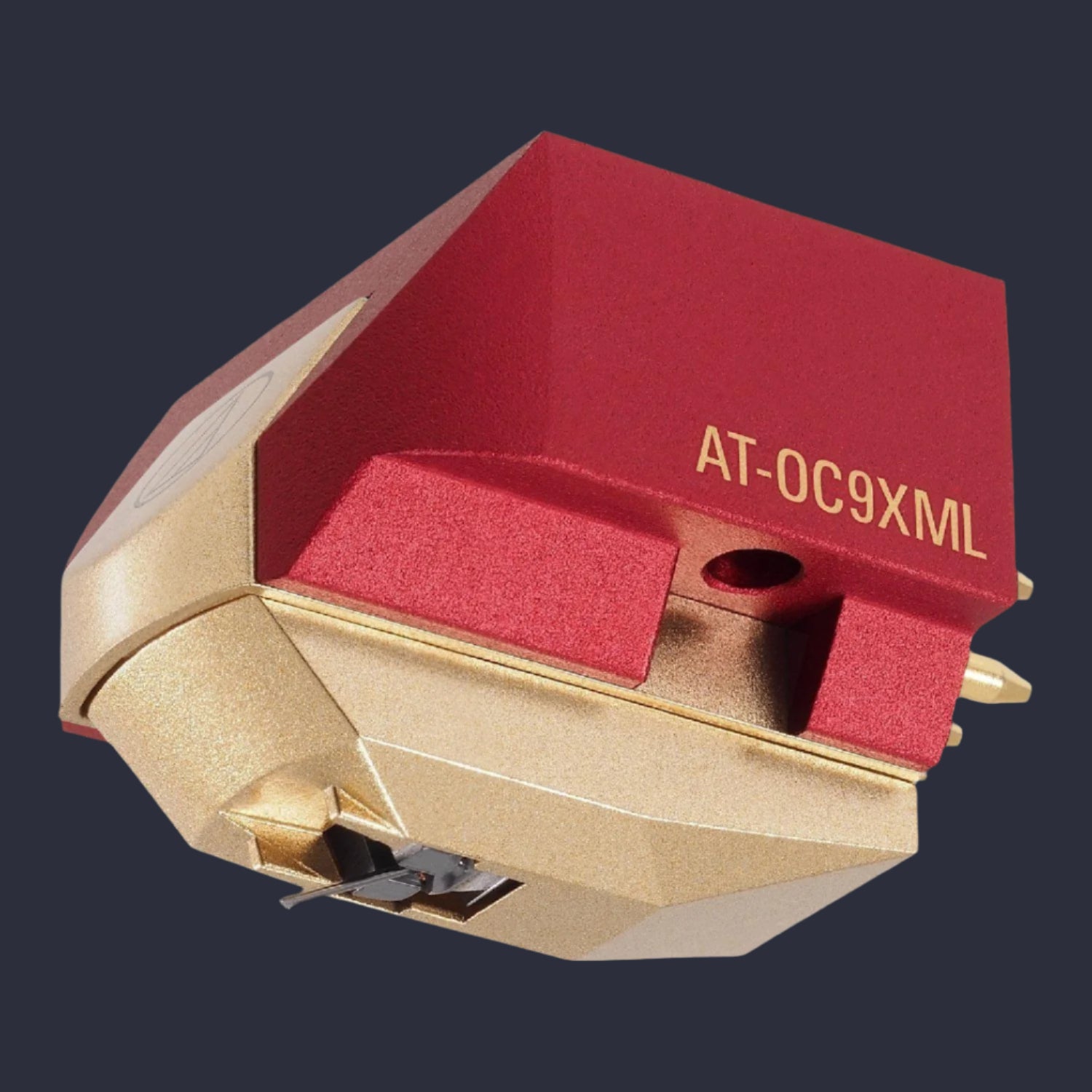

The AT-OC9XML is a premium moving coil phono cartridge with a 2.2 x 0.12 mil Micro-linear stylus.
The OC9X range features a new Dual Moving Coil structure, which enables the audio information in the record grooves to be separated to the left and right channels with pinpoint accuracy.
This improved channel separation results in a more precise stereo image and wider frequency response. The moving coil wires in all OC9X Series cartridges are made from PCOCC (Pure Copper by Ohno Continuous Casting), for optimum signal purity.
The AT-OC9XML utilises a neodymium magnet with a Permendur yoke, a configuration that provides high-saturation magnetic flux density and optimises the concentrated magnetic field of the coil gap, for improved reproduction of the delicate musical signals generated by the cartridges.
This micro linear stylus model has been upgraded with a boron cantilever carefully selected to keep unwanted vibrations to a minimum and reduce internal resonances for clearer, more detailed audio reproduction.

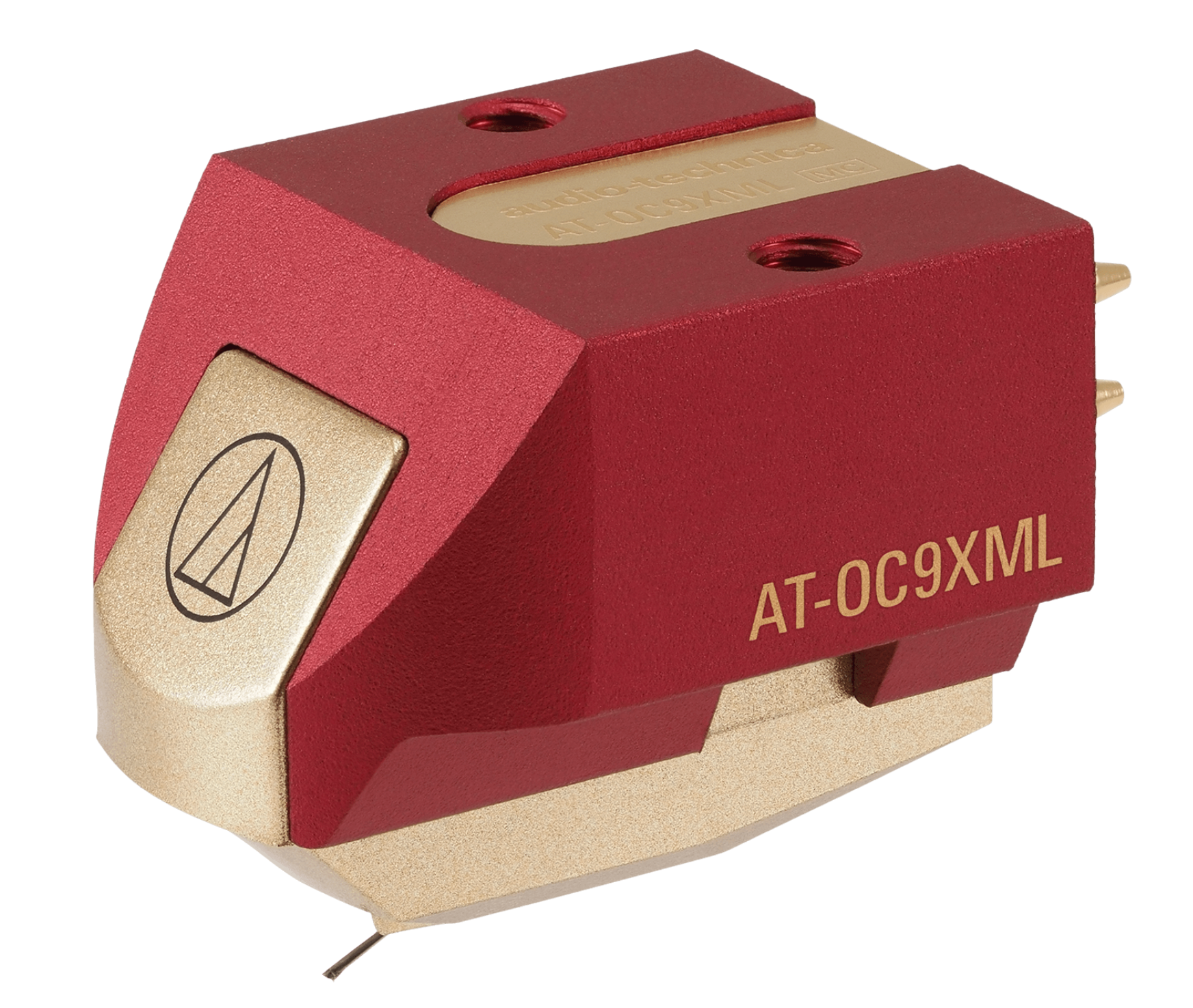

The AT-OC9XML’s transducer engine is mounted onto a rigid aluminium body to help reduce unwanted internal vibrations and maintain sonic clarity. The cartridge body is pre-threaded, enabling it to be easily mounted to a headshell or tonearm with just two screws (no mounting nuts for the screws are required). Each OC9X Series cartridge is supplied with mounting hardware, a stylus brush and other accessories.
Product Features
2.2 x 0.12 mil Micro linear stylus
Nude boron cantilever
Utilises a neodymium magnet with a Permendur yoke for improved reproduction of the delicate musical signals
Transducer engine is mounted onto a rigid aluminium body to reduce unwanted vibrations and maintain sonic clarity
Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
Technical Specifications
Type Dual Moving Coil
Body Material Aluminium
Mounting Feature Threaded inserts
Frequency Response 20 to 47,000 Hz
Channel Separation 27 dB (1 kHz)
Output Channel Balance 1.0 dB (1 kHz)
Output Voltage 0.4 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)

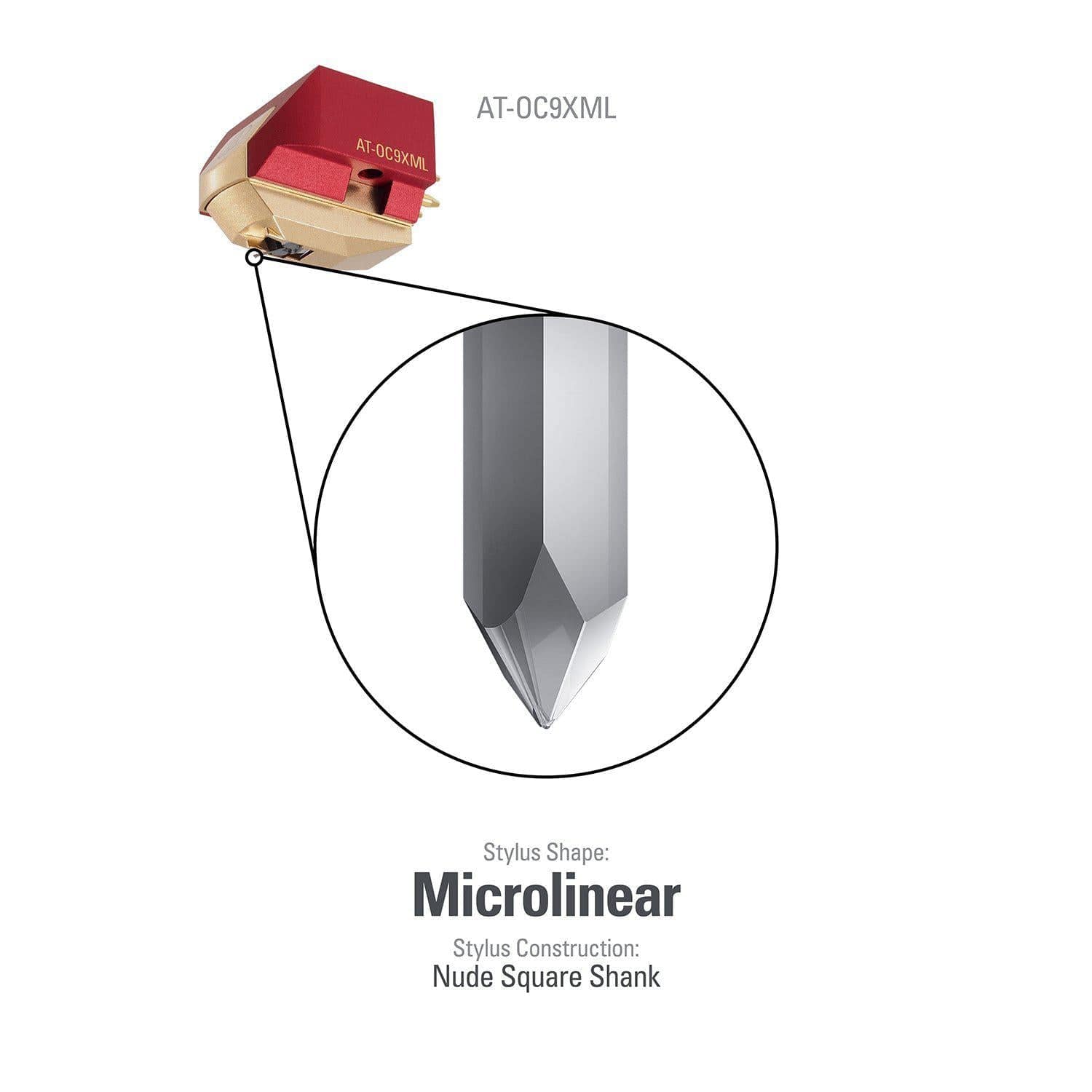

Stylus Shape Micro-linear
Stylus Curvature Radius 2.2 x 0.12 mil
Stylus Construction Nude square shank
Cantilever 0.28 mm Ø nude boron
Static Compliance 20 x 10^(–6cm) / dyne
Dynamic Compliance 16 x 10^(–6 cm) / dyne (100 Hz)
Wire Used for Coil PCOCC
Terminal Pins Brass
Recommended Load Impedance Min 100 Ohm
Coil Impedance 12 Ohm
DC Resistance 12 Ohm
Coil Inductance 25 uH (1 kHz)
Cartridge Weight 7.6 g
Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
Mounting 1/2" Centres
Warranty 1 year limited warranty

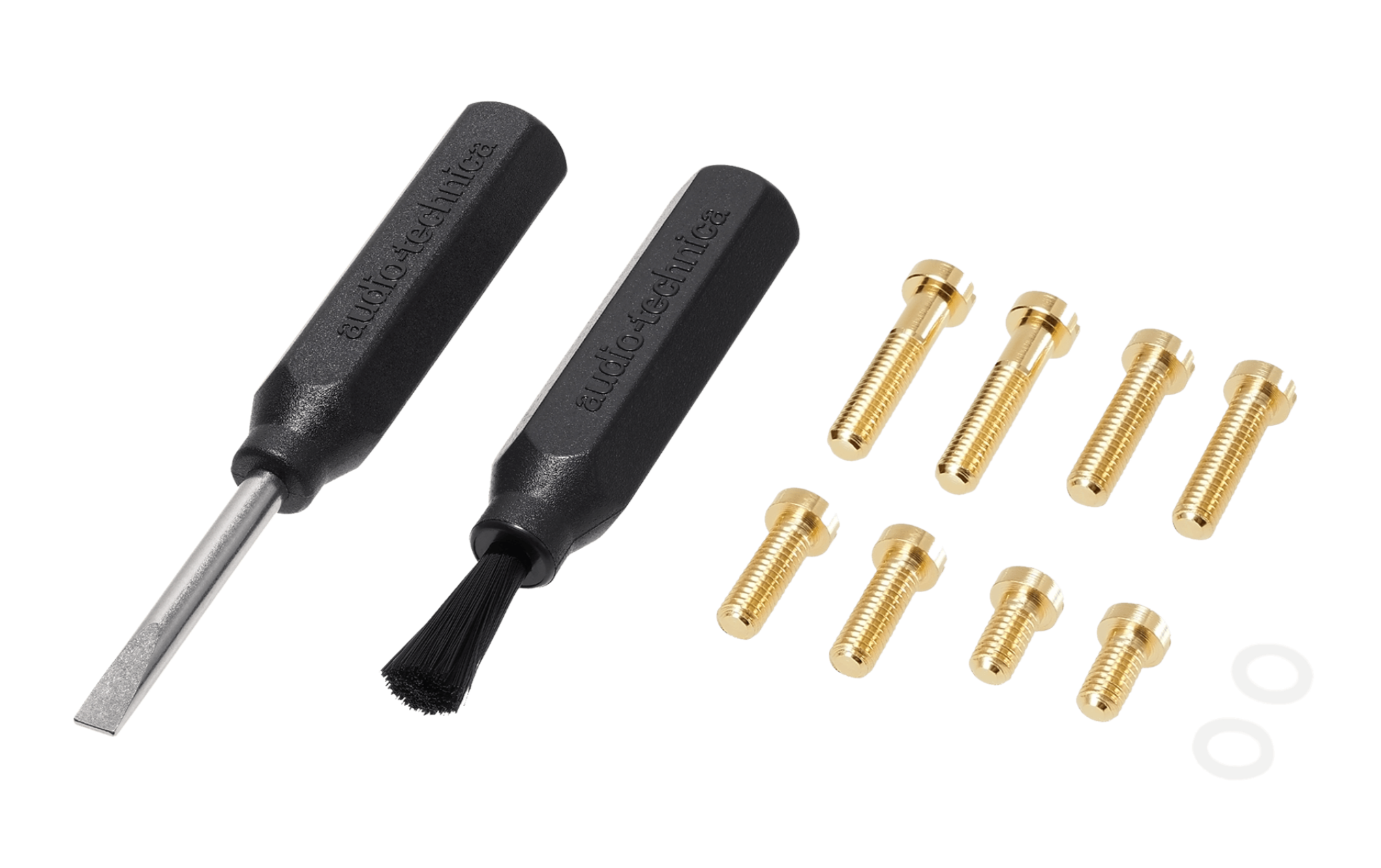

Included Accessories
non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
*Information obtained from Manufacturers Website
