Audio Technica AT-LP7X Belt Drive Turntable
Regular price$1,799.00
Regular price$1,799.00Sale price$1,799.00
Unit price/ per

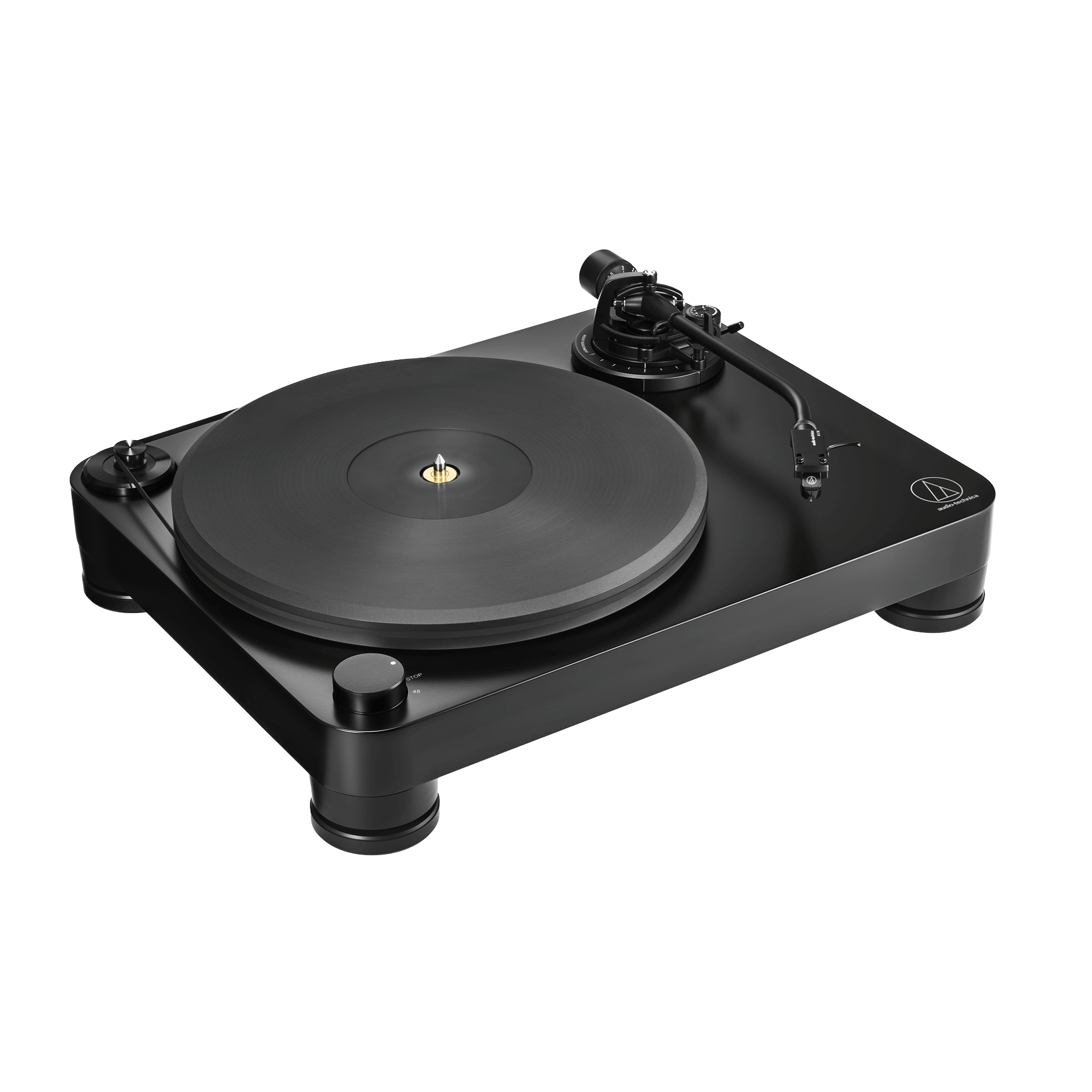

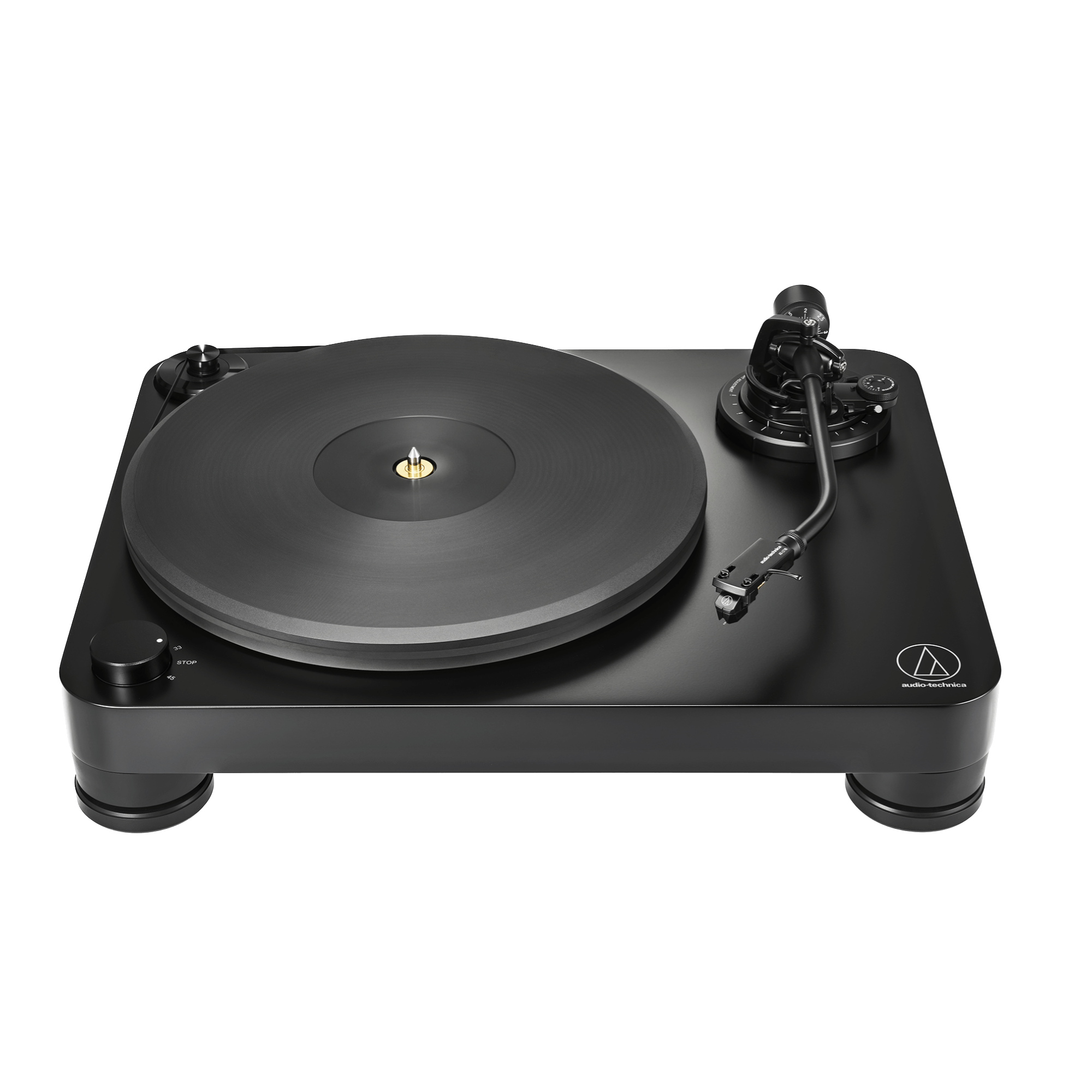

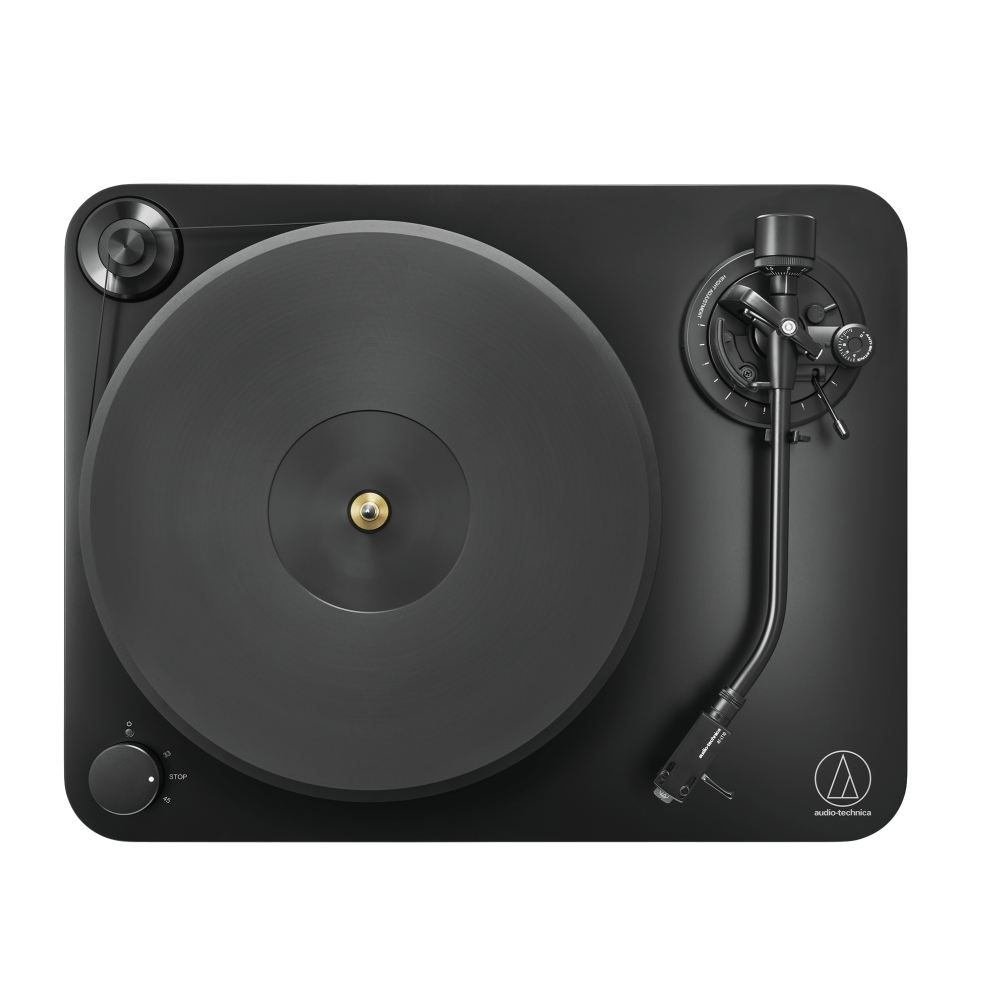

Introducing the AT-LP7X
Fully Manual Belt Drive Turntable from Audio Technica
The AT-LP7X fully manual belt-drive turntable blends analog excellence with style and versatility. Featuring a dense MDF plinth and acrylic platter to minimise unwanted resonance and vibration, this elegant, matte-black turntable delivers sound that’s just as clean and refined as its appearance.
In designing the LP7X, we paid special attention to chassis geometry, ensuring that the platter, spindle, and tonearm were optimally positioned for accurate, distortion-free tracking. The J-shaped aluminium tonearm, inspired by classic A-T models of the 1960s and ’70s, features a dual-axis gimbal with precision ball bearings to further enhance tracking performance.

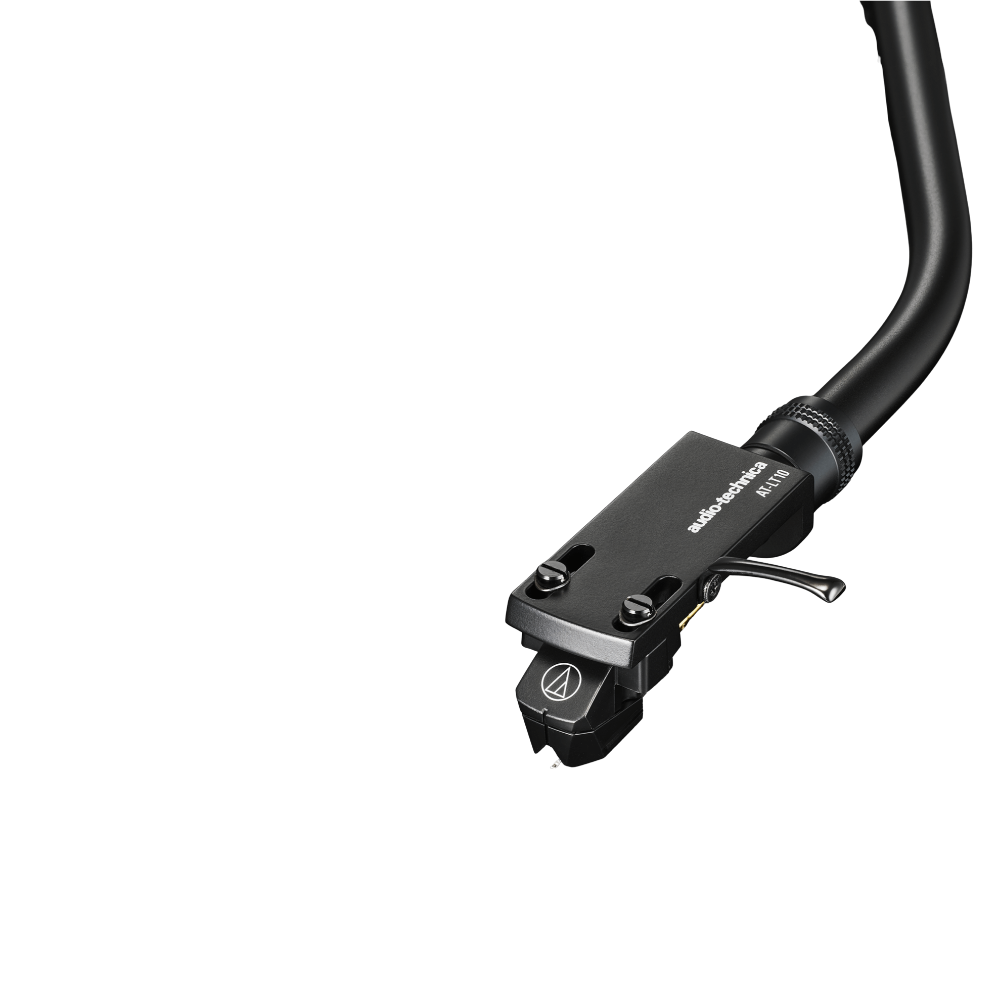

The turntable comes with our AT-LT10 headshell and AT-VM95E BK (black) cartridge with 0.3 x 0.7 mil elliptical stylus, providing excellent channel separation and low distortion for outstanding tonal quality. For easy customisation, the stylus can be replaced or interchanged with other styli in the VM95 line, offering a wide choice of options for every budget and application.
The AT-LP7X is ideal for those interested in experimenting with alternate cartridges. The tonearm’s VTA (vertical tracking angle) adjustment and 16 g sub counterweight allow you to use a broad range of other cartridges and headshells with a combined weight of up to 23.5 g. (A 32 g sub counterweight, available separately, enables the use of even heavier cartridge/headshell combinations.) With its built-in switchable phono pre-amplifier, the AT-LP7X also gives you the option of using MC (moving coil) cartridges.

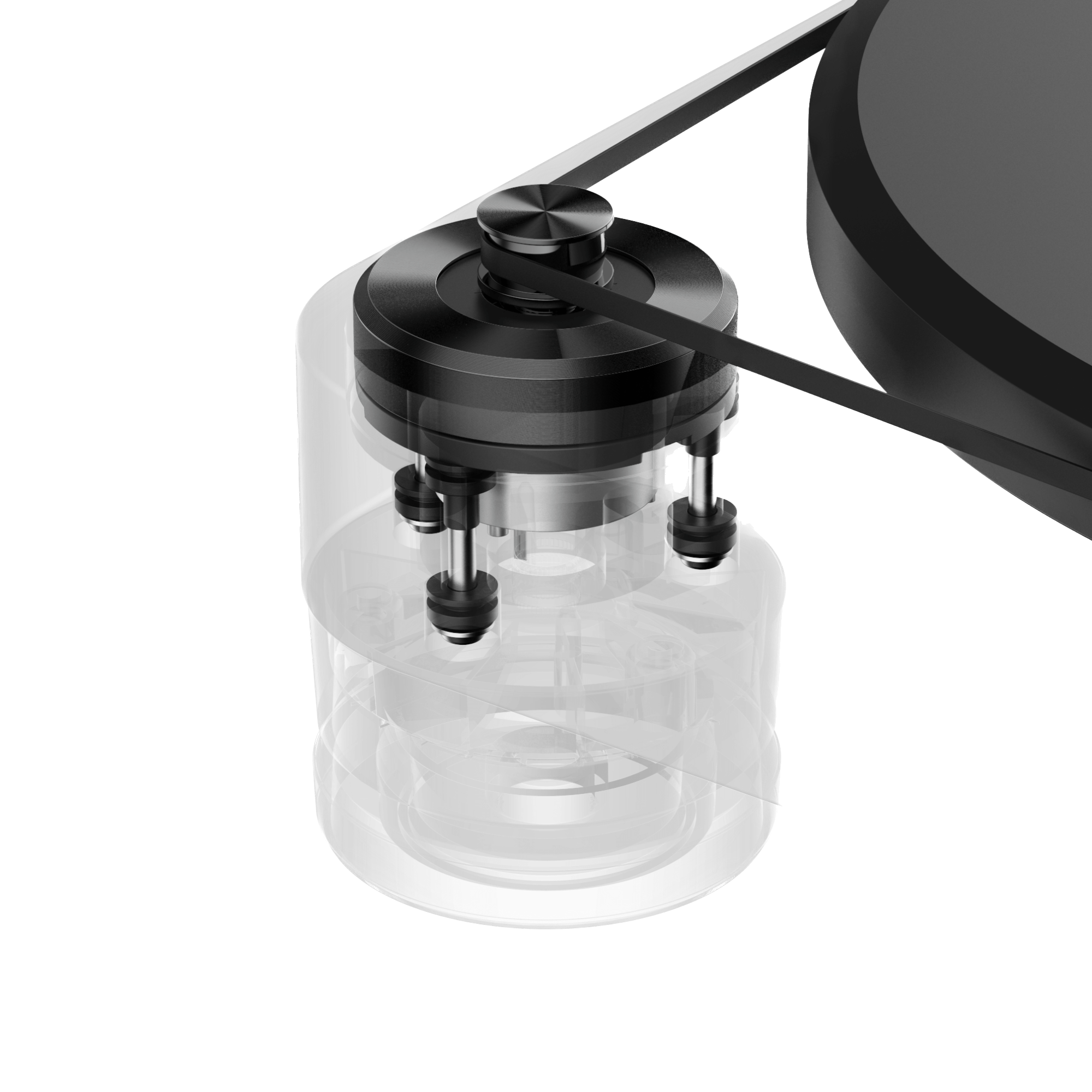

The turntable’s 20 mm acrylic platter is driven by an optical sensor-monitored motor that ensures a continuously accurate platter rotation speed of 33-1/3 or 45 RPM. The motor is mounted on vibration-dampening rubber bushings designed to decouple the motor from the plinth, minimising the transmission of mechanical noise and oscillations. An external switching power supply isolates the AC-to-DC conversion to prevent it from adding any electrical interference, and the turntable’s spring-based, height-adjustable isolation feet offer excellent protection against external noise.

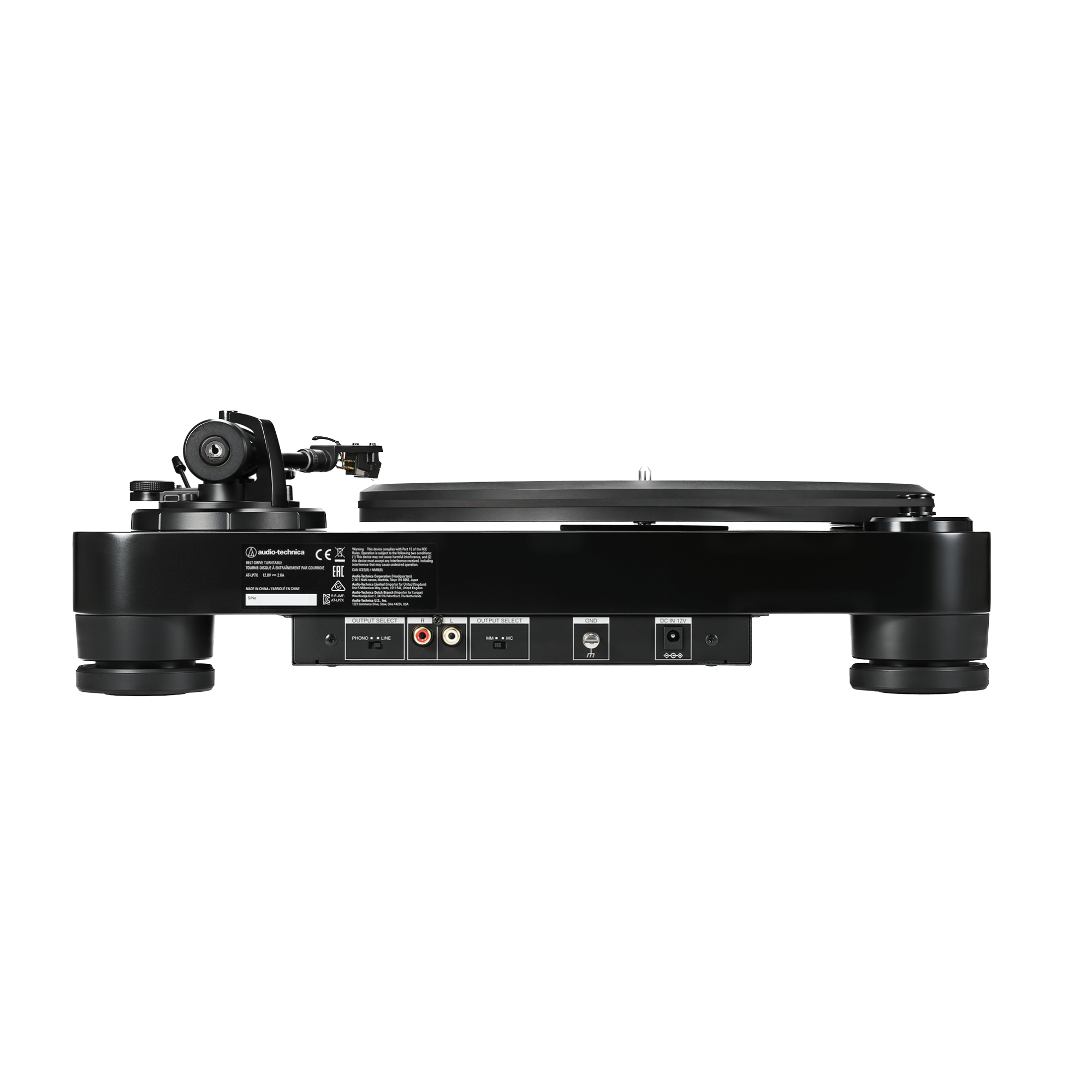

The AT-LP7X comes with a detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter and removable dust cover.
Cartridge Configuration that's Versatile

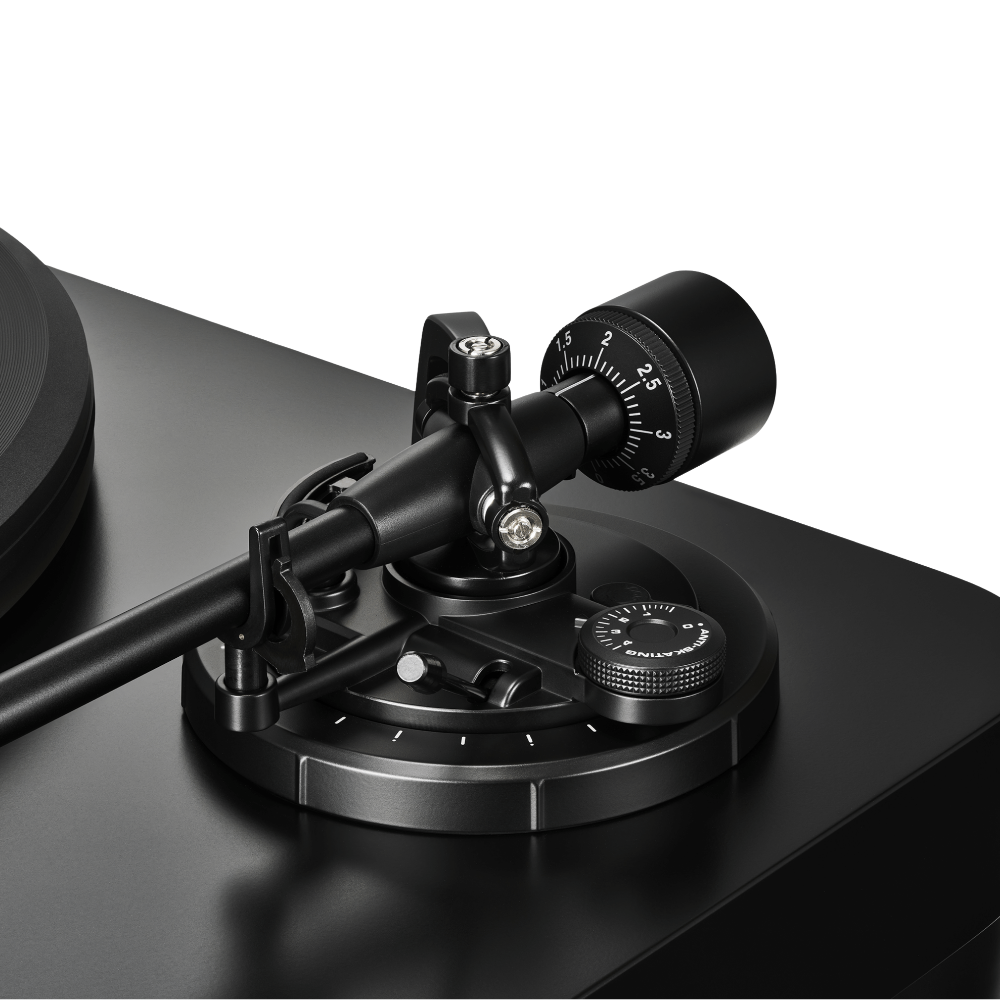

Combined, the turntable’s AT-VM95 cartridge, VTA (vertical tracking angle) adjustment, and 16 g sub counterweight expand your configuration options. Upgrade to a more refined VM95 stylus or experiment with different cartridge/headshell combinations (up to 23.5 g total). Add the optional 32 g sub counterweight (available separately) and work with combinations up to 28.5 g.
Sooth and Accurate Rotation
The stainless-steel spindle features a thermal-plastic, sheet-type bearing at its base, ensuring low-friction rotation that’s precisely maintained at 33-1/3 or 45 RPM by the turntable’s speed-sensor system.

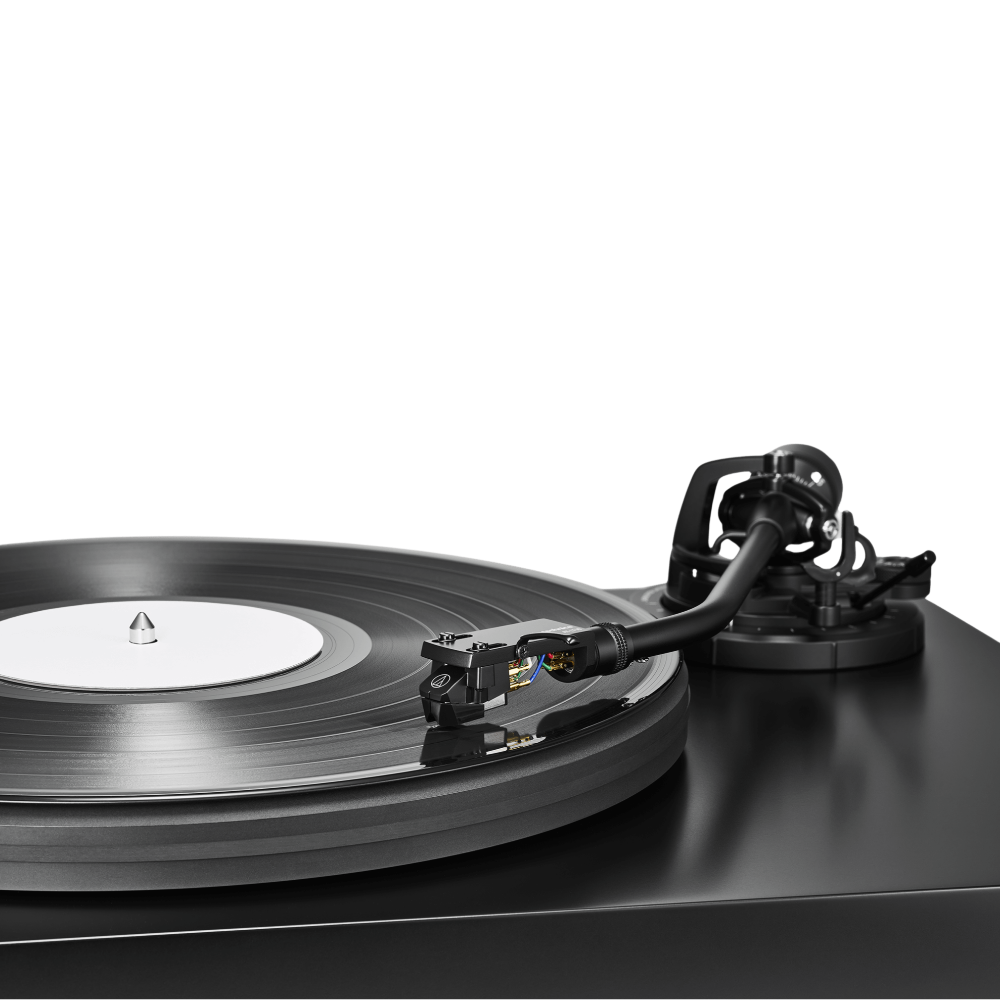

Clean and Quiet Playback Assured
The high-density acrylic platter dampens vibrations for supremely quiet playback, allowing the brilliance and detail of your vinyl records to shine through.
Precise Turntable Geometry
The AT-LP7X provides excellent tracking thanks to the chassis and tonearm geometry of the AT-LP7X. Both have been designed to ensure optimal lateral tracking for distortion-free playback.
Product Features
Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
Heavy 40 mm MDF (medium density fibreboard) cabinet construction reduces resonance and vibration for clearer sound
Motor features a speed-sensor system to maintain accurate platter rotation speed
20 mm-thick, high-density acrylic platter offers high rotational inertia to spin records at a consistent speed (no platter mat required)
J-shaped tonearm with adjustable VTA (vertical tracking angle)
AT-VM95E BK (black) cartridge (0.3 x 0.7 mil elliptical stylus) pre-mounted to the lightweight AT-LT10 removable headshell
AT-VM95 cartridge is compatible with most VM95 Series replacement styli, offering a wide choice of options for every budget and application
Included 16 g sub counterweight provides an expanded cartridge/headshell weight range of 14.0–23.5 g
A larger 32 g sub counterweight is available separately to enable the use of cartridge/headshell combinations up to 28.5 g

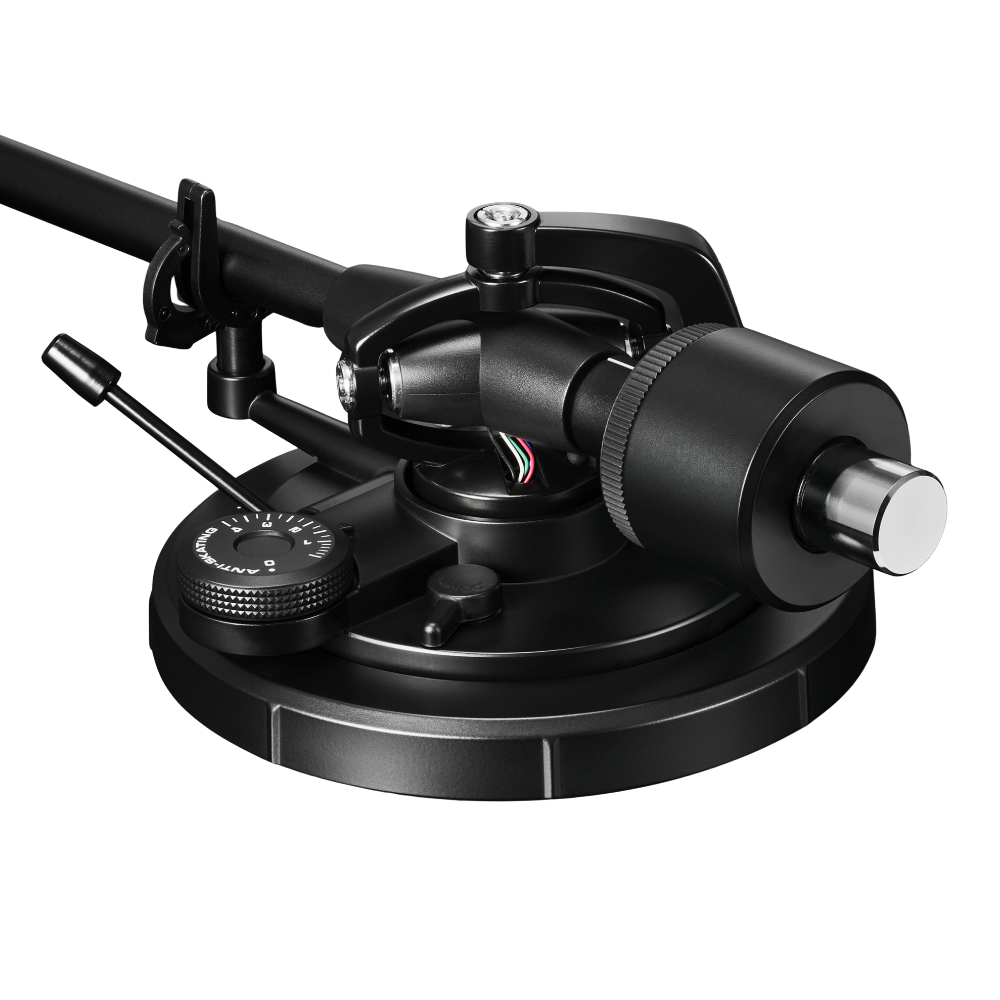

Adjustable anti-skate control to counter the inward force the styli experiences during playback
Built-in switchable phono pre-amplifier with selectable modes for MM (moving magnet) or MC (moving coil) cartridges
Includes dual RCA (male) to dual RCA (male) stereo cable with ground, 45 RPM adapter, and removable dust cover
About Audio Technica 60 Years of Analogue Audio
Audio-Technica has developed cartridge and turntable technology for over 60 years. They are passionate about the art of analogue listening, and proud to produce some of the most critically acclaimed and popular audio products in the world.
Technical Specifications
Turntable
Type Belt-drive, fully manual operation
Motor DC servo motor
Drive Method Belt Drive
Speeds 33-1/3 RPM, 45 RPM
Turntable Platter 20 mm (0.79") thick acrylic platterWow and flutter
Wow and Flutter < 0.1% (WTD) at 3 kHz (JIS)
Signal-to-noise ratio > 60 dB
Output Levels
PHONO 4.0 mV nominal at 1 kHz, 5 cm/sec LINE 252 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-amp gain MM: 36 dB nominal, RIAA equalised MC: 56 dB nominal, RIAA equalised
General
Power consumption 5.5 W
Dimensions (W × D × H) 450 mm × 352 mm × 157 mm
Weight 7.6 kg
Operating Temperature 5°C to 35°C (41°F to 95°F)
Replacement Stylus
AT-VMN95E BK (sold separately)
Replacement Headshell AT-LT10 (sold separately)
Replacement Belt AT-LP7X exclusive belt (sold separately)
Tonearm
Type Static balanced J-shaped tonearm
Effective Length 247 mm
Overhang 15 mm
Maximum Tracking Error Angle < 2.0°
Tracking Force Adjustment Range 0.0 - 4.0 g
Applicable Cartridge Weight 14.0 to 19.5 g (without sub counterweight) 17.5 to 23.5 g (with sub counterweight (light)) 22.0 to 28.5 g (with sub counterweight (heavy)*
*Please note that the sub counterweight (heavy) is sold separately.
Cartridge
Model AT-VM95E BK
Type VM
Recommended Loan Impedance 47,000 ohms
Output Voltage 4.0 mV (1 kHz, 5 cm/sec)
Stylus Shape 0.3 × 0.7 mil bonded elliptical stylus
Cantilever Aluminium pipe
Tracking Force 1.8 to 2.2 g (standard 2.0 g)
Weight 6.1
AC Adaptor
Rated Input Voltage 100 to 240 V AC
Rated Input Current 0.6 A max.
Rated Frequency 50 Hz / 60 Hz
Rated Output Voltage 12 V DC
Rated Secondary Current 0.5 A
Cable Length Approx. 1.3 m
Headshell
Headshell AT-LT10
Weight Approx. 10.7 g (0.38 oz) (including lead wires) Approx. 10.0 g (0.35 oz) (excluding lead wires)
Overhang Adjustment - 5.5 mm to + 2.5 mm (when using AT-VM95E)
In the Box
Dust cover
Platter
Drive belt
Counterweight
Sub counterweight (light)
Headshell (AT-LT10) with VM stereo cartridge (AT-VM95E BK)
45 RPM adapter
RCA audio cable (Approx. 1.4 m (4.6’))
AC adapter (Approx. 1.3 m (4.3’))
Gloves
*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change without notice.
