Audio Technica's Flagship Magnetic Core MC Cartridge
Featuring a special line contact stylus on a 0.28 mm diameter solid boron cantilever, the AT-ART9XI replaces the AT-ART9 as Audio-Technica’s flagship magnetic core MC cartridge.
The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that Audio Technica gives only to their flagship phono cartridges. T
he specially designed magnetic circuit boasts an output voltage of 0.5 mV (1 kHz, 5 cm/sec), making the cartridge easy to use and capable of reproducing even the most delicate expressions, while also ensuring dynamic playback.

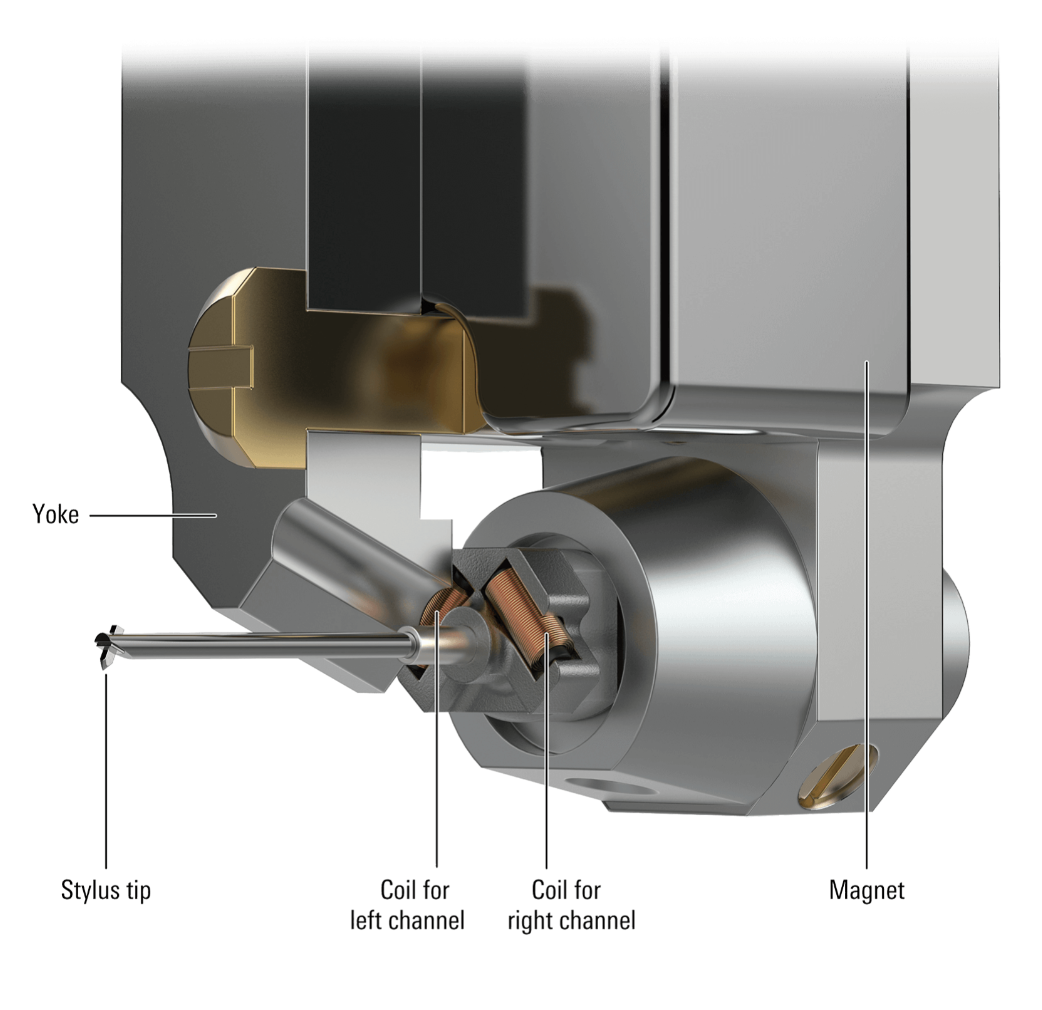

Dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response for clear sound localisation and minimal distortion. Threaded cartridge mounting holes make installation to a headshell or integrated tonearm incredibly easy.
Product Features
Audio-Technica’s flagship magnetic core moving coil cartridg
Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localisation and minimal distortion
Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics
Neodymium magnet and permendur yoke significantly increase magnetic energy
Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)
PCOCC coils ensure high-fidelity transmission
Machined aluminium base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
Hybrid body of machined aluminium and high-rigidity plastic reduces undesirable parasitic resonance
Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm
Technical Specifications
Type Dual Moving Coil
Frequency Response 20 to 50,000 Hz
Channel Separation 30 dB (1 kHz)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force Range 1.6 to 2.0 g (standard 1.8 g)
Stylus Construction Nude
Recommended Load Impedance Min. 100 ohms (when head amplifier connected)
Coil Impedance 12 ohms (1 kHz)
DC Resistance 12 Ohm
Coil Inductance 25 uH (1 kHz)
Output Voltage 0.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 0.5 dB (1 kHz)
Stylus Shape Special Line Contact
Cantilever 0.28 mm diameter solid boron
Static Compliance 25 x 10-6 cm/dyne
Dynamic Compliance 15 x 10-6 cm/dyne (100 Hz)
Mounting 12.7 mm or 1/2 inch
Threaded Hole M2.6 x 2
Cartridge Weight 8.5 g
Dimensions (H x W x L) 17.3 x 16.8 x 25.7 mm
Warranty 1 year limited warranty

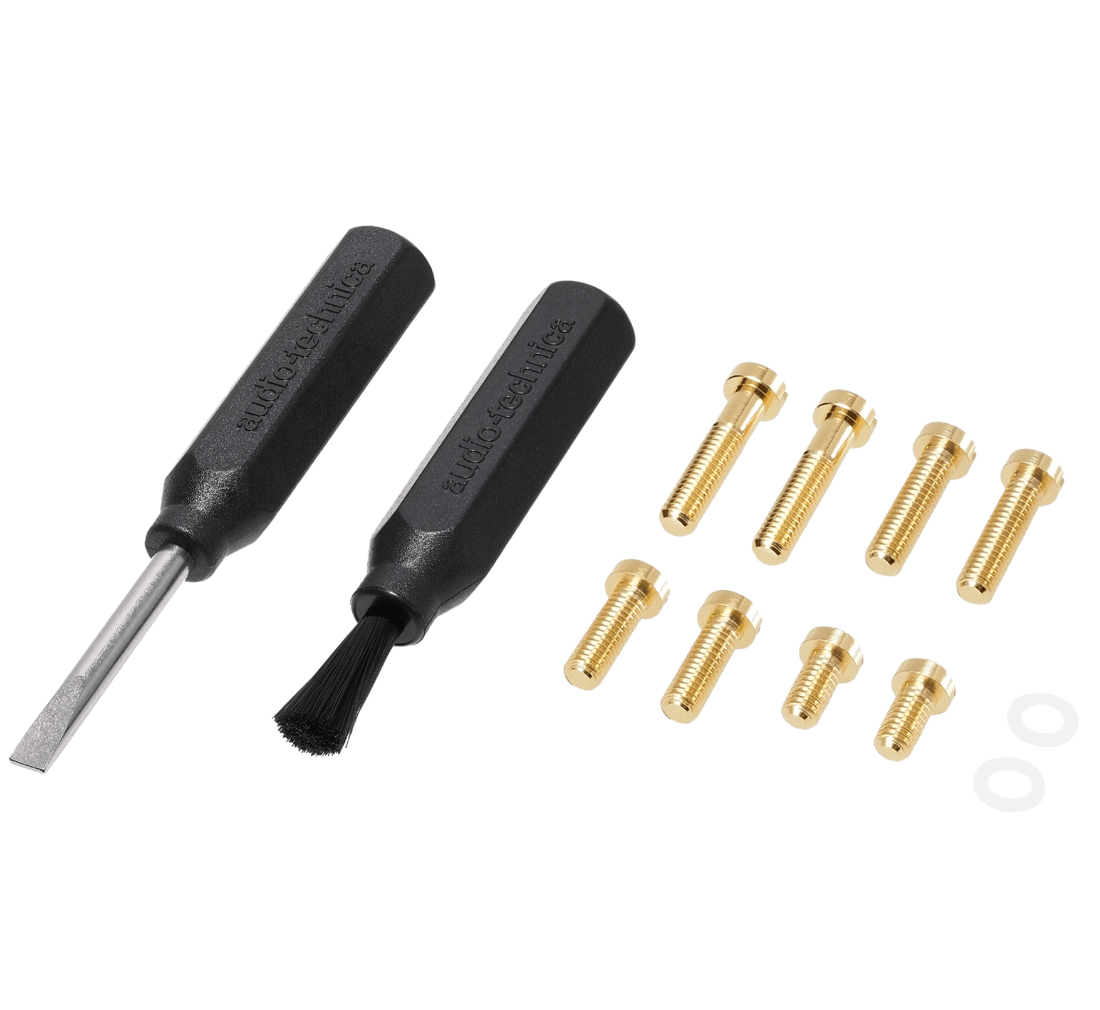

Included Accessories
Non-magnetic screwdriver
2 washers
Cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2)
Protector
Brush
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change without notice.
E & O E
