Audio Technica AT-XP3/H Headshell/Cartridge Combo Kit

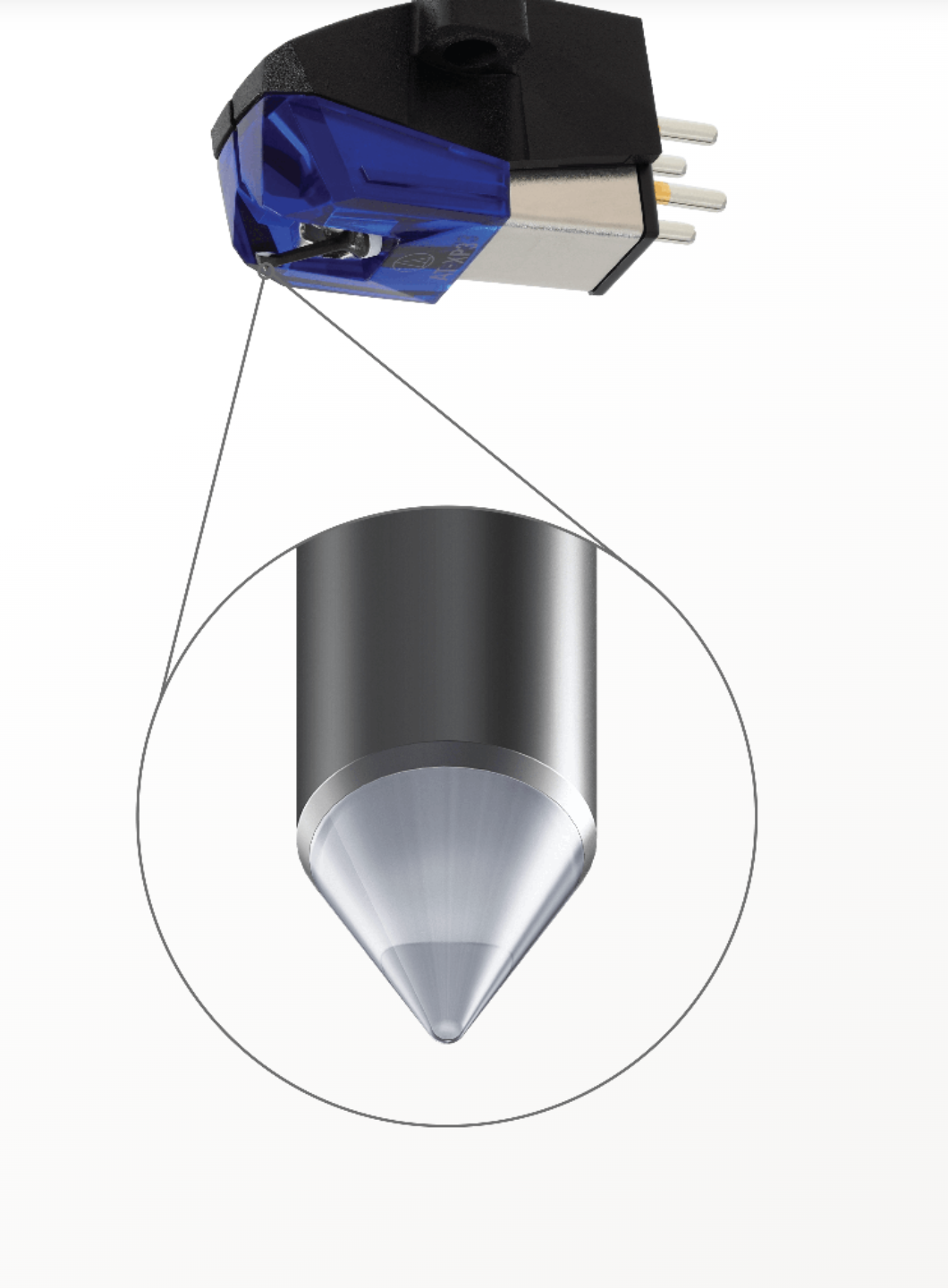

• 0.6 mil conical bonded stylus tip
• Highly-rigid polyphenylene sulphide (PPS)/glass fibre body
• 5.5 mV high-level output
• Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
• Durable carbon fibre-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
• Design offers maximum visibility of the stylus tip
• Great tracking and channel separation for high-fidelity sound
• AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Universal ½"-mount headshell for 4-pin turntable cartridges

Technical Specifications

Model
AT-XP3/H

Mounting
½” centres

Frequency Response
20 to 18,000 Hz

Channel Separation
20 dB (1 kHz)

Output Channel Balance
2 dB (1 kHz)

Output Voltage
3.5 mV (at 1 kHz, 5 cm/sec)

Vertical Tracking Angle
20 degrees

Vertical Tracking Force
2 to 4 g (2.0g standard)

Stylus Construction
Bonded Round Shank

Stylus Shape
Conical

Stylus Size
0.6 mil

Cantilever
Carbon Reinforced ABS

Static Compliance
20 x 10^ (–6cm) / dyne

Dynamic Compliance
6 x 10^ (–6 cm) / dyne (100 Hz)

Recommended Load Impedance
47,000 Ω

Recommended Load Capacitance
100 - 200 pF

Coil Impedance
6,700 ohms (1 kHz)

Dynamic Compliance
6.0 x 10 – 6 cm / dyne (100 Hz)

Coil Inductance
1 H (1 kHz)

Cartridge Weight
15.6g

Dimensions
21.2 (H) x 21.4 (W) x 62.4 (D) mm

Mounting
1/2" Centres

Warranty
1 year limited warranty

*Information obtained from Manufacturers Website
