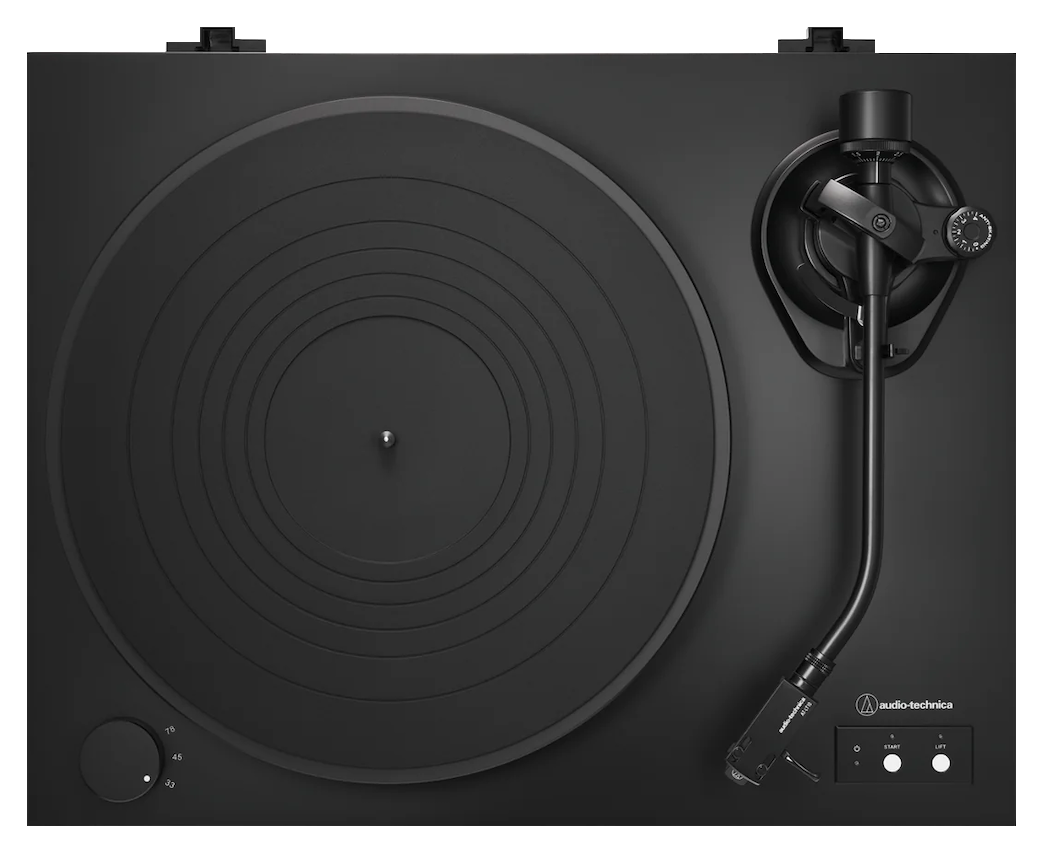

Simply Stunning Semi-Automatic Direct Drive Turntable from Audio Technica
Audio-Technica expands its acclaimed direct-drive turntable lineup with the all-new AT-LP8X, a semi-automatic turntable. Featuring a newly engineered tonearm lift, the AT-LP8X automatically raises the tonearm and stops the motor at the end of each record side, providing hassle-free listening \, quality sound, and practical features that will leave you wondering how you managed without them!

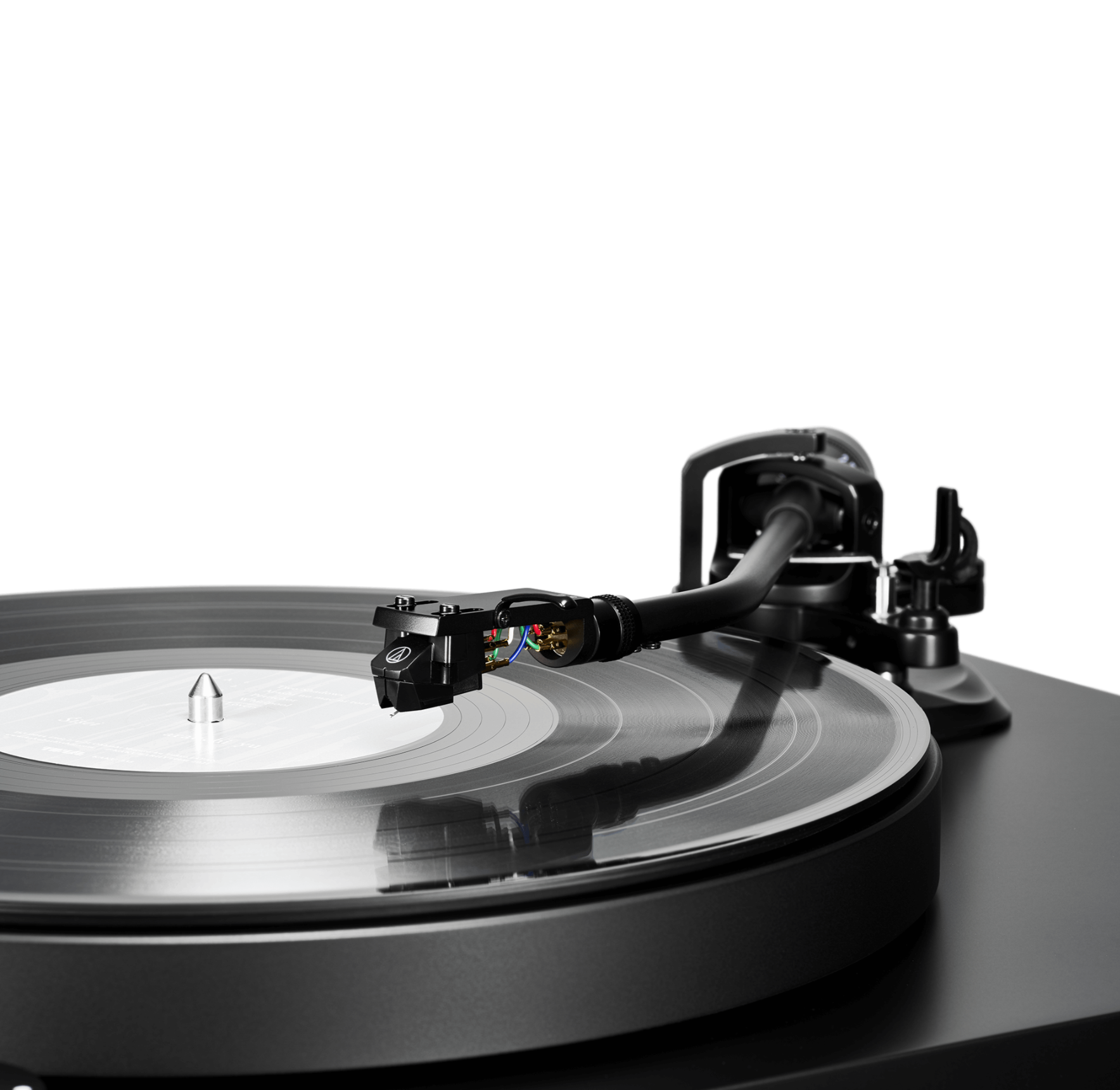

Inspired by classic Audio Technica models of the 1960s and ’70s, the AT-LP8X turntable’s J-shaped aluminium tonearm is fully equipped with a newly designed AT-LT10 headshell and AT-VM95E BK (black) cartridge with 0.3 x 0.7 mil elliptical stylus, providing excellent channel separation and low distortion for outstanding tonal quality.
For easy customisation, the stylus can be replaced or interchanged with any of the five additional styli in the VM95 line, and the tonearm’s VTA (vertical tracking angle) adjustment and subcounterweight enable the use of a broad range of other cartridges.
The AT-LP8X plays 33-1/3, 45, and 78 RPM records. Its 25 mm rubber-damped, anti-resonance, die-cast aluminium platter comes with a 2.5 mm rubber mat and is driven by a sensor-monitored motor that ensures a continuously accurate platter rotation speed. The motor and its efficient internal switching power supply are housed within a box plinth constructed of 16 mm MDF (medium density fibreboard) and equipped with height-adjustable feet for excellent protection against unwanted noise and vibration.
The turntable comes with a detachable RCA output cable (dual RCA male to dual RCA male with ground), a 45 RPM adapter, and a removable hinged dust cover.
Convenient Listening with Semi Automatic Operation
The AT-LP8X’s tonearm lifts automatically at the end of a record, and its motor automatically stops—rare features on a direct-drive turntable. This gives you the freedom to listen casually and not worry about when a record will end.
Refine Your Sound with Interchangeable Styli
The turntable’s AT-VM95E cartridge is compatible with any Audio-Technica VM95 Series replacement stylus, making it easy to experiment with different styli profiles, upgrade to a higher-quality stylus to enjoy more refined sound, or switch to an AT-VMN95SP stylus to play 78 RPM records.
Quiet Performance with Anti-Resonance Materials
The turntable’s robust MDF box plinth, adjustable feet, thick rubber-damped, anti-resonance, die-cast aluminium platter, and 2.5 mm rubber mat work together to temper unwanted noise and vibration so you can enjoy all the detail of your music.
Product Features
Semi-automatic direct-drive turntable with three speeds: 33-1/3, 45, 78 RPM
Motor features a speed-sensor system to maintain accurate platter rotation speed
A newlyly designed low-torque, direct-drive DC servo motor improves wow and flutter performance
25 mm rubber-damped, anti-resonance, die-cast aluminum platter with 2.5 mm rubber mat

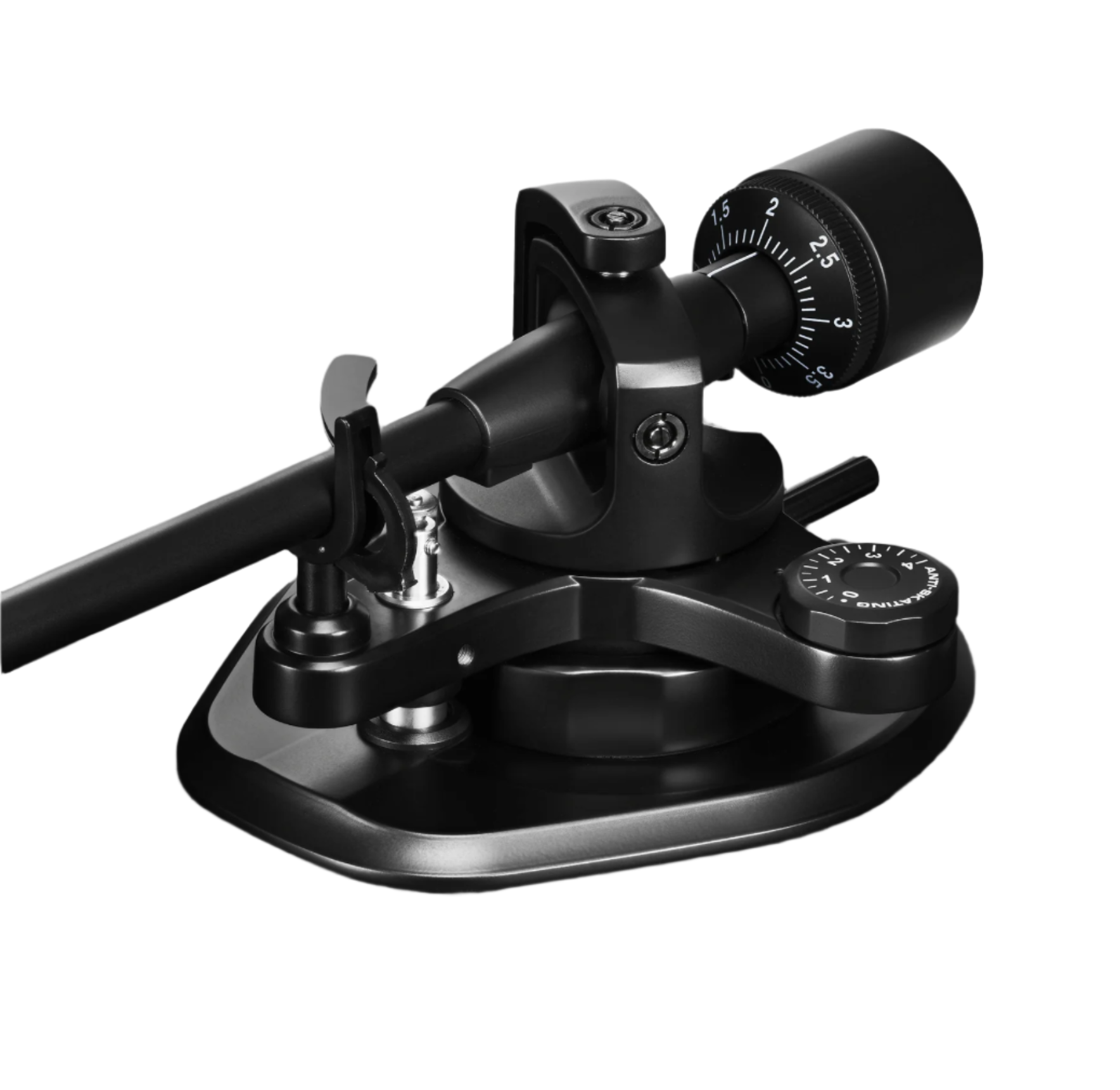

J-shaped tonearm with adjustable VTA (vertical tracking angle)A newly
ly designed tonearm lift automatically raises the tonearm at the end of a record side and stops the motor
AT-VM95E BK (black) cartridge (0.3 x 0.7 mil elliptical stylus) is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application

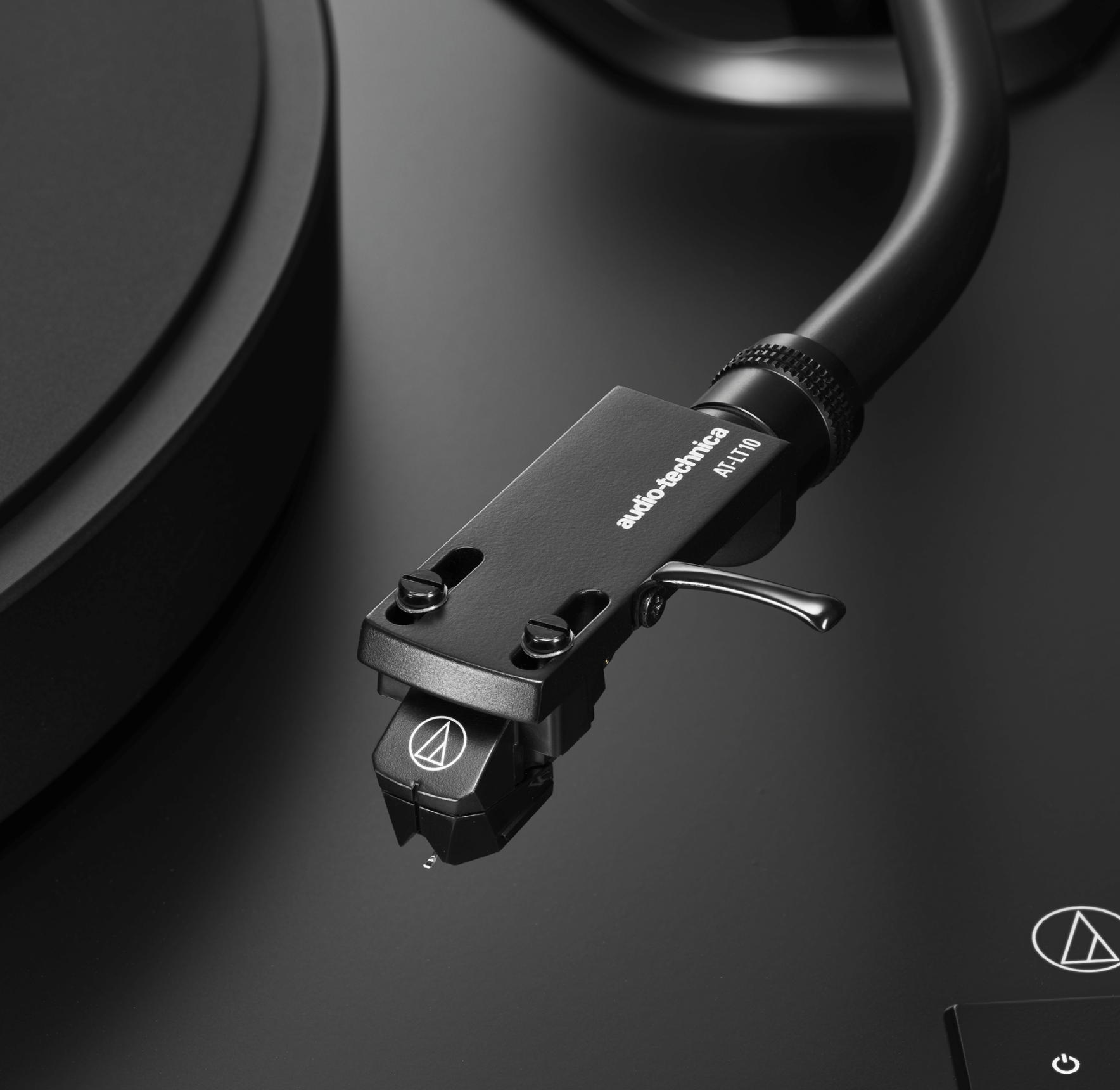

Newly designed lightweight AT-LT10 headshell
Included sub-counterweight provides an expanded cartridge/headshell weight range of 14.14.0 g–23.523.5 g
Newly designed internal switching power supply, optimised for audio performance
MDF (medium density fiberboard) cabinet construction
Phono-level output provides pure, direct transmission of the cartridge’s signal

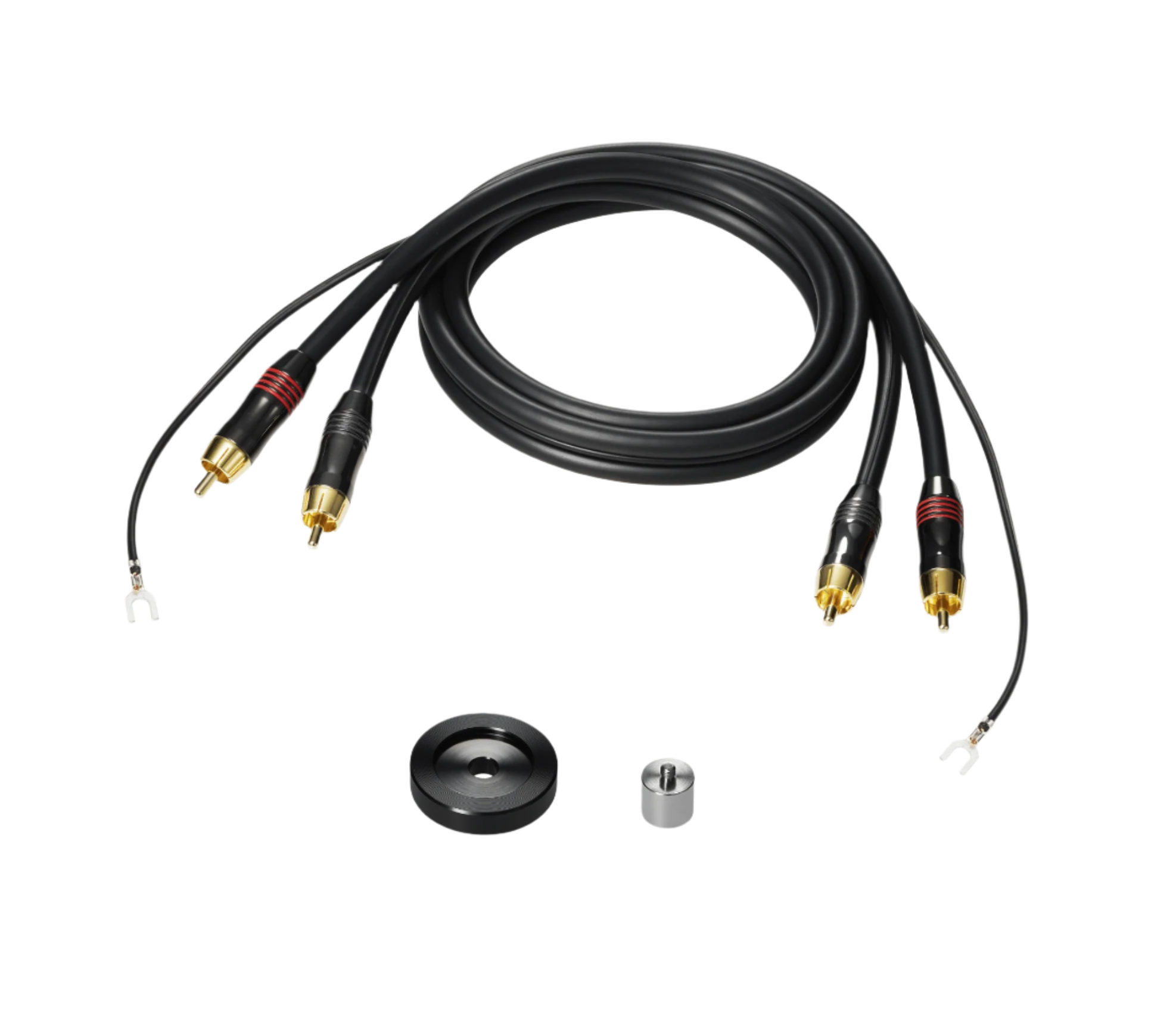

Includes detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover
Please note that a dedicated SP cartridge or the replacement AT-VMN95SP stylus is required to play 78 RPM records
Output Level PHONO: 4.0 mV nominal at 1 kHz, 5cm/sec
Power Supply Requirements 100 to 240 V, 50/60 Hz
Power Consumption 8 W
Dimensions (W×D×H) 450 mm (18") × 352 mm (14") × 161 mm (6.3")
Weight Approx. 10.4 kg (23 lbs)
Tonearm Type Static balanced J-shaped tonearm
Effective Arm Length 247 mm (9.7")
Overhang 15 mm (0.59")
Tracking Error Angle Less than 2.0°
Stylus Pressure Adjustment Range 0.0 to 4.0 g
Applicable Cartridge Weight 14.0 to 20.0 g (including headshell) (When using sub counterweight: 17.5 to 23.5 g)
Whats in the Box
・Dust cover ・Rubber mat ・Platter ・Dust cover hinges ・Counterweight ・Subcounterweight ・Headshell (AT-LT10) with VM stereo cartridge (AT-VM945BK) ・45 RPM adapter ・RCA audio cable (Approx. 1.0 m (3.3')) ・Power cable (Approx. 1.8 m (5.9'))
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.
E&OE
