Introducing the AVA15 AV Amplifier - it's coming soon, pre order now
Breathtaking Clarity and depth
The AVA15 brings breathtaking clarity and depth to every note and every scene, putting you at the heart of the performance.
Expertly engineered in Cambridge, UK, and built on over 30 years of surround sound expertise, the AVA15 combines our passion for music with cutting-edge technology. Its powerful Class D amplification and advanced immersive audio processing deliver a sound that’s as thrilling as it is precise.
With nine channels of amplification, the AVA15 drives setups like 7.1.2 or 5.1.4 with ease—and gives you room to expand with extra subwoofers, height, or surround speakers. Dolby Atmos and DTS:X bring cinema-grade immersion to your home, while Dirac Live room correction ensures every detail sounds perfect in your space.
At ARCAM, sound quality isn’t just a promise—it’s an obsession. The AVA15 is the result of rigorous testing and listening sessions to award it the ARCAM name.

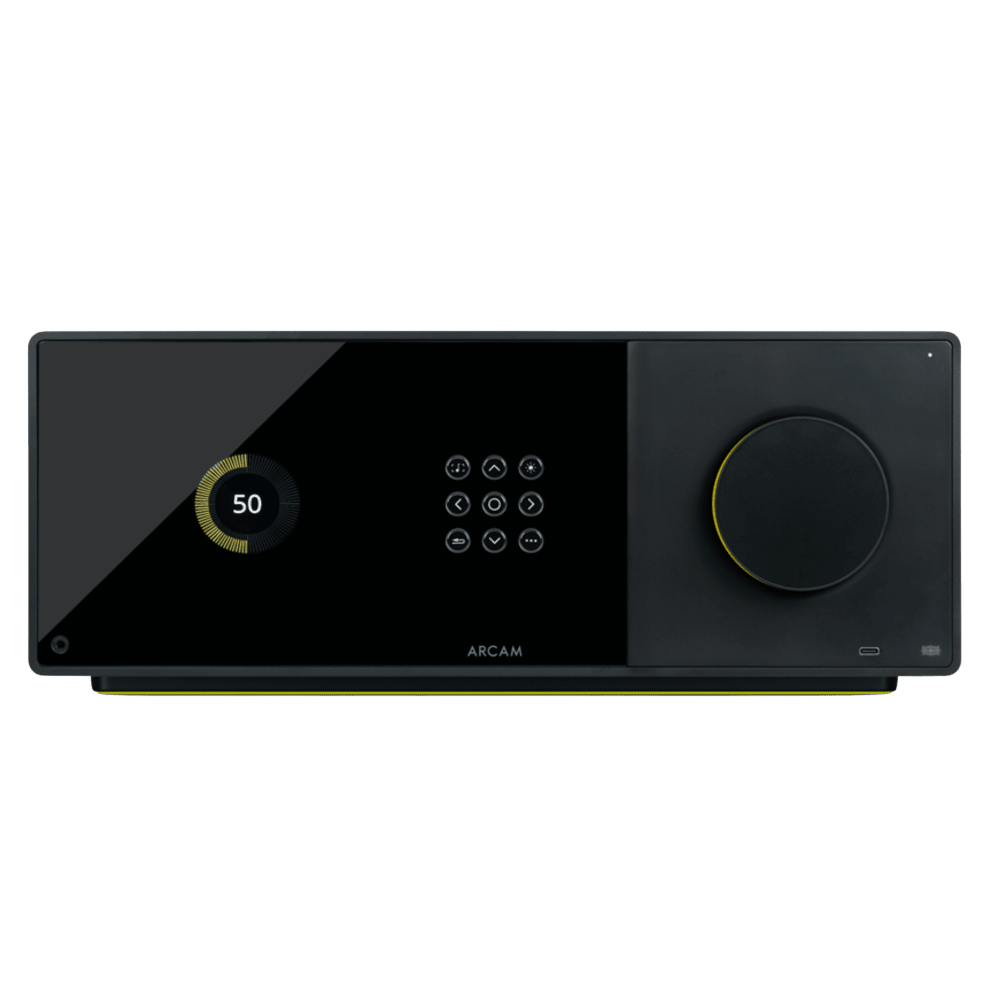

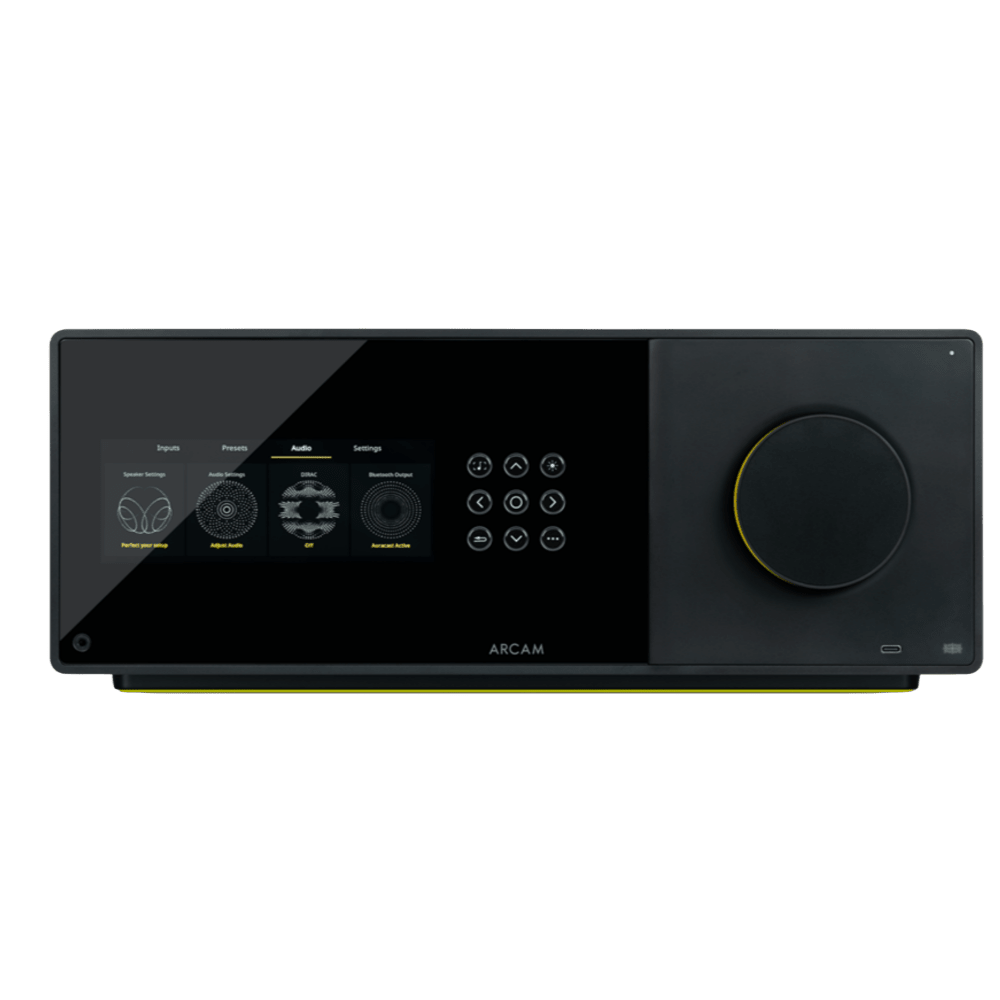

And with a vibrant 6.5" colour display, intuitive on-screen menus, and the new Radia App, setup and streaming are effortless.
Product Features
- Powerful ARCAM Class D Amplification.
- Dolby Atmos - Bring even the smallest details to life with sound that moves in all directions.
- DTS:X - places sound where it would occur naturally in space, creating the most lifelike, multi-dimensional audio experience ever.
- Dirac Live Room Correction for exceptional, calibrated audio in any room - upgrade with Dirac Live Bass Control and Dirac Live Active Room Treatment
- Back-lit, Bluetooth remote control for continuous out-of-sight control
- Works with the new ARCAM Radia app for setup, control, Internet Radio, Podcasts and UPnP playback from iOS and Android devices
- Supports Apple Airplay, Google Cast, Spotify Connect, Tidal Connect and Qobuz Connect
- Bluetooth with Snapdragon Sound and Auracast for the best wireless sound with the most convenience
- Large High-resolution display for clearly visible status and metadata from the comfort of your main listening position
- Plastic free packaging for easy disposal of natural materials
Technical Specifications
DECODING / ENCODING
Maximum Channel Count
12
Reassignable Channels
Front, Surround Back, Height Channels
Supported Decoding and Encoding
Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X
MPEG H
HDMI
Inputs/Outputs
7/2
HDMI/HDCP Versions
2.1a/2.3
Resolution support (resolution/framerate)
Up to 8K/60Hz or 4K/120Hz
Supported Dynamic Range Profiles
HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG
Supported HDMI features
Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Output 1) On Screen Display
STREAMING
Works with (apps)
ARCAM Radia Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready)
Works with (services)
Apple Airplay, Google Cast ARCAM Radia supported services, Internet Radio, Podcasts, UPnP
Supported Hi-res media
FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA
Gapless Playback Supported
Supported Hi-res Bit depth
16, 24
Supported samples rates (kHz)
Up to 192 kHz
Frequency response
20Hz—20kHz ± 0.05dB
DIGITAL INPUTS
Number of inputs (Coaxial/Toslink)
2/2
Supported Sample Rates (kHz)
Coaxial (RCA)
192, 176.4, 96, 88.2, 48, 44.1
Optical (Toslink)
96, 88.2, 48, 44.1
Bit depths (bit) (Coaxial/Toslink)
24, 16
Frequency response
20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS)
100dB
ANALOGUE INPUTS
Number of inputs
3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input)
100dB
Frequency response
20Hz—20kHz ± 0.2dB
PREAMPLIFIER OUTPUTS
Number of Outputs RCA/XLR
12/0
Single-ended (RCA) peak output level per channel
2V RMS
THD+N (20 Hz to 20 kHz)
–100dB
AMPLIFICATION
Amplifier Channels
9, Class D
CONTINUOUS POWER OUTPUT (0.5% THD)
8O, 20Hz - 20kHz, 2 channels driven
85W
4O, 1kHz, 2 channels driven
150W
8O, 20Hz - 20kHz, 7 channels driven
85W
4O, 1kHz, 7 channels driven
65W
Harmonic distortion @80% power, 8O at 1kHz
0.003%
GENERAL
Mains voltage (V/Hz)
100–120V or 220–240V, 50–60Hz
Max Power consumption
900W
Max Thermal dissipation
3070 BTU/hour
Idle Power consumption
59W
Idle Thermal dissipation
200 BTU/hour
Standby Power consumption (Default/Low Power
2W/0.3W
Dimensions W x D (including speaker terminals) x H (including feet)
W432 x D407.4 x H170 mm
Weight (net)
10kg
Weight (packed)
15.7kg
WIRELESS SPECIFICATIONS
Bluetooth Version
5.4
Bluetooth Profiles
A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP
Bluetooth Transmitter Frequency Range and Power
2,402 MHz to 2,480 MHz <Max 10.73dBm
Wi-Fi Network
IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Frequency Range and Power
2.400 GHz to 2.4835 GHz < Max 17.4dBm
5G Wi-Fi Transmitter Frequency Range and Power
5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.875GHz, < Max 19.26dBm
Supplied accessories
Region Specific Power Cord(s)
Rear panel cowl
Remote control with 2 x AAA batteries
Measurement Microphone
5m USB Cable
Quick Start Guide
Important Safety Instructions
