Introducing the Vibelink Amp
Power. Precision. Pure Performance.
Designed for music lovers and home theatre enthusiasts, the WiiM Vibelink Amp delivers 100W per channel at 8Ω and 200W per channel at 4Ω, providing powerful, high-fidelity amplification.
Every note, beat, and dialogue is rendered with exceptional clarity, depth, and precision, ensuring an immersive listening experience.
Premium Build, Modern Aesthetic
Crafted from a sleek, unibody aluminium chassis, the WiiM Vibelink Amp offers exceptional durability and peak performance. Its premium, minimalist design blends seamlessly into any audio setup, whether on a media console or in a high-end rack. Engineered with advanced thermal management, including a copper heat pipe and a large aluminium heatsink, it ensures efficient cooling and long-term reliability, even under demanding conditions.
High-Fidelity Audio with Premium Components
Equipped with a premium ESS 9039Q2M DAC, TI TPA3255 amplifier chip, and six TI OPA1612 op-amps, the WiiM Vibelink Amp delivers ultra-low distortion and noise, revealing details often lost in standard amplifiers. Supporting high-resolution audio up to 192kHz/24-bit, it preserves the integrity of every recording while enhancing dynamic range for a richer, more immersive listening experience.
Post Filter Feedback Technology
At the core of the WiiM Vibelink Amp’s superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimises distortion, enhances clarity, and ensures consistent sound quality across different speaker loads. Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature.
The result? A wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.
Advanced Thermal Management
High-power amplification generates heat, but the WiiM Amp Ultra stays cool under pressure with advanced thermal management:
-
Copper Heat Pipe – Rapidly transfers heat from key components for stable performance at any volume
-
Large Aluminum Heatsink – Exceptional conductivity ensures fast, efficient cooling, preventing thermal throttling
-
Precision PID Control – Real-time temperature regulation for optimal cooling and long-term reliability.
Smart, Energy-Efficient Performance
The Vibelink Amp is designed with modern convenience in mind. With Auto Standby Mode, it automatically powers down after 30 or 60 minutes of inactivity, saving energy without compromising performance. The 12V Trigger In enables instant activation when connected to compatible devices, making it a smart and efficient addition to your home audio setup.
Pure Analog Input – No ADC Conversion, No Compromise
Unlike many amplifiers that digitise analog signals, introducing unwanted processing and degradation, the WiiM Vibelink Amp offers a pure analog input that bypasses any Analog-to-Digital Conversion (ADC). This results in:
-
A direct, unaltered audio signal path for the purest analog experience
- Authentic, warm sound reproduction without artificial enhancements
- A true audiophile listening experience, preserving the integrity of vinyl, CD, and high-end analog sources

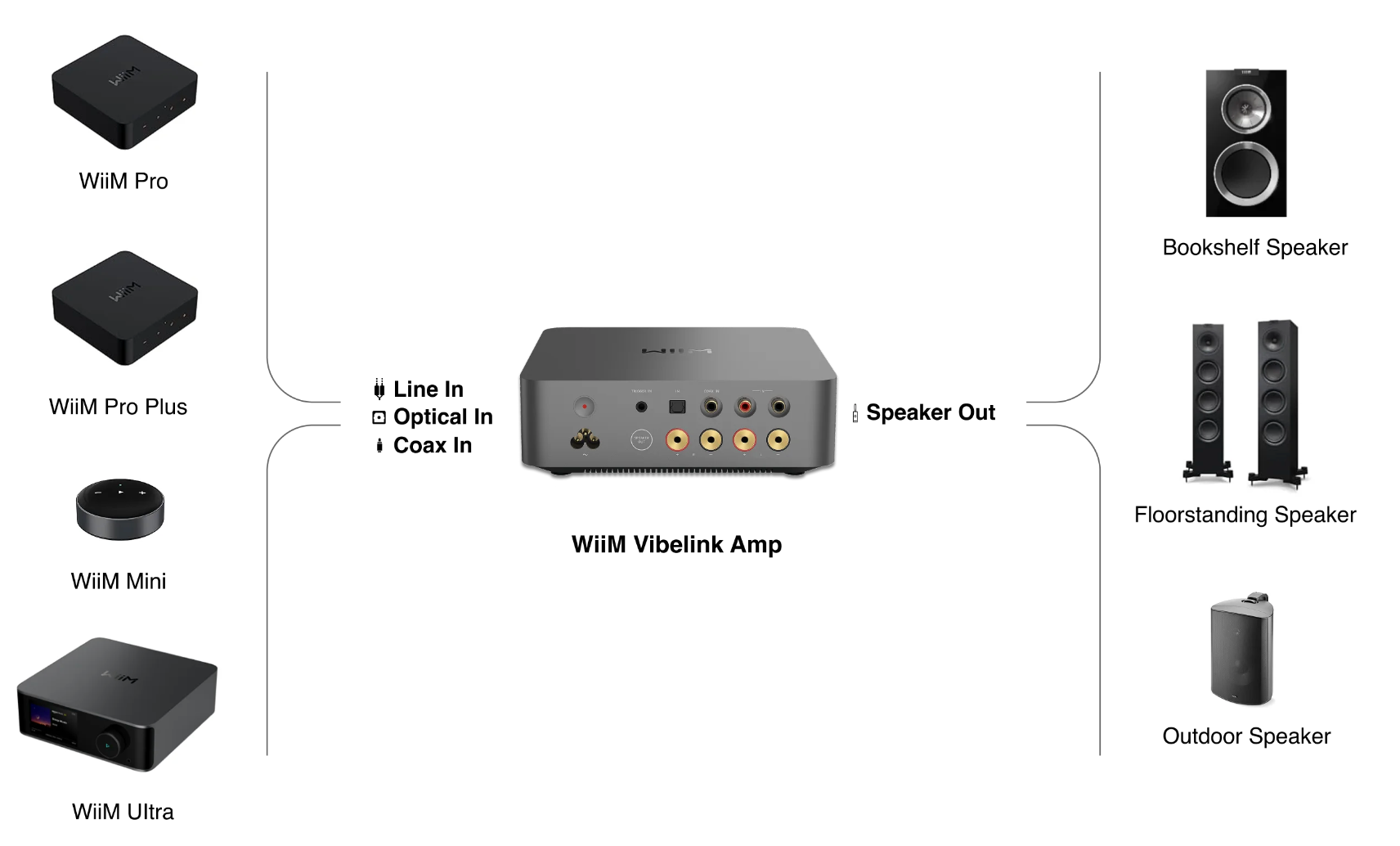

The WiiM Ecosystem
The Vibelink is Designed to seamlessly integrate into the WiiM ecosystem, the Vibelink Amp is the ideal match for WiiM streamers, including the WiiM Ultra, Pro Plus, Pro, and Mini. With the same user-friendly OS and form factor as the WiiM Ultra, it enables effortless pairing and outstanding multi-room audio.
Smart, Energy-Efficient Performance
The Vibelink Amp is designed with modern convenience in mind. With Auto Standby Mode, it automatically powers down after 30 or 60 minutes of inactivity, saving energy without compromising performance. The 12V Trigger In enables instant activation when connected to compatible devices, making it a smart and efficient addition to your home audio setup.
Technical Specifications
Power and Amplification
Output Power
100 W per channel @ 8Ω, (stereo)
Amplifier Technology
Class-D with PFFB (Post-Filter Feedback) technology
Total Harmonic Distortion (THD+N)
≤0.005%
Signal-to-Noise Ratio (SNR)
≥120dB
Frequency Response
20Hz – 20kHz ± 0.5dB
Impedance Range
3 – 8Ω
Audio Processing
Premium DAC
ESS 9039Q2M high-performance DAC
Bit-Perfect Playback
Supports up to 192kHz/24-bit audio
Dynamic Range
≥120dB for high-resolution sound
Pure Analog Input
No ADC conversion, maintaining signal integrity

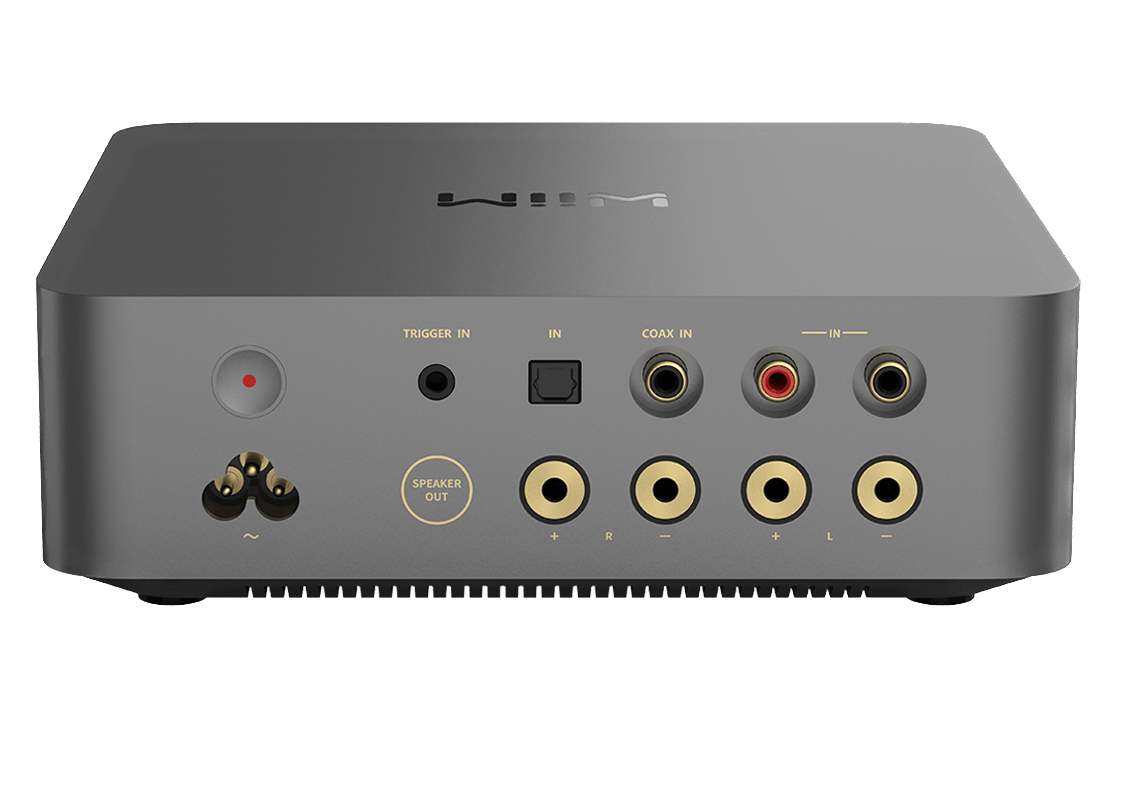

Input & Output Options
Analog Inputs
1x RCA Stereo (Line-In, pure analog signal path)
Digital Inputs
- 1x Optical (TOSLINK) – Up to 192kHz/24-bit
-
1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
Speaker Outputs
Gold-plated binding posts (supports banana plugs or bare wire connections)
Trigger and Power Management
12V Trigger In
Auto power-on with compatible devices
Auto Standby Mode
Powers down after 30 or 60 minutes of inactivity
Supported Audio Formats
PCM up to 192kHz/24-bit (through digital sources)
Control Interfaces
Volume Knob
Adjusts volume
LED Indicator
Three 4-colour RGBW LED indicates source input and device status
Build and Design
Chassis
Premium unibody aluminium for durability & heat dissipation
Thermal Management
Copper heat pipe, large aluminium heatsink, unibody aluminium case, and precision PID thermal control
Cooling System
Passive, silent operation
Dimensions
200 x 212.5 x 66 mm
Weight
2.05 kg
In The Box
- WiiM Vibelink Amp
- User Guide
- Power Cable
- RCA Cable
- Optical Cable
- Banana Plugs x 4
