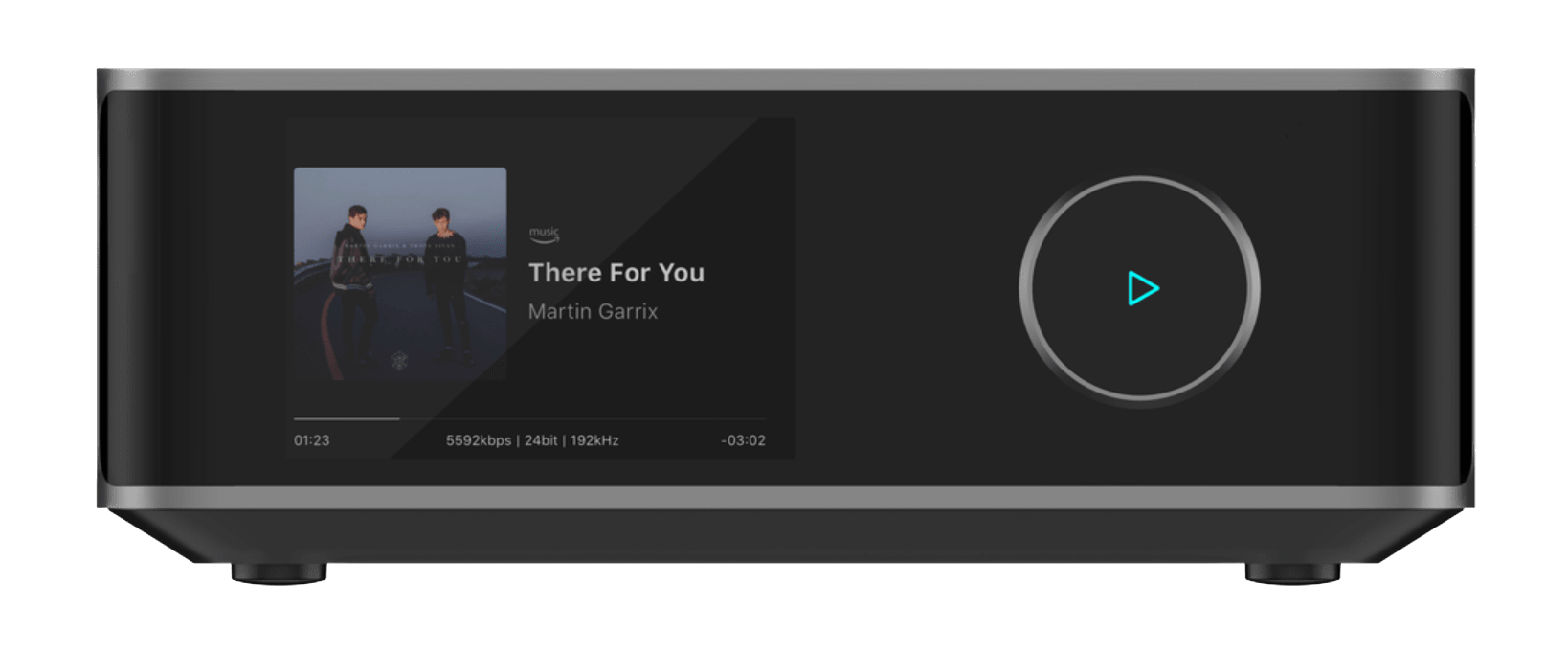

WiiM Amp Ultra Wireless Audio Streaming Amplifier in Space Grey

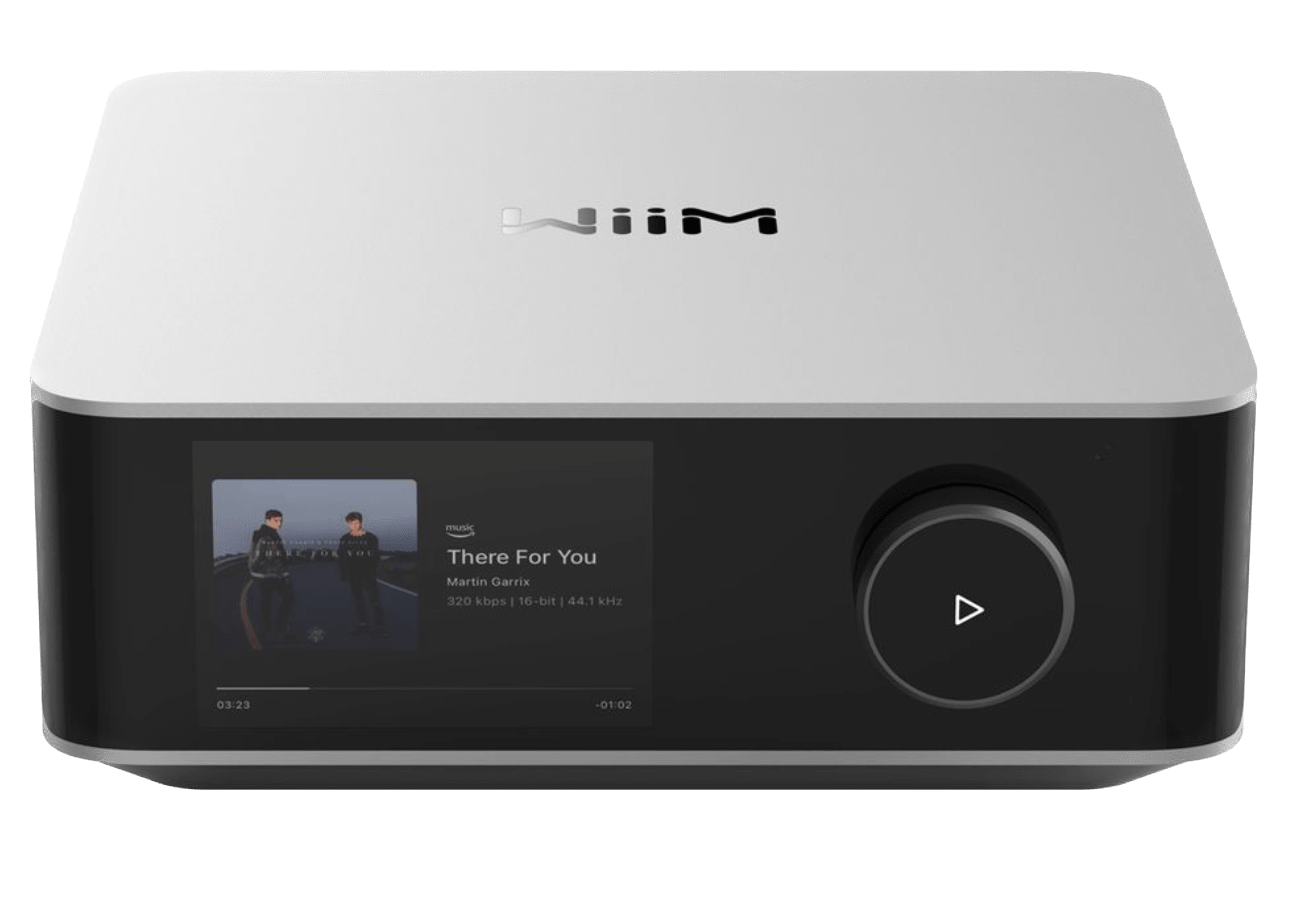

WiiM Amp Ultra Wireless Audio Streaming Amplifier in Silver

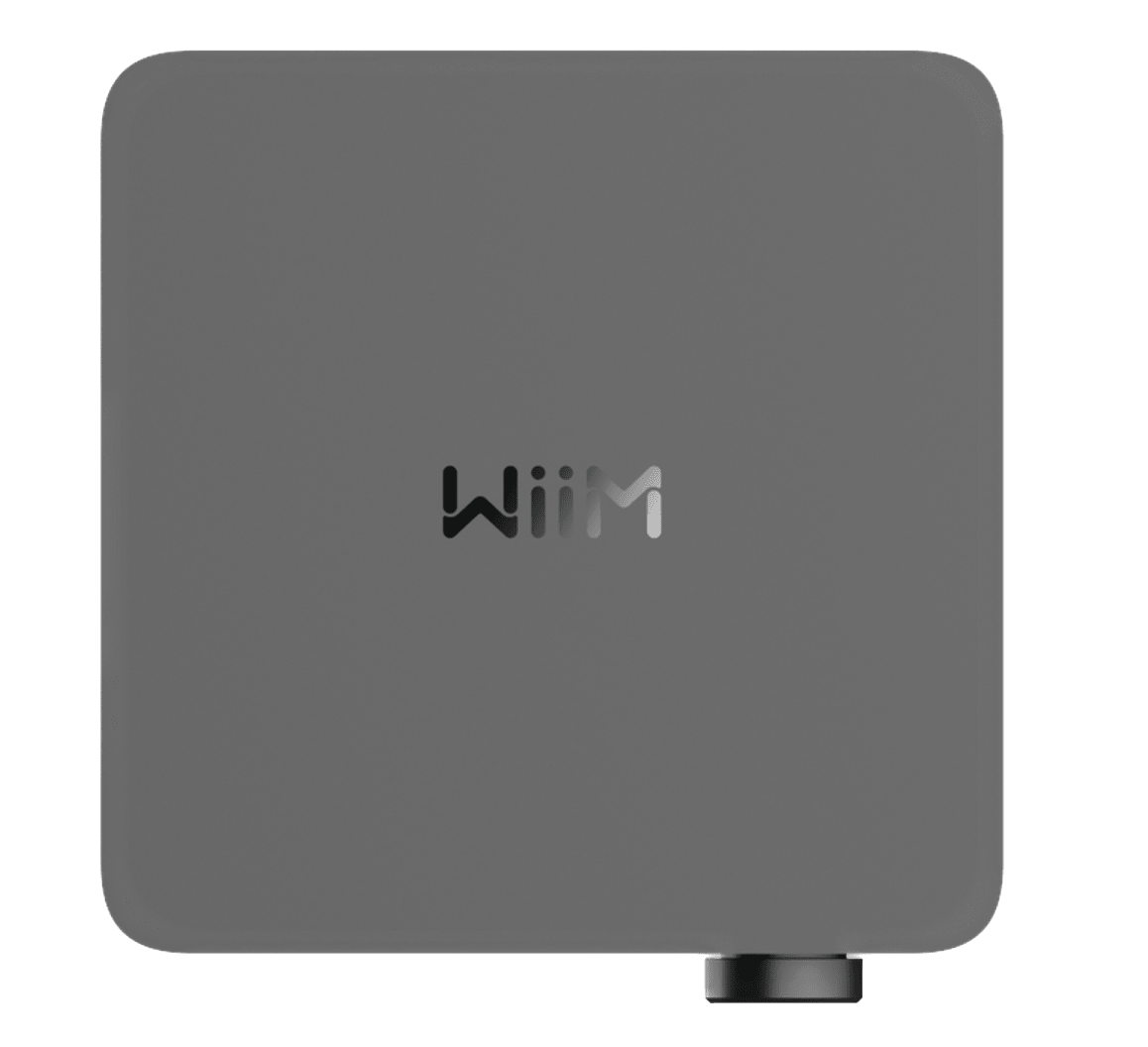

WiiM Amp Ultra Wireless Audio Streaming Amplifier in Space Grey, top

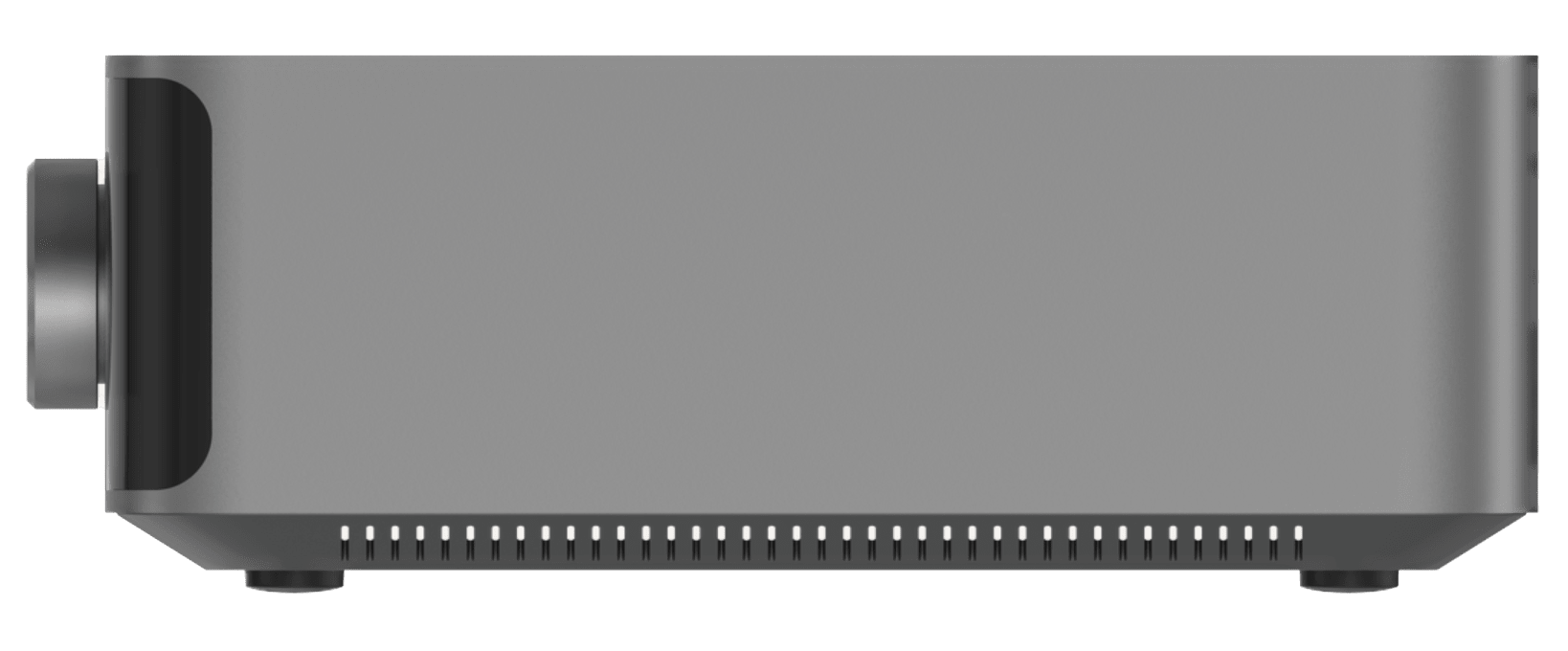

WiiM Amp Ultra Wireless Audio Streaming Amplifier in Space Grey, profile

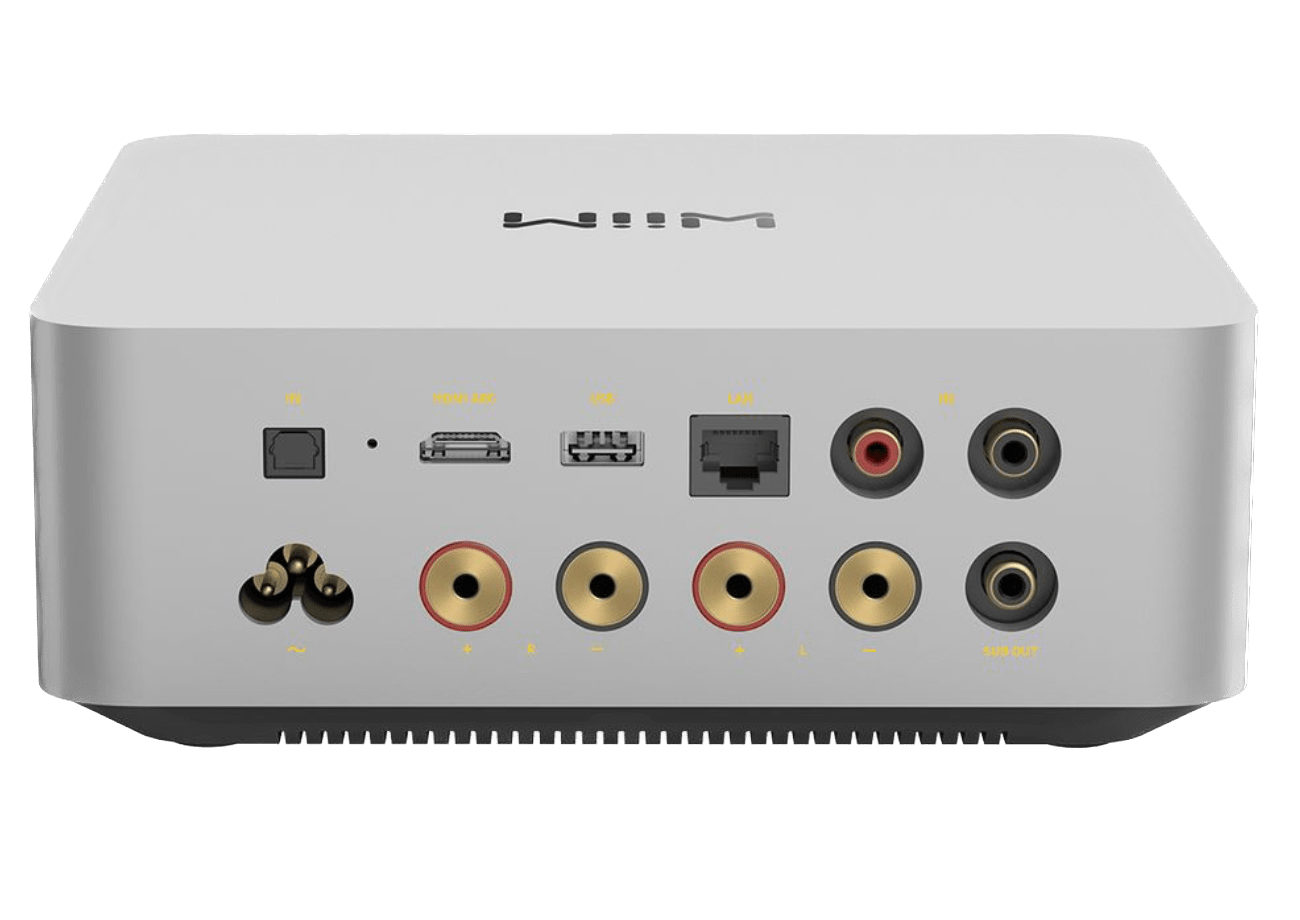

WiiM Amp Ultra Wireless Audio Streaming Amplifier in Silver, back

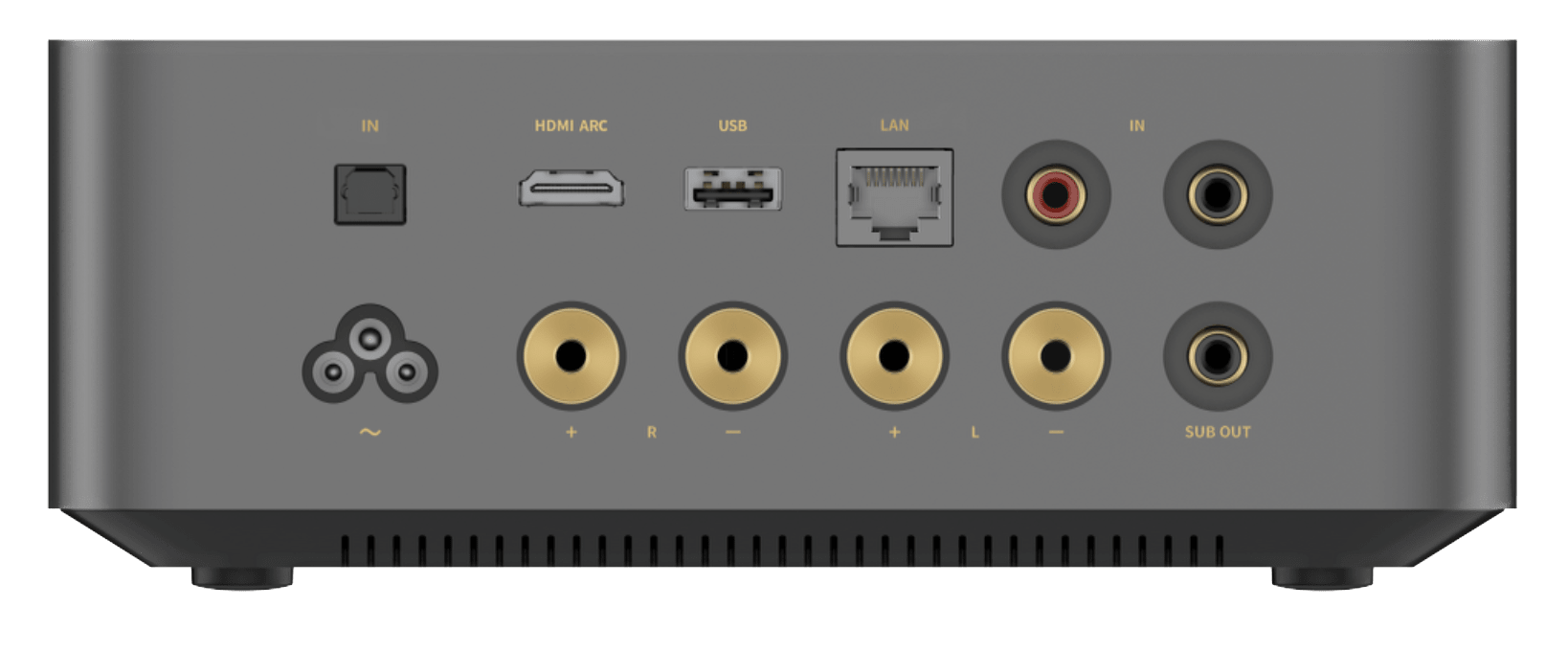

WiiM Amp Ultra Wireless Audio Streaming Amplifier in Space Grey, back

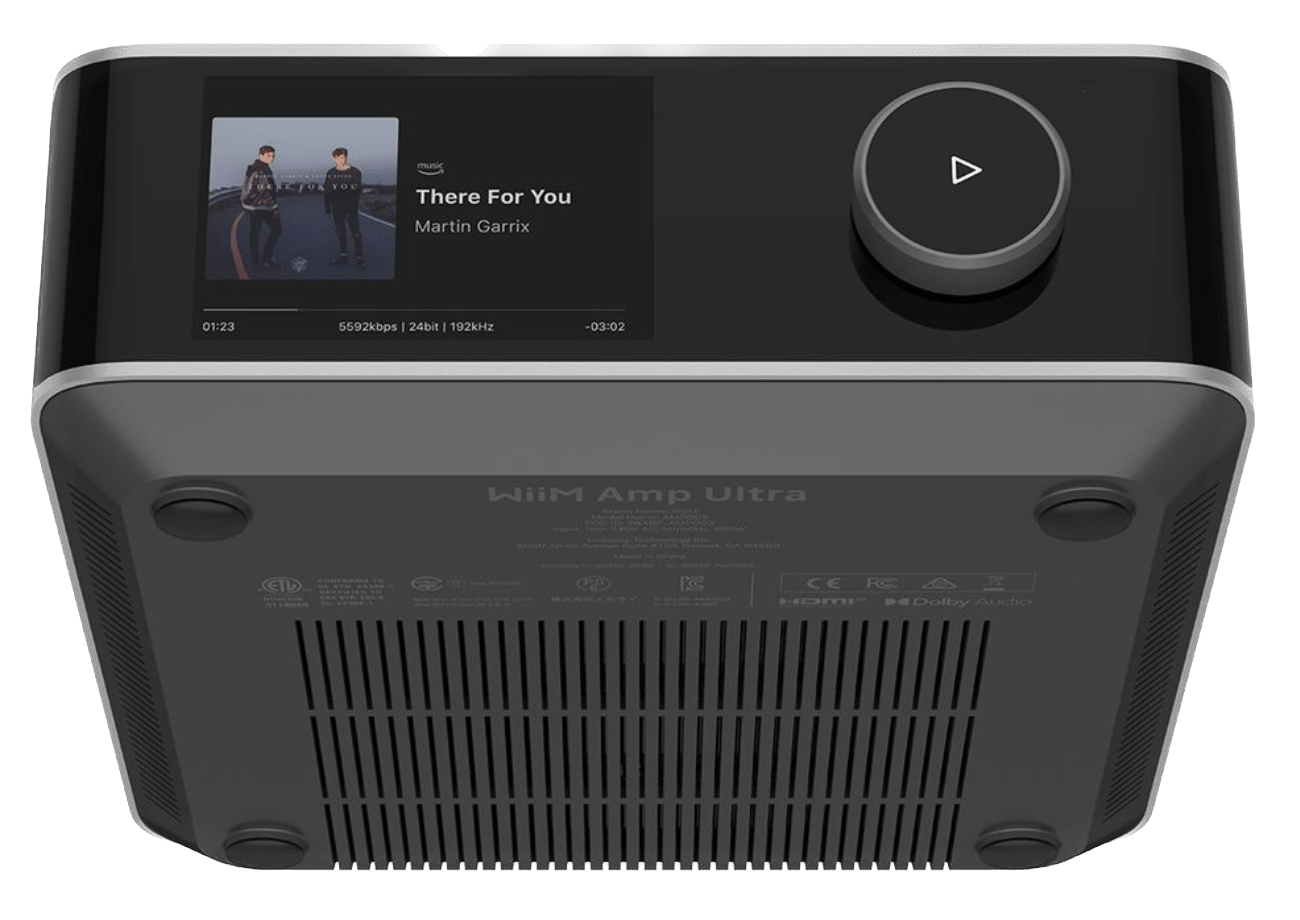

WiiM Amp Ultra Wireless Audio Streaming Amplifier in Silver, bottom and front

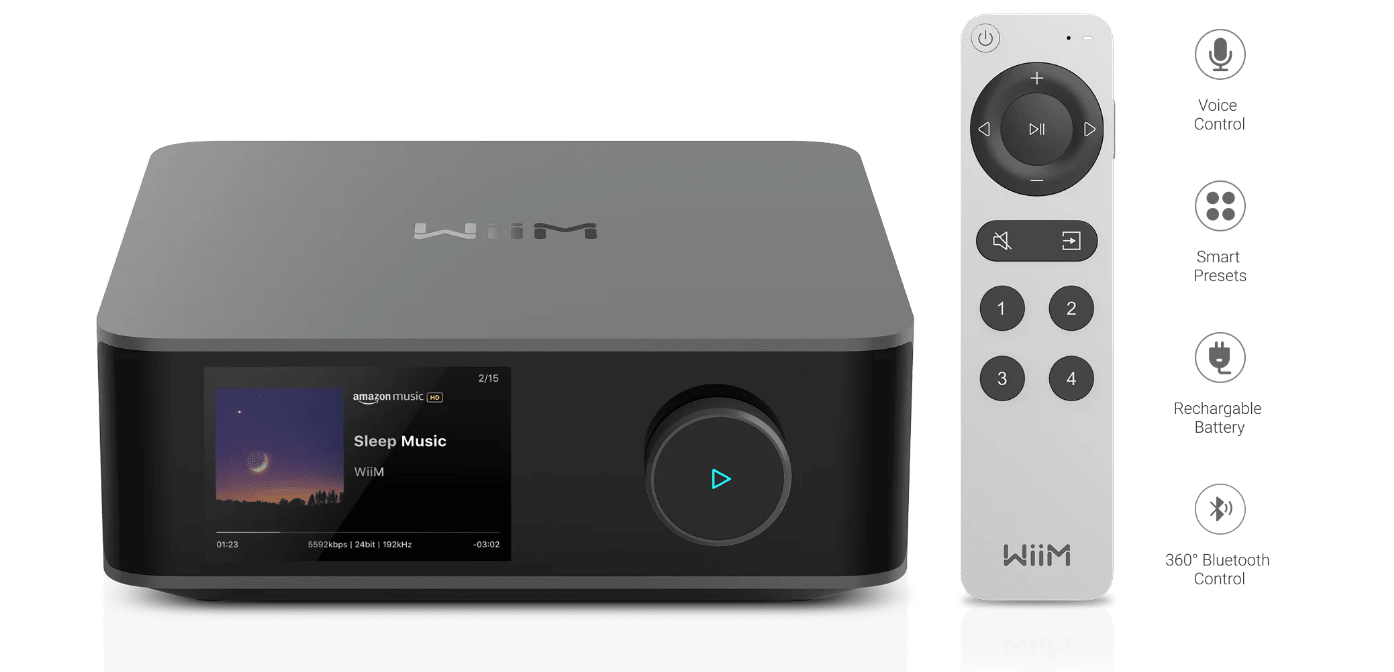

WiiM Amp Ultra Wireless Audio Streaming Amplifier in Space Grey with Remote 2
WiiM Amp Ultra Wireless Audio Streaming Amplifier built in RoomFit Sound
WiiM Amp Ultra Wireless Audio Streaming Amplifier, connectivity diagram
chevron_left
chevron_right

WiiM Amp Ultra Wireless Audio Streaming Amplifier

WiiM
WiiM
$899.00
$499.00 $899.00

Speak with our team to confirm in-store availability.


Colour
Free Pick Up at Vinyl Revival Carlton North — (753-755 Nicholson Street, Carlton North)

Usually ready in 2-4 days —

Free delivery (Conditions may apply) — on orders over $500!
Secure checkout  with American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa

WiiM Amp Ultra Wireless Audio Streaming Amplifier

$899.00
$499.00 $899.00

Meet the WiiM Amp Ultra

100W of Pure Hi-fF Power. Vibrant 3.5″ Touchscreen. Smart, Seamless Control.

Meet the WiiM Amp Ultra - WiiM's most advanced streaming amplifier yet. Built for music lovers, home theatre buffs, and smart home fans, it delivers a stunning 100W per channel @ 8Ω with ultra-low distortion, pushing high-fidelity audio to every corner of your listening space.

Beautiful Inside and Out

Designed to stand out and fit in, the Amp Ultra features a sleek unibody aluminium chassis and a vibrant 3.5″ glass-covered touchscreen. Easily control playback, switch sources, view album art, and more—all at your fingertips.

Flagship Components, Flawless Fidelity

Under the hood, the Amp Ultra is powered by top-tier components:

ESS ES9039Q2M SABRE DAC, Dual TI TPA3255 Class-D amplifiers, and Six TI OPA1612 op-amps.

Combined with Post Filter Feedback (PFFB) technology, it delivers clean, detailed sound with consistent performance across all speaker loads—perfect for bookshelf, floor-standing, or in-wall speakers.

Post Filter Feedback Technology

At the core of the WiiM Amp Ultra’s superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimises distortion, enhances clarity, and ensures consistent sound quality across different speaker loads. Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature.

The result? A wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.

Advanced Thermal Management

High-power amplification generates heat, but the WiiM Amp Ultra stays cool under pressure with advanced thermal management:

  • Copper Heat Pipe – Rapidly transfers heat from key components for stable performance at any volume
  • Large Aluminum Heatsink – Exceptional conductivity ensures fast, efficient cooling, preventing thermal throttling
  • Precision PID Control – Real-time temperature regulation for optimal cooling and long-term reliability.

Next-Gen Wireless Streaming

Stay connected with the latest in wireless tech:

  • Wi-Fi 6 (Tri-Band)
  • Bluetooth 5.3 with SBC and AAC support.
  • Stream ultra-high-resolution audio with near-zero latency—no dropouts, no lag, just music.

See Your Sound

A vivid 3.5″ glass touchscreen puts album art, VU meters, and one-tap controls front and centre—making input switching, setting tweaks, and playback navigation effortless, with instant visual feedback.

Built-In RoomFit™ Room Correction

Every room is different—WiiM Amp Ultra adapts. Using built-in acoustic measurement and correction, it tunes your setup to match your environment, optimising for speaker type, distance, and room acoustics.

All the Music You Love, All in One Place!

Stream directly from your favourite platforms: Spotify, Amazon Music, TIDAL, Qobuz, Deezer, Pandora, iHeartRadio, TuneIn, SoundCloud, and more.

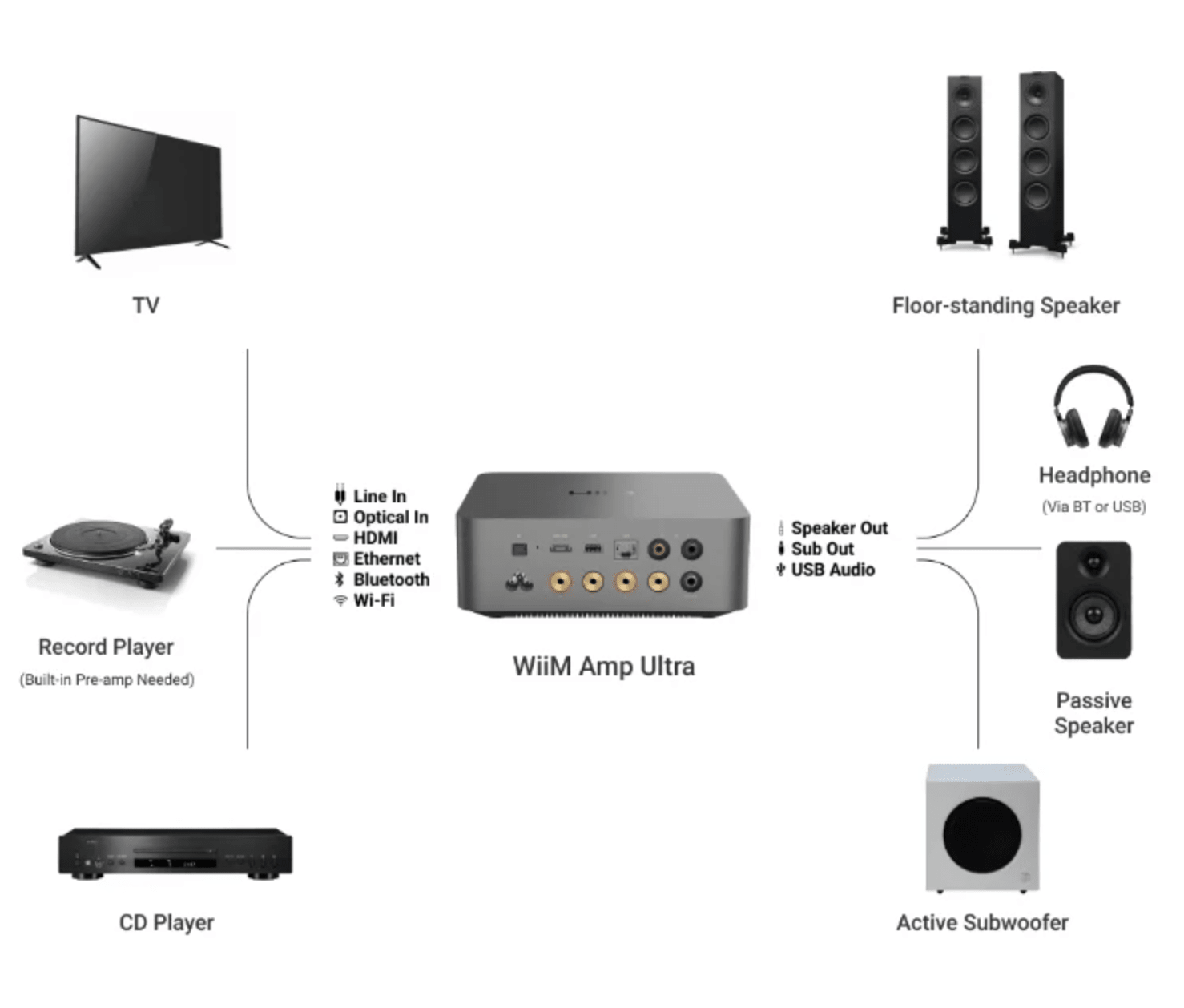

Versatile Connectivity

Easily integrate turntables, TVs, CD players, or stream to any WiiM or Bluetooth-enabled device.

Control Everything with the WiiM Home App

One app. Total control.  Stream music, adjust EQ, group rooms, set alarms, or update firmware with ease—right from your phone or tablet

Take full control with the WiiM Voice Remote 2

WiiM Voice Remote 2 crafted with a sleek aluminium body, rechargeable battery, and intuitive Push-to-Talk voice commands—plus smart presets and dedicated playback buttons for a seamless, intuitive experience.

Smarter Listening

  • Multi-Room Audio with WiiM, Google Home, and Alexa systems
  • Stereo Pairing for wider soundstage
  •  Home Theatre Mode with HDMI ARC and Dolby Digital support
  • Smart Presets & Alarm Clock to simplify your routine
  •  Voice Control via Alexa, Google Assistant, or the included WiiM Voice Remote

Future-Proof by Design

WiiM constantly improving. With regular OTA firmware updates, your Amp Ultra only gets better over time—with new features, streaming services, and optimisations.

Technical Specifications

    Audio Performance

    Power Output (THD = 0.08%, two channels driven)
    100 W per channel @ 8Ω, 200 W per channel @ 4Ω

    Amplifier Technology
    Class-D with PFFB (Post-Filter Feedback) technology

    Total Harmonic Distortion (THD+N)
    ≤0.005%, -106 dB (A-weighted)

    Signal-to-Noise Ratio (SNR)
    ≥120dB

    Damping Factor
    94

    Frequency Response
    20Hz – 20kHz ± 0.5dB

    Impedance Range
    2 – 8Ω

    Audio Processing

    Premium Audio Components

    • ESS 9039Q2M high-performance DAC
    • Dual TI TPA3255 Amps
    • TI OPA1612 op-amps

    Bit-Perfect Playback
    Supports up to 192kHz/24-bit audio

    Dynamic Range
    ≥120dB for high-resolution sound

    Input & Output Options

    • Analog Inputs
    • 1x RCA Stereo

    Digital Inputs

    • 1x Optical (TOSLINK) – Up to 192kHz/24-bit
    • HDMI ARC (PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats)

    Speaker Outputs
    Gold-plated binding posts (supports banana plugs or bare wire connections)

    USB Audio Output
    Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant

    Sub Output
    Dedicated output for powered subwoofers (RCA Mono)

    Wireless & Network Connectivity

    Wireless Connectivity

    • Bluetooth 5.3 - Supports A2DP receiver and transmitter, AVRCP, HID)
    • Wi-Fi 6 (Upgradeable to Wi-Fi 6E)

    Wired Network
    Ethernet (100Mbps): Standard RJ45 port

    EQ & Sound Customisation
    Input-Specific EQ

    Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In

    EQ Tools

    • 24 Preset EQ Profiles
    • 0-Band Graphic & Parametric EQ
    • Built-in Room Correction with mic-guided acoustic tuning

    Streaming, Smart Features & Protocols

    • WiiM Home App
    • Google Cast
    • Spotify Connect
    • TIDAL Connect
    • DLNA, LMS
    • Roon Ready (Certification Pending)

    Multi-Room Audio
    Compatible with WiiM, Google Home, and Alexa multi-room systems

    Stereo Pairing
    Supports L/R speaker setup for enhanced stereo imaging

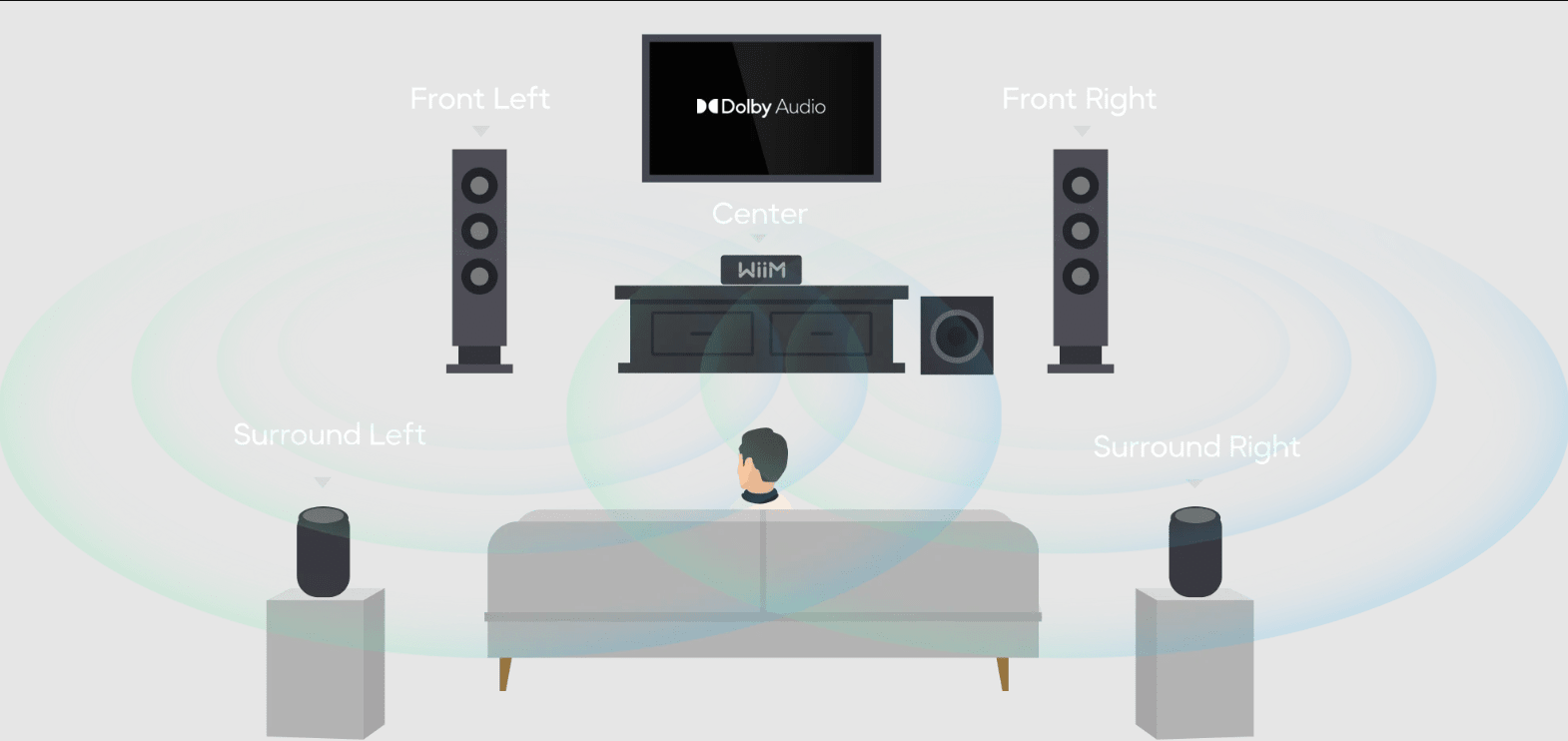

    Home Theatre Mode
    Functions as front, centre, or surround channel in a Dolby 5.1 setup via HDMI ARC

    Smart Presets
    Quick access to favourite playlists, sources, or routines

    Alarm Clock
    Configurable time, repeat schedule, and music source

    Touch Display

    Screen
    3.5” glass-covered capacitive touchscreen

    Functions

    • Playback controls, album art, EQ adjustment, input switching
    • Queue view, preset access, VU meters, time/date in standby
    • Custom wallpapers and onboarding setup (OOBE)
    • Supports firmware updates directly via screen

    Design & Controls

    Chassis
    Precision-machined unibody aluminium for durability & heat dissipation

    Physical Controls
    Multifunctional rotary knob (Volume, Play/Pause)

    Thermal Management
    Copper heat pipe, large aluminium heatsink, unibody aluminium case, and precision PID thermal control

    Cooling System
    Passive, silent operation

    Dimensions
    200 x 211 x 76.2 mm

    Weight
    2.45 kg

    In The Box

    • WiiM Amp Ultra Wireless Audio Streaming Amplifier
    • User Guide
    • Power Cable
    • RCA Cable
    • Optical Cable
    • HDMI Cable
    • WiiM Remote 2
    • Banana Plugs x 4

    *This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

    E&OE
