ROTEL RMB-1587MKII Multi-Channel Power Amplifier

....with 7 Channels of Breathtakingly Beautiful POWER!

Rotel’s new RMB-1587MKII 7-channel amplifier continues its heritage of producing high powered, perfectionist amplifiers for multi-channel systems.

Following the MKII design architecture, the RMB-1587MKII incorporates both circuit and component upgrades in the power supply and amplifier stages to achieving ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.

The two highly-efficient, in-house manufactured toroidal transformers in the Class AB RMB-1587MKII deliver a steady current to 8 high-capacity energy storage capacitors.

This powerful arrangement produces vigorous low-end bass tones, accurately driving even the most challenging audio components with uncompromising precision.
Differing from multi-channel amplifiers whose output drops when driving multiple channels simultaneously, the RMB-1587MKII delivers all 7 channels of Class AB amplification at 155 Watts per channel into 8 ohms.

Massively engineered, this amplifier achieves 250 Watts per channel into 4 ohms with all channels driven and is capable of a staggering 335 Watts RMS per channel when used in Stereo into 4 ohm loudspeakers.

To optimise cooling, the RMB-1587MKII is equipped with four thermostat-controlled, variable-speed ultra-low-noise fans.

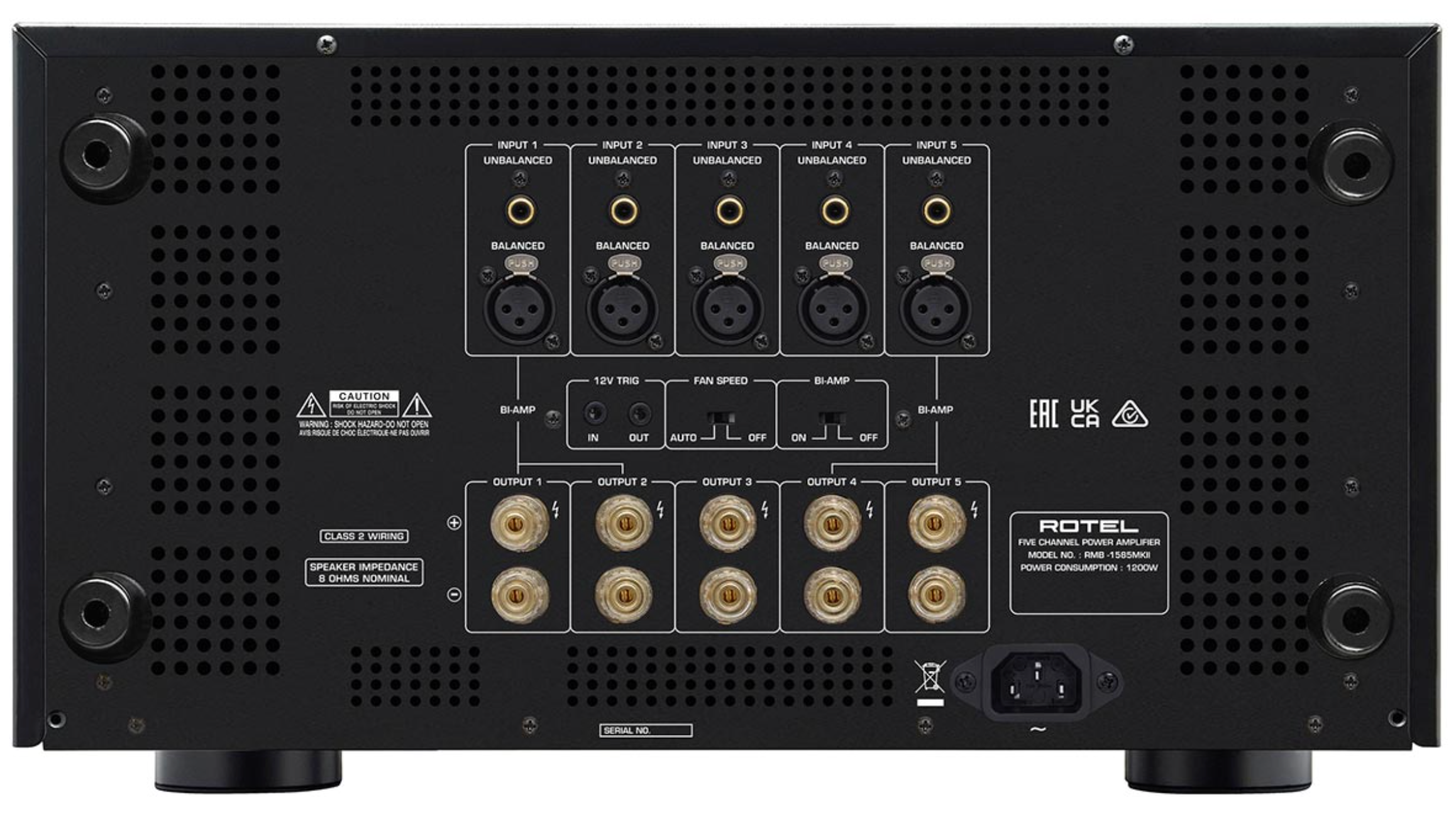

The RMB-1587MKII is built for custom installation. Convenient auto-switching XLR Balanced and RCA inputs ensuring compatibility with any AV Processor or Home Theatre receiver preamp output, and a 12 V trigger input and output allows simplified power control. Custom rack mount installation hardware is available for simplified mounting in standard 19” equipment racks.

Product Features

• 7 x 250 Watts of robust Class AB power, 4 Ohms
• Massive power supply using Dual Toroidal Transformers
• Balanced XLR inputs
• 12 volt trigger input and output
• High quality slit foil capacitors
• Optional rack ears available

Technical Specifications

Continuous Power Output
155 W/Ch (7 Channels Driven, 8Ω)
250 W/Ch (7 Channels Driven, 4Ω)
335 W/Ch (2 Channels Driven, 4Ω)

Total Harmonic Distortion (THD)
20 Hz – 20 kHz: <0.03%

Frequency Response
10 Hz - 100 kHz +0, -3 dB

Signal to Noise Ratio (IHF "A" Weighted)
111 dB

Gain
26.6 dB

Intermodulation Distortion (60 Hz:7 kHz, 4:1)
<0.03%

Damping Factor (1 kHz, 8Ω)
330

Crosstalk/Separation
>55 db

Input Sensitivity
Line Level Inputs (RCA): 1.61 V, Line Level Inputs (XLR): 3.4 V

Input Impedance
Line Level Inputs (RCA): 12 kΩ, Line Level Inputs (XLR): 50 kΩ

Dimensions (W x H x D)
431 x 237 x 456 mm

Front Panel Height
5U / 221 mm (8.75")

Power Requirements
230 V, 50 Hz

Power Consumption
1400 W

Net Weight
37.6 kg

BTU Rating (4Ω, 1/8th Power)
4016 BTU/h
