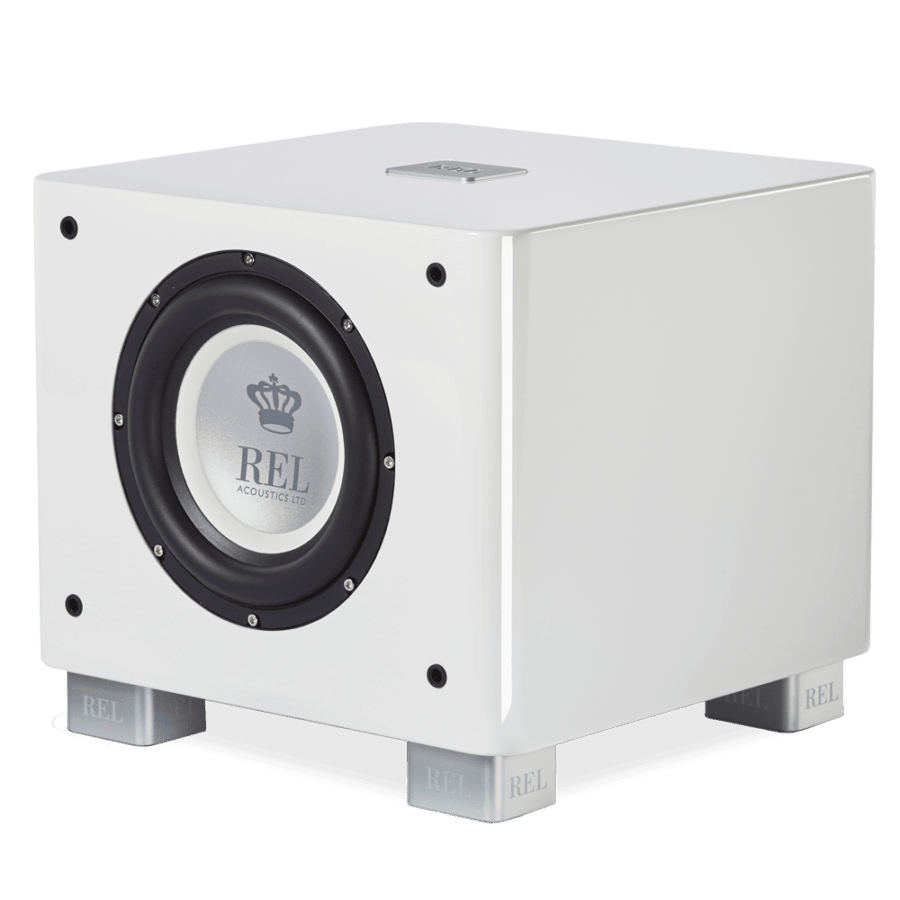

REL T/7x Subwoofer High Gloss White
Filtered for Purity, its the Practically Perfect REL
REL’s legendary High Level Input connection and fast filters are a significant chapter in the REL story. Connecting via the speaker outputs of your amplifier without drawing any power from it may seem like magic, but the real magic lies in the way the sound takes on a natural character and blends seamlessly with your speakers.
Unique tuning and special limiters means the T/7x sounds fresher, faster and more dynamic than before.
T/7x is, without reservation, one of the most-balanced RELs of all time. In order to achieve perfect balance, a sub must weigh speed against heft, while ensuring true extension-depth-and do so in a physically harmonious package. T/7x manages to make it all seem easy.
Quick and delicate for a perfect blend, it can pound out exceptionally deep, tuneful bass that belies its size and plays louder than most will ever require.
Many don’t realise the intense connection between performance and design at REL. Performance is everything and it leads to physical design solutions. Their engineers, in recognising the need for greater cabinet volume to achieve the goals of greater fluidity and power, turn to the designer. He works dimensions to fool the eye into seeing a smaller, more compact footprint, even though cabinet volume increases. Using gently rounded corner radii that allows the eye to flow over and see less visual mass.
The result is both modern and clean with no unnecessary adornment.

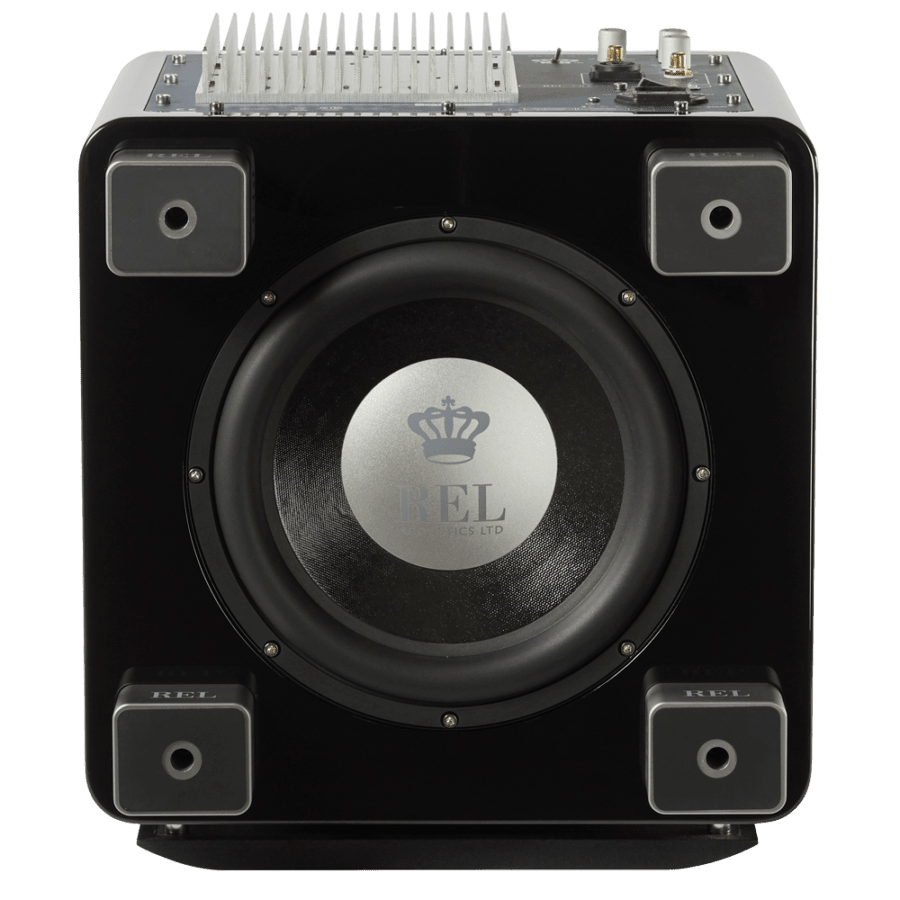

The 8” long throw active and 10” passive drivers are where T/7x derives its incredible speed and clean finish. A thorough revision of critical suspension components are responsible for the agility and suppleness of T/7x.
The T/7x sounds louder and more powerful is expected, but few would predict it also is faster, more reactive and transparent than REL's prior generation, itself a paragon of virtue.
Stiffer suspensions better suited to advanced duty mean not only can each driver trace minute details, but also travel farther and handle more power.
REL Acoustics have retained their signature Class A/B amplifiers used in every generation of Serie T since 2006. Reliability is the key to happy ownership and with some 200,000 and counting of this range leading long happy lives, Serie T/x owners can feel certain of REL’s standard setting reliability.
The powerful 200-watt mosfet amplifier used in the T/7x remains an icon of sound and reliability with huge reserves of current. Massive power supplies are used and small upgrades are found everywhere. New driver mosfets that open up performance and transparency and new methods for securing the toroidal transformers mean better performance and superior reliability.
Standby Mode switch is only included on 220V units.
TYPE
Front-firing active driver, down-firing passive
ACTIVE DRIVER SIZE & MATERIAL
8 in., 200mm long-throw, FibreAlloy™ inverted aluminium dust cap, steel chassis
PASSIVE RADIATOR SIZE & MATERIAL
10 in., 254mm long-throw, inverted dust cap
LOW FREQUENCY EXTENSION
-6dB at 30 Hz

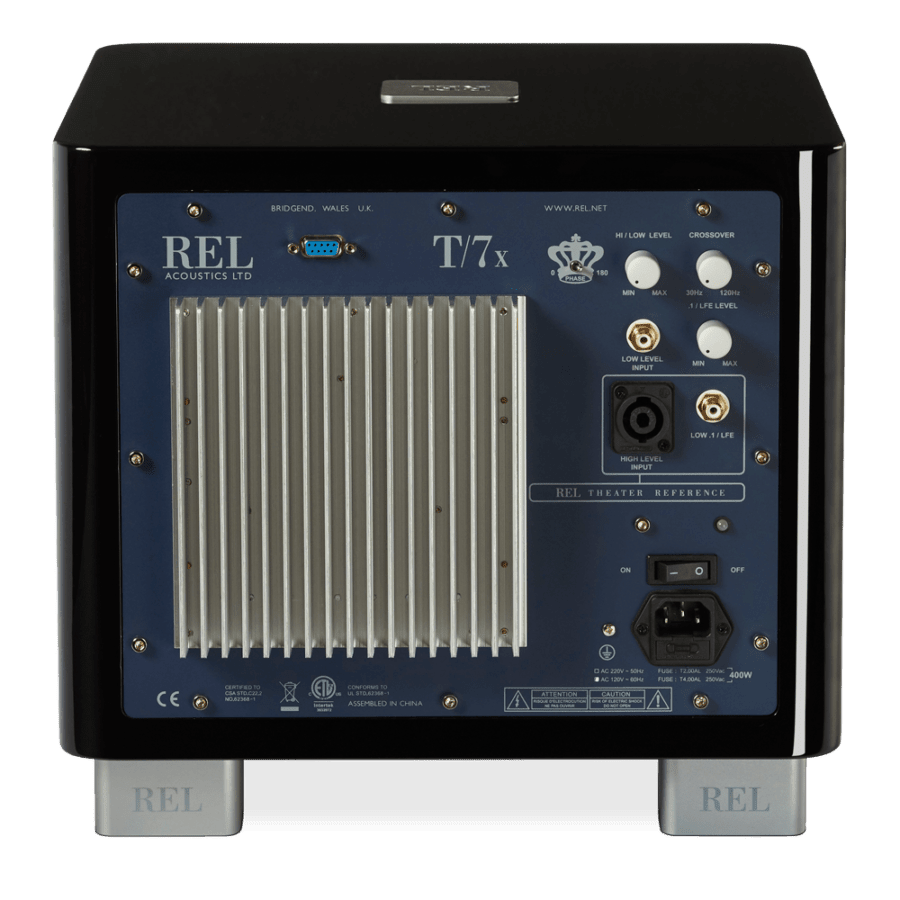

INPUT CONNECTORS
High Level Neutrik Speakon, Low Level single RCA, LFE RCA
OUTPUT CONNECTORS
N/A
POWER OUTPUT
200 Watts (RMS)
AMPLIFIER TYPE
Class A/B
WIRELESS CAPABILITY
Arrow (Optional), Zero Compression, Single Large Scale Integrated Chip
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
FUSES
2 Amp semi delay 230 volts operation
4 Amp semi delay 115 volts operation
Dimensions (W x H x D)
14.0 x 12.6 x 14.3 in., (356 x 320 x 363 mm)
NET WEIGHT
38.5 lbs. (17.5 kg)
FINISHES
High Gloss Black
High Gloss White, 5 coats
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.
E&OE
