Ortofon 78 Replacement Stylus
Ortofon 78 Replacement Stylus
Regular price
$97.00 AUD
Regular price
$109.00 AUD
Sale price
$97.00 AUD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
AFTER PAY
ZIP PAY
LAY BUY
- 755 NICHOLSON ST CARLTON NORTH
- Full Aussie Manufact. Warranty
- Free Shipping over $500
Ortofon 78 Replacement Stylus

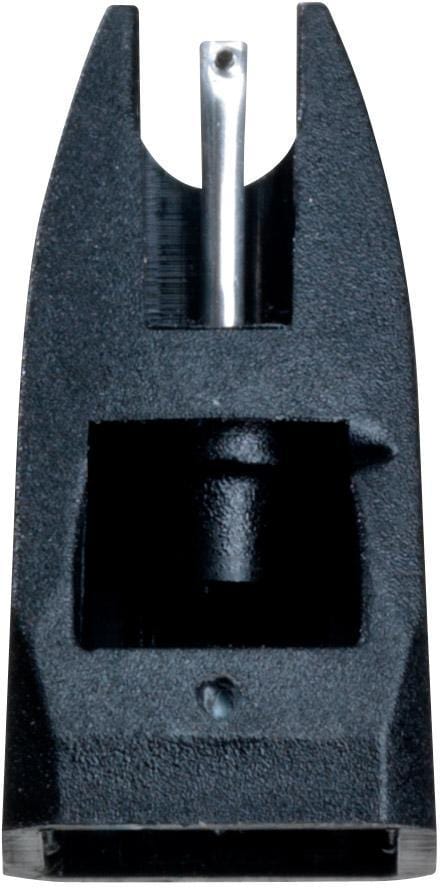

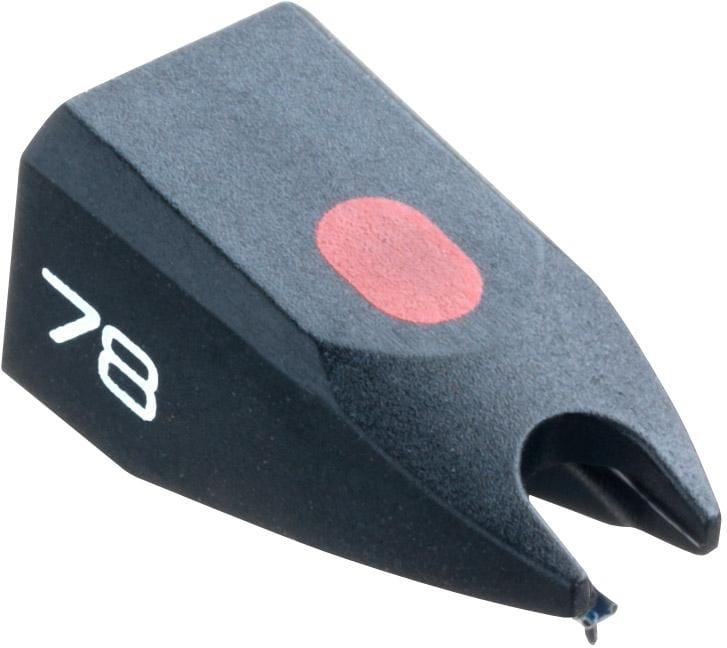

This is the replacement stylus for the Ortofon 78 cartridge
Technical data
- Frequency range | 20-15,000 Hz
- Frequency response | 20-12.000 Hz + 2 / - 3 dB
- Tracking ability at 315Hz at recommended tracking force *) | 60 µm
- Compliance, dynamic, lateral | 15 µm/mN
- Stylus type | Spherical
- Stylus tip radius | 65µm
- Equivalent stylus tip mass | 0.5 mg
- Tracking force range | 1.75-2.25 g (17.5-22.5 mN)
- Tracking force, recommended | 2.0 g (20 mN)
- Tracking angle | 20°
- Stylus colour | Black
Recommended for the following cartridges | All Super OM, OM, OMB, OMP, TM, Concorde cartridges for playing 78 r.p.m. records
*Reprint from Manufacturers website
