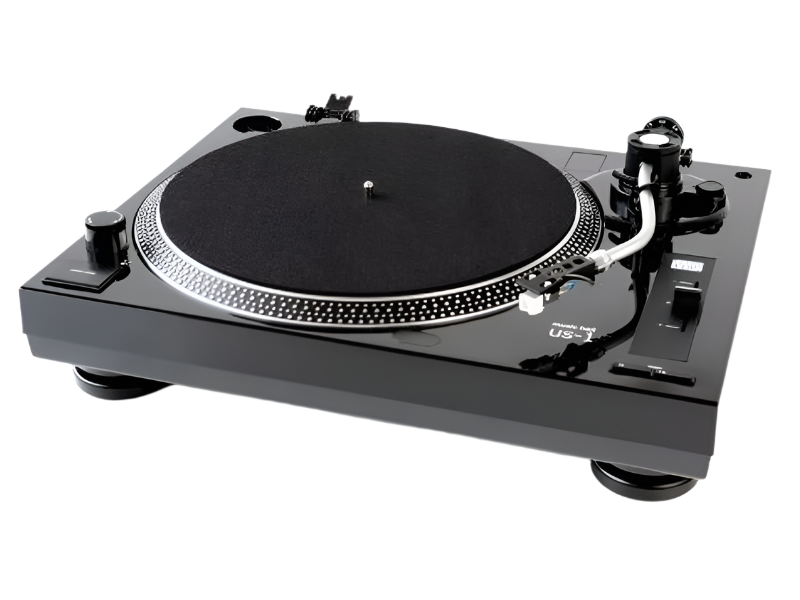

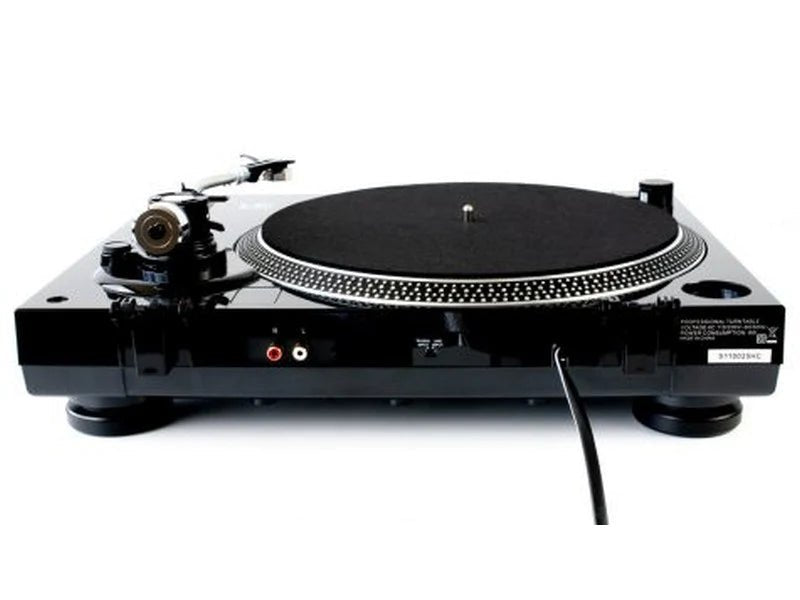

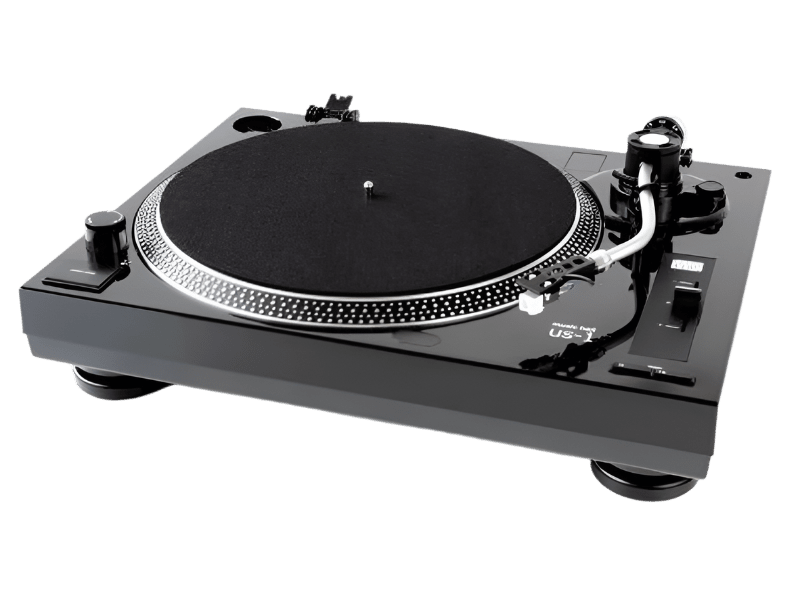

Music Hall US1 Turntable

Meet US 1 Turntable

Brought to you by Music Hall

Music Hall's US-1 is a convenient, easy to use, and fun turntable.  It's a snap to set up and comes with everything you need to start spinning vinyl.

Get Your Groove On

Whether you’re looking to release your inner DJ, or simply discover the joy of spinning vinyl, the us-1 is your answer.

A Complete Package

The us-1 has a built-in phono preamp, cartridge, dust cover, and includes all necessary cables and software required for simple plug and play operation.

Product Features

• extremely quiet belt drive, 2-speed turntable
• aluminium die-cast platter
• 33 1⁄3 and 45 rpm
• high gloss black finish
• built-in phono amp or direct line out
• static balanced S-shaped tonearm w/detachable headshell
• Audio Technica AT3600L moving-magnet cartridge supplied
• anti-skating control for increased stereo balance
• +/- 10% adjustable pitch control
• dust cover included
• designed and developed in the US and France

Technical Specifications

Turntable

Type
2-speed full manual

Motor
DC motor

Driving Method
Belt drive

Turntable Platter
330mm dia. Aluminum

Speeds
33 1/3 and 45 rpm

Wow and Flutter
Less than 0.25% WRMS (JIS WTD) with 331/3 rpm

S/N Ratio
More than 50dB (DIN-B) +/- 10%

Pitch Controls
Less than 1 sec with 331/3

Starting Time
Less than 1 sec. with 331/3

Braking Time
Less than 1 sec. from 331/3 to 45 rpm

Time for Speed Change
Less than 1 sec. from 45 to 331/3 rpm

Speed tolerance at pitch=0
Within +/-1.3%

Dimensions (W x D x H)
44.45  x 35.05 x 14.48 cm

Weight
4.4 kgs

Tonearm

Type
Static balanced S-shaped tonearm with detachable headshell

Effective Arm Length
220 mm

Tracking Error Angle
Less than 3 degrees

Applicable Cartridge Weight
6~10 g

Anti-skating Range
0-4 g

Needle Pressure range
3~4 g

High of cue (first track)
6~10.5 mm

Descend of cue
1~3sec

Phonostage

Phono Output Level
1.5~3.6 mV at 1KHz 5cm/sec (HP-4005)

Line Output Level
90~216mV at 1KHz 5cm/sec (HP-4005)

Frequency Response
20Hz-20KHz

Channel Separation
More than 15 dB

Channel Balance
Within 2.5dB at 1KHz

EQ AMP Output
150mV +/-4dB (IN: 2.5 mV, 1KHz)

RIAA
20Hz~20KHz +1/-3dB (IN: 1.5 mV 1KHz)



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
