Mobile Fidelity Ultradeck Turntable + UltraGold MC Cartridge

Custom-developed and manufactured in the USA, the 10-inch Ultra tonearm uses smooth, high-quality ball bearings for low friction in the vertical and horizontal plane so all you hear is what is in the grooves. Cardas Audio wiring maintains signal purity from the headshell leads all the way through to the high-quality, gold-plated RCA connectors.

UltraDeck features three aluminium plates carefully bonded to an MDF body to add mass and eliminate tonal coloration, maintaining the true sound found on the record.

Advanced technology, user-friendly features, and unflappable design elements ensure phenomenal playback—ultimately bringing the sound of Mobile Fidelity’s famous studio into your home.

Any vibration of the stylus that is not created by the grooves in the record is a distortion that will mask musical detail. Developed in conjunction with the engineering team at Harmonic Resolution Systems, the world leader in vibration isolation for audio equipment, the included MoFi anti-vibration feet isolate your turntable from bad vibrations.

UltraDeck features a massive 1.3-inch Delrin® platter. The increased mass creates blacker sonic backgrounds and a lower noise floor. Delrin® is a next-generation polymer developed by Dupont. In the world of audio, Delrin's® highly crystalline structure presents a wonderful impedance match to vinyl records, effectively grounding unwanted noise and keeping it away from the stylus.

A hardened-steel inverted bearing system is designed for smooth, quiet rotational stability. The extremely low tolerance combination of steel, bronze, and sapphire—found in much more expensive turntables—will provide you many years of high-performance playback.

Product Features

• 33-1/3 / 45.0 RPM belt drive turntable
• Custom design and manufactured in the USA
• 10-inch MoFi Ultra Tonearm
• 1.3-inch Delrin® platter
• Isolated 300 RPM AC synchronous motor
• Anti-Vibration feet designed by HRS

Technical Specifications

Motor
300 RPM AC Synchronous

Speeds
33 1/3 RPM, 45.0 RPM

Platter
6.8 lb Delrin®

Wow & Flutter
0.017% – 0.025%

Signal-To-Noise Ratio
74dB

Power Supply Requirements
120V 60Hz, 220-230V 50Hz, 100V 50Hz

Power Consumption
< 5W

Dimensions
19.69" x 6" x 14.25"

Weight
23.1 lb

TONEARM SPECIFICATIONS

Type
10" straight aluminium, gimballed bearing

Overhang
0.71" (18mm)

Offset Angle
22.8è_ (+/- 2è_ adjustable)

Cartridge Weight Range
5g – 10g

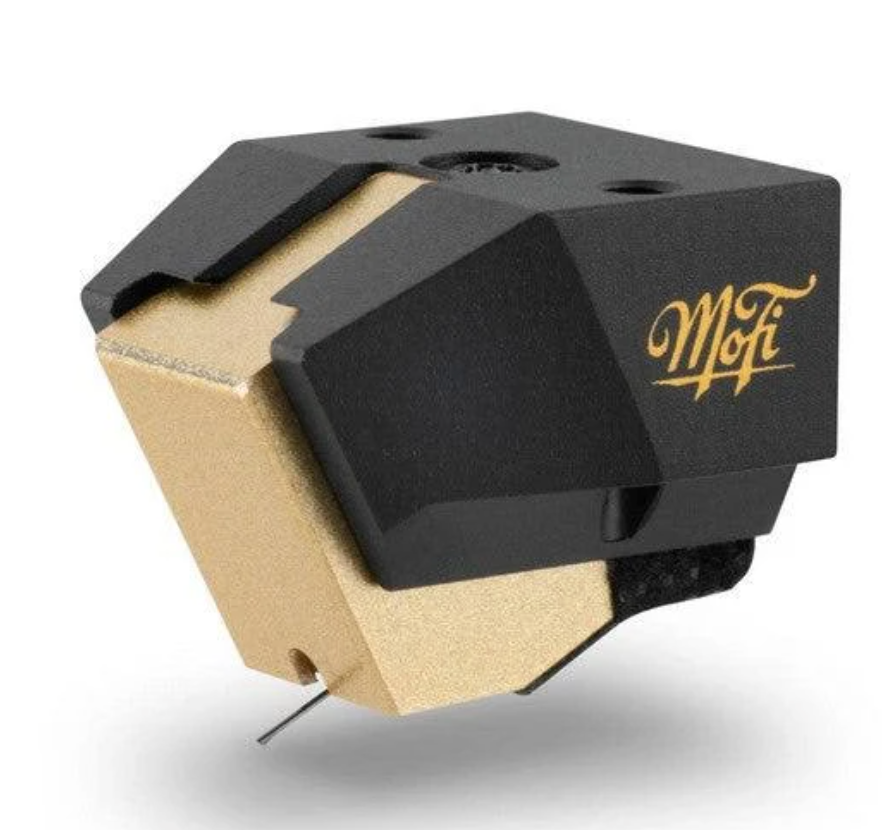

About the UltraGold MC cartridge
True to MoFi's core principles, UltraGold MC goes further by providing true-to-the-source faithfulness, lifelike separation, surgical accuracy, and clean tracking.

Crafted in Japan using strict quality-control measures for exacting precision, and uniquely voiced by Spiral Groove founder Allen Perkins, UltraGold MC offers analog lovers everything they would expect — and more — from an audiophile moving-coil cartridge. Namely, exceptionally wide frequency response, clear high-frequency transients, stunning dynamics, and incredibly rich detail.

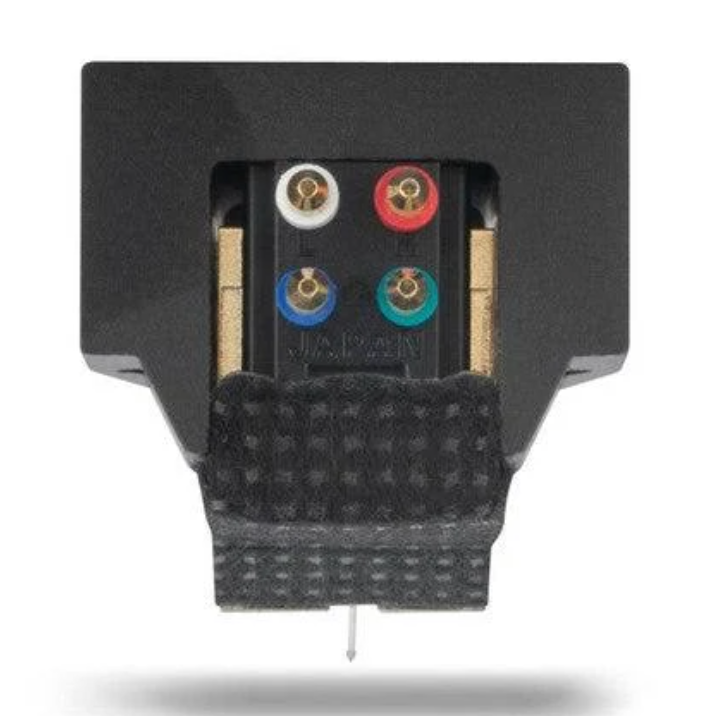

Nude Shibata Stylus and Boron Cantilever
UltraGold MC's nude Shibata stylus and boron cantilever help account for the cartridge's palpable low-end reproduction, high transient responsiveness, and robust midrange. The Shibata profile diamond is further chosen for playback marked by hear-it-to-believe-it depth, immersion, and fullness.

Effortless Setup
Threaded holes in UltraGold MC's aluminium cartridge body permits the user to mount it on a headshell or integral tonearm with just two screws — no bolts or nuts needed. Analog setup doesn't get any easier.

Cartridge Specifications

Type

Dual Moving Coil Stereo

Stylus
Shibata

Output Voltage
0.4mV

Frequency Response
20-35,000Hz

Weight
7.3g

Tracking Force
1.8-2.2g

Recommended Load
≥ 100 Ohm

Compliance
Static compliance: 40 x 10e-6/dyne

Dynamic compliance: 10 x 10e-6/dyne
