Mobile Fidelity SourcePoint 10 Master Edition Loudspeakers (Pair)
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."
Introducing the SourcePoint 10 Master Edition
This Stunning Pair of Loudspeakers is brought to you by MoFi Electronics
The SourcePoint 10 Master Edition refines Andrew Jones’ acclaimed concentric driver design with upgraded crossover components, improved impedance linearity, and a new mid/high frequency adjustment switch for better room integration. Built around a custom 10-inch driver, it’s the result of years of engineering focused on delivering wide frequency response, low distortion, and exceptional musicality.
TUNED FOR PURE ACCURACY
Experience the next level of accuracy and control with the SourcePoint 10 Master Edition. We’ve taken our original Twin-Drive high-flux neodymium magnet system and paired it with refined crossover components and a user-tunable tweeter switch—so you get the pure, lifelike sound you crave, tailored to your room.
The heart of the SourcePoint 10 is the innovative Twin-Drive high-flux neodymium magnet system.
It is not enough to simply optimise the frequency response of the woofer and tweeter. It is also critically important to minimise distortion in the motor structure of the drive unit. If the motor has distortion, it will generate new frequencies outside of the original signal. We have been very deliberate with the design of the motor to reduce these distortions.
The Twin-Drive system creates a fully symmetrical magnetic field, eliminating flux modulation for extremely low intermodulation distortion (IMD). This technical achievement is an important part of why the SourcePoint 10 sounds so pure and accurate. No, it won’t power your time-traveling DeLorean, but it will deliver the performance you’ve been searching for.
ALL NEW TUNABLE MASTER EDITION CROSSOVER
The Master Edition crossover is the brain behind your SourcePoint 10’s refined sound. Built around precision-selected components—polypropylene film capacitors, metalized‐film resistors, and air‐core inductors—this network cleanly splits the audio signal, sending only the optimal frequency bands to each driver. By carefully tuning each element, we’ve achieved a filter slope that maximizes coherence between woofer and tweeter, ensuring seamless integration and exceptional phase alignment.
Integrated into the new SP10ME crossover is our 3-position Tweeter Level Switch, giving you on-the-fly control over high-frequency output. In the “High” setting, the tweeter’s presence is boosted to cut through in heavily damped rooms; “Mid” provides the factory-calibrated balance ideal for most listening environments; and “Low” attenuates the upper registers to smooth reflections in bright, reflective spaces. Because the switch is built directly into the crossover PCB, there’s no compromise in signal purity—just clean, direct adjustments.
HIGH-QUALITY CABINET CONSTRUCTION. BRACED FOR CLARITY
A large woofer requires a large cabinet that won’t add resonance. The SourcePoint 10 uses thick MDF panels and extensive internal bracing.
The top, bottom, and sides are 1-inch thick MDF wrapped in beautiful real wood veneer. The faceted front baffle is 2-inch thick MDF finished in a smooth satin black coating.
Two internal braces connect the top, sides, and bottom to further strengthen the cabinet.

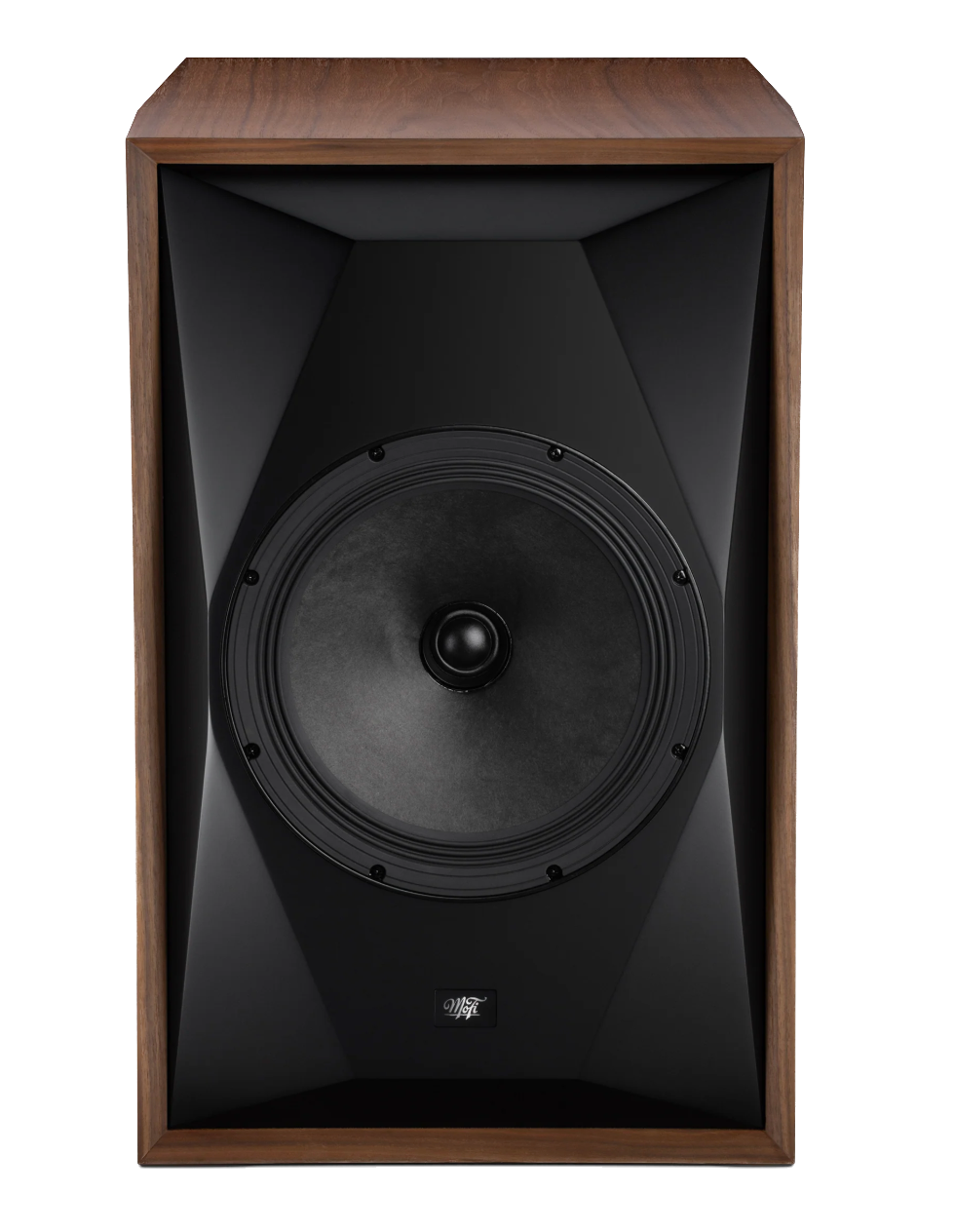

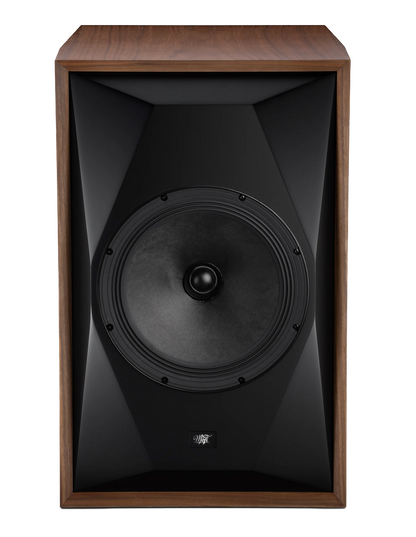

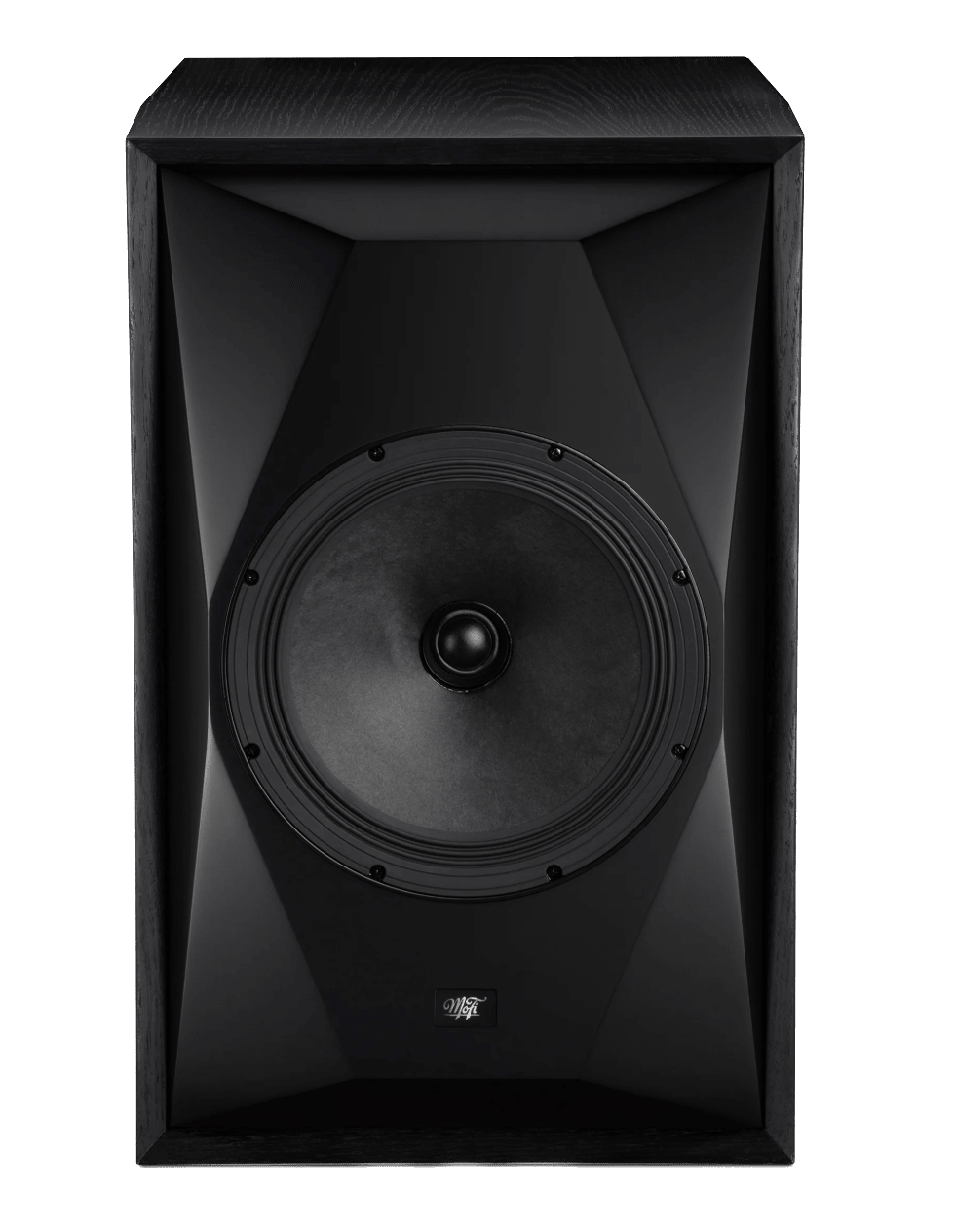

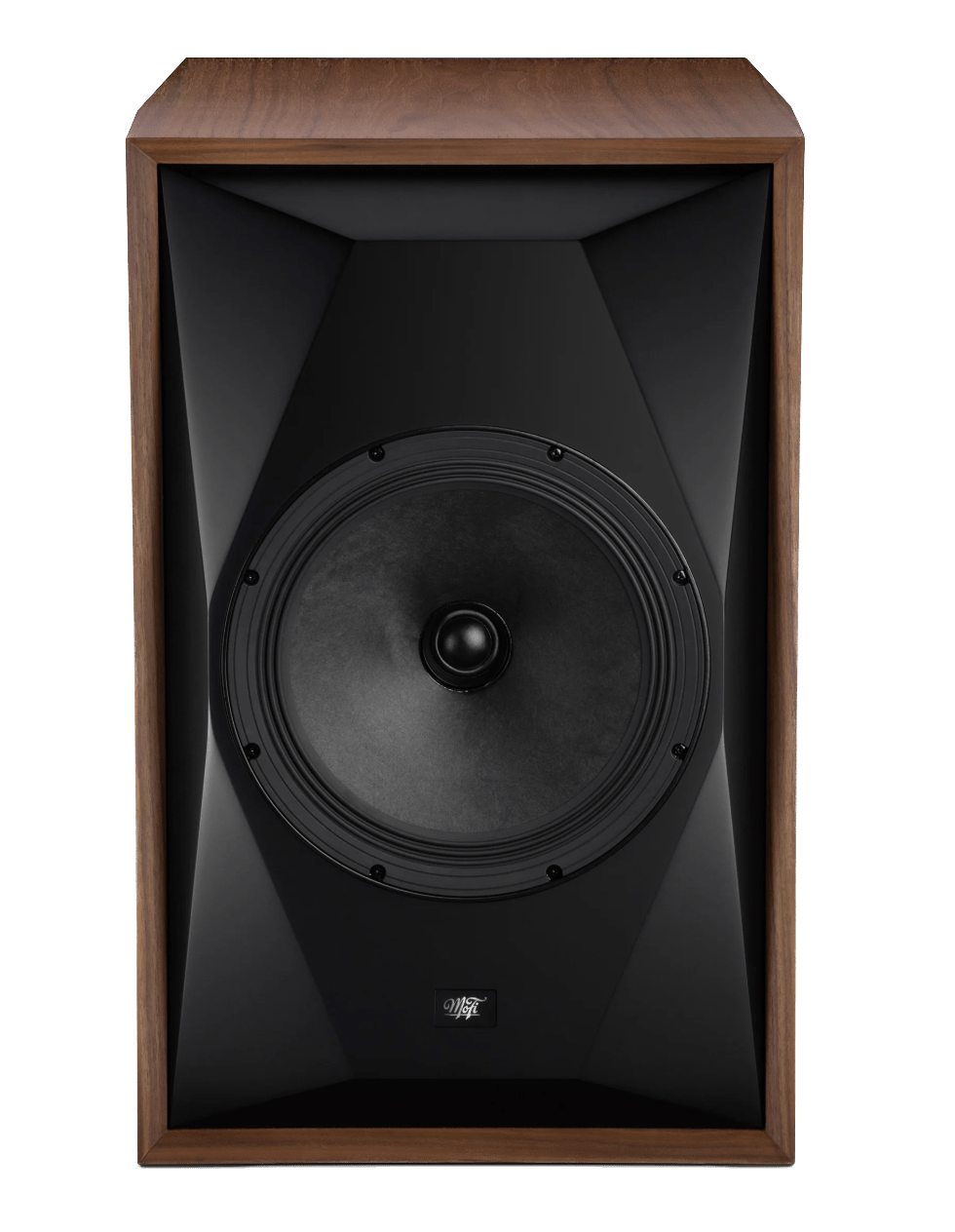

THE 10-INCH CONCENTRIC DRIVER. TWO DRIVERS. ONE VOICE
Custom-developed by Andrew Jones through 18 months of R&D, the all-new 10-inch Concentric driver delivers stunning clarity and deep bass impact.
The 10-inch paper-pulp cone has nearly 2.5x the surface area of a typical 6.5-inch bass driver, and barely needs to move in order to produce large and dynamic sound. This keeps a consistent waveguide around the tweeter for the most coherent sound possible, with the least amount of distortion, and without sacrificing bass.
Fitted centrally within the bass driver is a 1.25-inch soft dome tweeter with a wide-roll surround and large diameter voice coil. The tweeter has great power handling and minimal thermal compression, allowing it to come in at 1.6kHz and deliver smooth response beyond 30kHz.
The two drivers work together as one to create sound that is pure and powerful.
EASY TO DRIVE WITH THE ELECTRONICS YOU LOVE
With 91dB sensitivity, the SourcePoint 10 can be driven with as little as 30 watts of power.
The nominal impedance of 8 ohms and a minimum impedance of 6.4-ohms means they are amplifier friendly.
Whether you prefer tubes or transistors, your amp will pair well with these speakers.

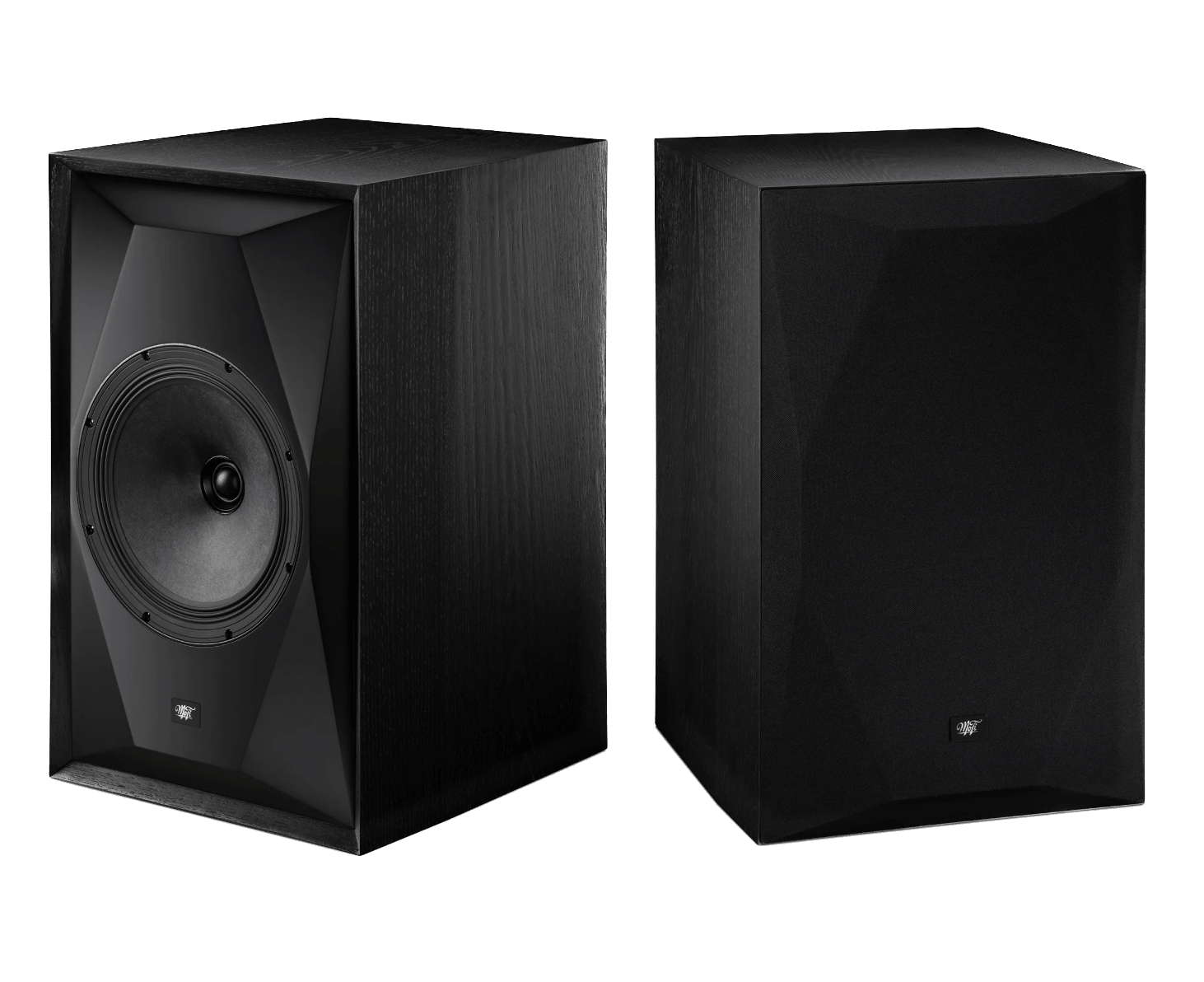

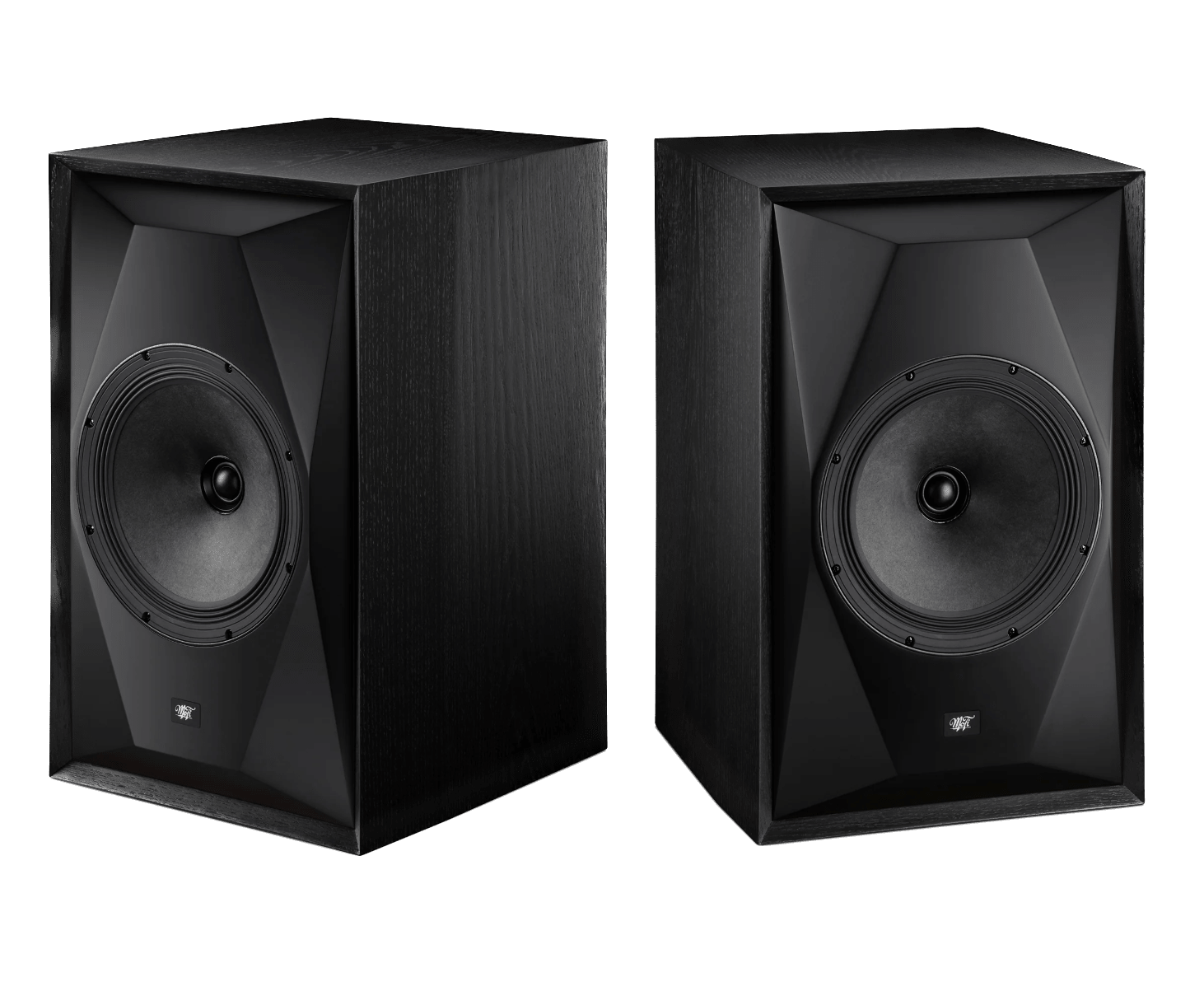

MULTI-FACETED 2-INCH THICK BAFFLE

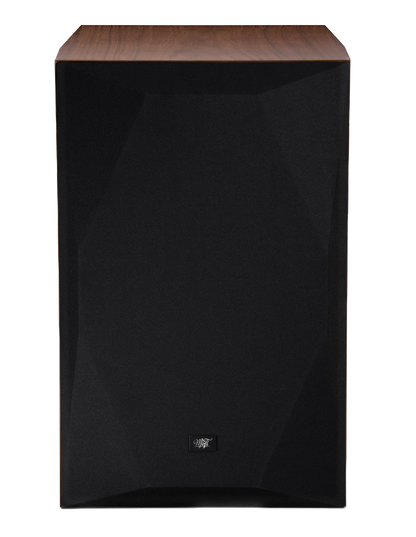

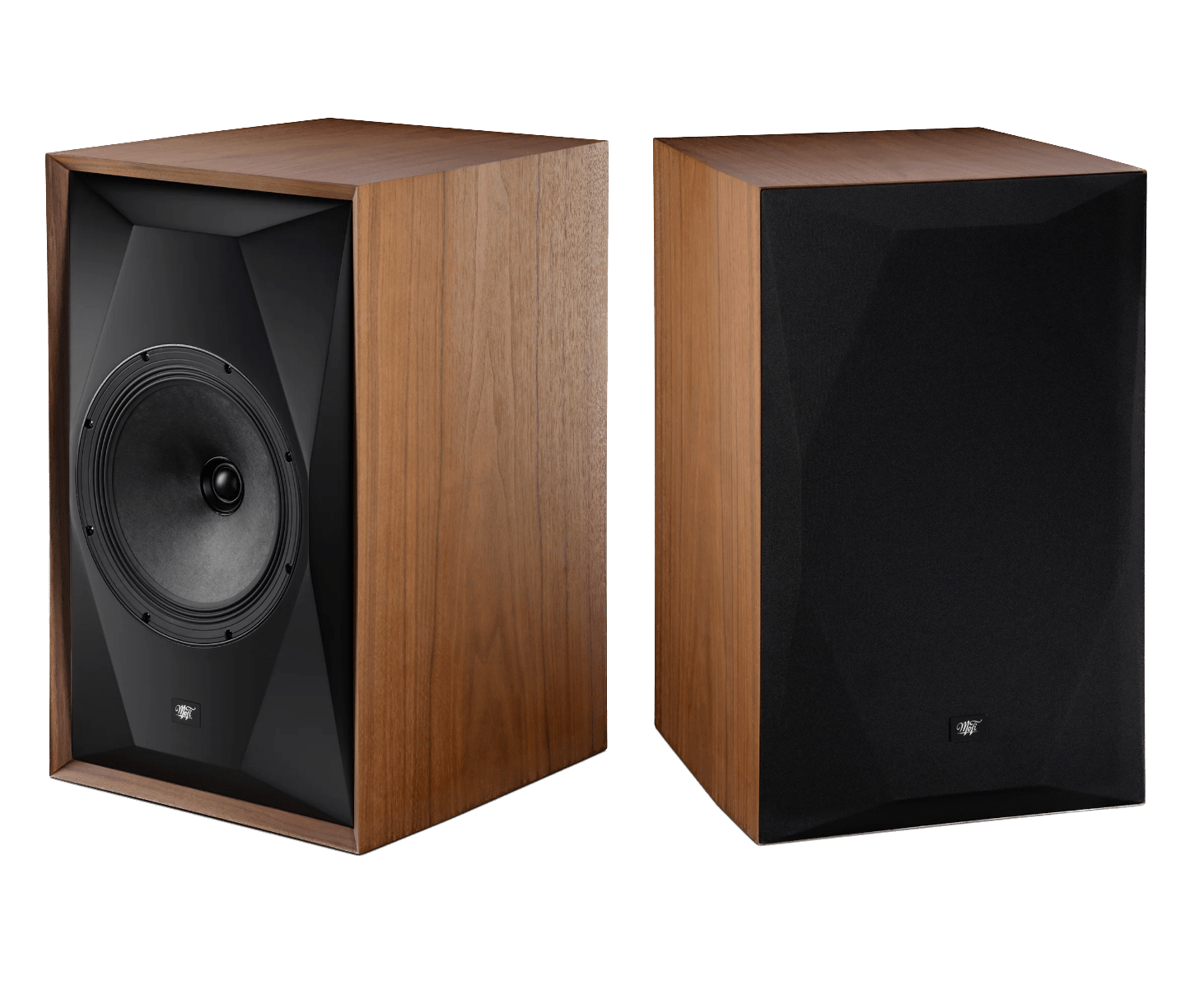

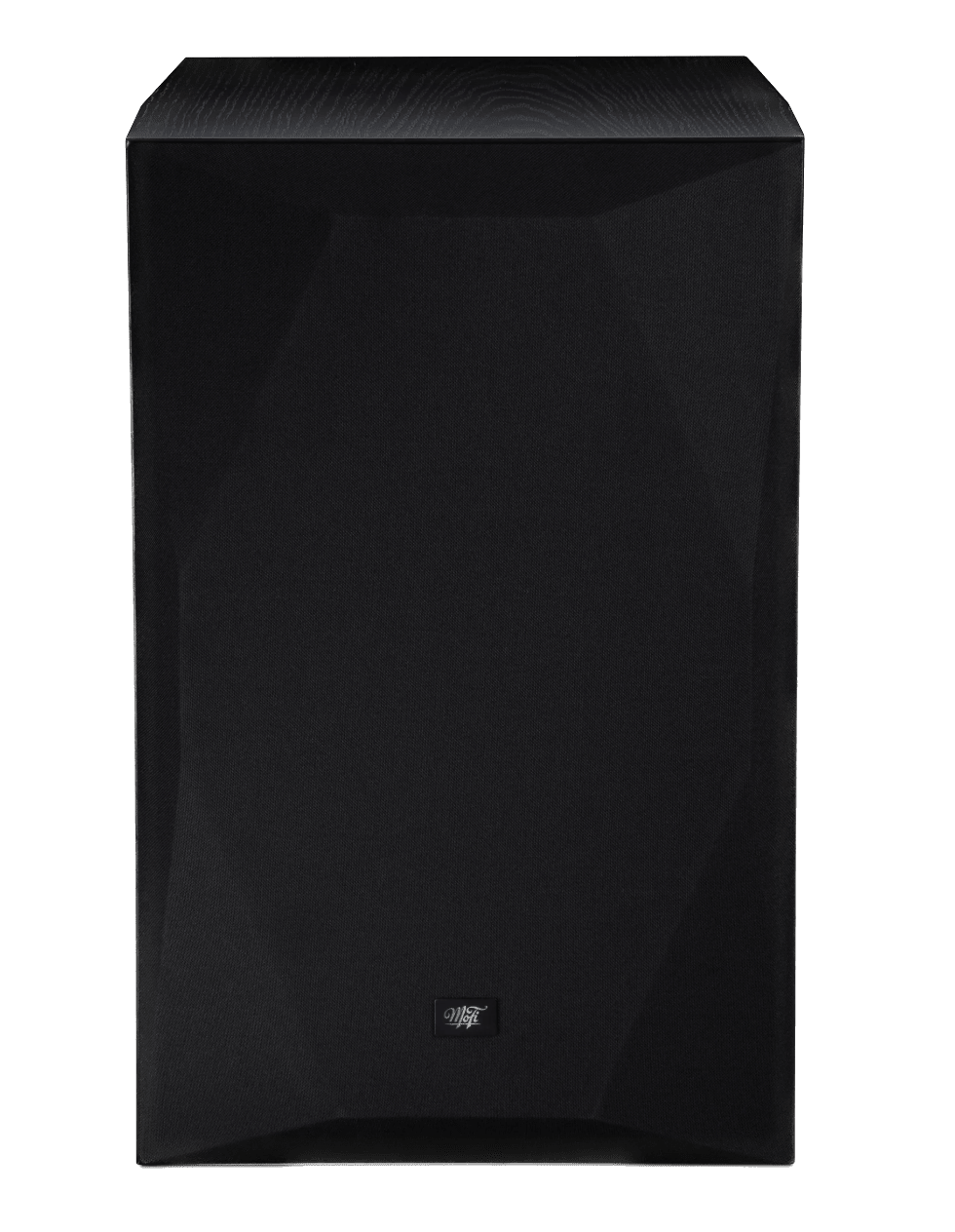

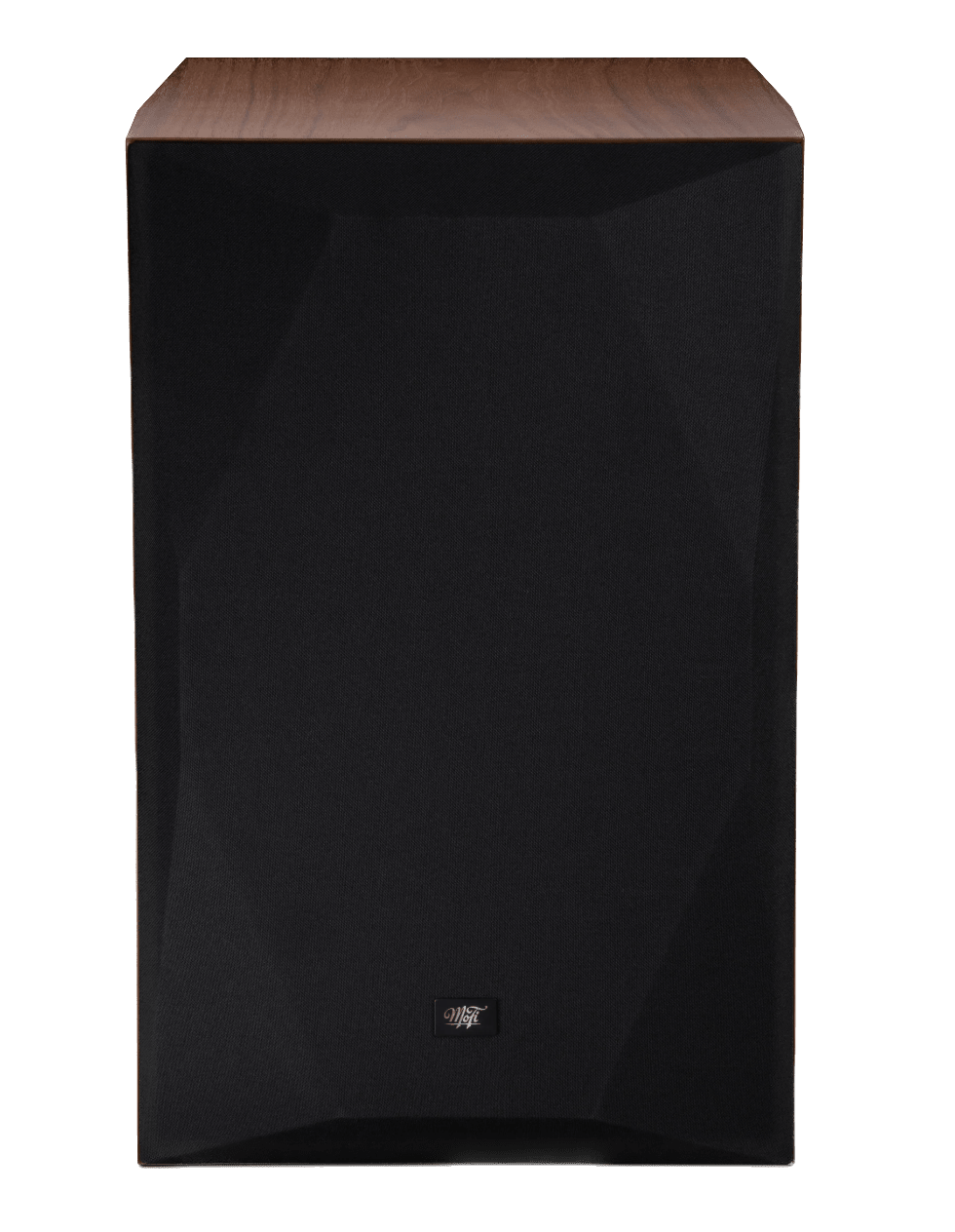

EASY TO USE MAGNETIC GRILLS

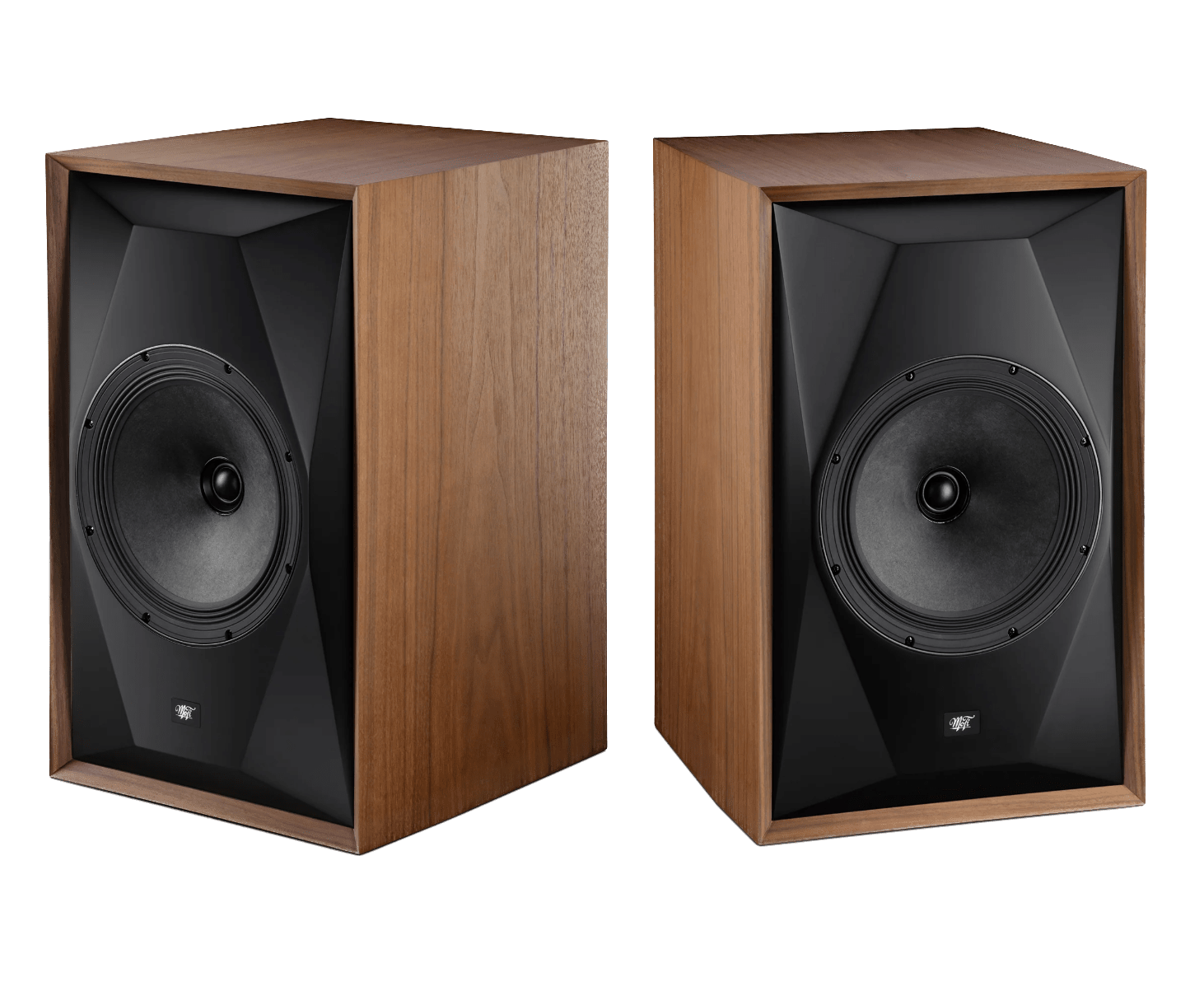

FURNITURE GRADE REAL WOOD VENEERS
Product Features
- 10-inch concentric driver
- 1.25-inch wide roll soft dome tweeter
- 2-way vented box

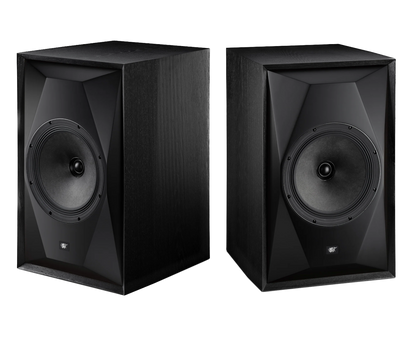

- Satin Walnut or Satin Black Ash real wood veneer

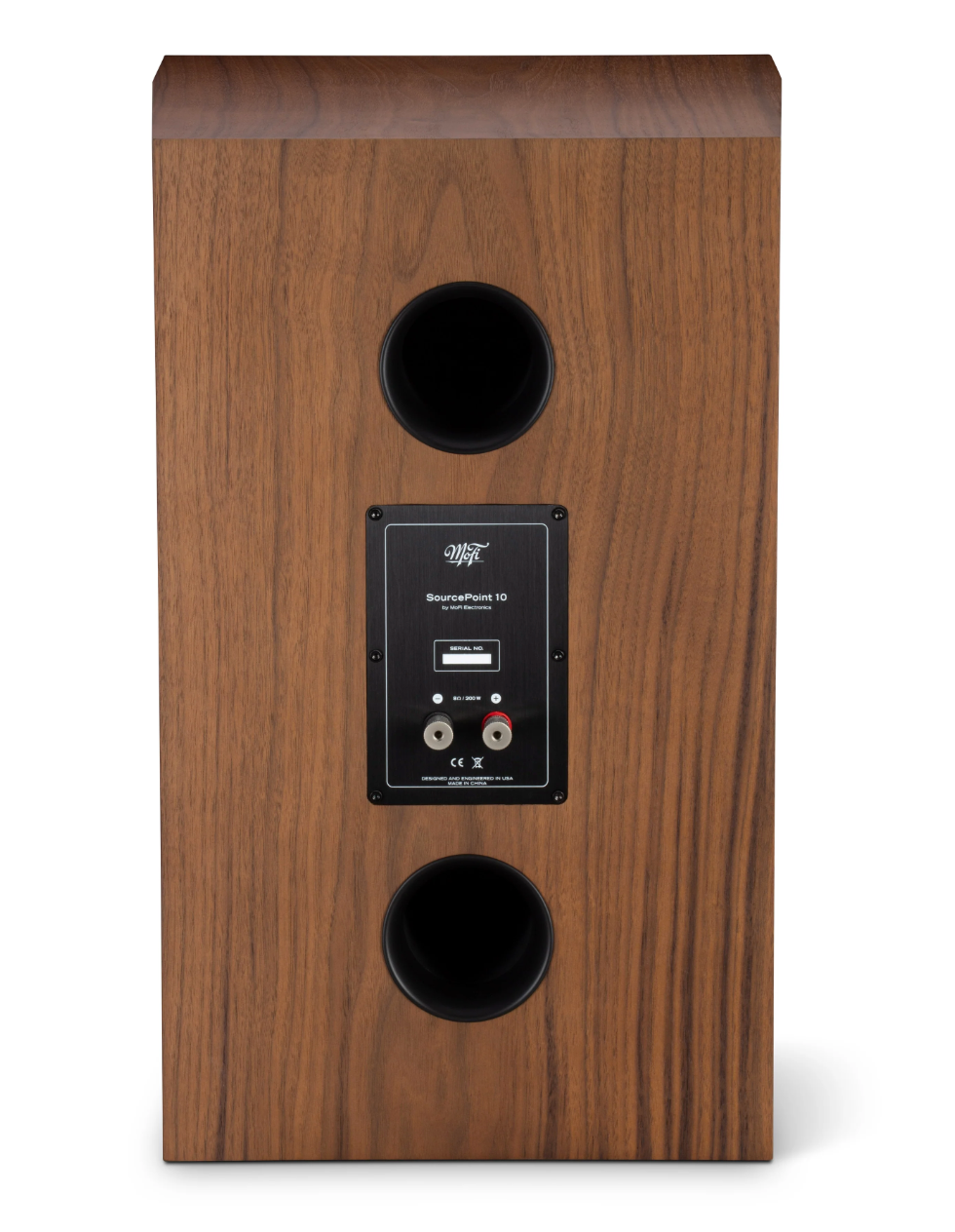

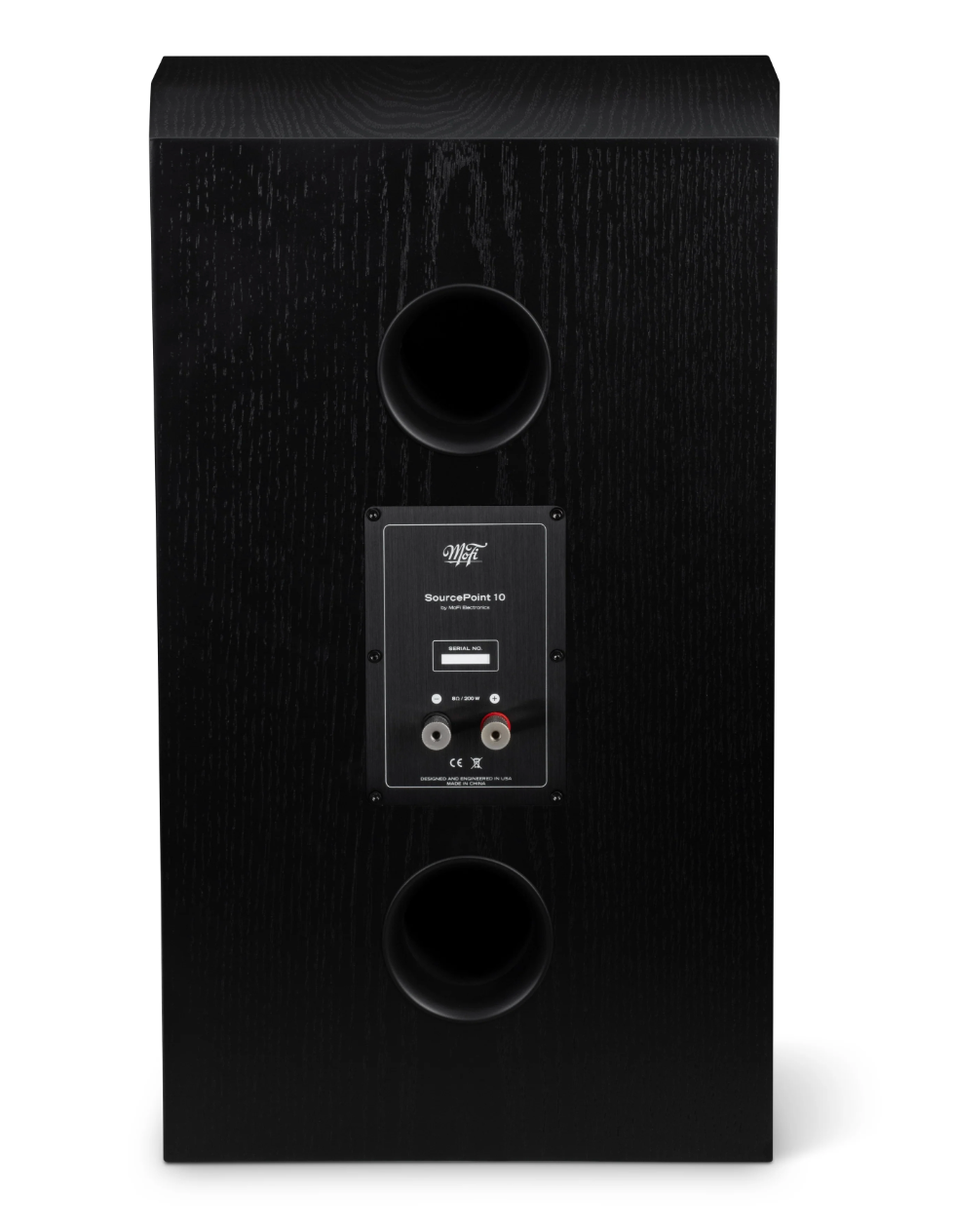

- 5-way binding posts
- Magnetic grilles
Technical Specifications
Frequency Response
42Hz-30kHz
Nominal Impedance
8 Ohms, 6.2 Ohms minimum
Sensitivity
91dB/2.83V/1m
Crossover Frequency
1.6
Minimum Recommended Power
30W
Max Power Input
200W
Dimensions (WxHxD)
368 x 572 x 422 mm with grille
368 x 572 x 406 mm without grille
Weight
21kg each
Warranty
MoFi Electronics carry a 2 year warranty covering parts & labour. Speakers carry 5 years and cartridges carry 90 days warranty.
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change without notice.
E&OE
