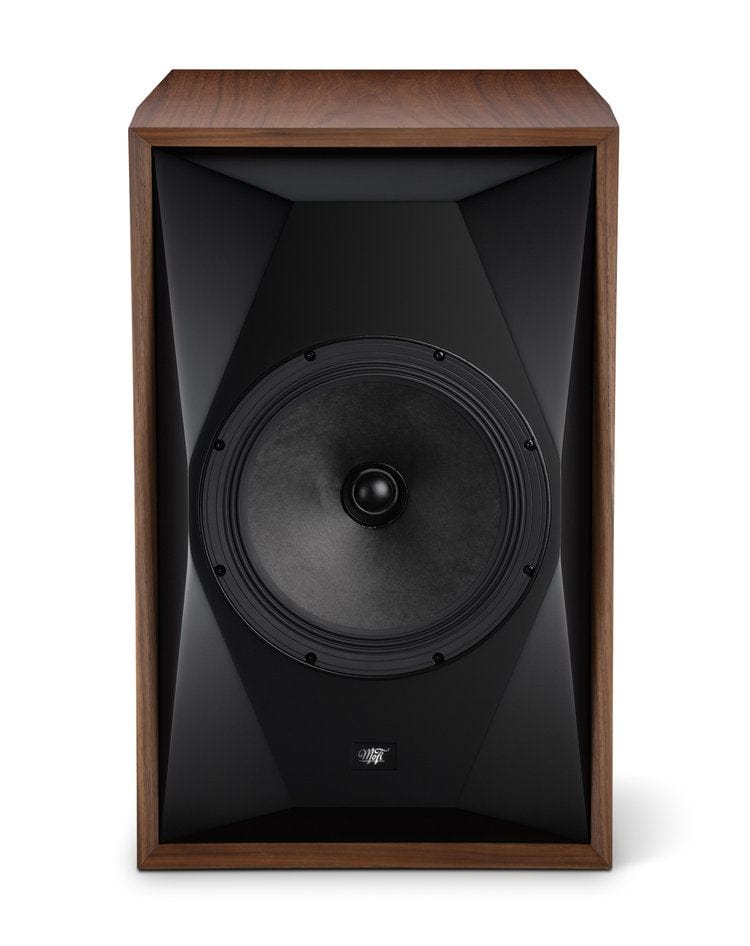

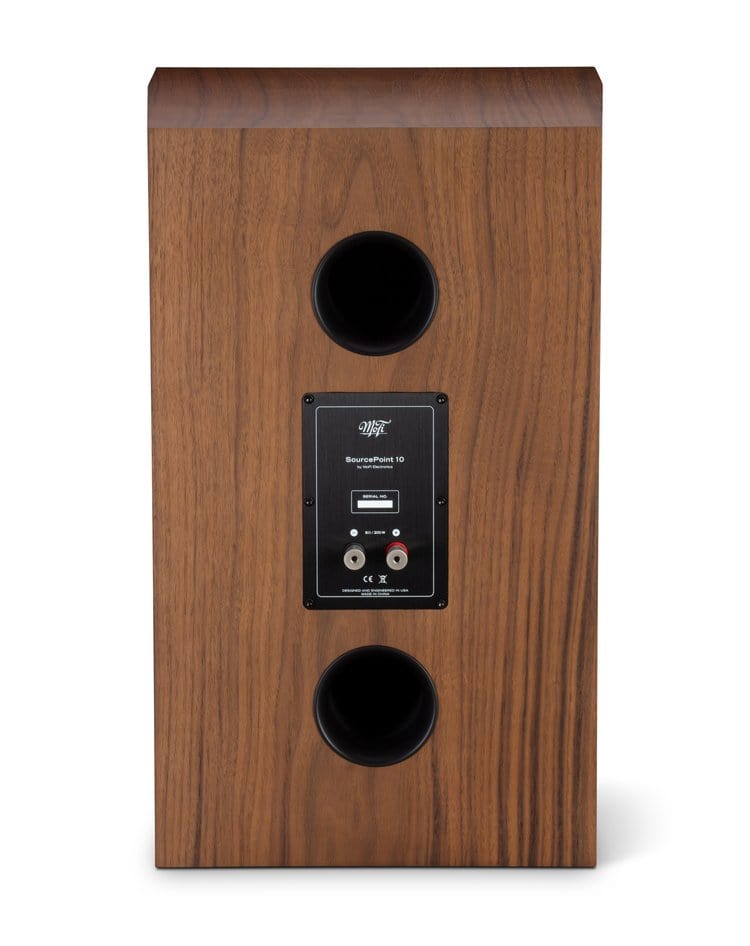

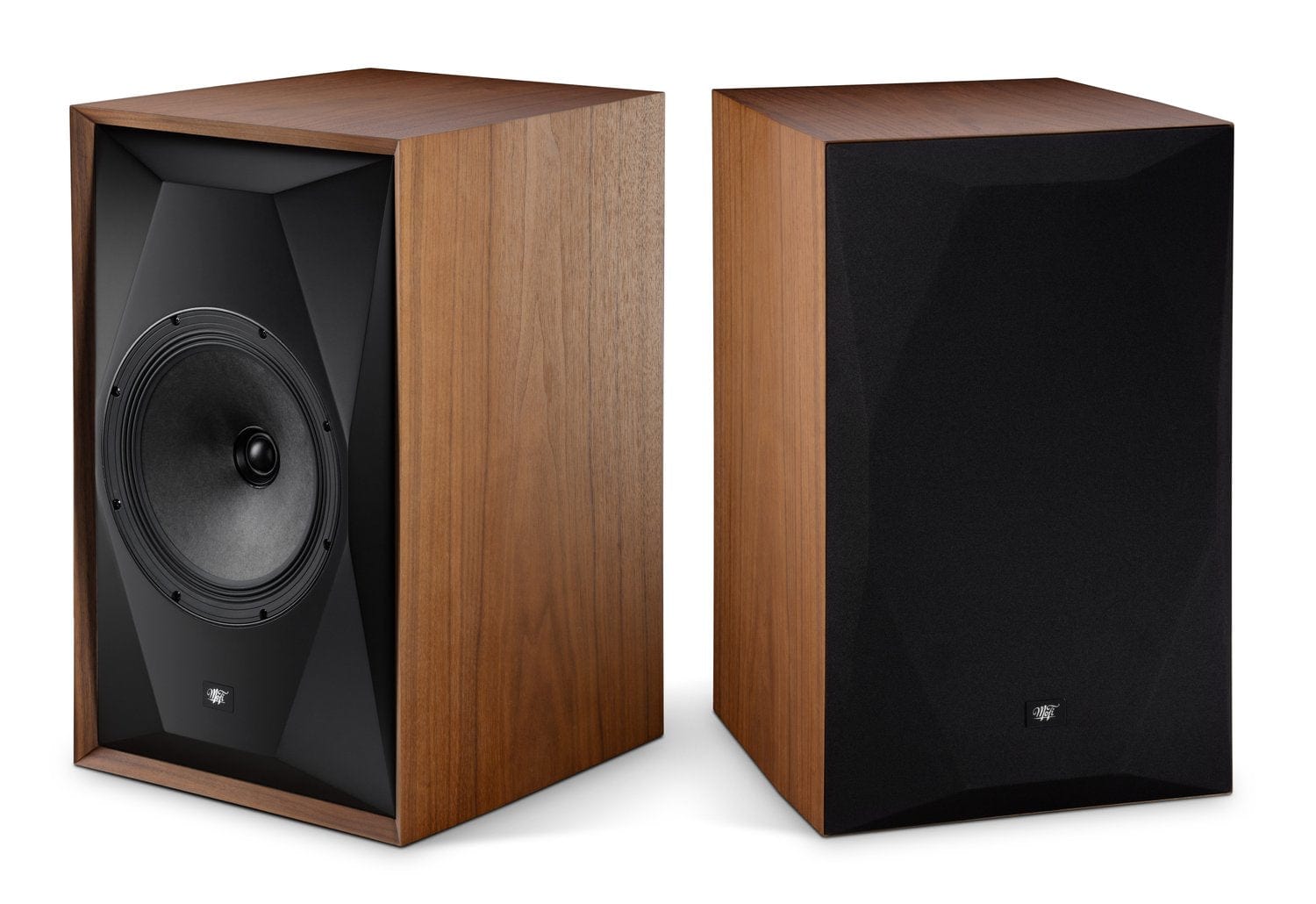

Mobile Fidelity SourcePoint 10 Loudspeakers Last Pair
Last Pair available in Walnut
“A powerful loudspeaker allows you to hear through to the heart of the music.” - Andrew Jones, Chief Loudspeaker Designer
The heart of the SourcePoint 10 is the innovative Twin-Drive high-flux neodymium magnet system.
It is not enough to simply optimise the frequency responses of the woofer and tweeter. It is also critically important to minimise distortion in the motor structure of the drive unit. If the motor has distortion, it will generate new frequencies outside of the original signal. We have been very deliberate with the design of the motor to reduce these distortions.
The Twin-Drive system creates a fully symmetrical magnetic field, eliminating flux modulation for extremely low intermodulation distortion (IMD). This technical achievement is an important part of why the SourcePoint 10 sounds so pure and accurate. No, it won’t power your time-travelling DeLorean, but it will deliver the performance you’ve been searching for.
Custom-developed by Andrew Jones through 18 months of R&D, the all-new 10-inch Concentric driver delivers stunning clarity and deep bass impact.
The 10-inch paper-pulp cone has nearly 2.5x the surface area of a typical 6.5-inch bass driver and barely needs to move in order to produce large and dynamic sound. This design keeps a consistent waveguide around the tweeter for the most coherent sound possible, with the least amount of distortion, and without sacrificing bass.
Fitted centrally within the bass driver is a 1.25-inch soft dome tweeter with a wide-roll surround and large-diameter voice coil. The tweeter has great power handling and minimal thermal compression, allowing it to come in at 1.6 kHz and deliver smooth response beyond 30 kHz.
The two drivers work together as one to create sound that is pure and powerful.
A large woofer needs a spacious cabinet designed to minimise resonance. The SourcePoint 10 uses thick MDF panels and extensive internal bracing.
The top, bottom, and sides are 1-inch-thick MDF wrapped in beautiful real wood veneer. The faceted front baffle is 2-inch-thick MDF finished in a smooth satin black coating.
Two internal braces connect the top, sides, and bottom to further strengthen the cabinet.
With 91 91dB sensitivity, the SourcePoint 10 can be driven with as little as 30 watts of power.
The nominal impedance of 8 ohms and a minimum impedance of 6.4 ohms mean they are amplifier-friendly.
Whether you prefer tubes or transistors, your amp will pair well with these speakers.
The front baffle is the launch point for your speaker driver. It needs to be strong and free of sound reflection.
The SourcePoint 10 uses a sculpted baffle with multiple facets to eliminate diffraction. All you hear is the smooth and even response of the driver, not the sound of the cabinet.
It’s quick and easy to make your SourcePoint speakers more discrete for casual listening. The fabric-wrapped grills attach magnetically and are perfectly form-fitting to retain the profile of the distinguished multi-faceted baffle.
For the highest performance, we recommend removing the grills while listening.
You can choose the warmth and richness of Satin Walnut or the stealthy professional look of Satin Black Ash. The SourcePoint 10 uses furniture-grade real wood veneer that is book-matched for mirror-imaged grain patterns on both of your speakers.
The SourcePoint 10 has a unique combination of modern and classic style that suits a wide variety of interiors.
• 10-inch concentric driver
• 1.25-inch wide roll soft dome tweeter
• 2-way vented box
• Satin Walnut or Satin Black Ash real wood veneer
• 5-way binding posts
• Magnetic grilles
ELECTRICAL
Frequency Response
42Hz-30kHz
Nominal Impedance
8 Ohms, 6.2 Ohms minimum
Sensitivity
91dB/2.83V/1m
Crossover Frequency
1.6
Minimum Recommended Power
30W
Max Power Input
200W
PHYSICAL
Dimensions (WxHxD)
368 x 572 x 422 mm with grille
368 x 572 x 406 mm without grille
Weight
21kg each
Warranty
MoFi Electronics carry a 2 year warranty covering parts & labour. Speakers carry 5 years and cartridges carry 90 days warranty.
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change without notice.
E&OE
