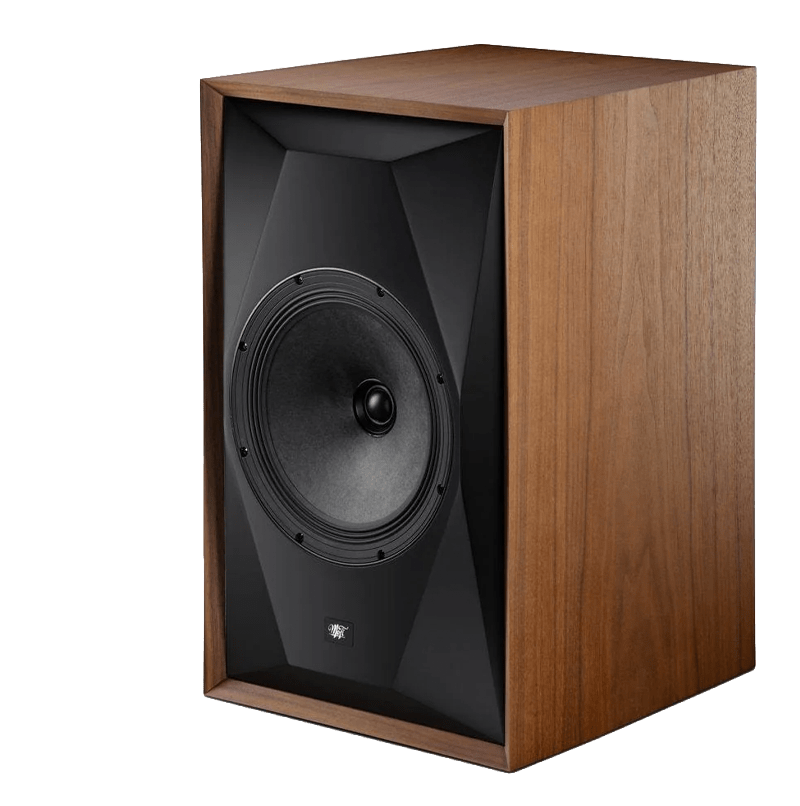

Mobile Fidelity SourcePoint 10 Loudspeakers

THE 10-INCH CONCENTRIC DRIVER. TWO DRIVERS. ONE VOICE.

Custom-developed by Andrew Jones through 18 months of R&D, the all-new 10-inch Concentric driver delivers stunning clarity and deep bass impact.

The 10-inch paper-pulp cone has nearly 2.5x the surface area of a typical 6.5-inch bass driver and barely needs to move to produce large and dynamic sound. This design keeps a consistent waveguide around the tweeter for the most coherent sound possible, with the least amount of distortion, and without sacrificing bass.

Fitted centrally within the bass driver is a 1.25-inch soft dome tweeter with a wide roll surround and large-diameter voice coil. The tweeter has great power handling and minimal thermal compression, allowing it to come in at 1.6 kHz and deliver smooth response beyond 30 kHz.

The two drivers work together as one to create sound that is pure and powerful.

HIGH-QUALITY CABINET CONSTRUCTION. BRACED FOR CLARITY.

A large woofer needs a spacious cabinet designed to minimise resonance. The SourcePoint 10 uses thick MDF panels and extensive internal bracing.

The top, bottom, and sides are 1-inch-thick MDF wrapped in beautiful real wood veneer. The faceted front baffle is 2-inch-thick MDF finished in a smooth satin black coating.

Two internal braces connect the top, sides, and bottom to further strengthen the cabinet.

EASY TO DRIVE WITH THE ELECTRONICS YOU LOVE.

With 91 dB sensitivity, the SourcePoint 10 can be driven with as little as 30 watts of power.

The nominal impedance of 8 ohms and a minimum impedance of 6.4 ohms mean they are amplifier-friendly.

Whether you prefer tubes or transistors, your amp will pair well with these speakers.

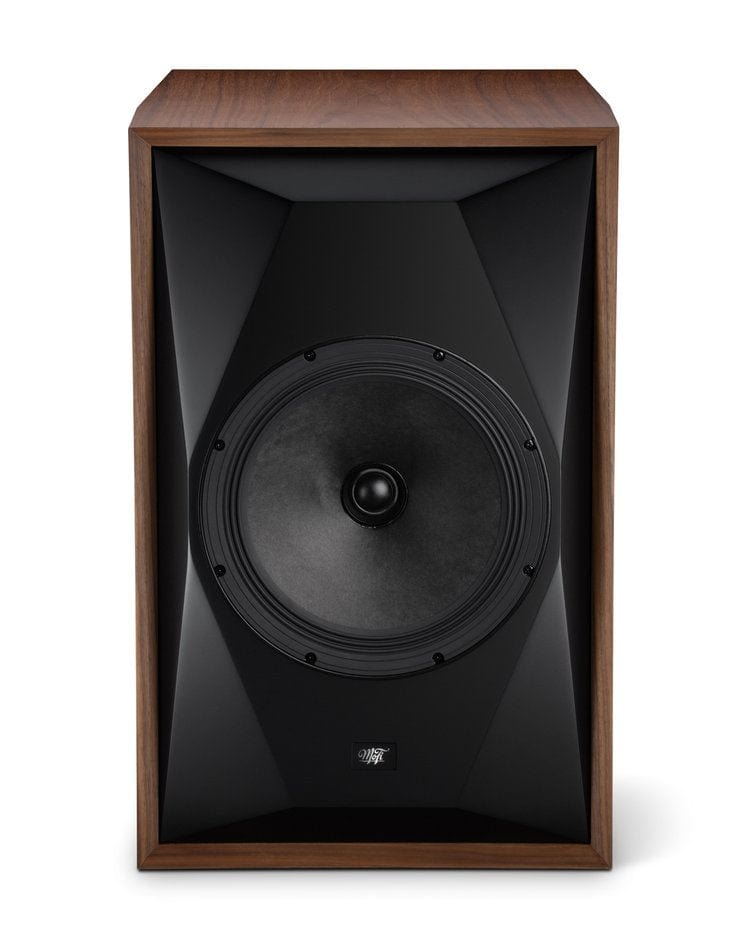

MULTI-FACETED 2-INCH THICK BAFFLE

The front baffle is the launch point for your speaker driver. It needs to be strong and free of sound reflection.

The SourcePoint 10 uses a sculpted baffle with multiple facets to eliminate diffraction. All you hear is the smooth and even response of the driver, not the sound of the cabinet.

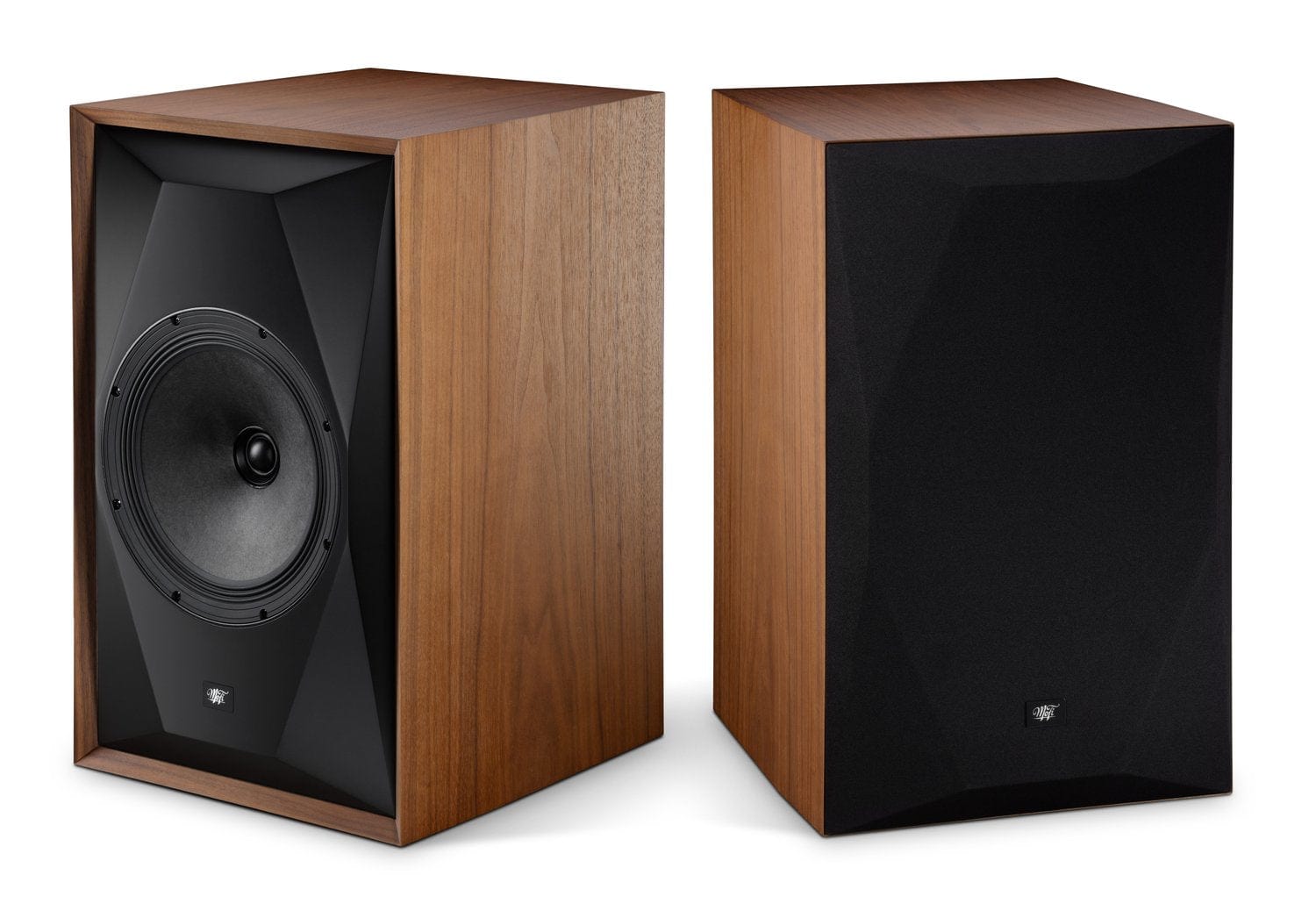

EASY-TO-USE MAGNETIC GRILLS

It’s quick and easy to make your SourcePoint speakers more discreet for casual listening. The fabric-wrapped grills attach magnetically and are perfectly form-fitting to retain the profile of the distinguished multi-faceted baffle.

For the highest performance, we recommend removing the grills while listening.

FURNITURE-GRADE REAL WOOD VENEERS

You can choose the warmth and richness of satin walnut or the stealthy professional look of satin black ash. The SourcePoint 10 uses furniture-grade real wood veneer that is bookmatched for mirror-imaged grain patterns on both of your speakers.

The SourcePoint 10 has a unique combination of modern and classic style that suits a wide variety of interiors.

Product Features

• 10-inch concentric driver

• 1.25-inch wide roll soft dome tweeter

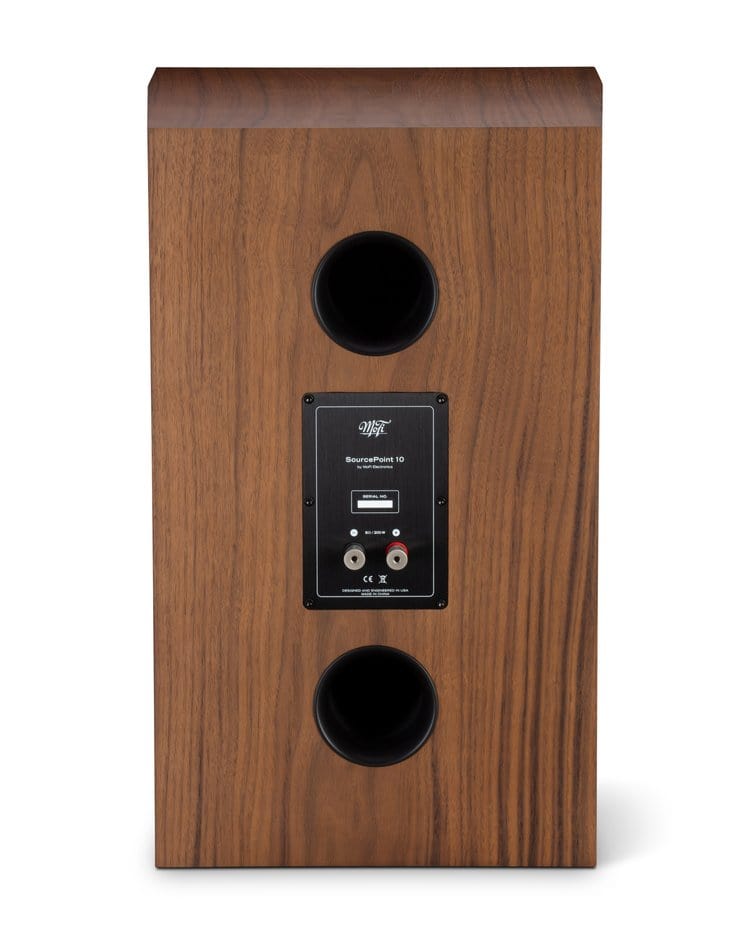

• 2-way vented box

• Satin Walnut or Satin Black Ash real wood veneer

• 5-way binding posts

• Magnetic grilles

Technical Specifications

ELECTRICAL

Frequency Response
42Hz-30kHz

Nominal Impedance
8 Ohms, 6.2 Ohms minimum

Sensitivity
91dB/2.83V/1m

Crossover Frequency
1.6

Minimum Recommended Power
30W

Max Power Input
200W

PHYSICAL

Dimensions (WxHxD)
368 x 572 x 422 mm with grille
368 x 572 x 406 mm without grille

Weight
21kg each

Warranty
MoFi Electronics carries a 2-year warranty covering parts & labour. Speakers carry a 5-year warranty, and cartridges carry a 90-day warranty.

*This information has been obtained from the manufacturer's website. We advise that price, features & specifications be subject to change without notice.

E&OE
