JL Audio Fathom f212v2 Dual 12" Subwoofer
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."

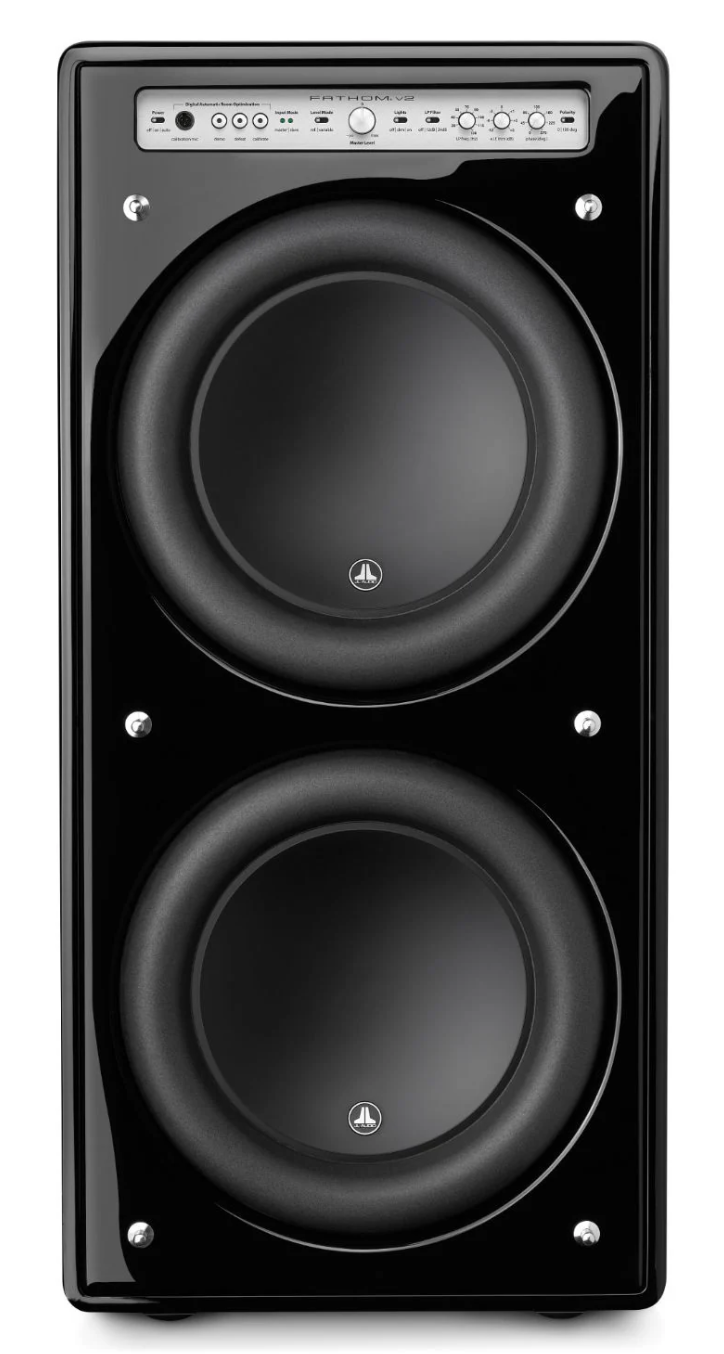

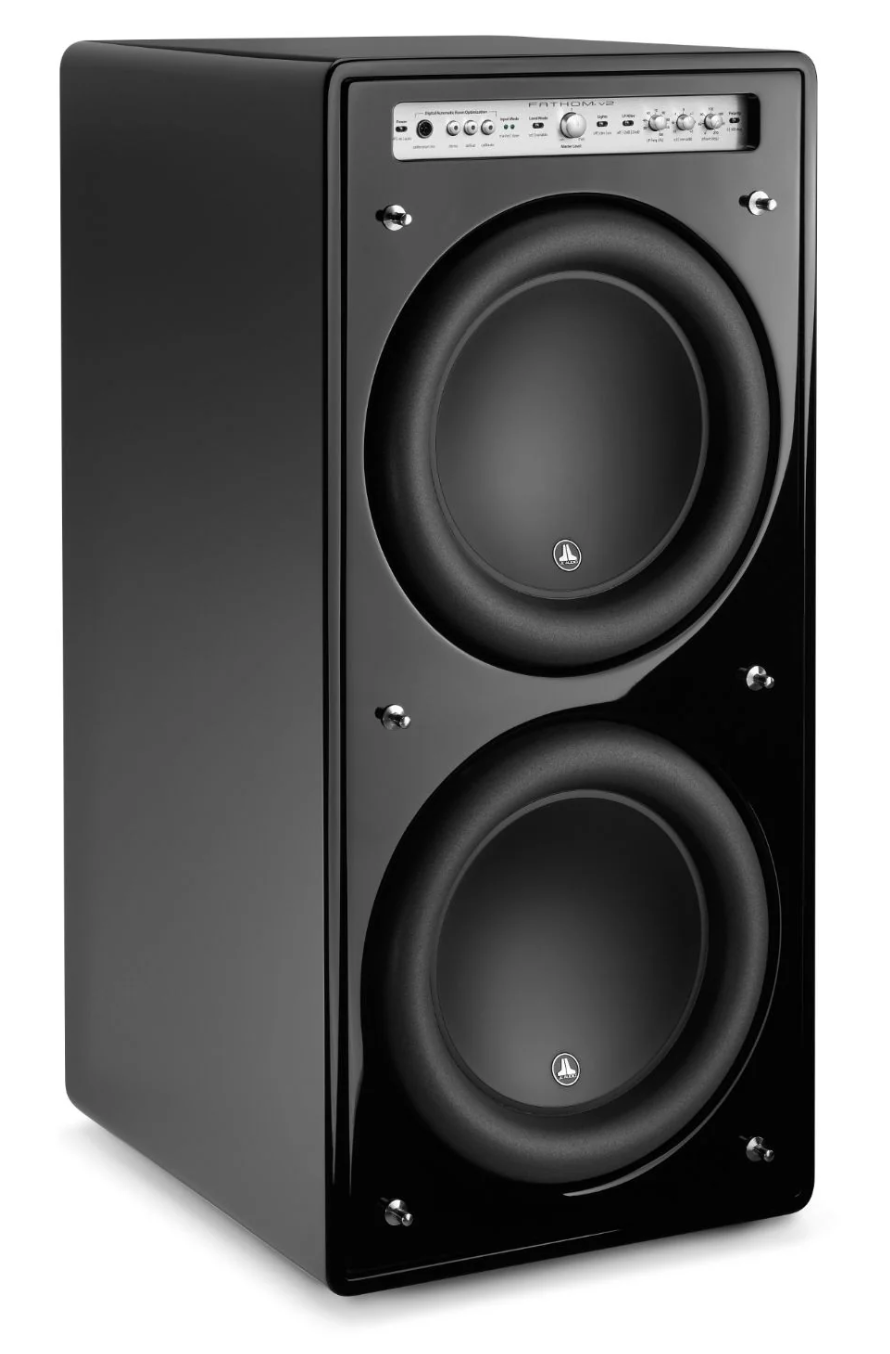

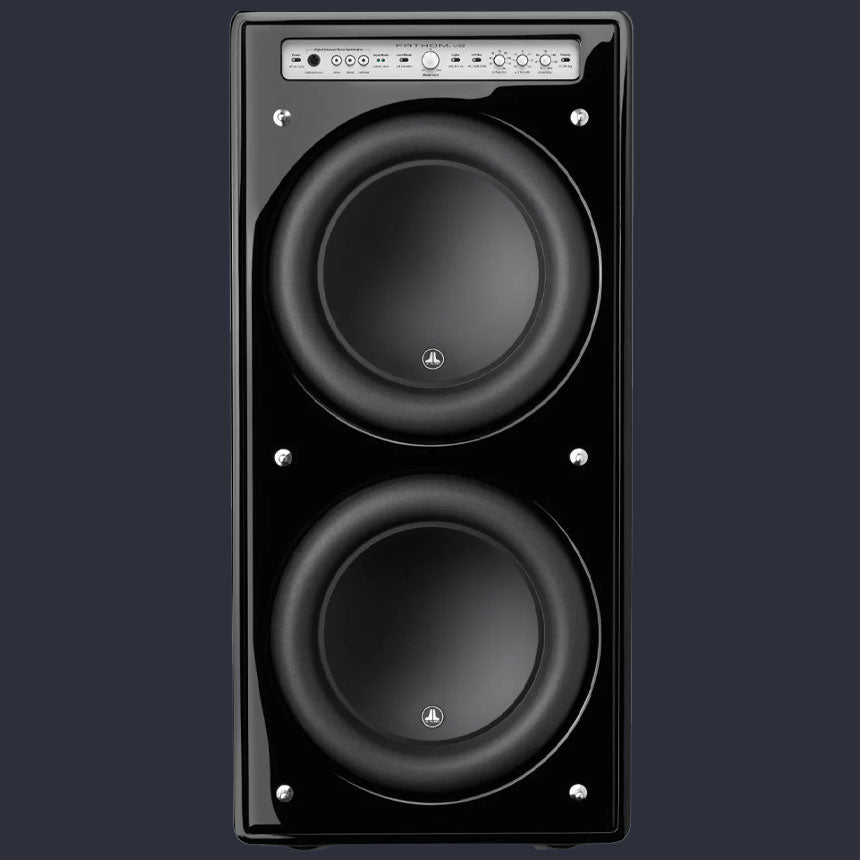

Meet the Fathom f212v2 Dual 12" Sub
Dual 12 inch Powered Subwoofer, 3600 Watts
The f212v2 is the ultimate expression of the Fathom formula.
Ideal for larger spaces due to its higher efficiency and higher power output. The combination of dual ultra-long throw W7 12-inch drivers and a very powerful switching amplifier, give it jaw-dropping performance capabilities at any listening level.
Built with the same driver and amplifier technology as JL Audio's flagship Gotham®, the f212v2 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.
A complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and their powerful Digital Automatic Room Optimisation (D.A.R.O.) system.

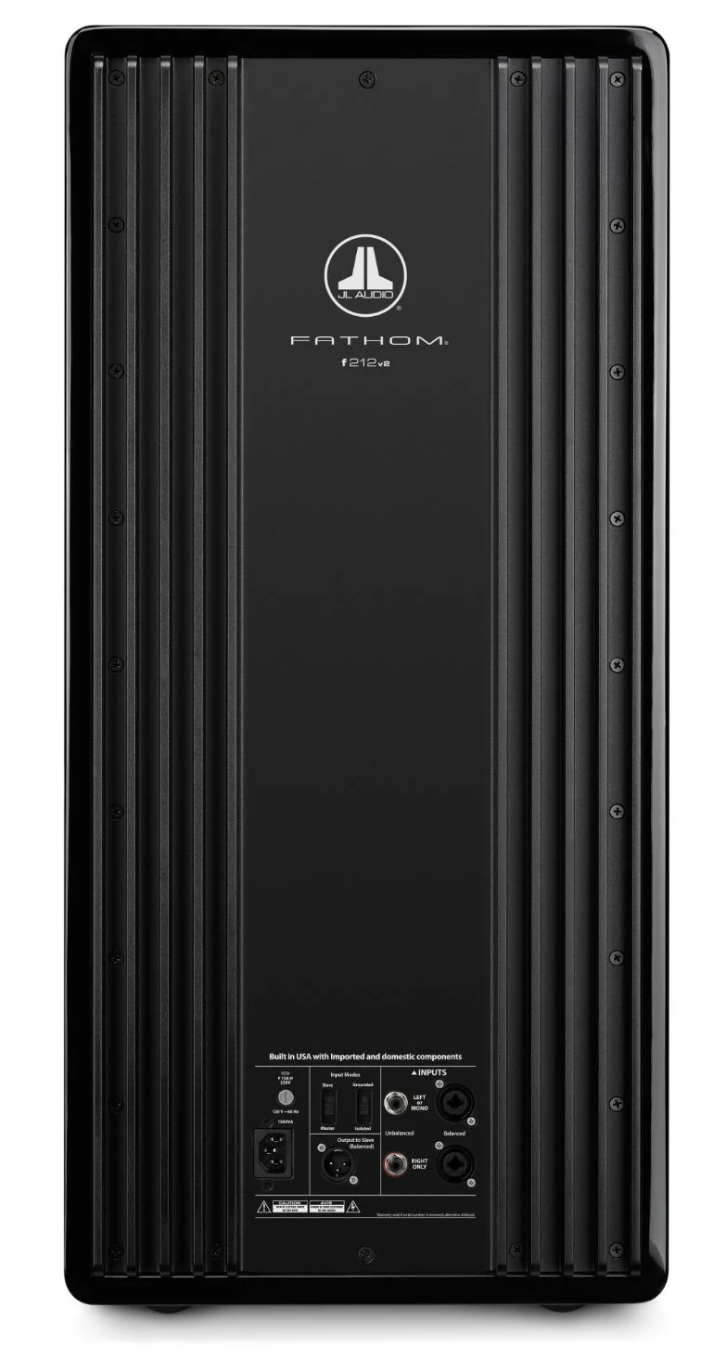

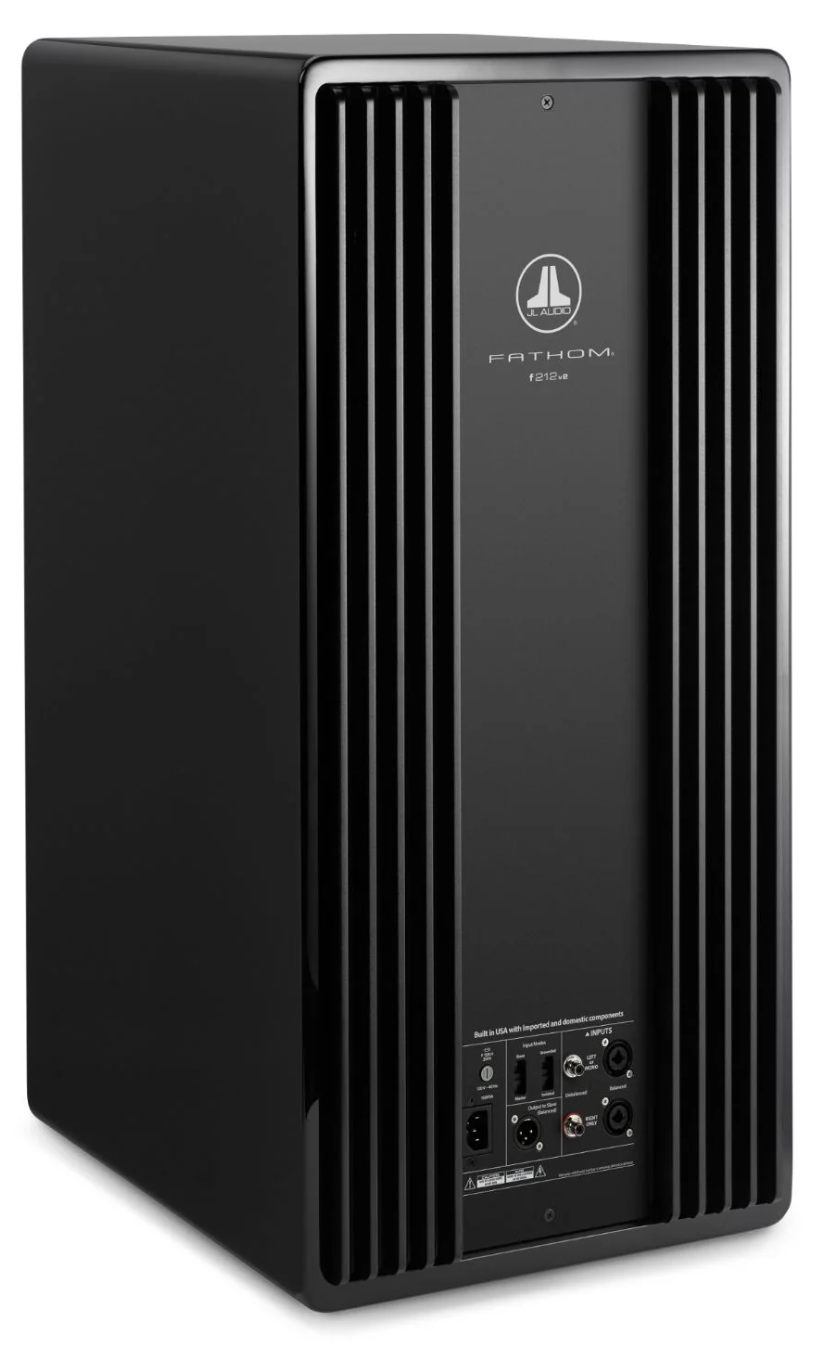

A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks.
Also included is an XLR output to connect a second Fathom® as a slave unit.
About Fathom
Fathom® subwoofers are ideal for larger spaces thanks to their higher efficiency and higher power output. The combination of ultra-long throw W7-HT drivers and a very powerful switching amplifier result in jaw-dropping performance capabilities at any listening level.
Built like no other
The Fathom assembly process brings together all the key component groups: drivers, electronics, wire harnesses and enclosures. A single technician assumes responsibility for the complete assembly process. The finished units make a short trip to the testing room for a series of critical performance and electrical tests.
Technology
JL Audio’s engineering department is at the forefront of research into fundamental loudspeaker behaviour.
They have developed proprietary electromagnetic and suspension analysis systems and invested heavily in state-of-the-art manufacturing and testing. This has borne subwoofer drivers widely considered as reference standards for linear displacement and dynamic stability.
It has also resulted in numerous U.S. and International Patents issued for technologies that refine and extend the performance envelope of the dynamic driver.
Technical Specifications
Enclosure Type
Sealed
Enclosure Finish
Black Gloss
Frequency Response (Anechoic)
20 - 97 Hz (±1.5dB)
-3 dB at 19 Hz / 110 Hz
-10 dB at 15 Hz / 157 Hz
Effective Piston Area (Sd)
168 sq in / 0.1084 sq m
Effective Displacement
574 cu in / 9.4 L
Amplifier Power
3.6 kW RMS short-term
Power Modes
Off, On or Automatic (Signal-Sensing)
Light Modes
Off, On or Dim
Width
14.92 in / 379 mm
Height including feet
31.96 in / 812 mm
Depth
20.39 in / 518 mm
Net Weight
224 lb / 102 kg
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change from Manufacturer without notice.
E&OE
