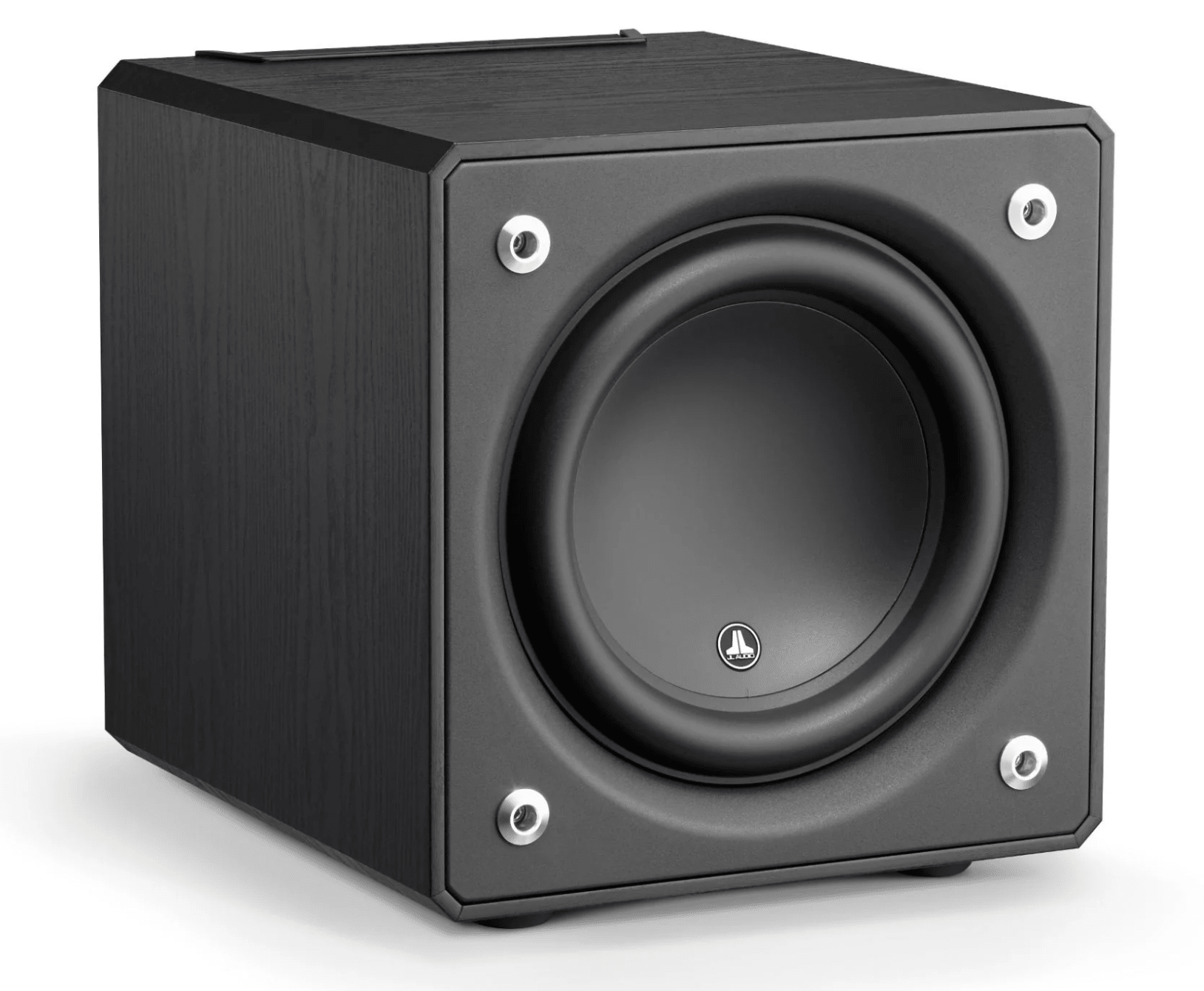

Powered Subwoofer with 10-inch Subwoofer, 1,200 watts
Applying a series of key technologies, E-Sub powered subwoofers deliver exceptional sound quality, power and value in a wide range of demanding applications.
E-Sub drivers employ JL Audio's exclusive DMA technology to optimise the drivers' motor strength, ensuring linear behaviour over a very long excursion range. Unlike typical steady-state modelling systems, DMA takes into account the dynamic shifts created by current flow and back EMF under real power conditions, with real program material.
The payoff offered by DMA optimisation is a driver that faithfully tracks its input signal, at all listening levels, leading to superior bass definition and dynamics.

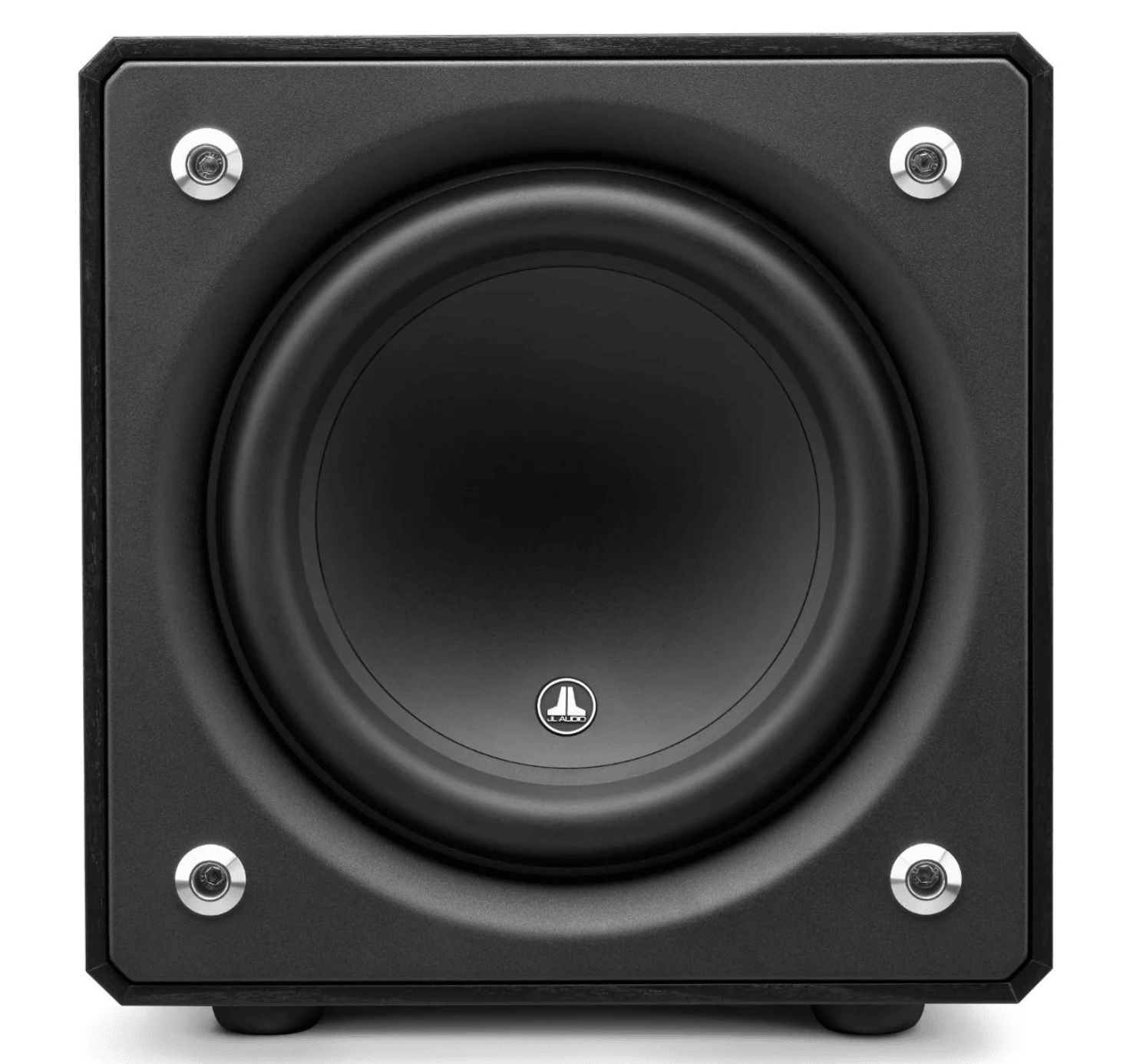

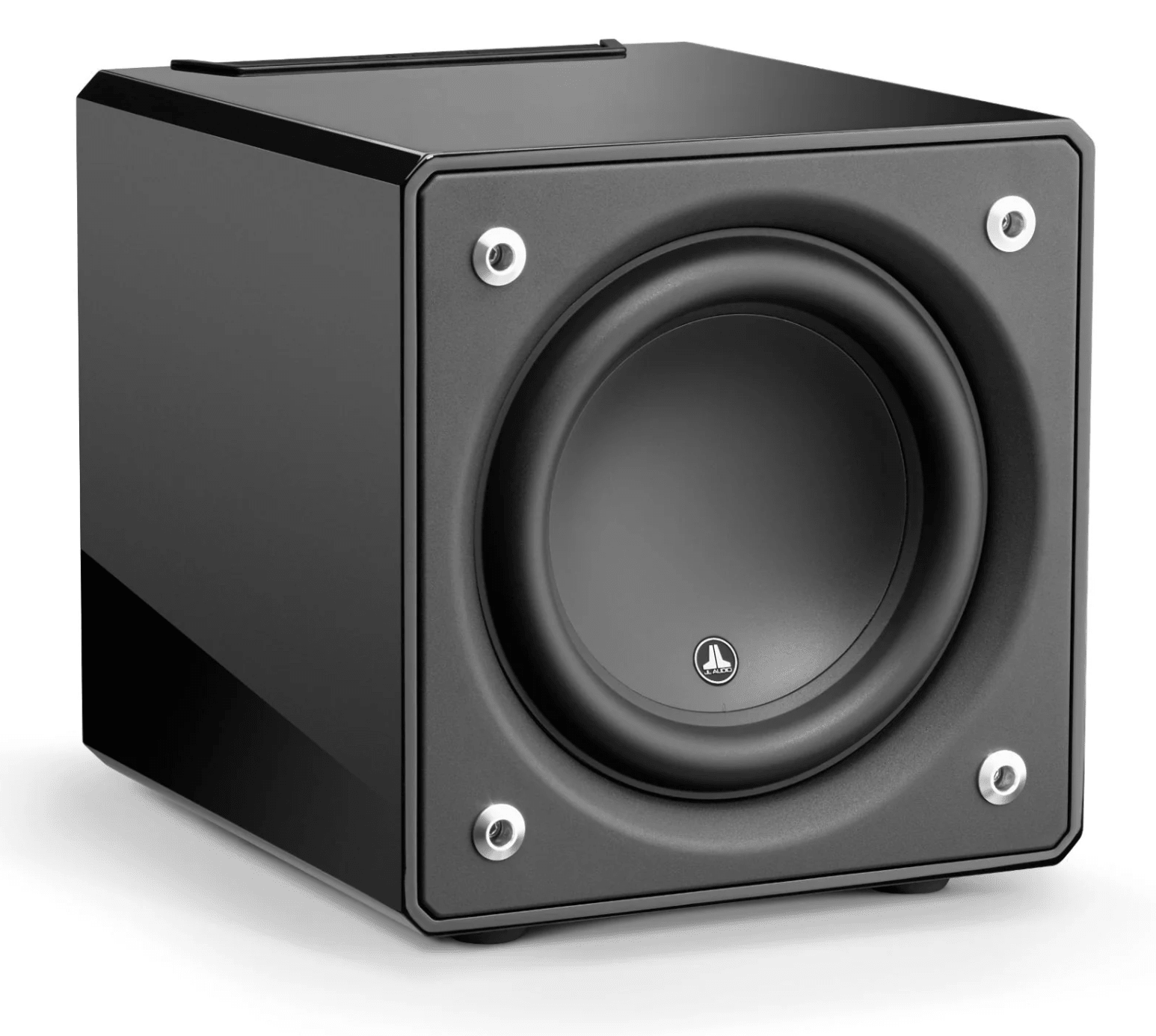

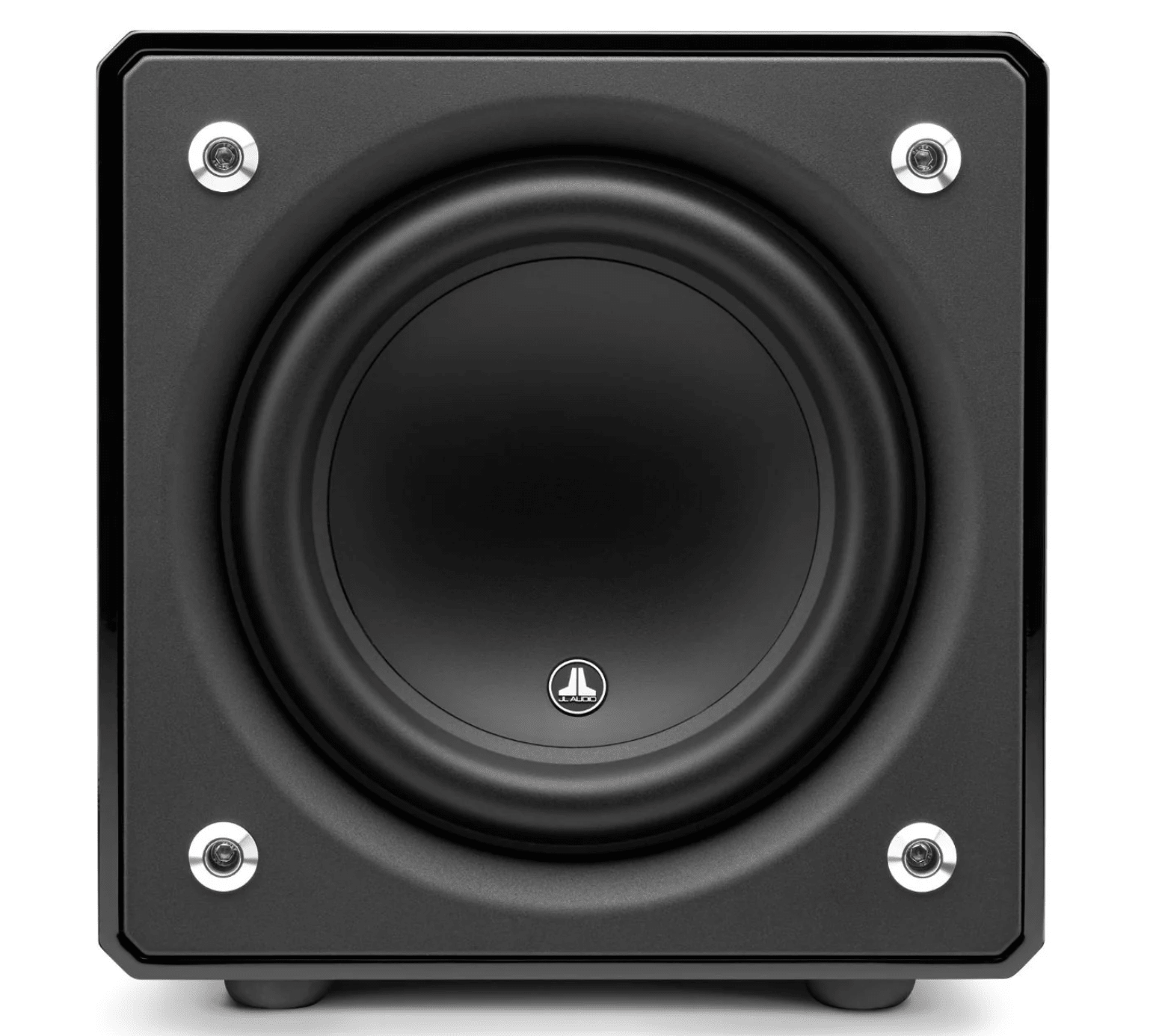

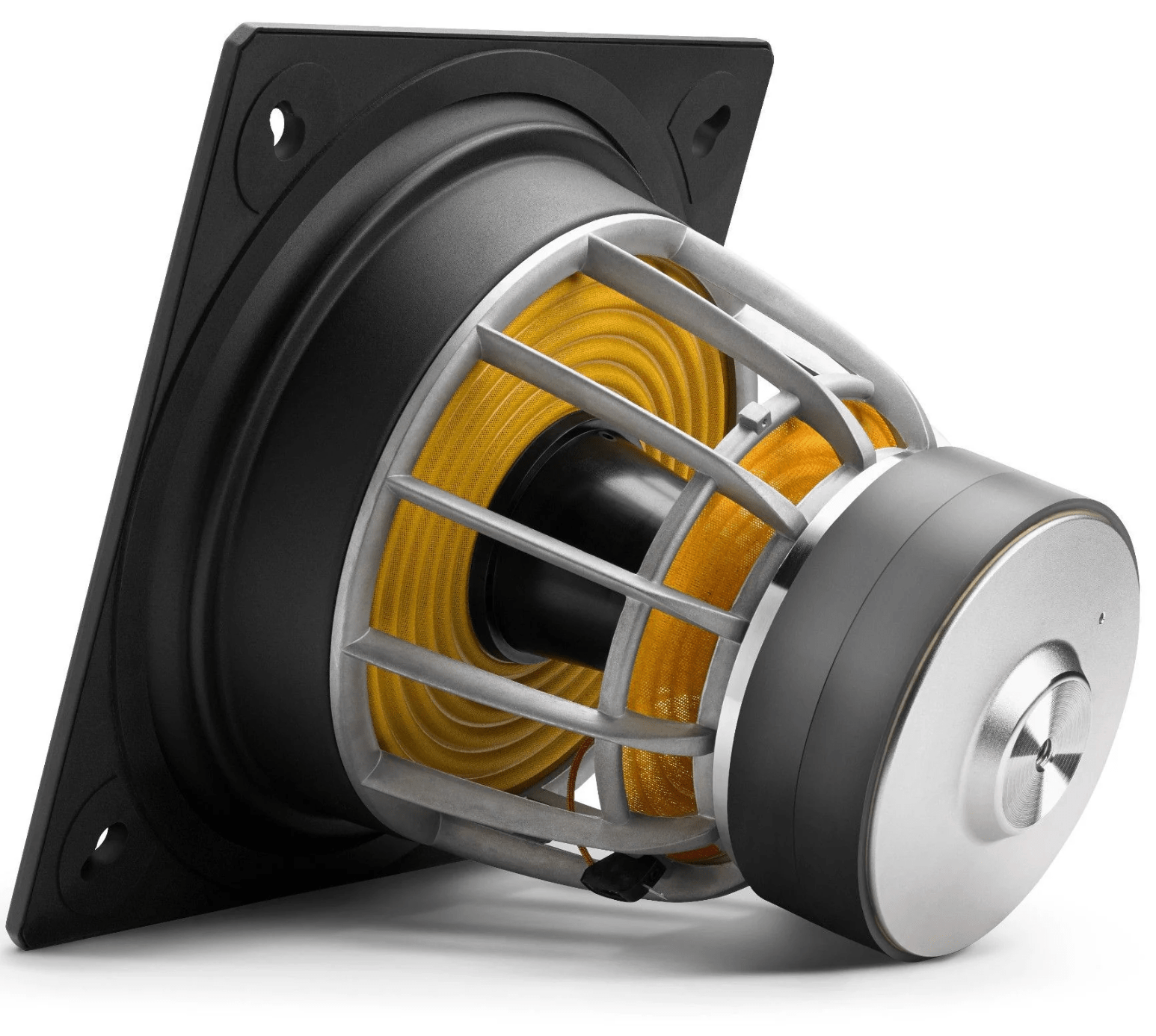

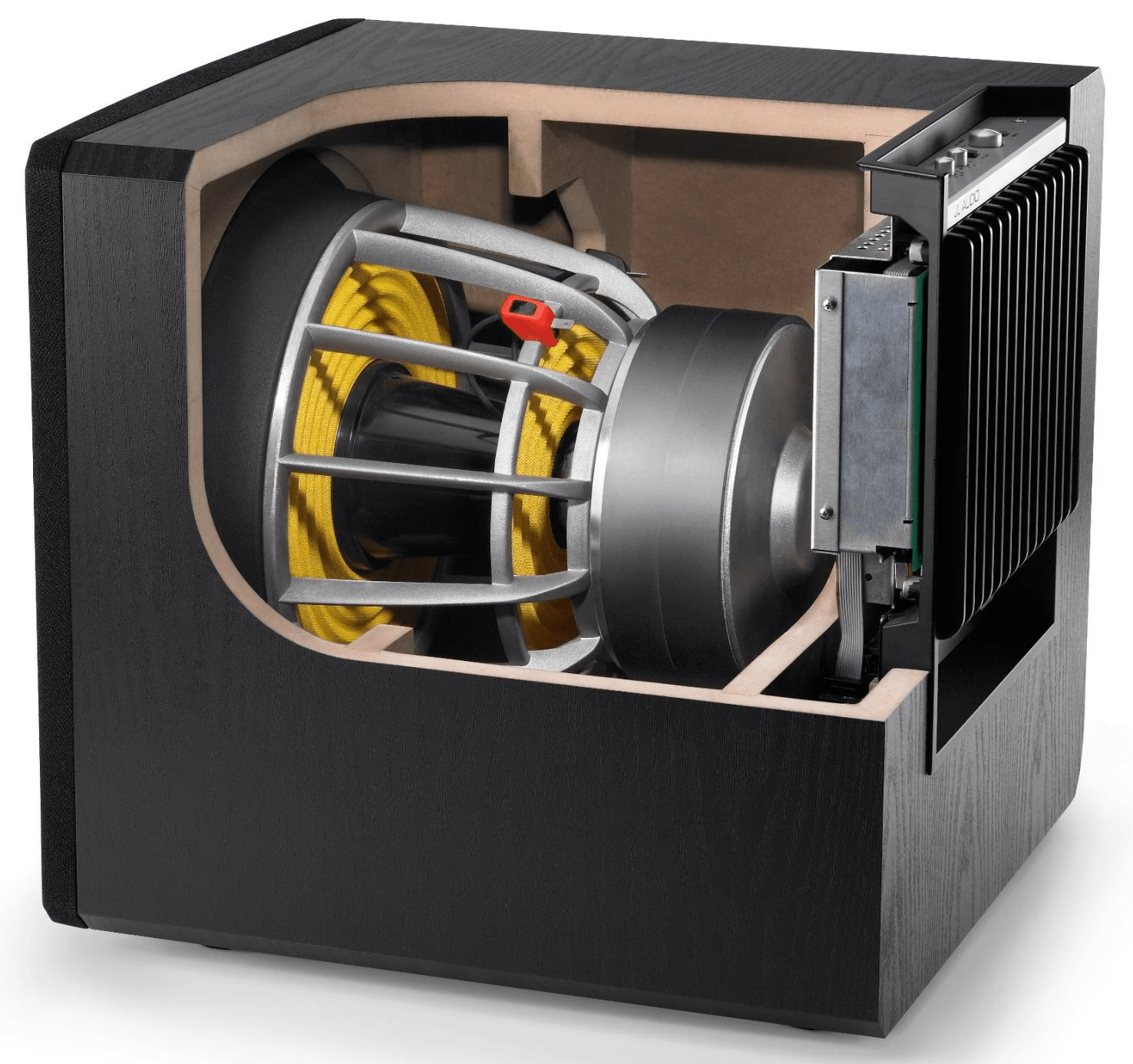

The extreme mounting depth of the E-Sub driver is very deliberate. It allows wide gaps to exist between the three suspension elements (the rubber surround and the dual spiders), imparting exceptional mechanical stability over the driver's full excursion range. This further improves linearity, reduces distortion and enhances long-term reliability. In a stroke of engineering elegance, the E-Sub’s steel front mounting flange forms the entire front baffle of the finished product, while the driver’s back-plate is threaded and bolted to the rear wall of its enclosure for support.
To power these innovative drivers, JL Audio engineered a completely new switching amplifier with a regulated, switching power supply, making its chassis more compact, lightweight and efficient, while still delivering ample, clean power to fully exercise the E-Sub driver's performance envelope.
Conveniently controlled from the E-Sub cabinet’s top panel, the amplifier incorporates studio-grade signal processing to make adjustments a much more enjoyable experience than rear–mounted controls found on most powered subwoofers. An attractive cover hides and protects the controls during normal use.

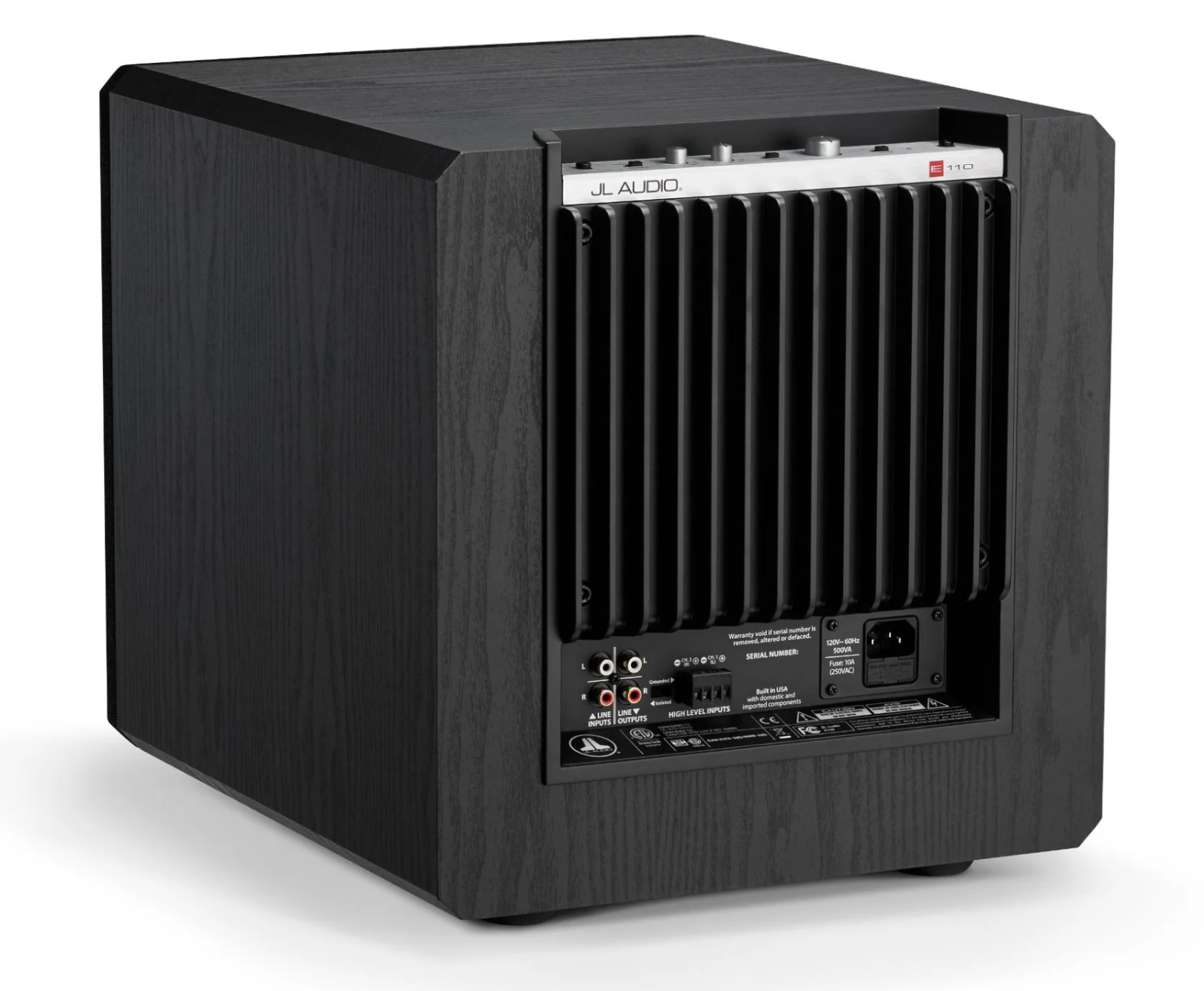

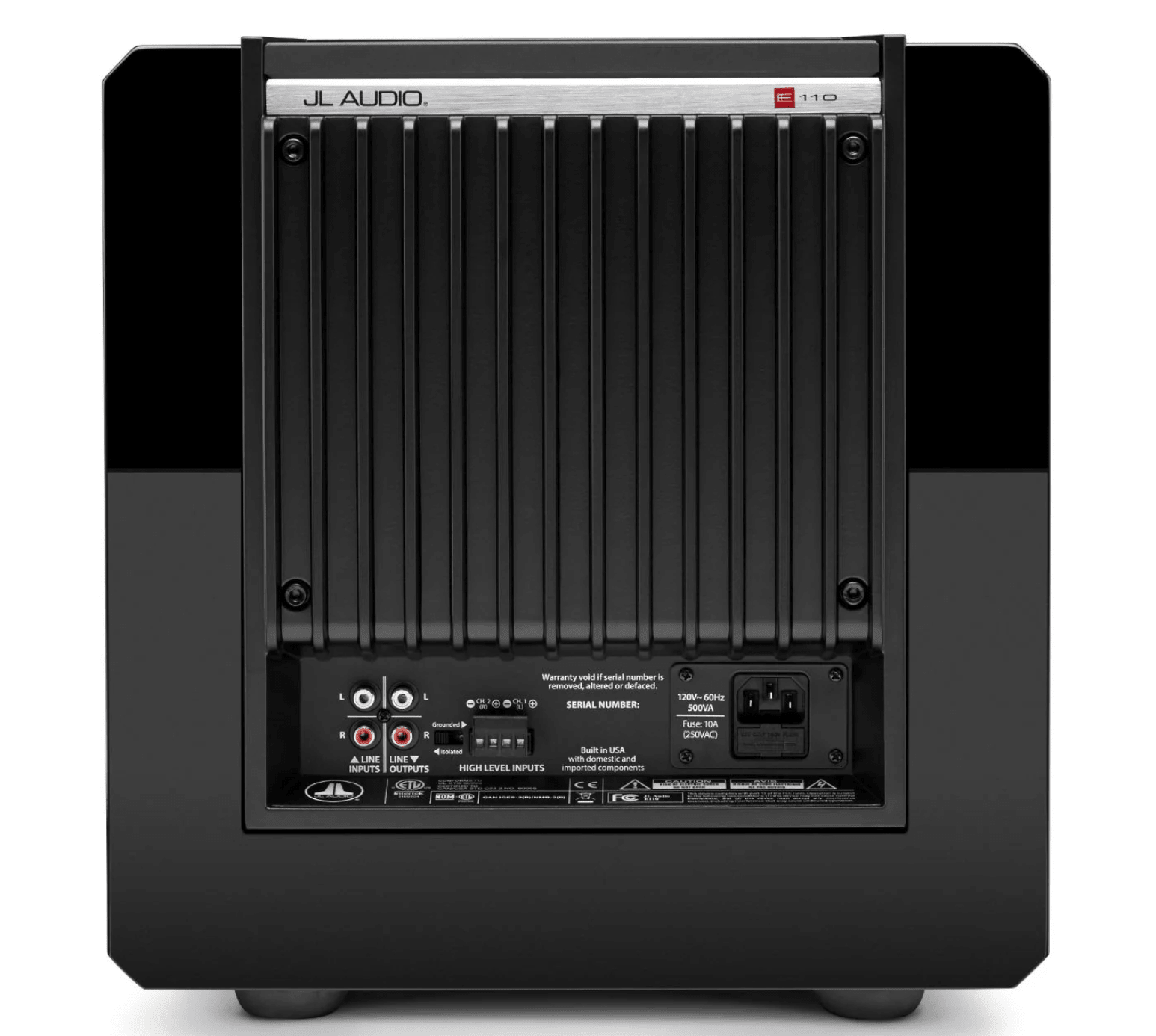

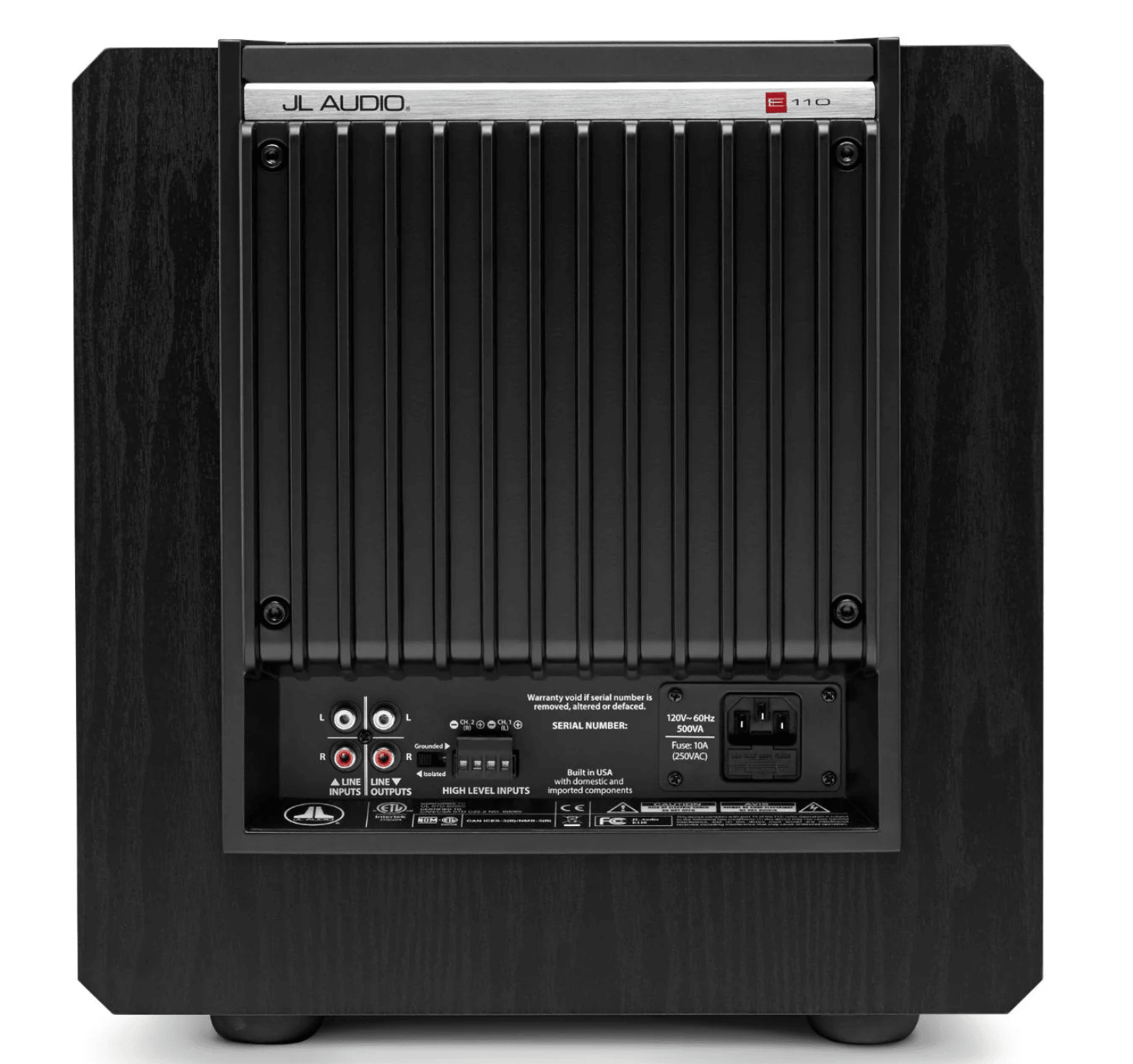

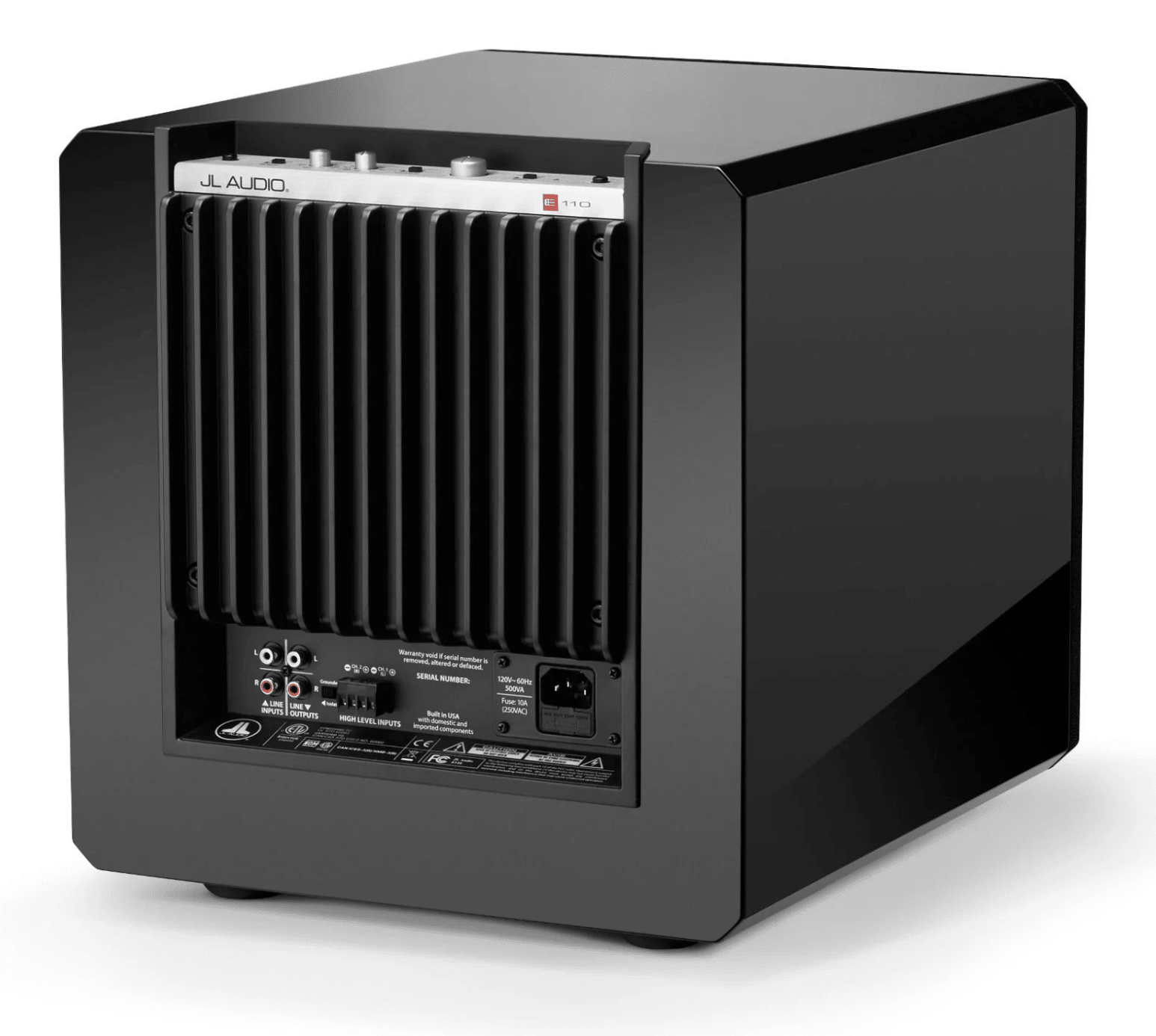

The feature set has been designed to allow the use of E-Subs in a wide range of applications, from full home theatre systems to dedicated two-channel music systems, to desktop audio workstations. Analog inputs are provided for unbalanced line-level signals or speaker level signals. Dedicated line outputs are included to make a bi-amped system arrangement with no additional hardware required. Useful in combating ground-related noise problems, a rear panel switch configures the line level inputs as grounded or isolated.
The E-Sub’s active crossover is a true two-way, 4th order Linkwitz-Riley design, with a low-pass filter feeding the subwoofer's amplifier and a high-pass filtered signal exiting its line outputs. When the on-board crossover is defeated, as is typical in a home theatre installation, the line outputs deliver a pass-through, buffered signal identical to its line inputs, easily permitting multiple E-Subs to be interconnected in a ‘daisy-chain' arrangement.
Switchable polarity and a fully variable phase control round out the signal processing section. All signal processing is performed in the analog domain, ensuring very low latency in critical applications.
Precision-built in JL Audio's U.S. factory, all E-Sub are individually performance-verified and tested to deliver years of listening enjoyment in your home audio or home theatre system.
About E-Sub™
E-Sub™ powered subwoofers apply a series of our key technologies to deliver exceptional sound quality, power and value in a wide range of demanding applications. Inside each E-Sub™, a state-of-the-art, long excursion JL Audio driver combines with a highly efficient, proprietary switching amplifier to deliver astonishing performance from a very compact subwoofer cabinet.
Built like no other
The E-Sub™ driver is an unconventional design, requiring very specific production fixtures and procedures. As one of our highest technology subwoofer drivers, it is built by the same team that assembles our flagship W7-HT drivers, and is tested to the same quality standards. Final assembly of every E-Sub™ takes place in our Miramar, Florida factory, where skilled technicians bring together the driver, enclosure, and electronics package. A full acoustical and electrical test takes place at the end of the production line, to verify the performance of each finished subwoofer.
Technology
JL Audio’s engineering department is at the forefront of research into fundamental loudspeaker behaviour.
They have developed proprietary electromagnetic and suspension analysis systems and invested heavily in state-of-the-art manufacturing and testing. This has borne subwoofer drivers widely considered as reference standards for linear displacement and dynamic stability.
It has also resulted in numerous U.S. and International Patents issued for technologies that refine and extend the performance envelope of the dynamic driver.
Technical Specifications
Enclosure Type Sealed
Enclosure Finish Black Gloss Black Ash
Frequency Response (Anechoic) 25 - 116 Hz (±1.5dB) -3 dB at 23 Hz / 120 Hz -10 dB at 18 Hz / 165 Hz
Effective Piston Area (Sd) 58.78 sq in / 0.0379 sq m
Effective Displacement 131 cu in / 2.1 L
Amplifier Power 1200 W RMS short-term
Power Modes Off, On or Automatic (Signal-Sensing)
Light Modes N/A
Width 13.5 in / 343 mm
Height including feet 14.24 in / 362 mm
Depth 16.51 in / 419 mm
Net Weight 52.7 / 23.9 kg
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change from Manufacturer without notice.
E&OE
