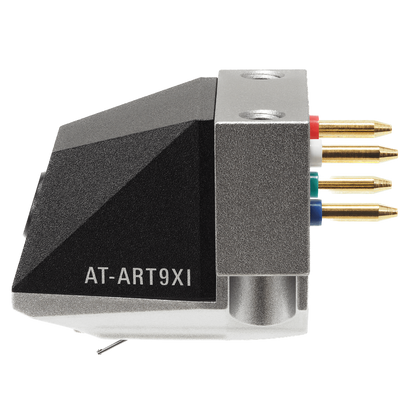

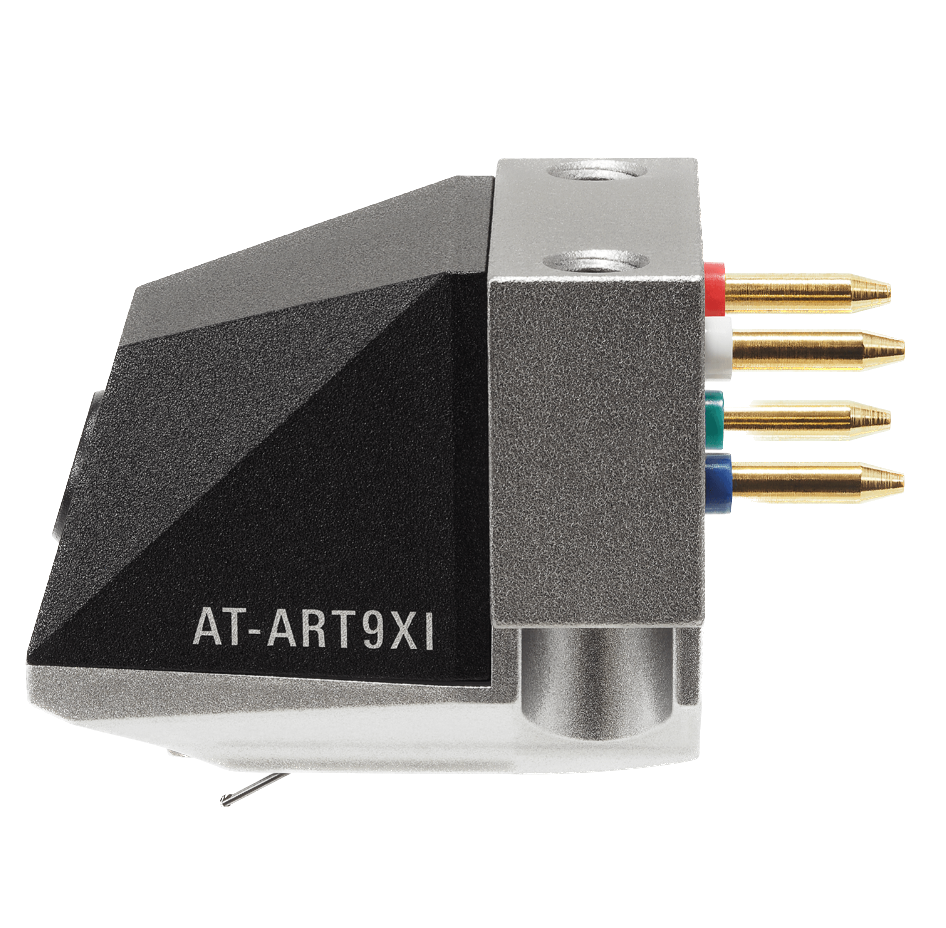

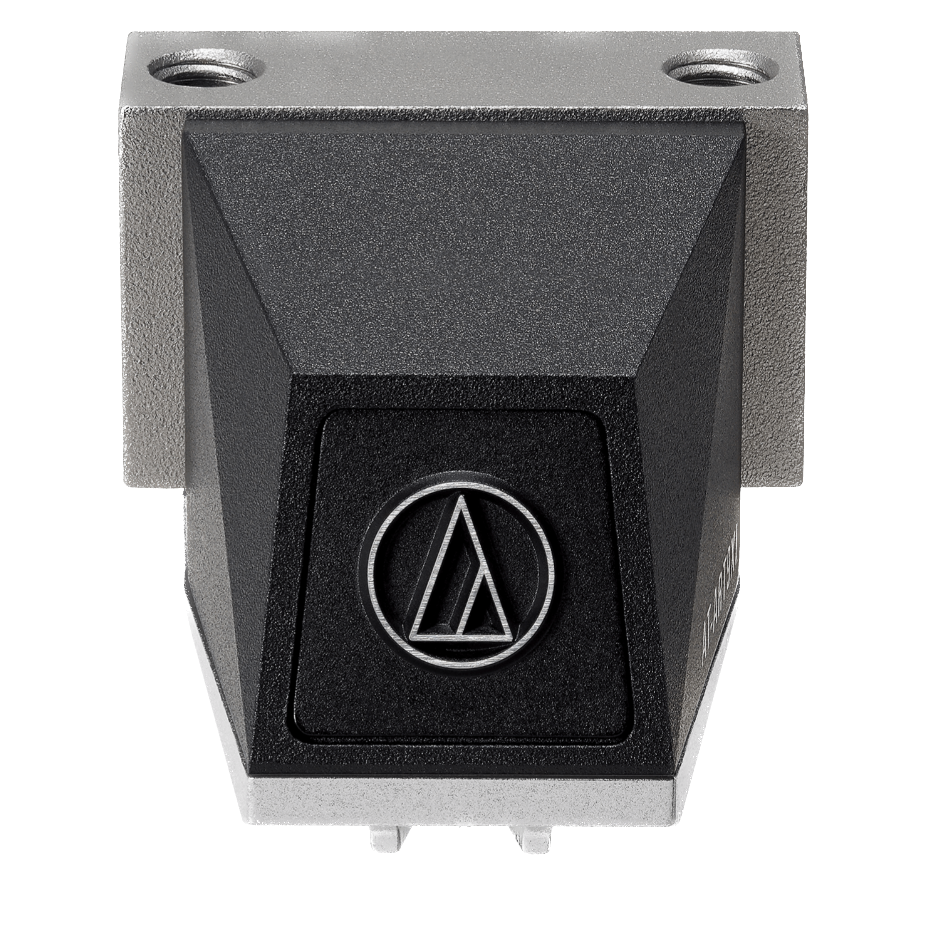

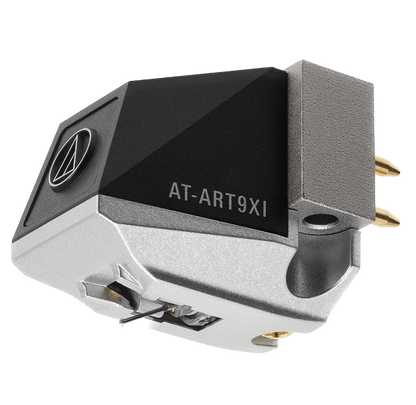

Audio Technica AT-ART9XI Dual Moving Coil Phono Cartridge

Meet the AT-ART9XI

Audio Technica's Flagship Magnetic Core MC Cartridge

Product Features

• Audio-Technica’s flagship magnetic core moving coil cartridg

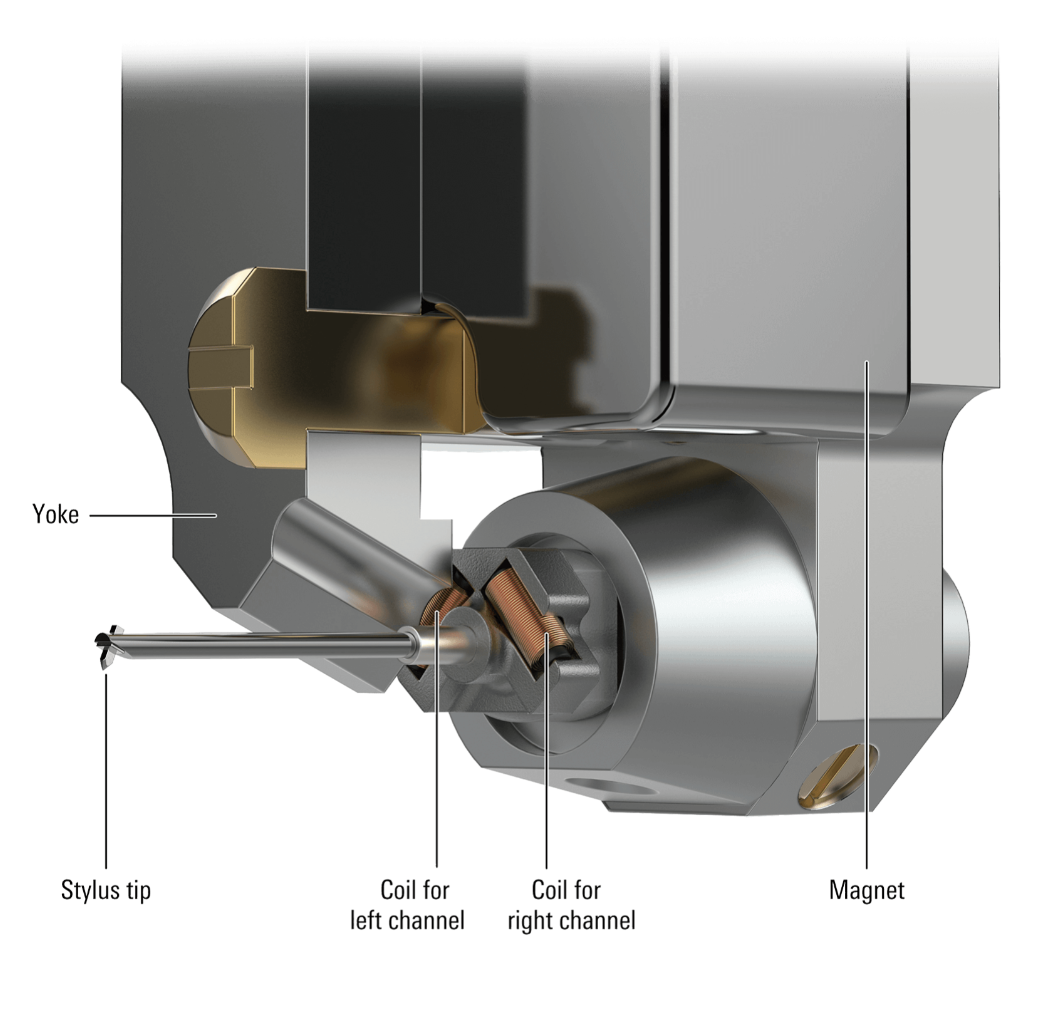

• Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localisation and minimal distortion

• Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics

• Neodymium magnet and permendur yoke significantly increase magnetic energy

• Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)

• PCOCC coils ensure high-fidelity transmission

• Machined aluminium base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability

• Hybrid body of machined aluminium and high-rigidity plastic reduces undesirable parasitic resonance

• Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm

Technical Specifications

Type
Dual Moving Coil

Frequency Response
20 to 50,000 Hz

Channel Separation
30 dB (1 kHz)

Vertical Tracking Angle
20 degrees

Vertical Tracking Force Range
1.6 to 2.0 g (standard 1.8 g)

Stylus Construction
Nude

Recommended Load Impedance
Min. 100 ohms (when head amplifier connected)

Coil Impedance
12 ohms (1 kHz)

DC Resistance
12 Ohm

Coil Inductance
25 uH (1 kHz)

Output Voltage
0.5 mV (1 kHz, 5 cm/sec.)

Output Channel Balance
0.5 dB (1 kHz)

Stylus Shape
Special Line Contact

Cantilever
0.28 mm diameter solid boron

Static Compliance
25 x 10-6 cm/dyne

Dynamic Compliance
15 x 10-6 cm/dyne (100 Hz)

Mounting
12.7 mm or 1/2 inch

Threaded Hole
M2.6 x 2

Cartridge Weight
8.5 g

Dimensions (H x W x L)
17.3 x 16.8 x 25.7 mm

Warranty
1 year limited warranty

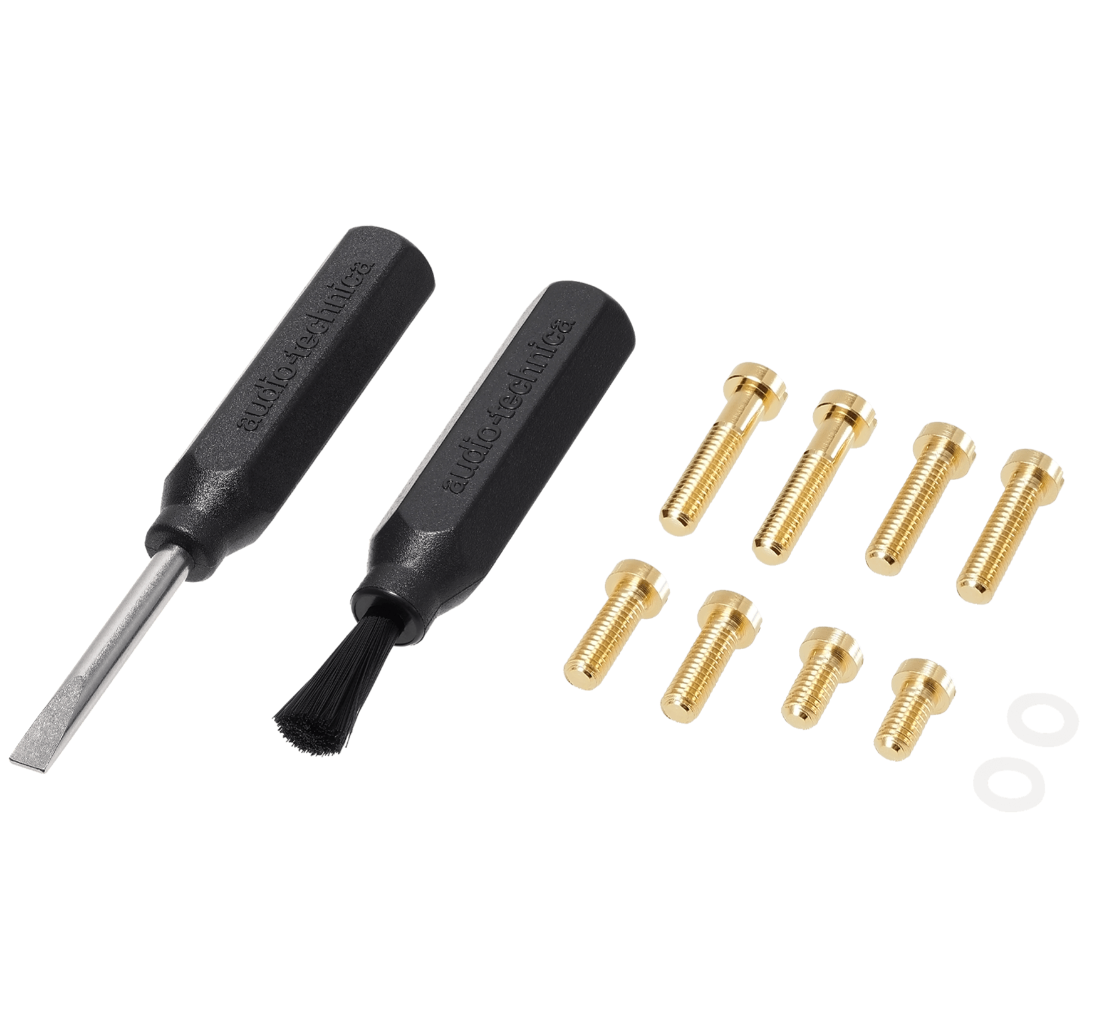

Included Accessories

• Non-magnetic screwdriver
• 2 washers
• Cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2)
• Protector
• Brush
