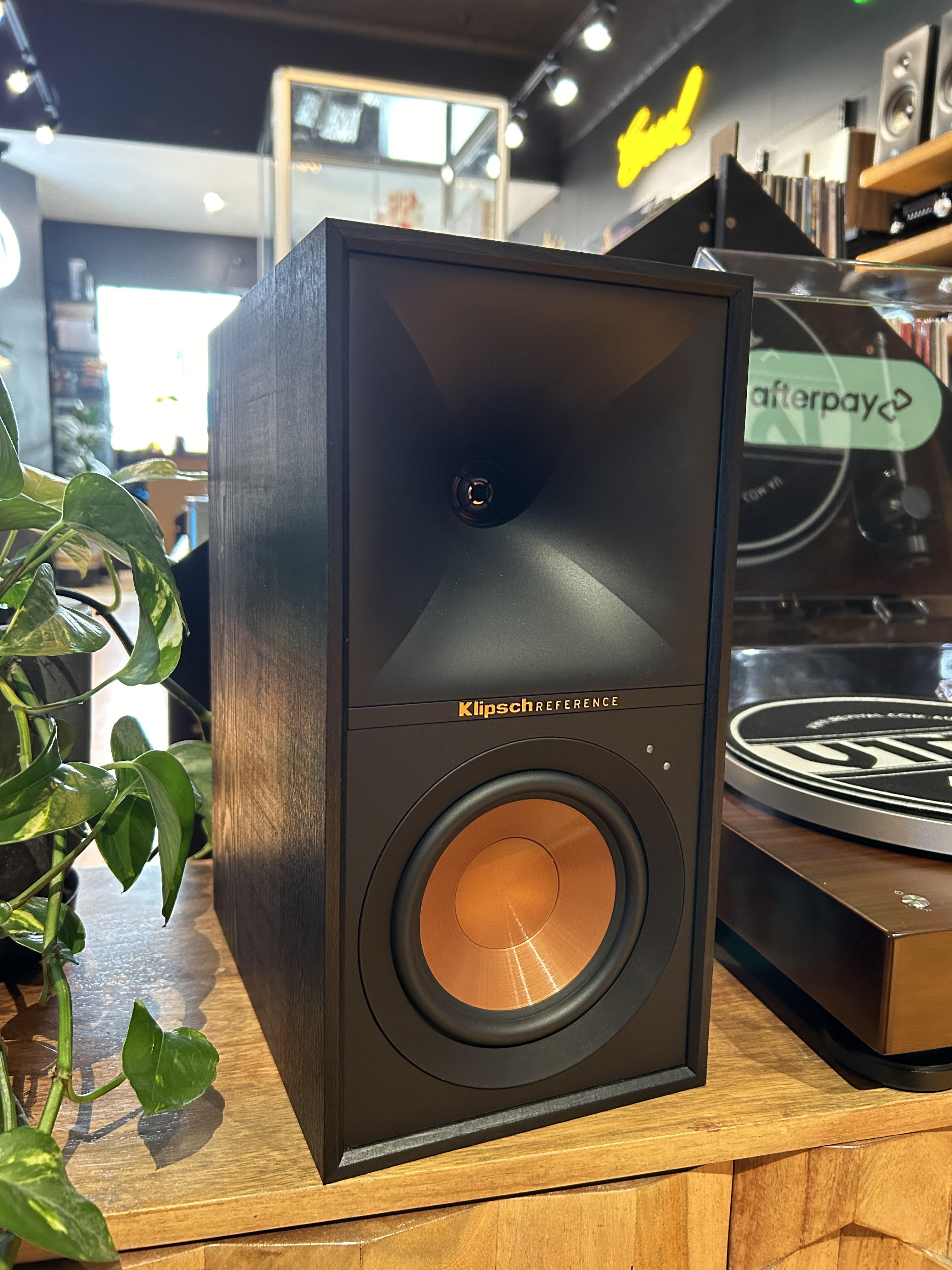

POWERED SPEAKERS WITH 5.25” WOOFERS
PLUG & PLAY THE FUSS FREE WAY
As Powered Speakers, the R-50PMs don’t need to be connected to an AVR or another elaborate setup to sound great. Plug them into a power outlet, then each other, and add any additional lines you’d like (or simply stream via Bluetooth®).
BIGGER HORN, WIDER SOUNDSTAGE
Experience legendary Klipsch Reference sound with larger edge-to-edge Tractrix® horns mated to 1” aluminium LTS tweeters for a wider listening area and perfect clarity. Crank up the volume without compromising sound quality and tell your neighbours we’re not sorry!
HAPPINESS IS COPPER AND BLACK
The R-50PM’s copper-spun TCP woofers use steeply angled cones for improved rigidity and accuracy. Low-profile magnetic grilles give you flexibility to show off the classic Klipsch cones or switch things up with a sleek black exterior.
LINEAR TRAVEL SUSPENSION (LTS) ALUMINIUM TWEETER
A hallmark of Klipsch speakers, the exclusive 1” LTS aluminium tweeter with Kapton Suspension minimises distortion for more detailed performances. Aluminum is an extremely light and rigid material used in the tweeter assembly to provide high efficiency and clarity.
MORE BOX DEPTH FOR BIGGER BASS

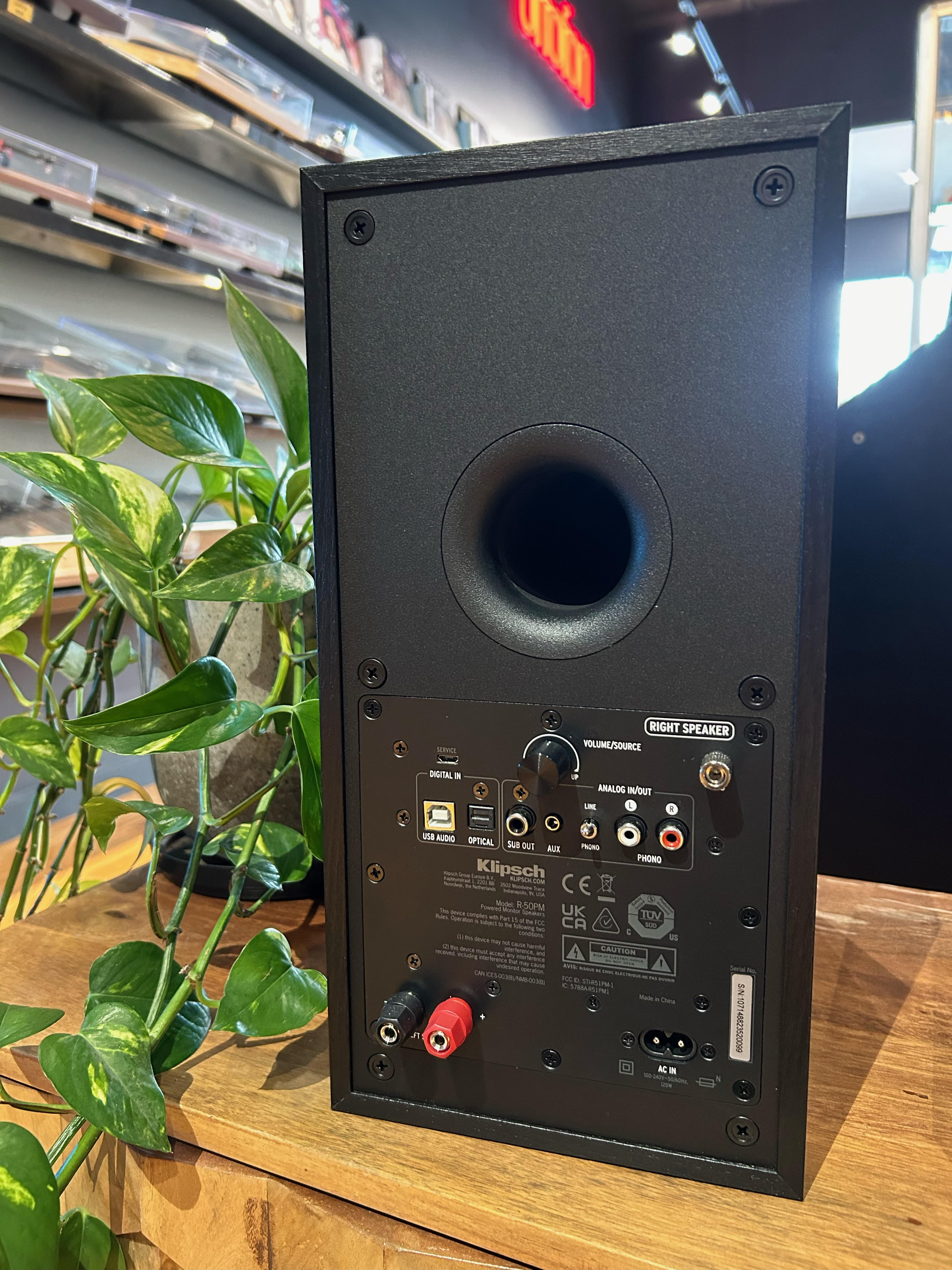

The R-50PMs feature a small but mighty cabinet that can produce bass as deep as 55Hz thanks to bass-reflex rear-firing ports. Expertly engineered with extra cabinet depth, you’ll experience warmer, more impactful sound without connecting to a sub, but…
BASS LOVERS – WE SEE YOU
We’ve included an RCA line level output on the R-50PMs so you can add a subwoofer to your stereo system to enhance low frequencies even further if that's your thing.
SPECIFICATIONS
| System Description | Powered Monitor (Pair) |
| Frequency Response | 55 Hz - 20 kHz |
| Dynamic Bass Extension | 44 Hz |
| Maximum Output | 104 dB |
| Total System Power | 120 W Total System Power (240 W Peak) 60 W per Channel Continuous @ <%1 THD |
| High Frequency Driver | 1” (2.5 cm) Aluminium LTS Tweeter Mated to 90° x 90° Square Tractrix® Horn |
| Low Frequency Driver | Single 5.25” (13.3 cm) Spun-Copper TCP Woofer |
| Crossover Frequency | 1,663 Hz (Passive) |
| Enclosure Material | MDF |
| Enclosure Type | Bass-Reflex via Rear-Firing Ports |

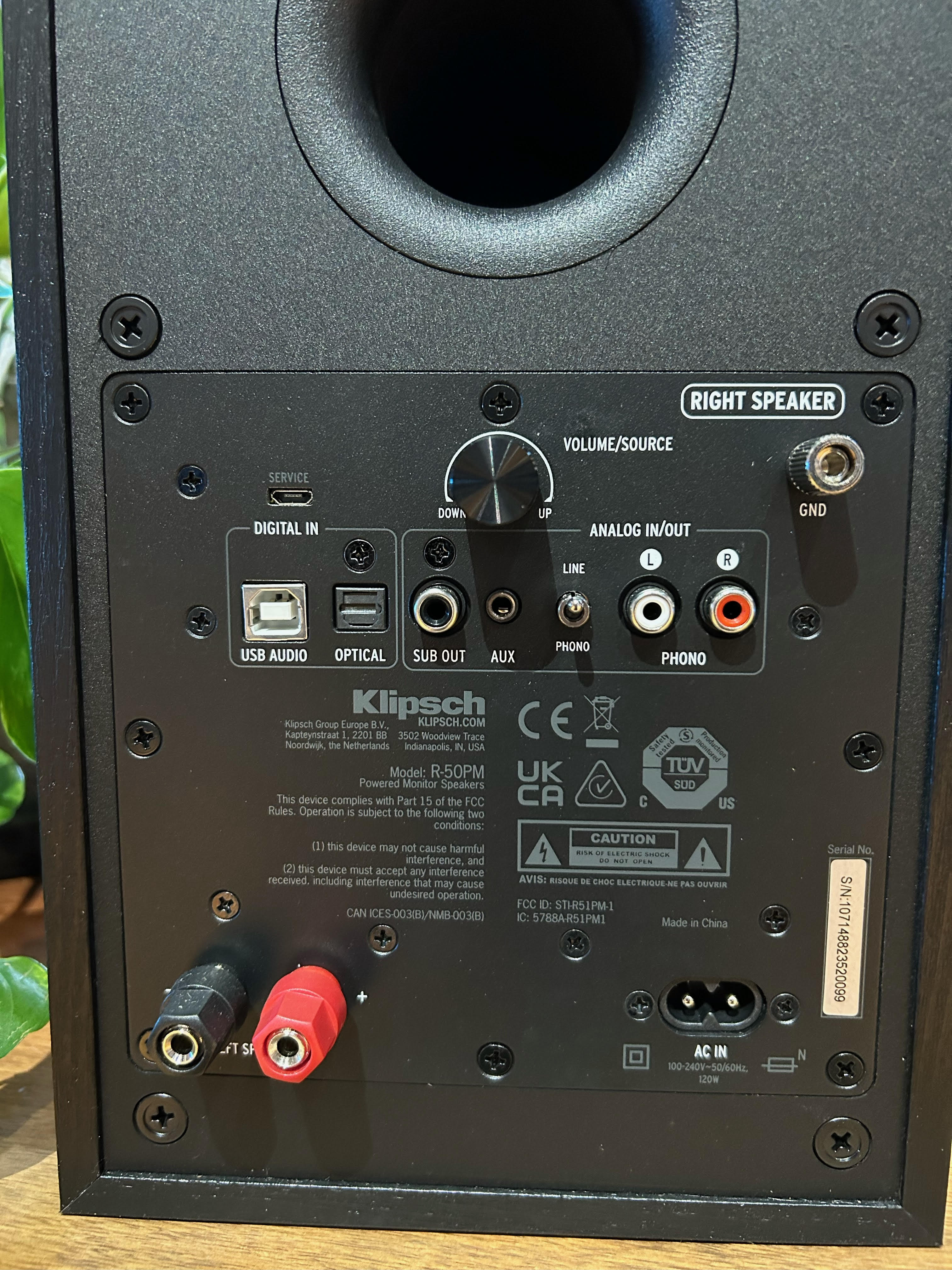

| Inputs | Bluetooth® Wireless Technology Phono/Line Analogue (with Switch and Ground Screw Terminal) 3.5 mm Analogue Mini Jack USB Digital Optical Digital |
| Outputs | Single RCA Line Level Output for Connection to Subwoofer |
| Height | 356 mm (14”) |
| Width | 178 mm (7”) |
| Depth | 274 mm (10.8”) |
| Weight | 11.2 kg (24.8 lb) (Pair) |
| Finish | Black |
| Voltage | 100-240 V 50/60 Hz Internal Power Supply with Region Specific Power Cords |
| Included Accessories | Remote Control (with 2 x AAA Batteries) 4 m Speaker Wire with Soldered Tips 2 m Power Cord (Region Specific) 2 m USB Type A to Type B Cable |
