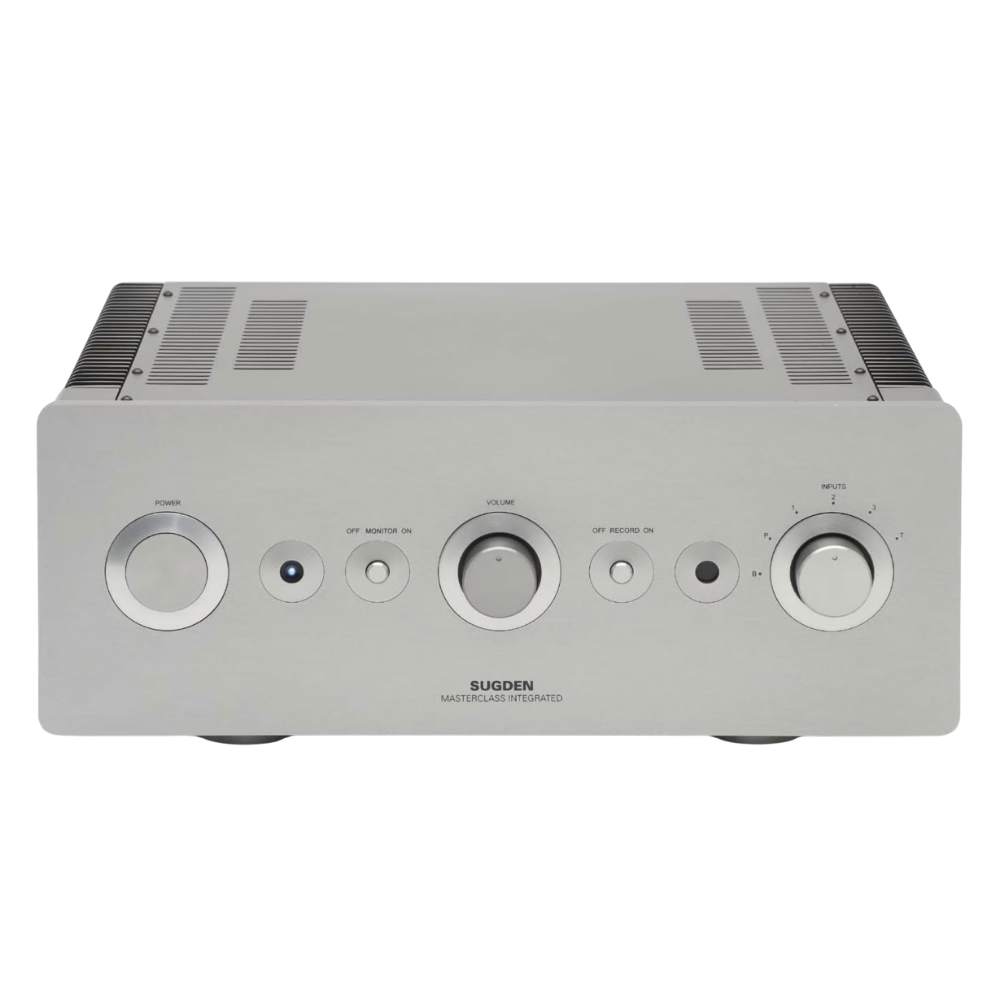

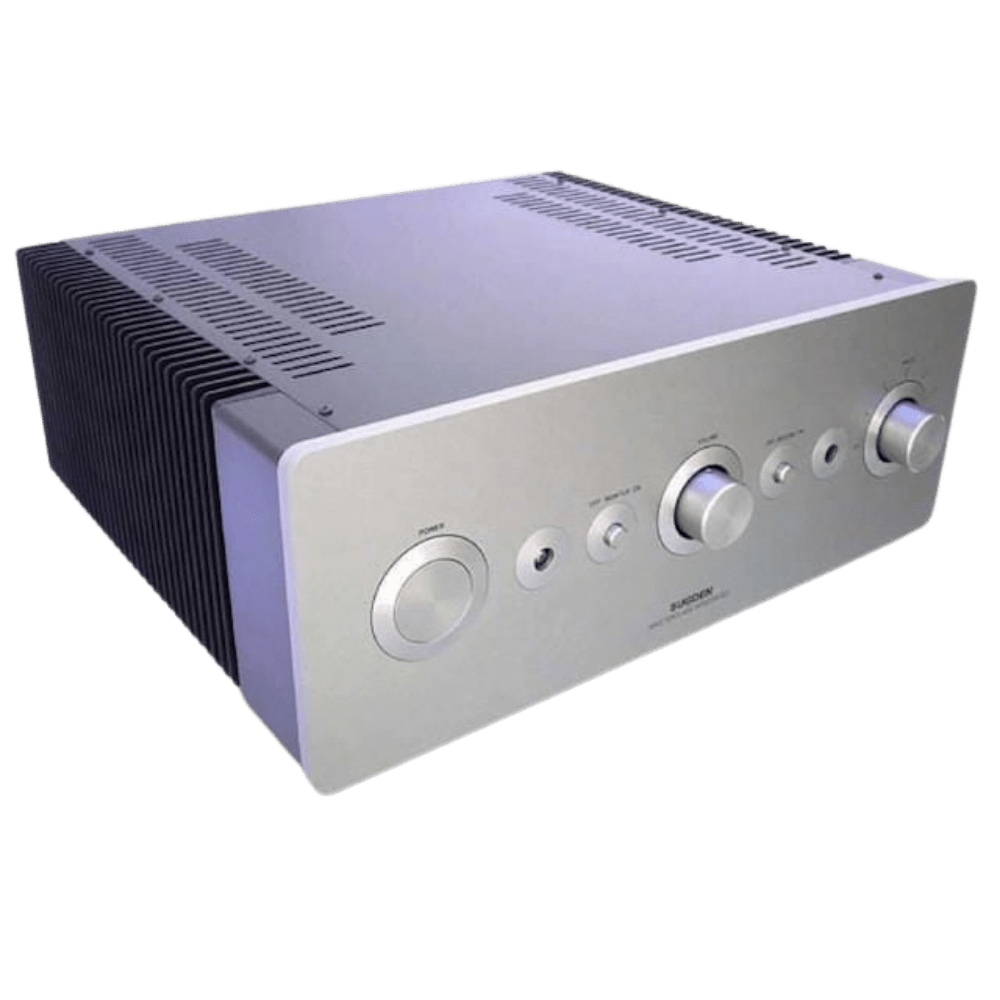

Sugden Masterclass IA-4 Remote Volume Integrated Amplifier
Sugden Masterclass IA-4 Remote Volume Pure Class A Integrated Stereo Amplifier 33 watts
The Sugden Masterclass IA-4 Pure Class A Integrated Amplifier is the largest and most powerful integrated amplifier in the Sugden family which takes advantage of the initial Sugden Class A output configuration.The Pure Class A solid state output stage equipped with greater power from a custom-built transformer and low impedance supply can project and fill an enormous holographic sound stage.
An extraordinary, organic, euphonic, acoustic performance, achieved by the integration of a state of the art preamplifier and the classic Sugden Class A output stage.The integrated system of pre-amplifier and power amplifier driven by individual power supplies enables the ultimate in musical performance.
Just listen - you will find it worth more than a thousand words.Despite the high power installed, Sugden have included a Moving magnet phono stage of extremely high quality.
Individually hand-made in England.
Inputs : Three line level, one tape, one Moving Magnet phono and one balanced.

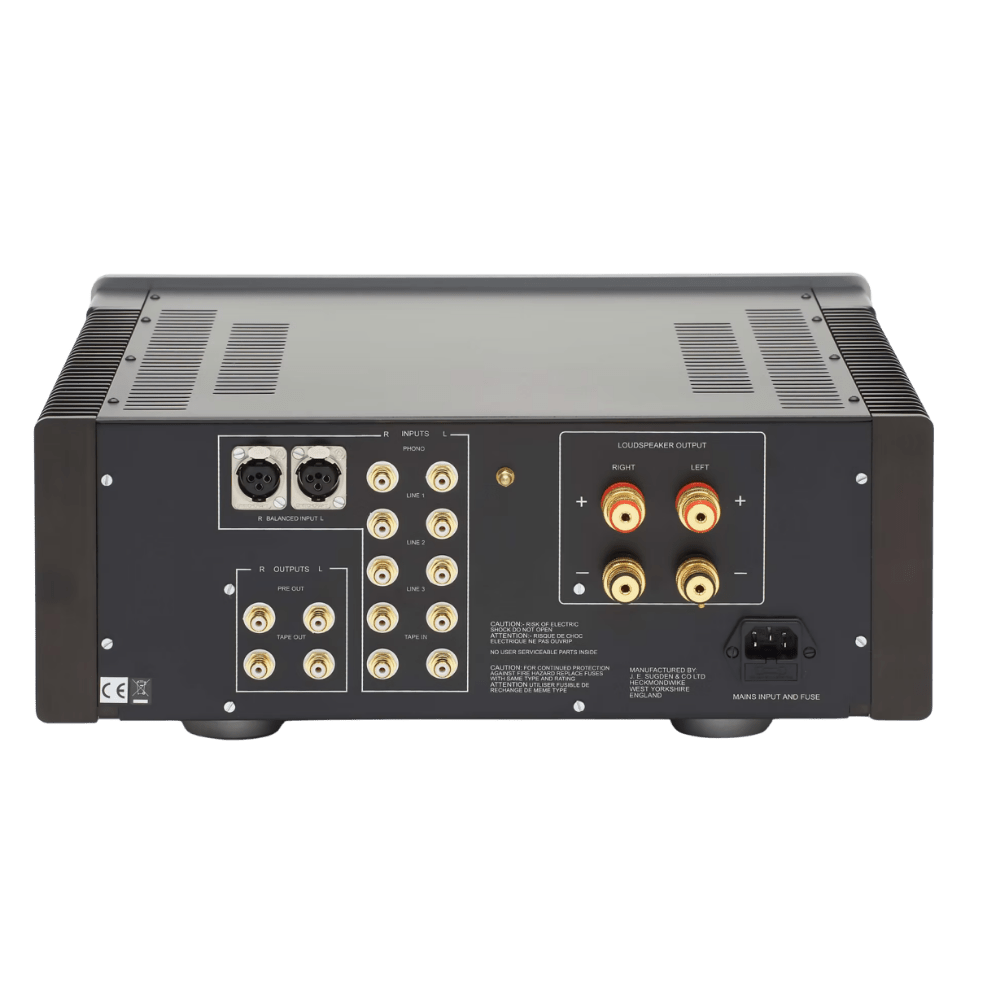

Outputs : Variable pre-out, fixed out and loudspeaker out.
Volume Control : Remote control RC5 compatible.
Tape : Monitor and record off.
Input Sensitivity :125mV for maximum output.
Phono Input Sensitivity: 2mV Moving Magnet.
Power Output: 33 watts into 8 ohms both channels working.
Frequency Response : 14Hz to 200kHz +/-1dB.
Bandwidth : 6Hz to 300kHz +/- 3dB.
Signal to Noise : >84dB.
Nett Weight : 20kg.
Overall Dimensions (including terminals) : 165mm x 430mm x 440mm (HWD).
*Reprint from Manufacturers Website.
