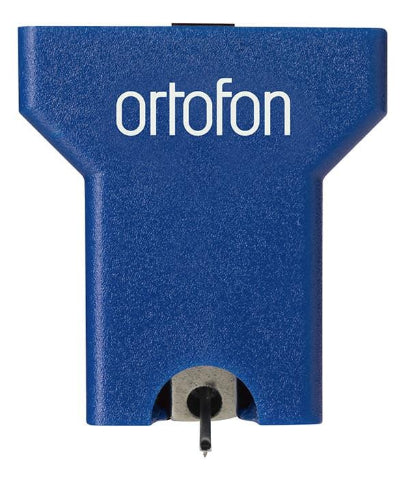

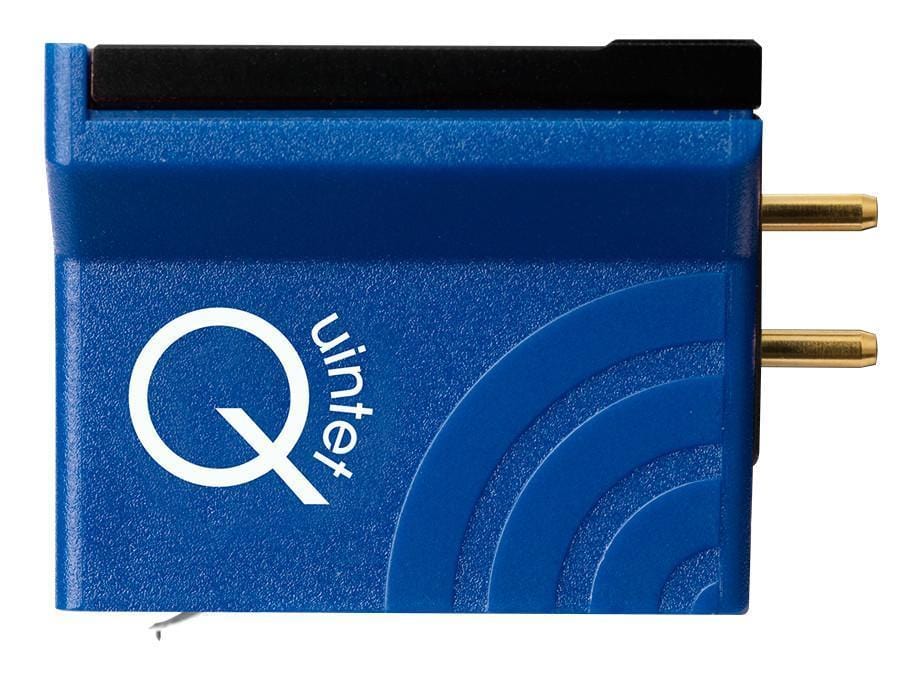

Ortofon Quintet Blue Moving Coil Cartridge
"WE ASSURE YOU THAT ALL OUR PRODUCTS ARE 100% GENUINE AND COME WITH A FULL AUSTRALIAN WARRANTY."
Meet the Beautiful Quintet Blue Moving Coil Cartridge
The Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
It features a Nude Elliptical diamond mounted on an aluminium cantilever.
The Quintet Blue will bring more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic.
Technical Specifications |
|
|
| Output voltage at 1 kHz 5 cm/sec | 0.5 mV | |
| Channel balance | < 1.5 dB | |
| Channel separation at 1 kHz | > 21 dB | |
| Channel separation at 15 kHz | > 14 dB | |
| Frequency range at -3 dB | 20-25.000 Hz | |
| Frequency response 20-20.000 Hz | +/-2.5 dB | |
| Tracking ability at 315 Hz at recommended tracking force *) | 70 μm | |
| Compliance, dynamic, lateral | 15 μm/mN | |
| Stylus type | Nude Elliptical | |
| Stylus tip radius | r/R 8/18 μm | |
| Tracking force range | 2.1-2.5 g (21-25 mN) | |
| Tracking force recommended | 2.3 g (23 mN) | |
| Tracking angle | 20º | |
| Internal impedance, DC resistance | 7 Ohm | |
| Recommended load impedance | >20 Ohm | |
| Cartridge body material | ABS/Aluminium | |
| Coil wire material | Pure 4-nines copper | |
| Cartridge colour | Blue | |
| Cartridge weight | 9 g |
*Reprint from Manufacturers Website.
