Ortofon Hi-Fi 30 Replacement Stylus

Ortofon Hi-Fi 30 Replacement Stylus

Regular price $402.00 AUD
Regular price $449.00 AUD Sale price $402.00 AUD
Sale Call For Availability
Taxes included. Shipping calculated at checkout.
  • AFTER PAY
  • ZIP PAY
  • LAY BUY
  • 755 NICHOLSON ST CARLTON NORTH
  • Full Aussie Manufact. Warranty
  • Free Shipping over $500

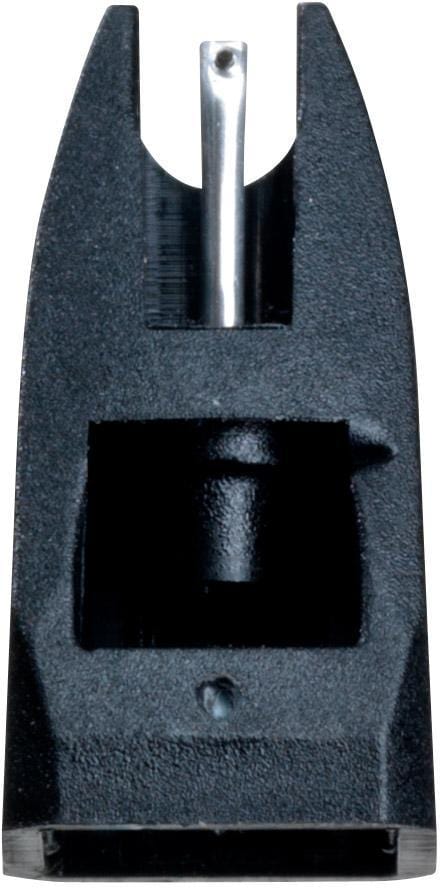

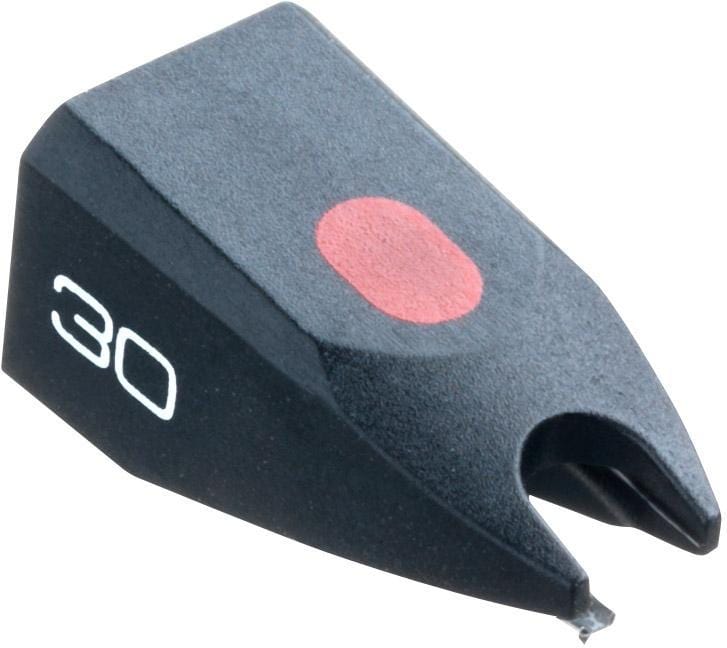

Ortofon Hi-Fi 30 Replacement Stylus

Replacement stylus for Ortofon 30 series cartridges

Technical data

  • Frequency range | 20-29,000 Hz
  • Frequency response | 20-20,000 Hz + 2 / - 3 dB
  • Tracking ability at 315Hz at recommended tracking force | 90 µm
  • Compliance, dynamic, lateral | 25 µm/mN
  • Stylus type | Nude Fine LIne
  • Stylus tip radius | r/R 8/40 µm
  • Equivalent stylus tip mass | 0.3 mg
  • Tracking force range | 1.25-1.75 g (12.5-17.5 mN)
  • Tracking force (recommended) | 1.5 g (15 mN)
  • Tracking angle | 20°
  • Stylus colour | Black

Recommended for the following cartridges:
Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H,TM 30H



*reprint from manufacturers website
