Ortofon 2M Red Stylus

Ortofon 2M Red Stylus

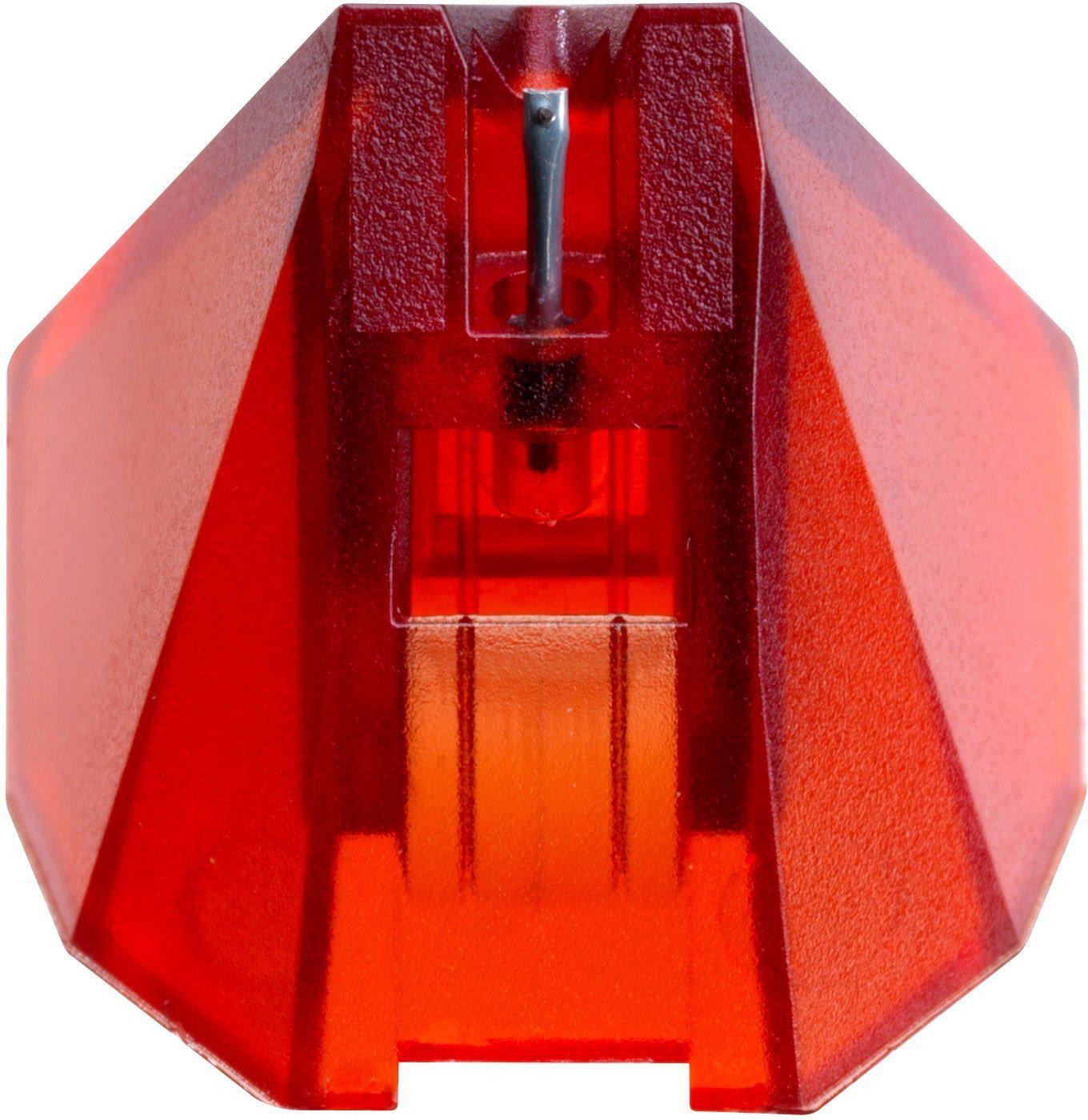

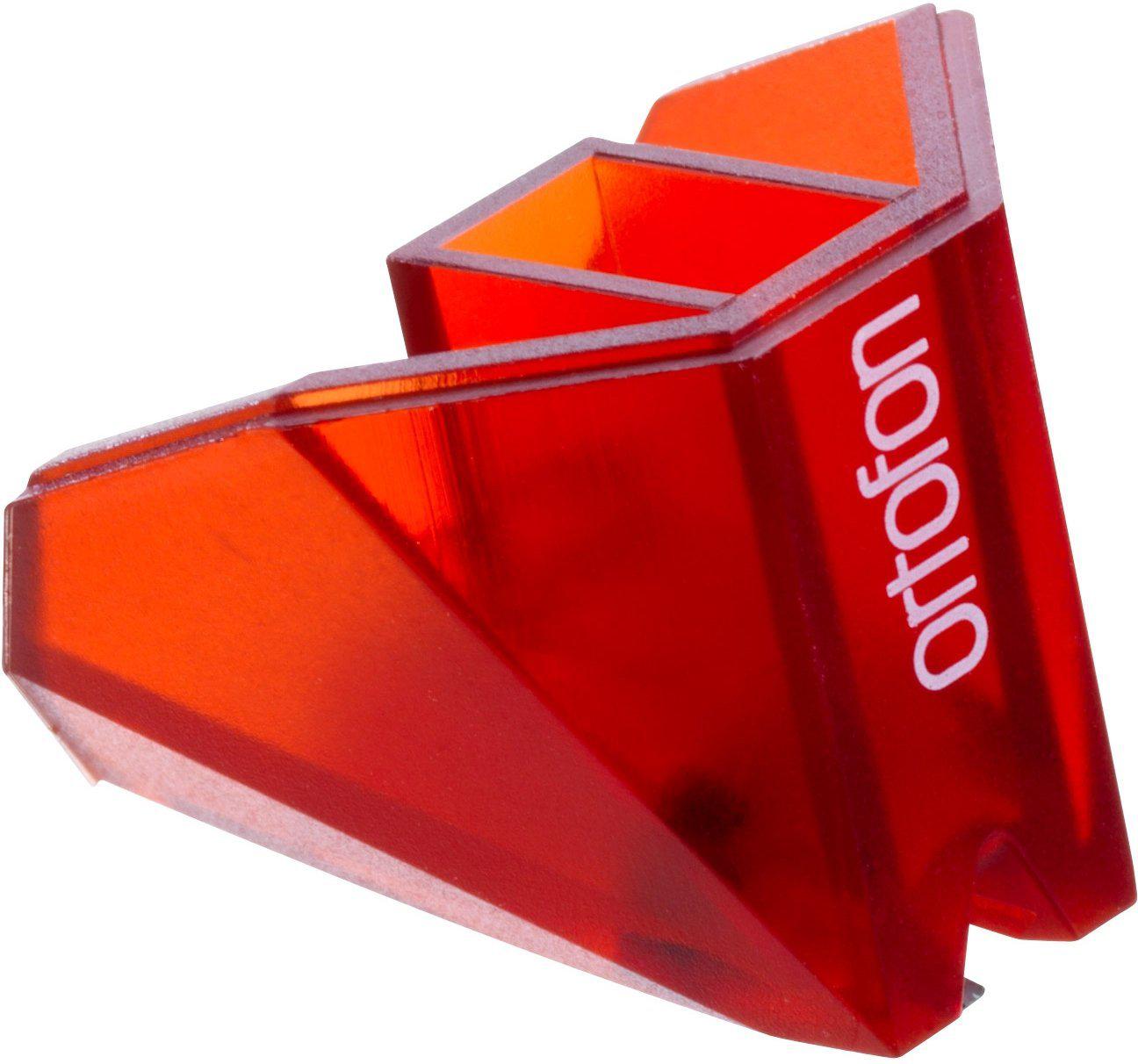

Meet the Replacement Stylus for the Ortofon 2M Red cartridge

Technical Specifications

• Frequency range | 20-22,000 Hz
• Frequency response | 20-20,000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force | 70 µm
• Compliance, dynamic, lateral | 20 µm/mN
• Stylus type | Elliptical
• Stylus tip radius | r/R 8/18 µm
• Equivalent stylus tip mass | 0.5 mg
• Tracking force range | 1.6-2.0 g (16-20 mN)
• Tracking force (recommended) | 1.8 g (18 mN)
• Tracking angle | 20°
• Stylus colour | Red
• Recommended for the following cartridges | 2M Red / 2M Red Verso (interchangeable with 2M Blue / 2M Blue Verso)



*Reprint from manufacturers website
