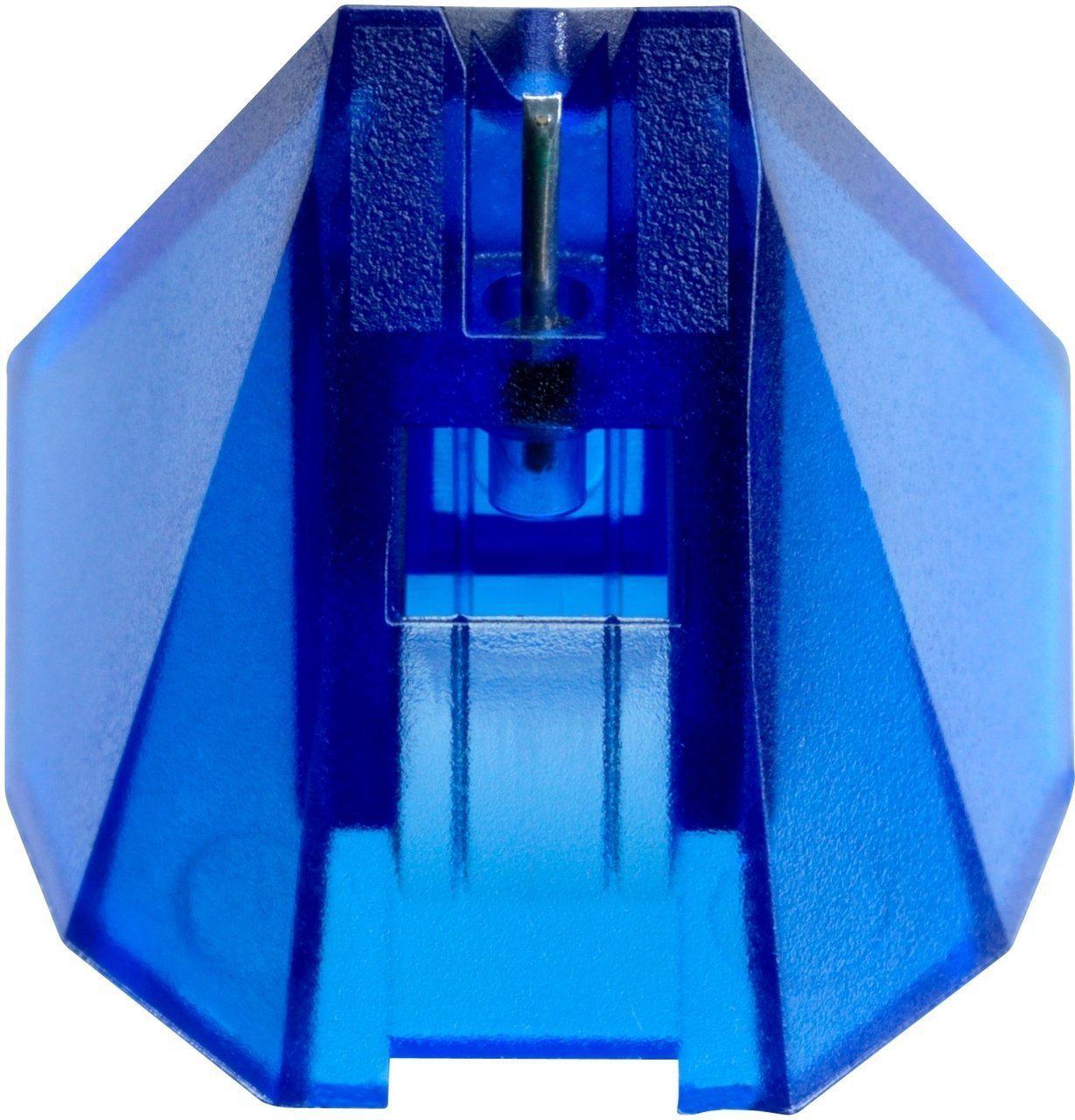

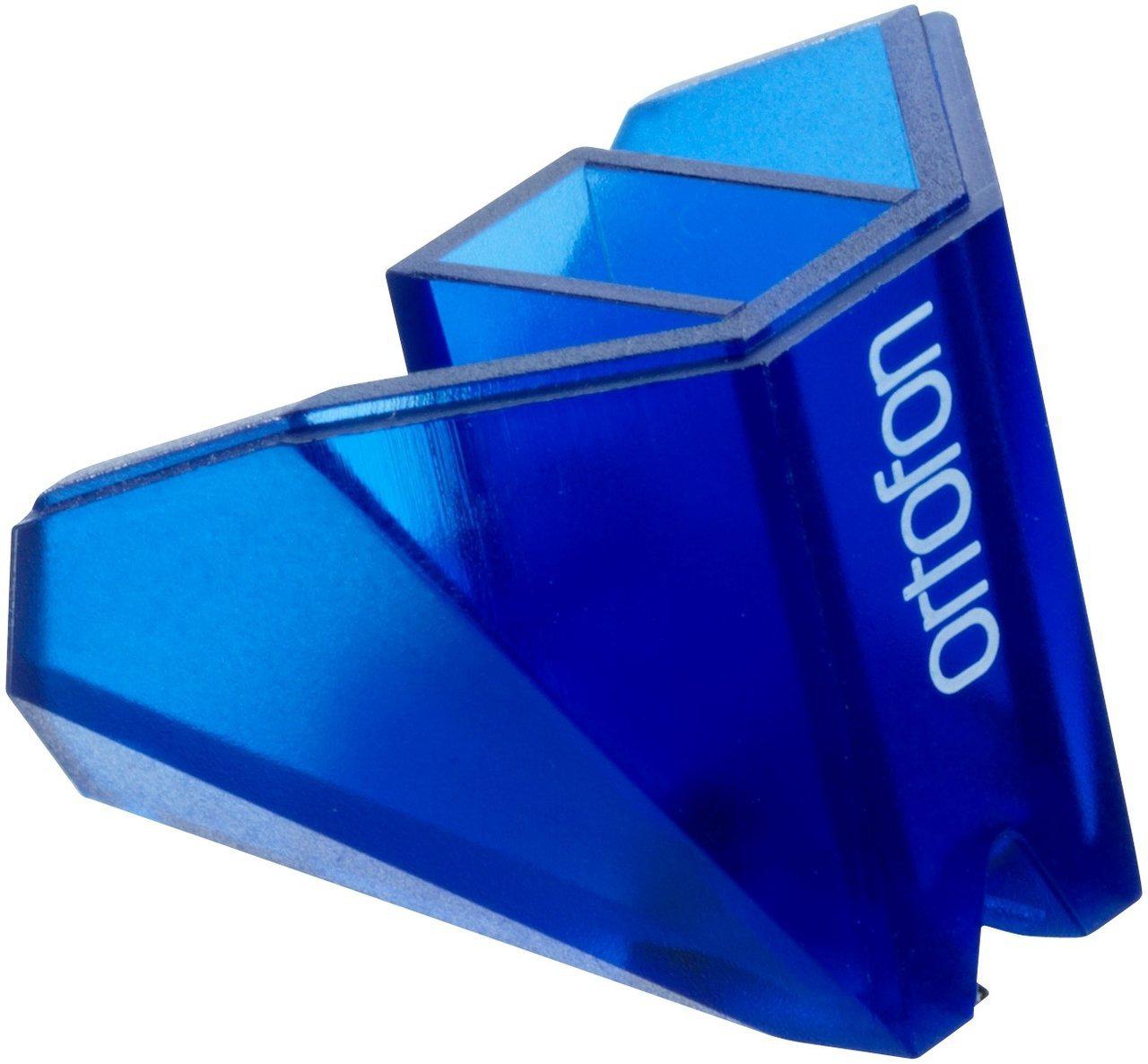

Ortofon Hi-Fi 2M Blue Replacement Stylus

Ortofon Hi-Fi 2M Blue Replacement Stylus

Replacement stylus for Ortofon 2M Blue cartridge

Technical data

• Frequency range | 20-25,000 Hz
• Frequency response | 20-20,000 Hz + 2 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force | 80 µm
• Compliance, dynamic, lateral | 20 µm/mN
• Stylus type | Nude Elliptical
• Stylus tip radius | r/R 8/18 µm
• Equivalent stylus tip mass | 0,5 mg
• Tracking force range | 1,6-2,0 g (16-20 mN)
• Tracking force (recommended) | 1,8 g (18 mN)
• Tracking angle | 20°
• Stylus colour | Blue

Recommended for the following cartridges:
2M Blue / 2M Blue Verso (interchangeable with 2M Red / 2M Red Verso)
