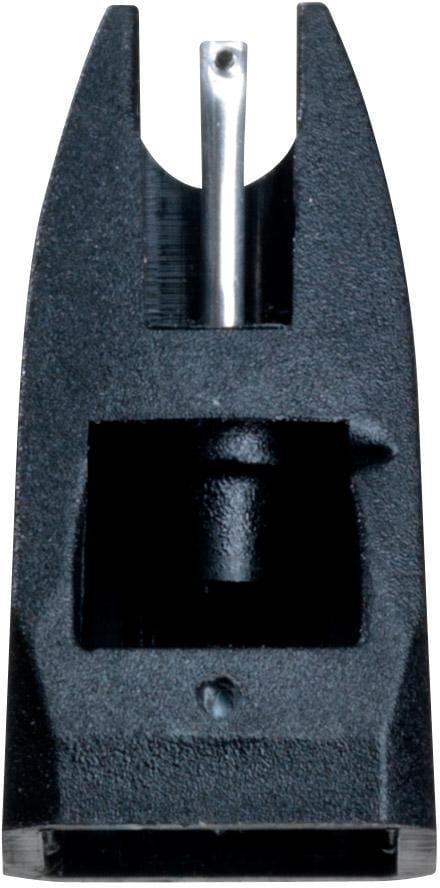

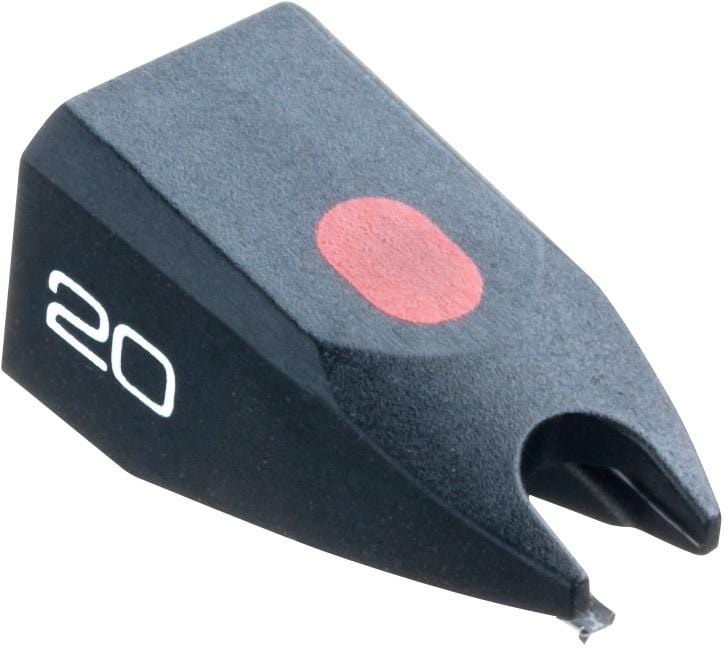

    Ortofon Hi-Fi 20 Replacement Stylus

    by Ortofon
    Save $29.00 Save $29.00
    Original price $279.00
    Original price $279.00 - Original price $279.00
    Original price $279.00
    Current price $250.00
    $250.00 - $250.00
    Current price $250.00


    Replacement stylus for Ortofon 20 series cartridges

    Technical data |
    ---|---
    Frequency range | 20-27,000 Hz
    Frequency response | 20-20,000 Hz + 2 / - 3 dB
    Tracking ability at 315Hz at recommended tracking force | 80 µm
    Compliance, dynamic, lateral | 25 µm/mN
    Stylus type | Nude Elliptical
    Stylus tip radius | r/R 8/18 µm
    Equivalent stylus tip mass | 0.4 mg
    Tracking force range | 1.25-1.75 g (12.5-17.5 mN)
    Tracking force (recommended) | 1.5 g (15 mN)
    Tracking angle | 20°
    Stylus colour | Black

    Recommended for the following cartridges

    *reprint form manufacturers website
